Cooling water pumps split into two duties that should never be confused: seawater pumps handling raw, corrosive, marine-growth-prone water, and fresh water pumps circulating treated coolant in a closed loop — different materials, different failure modes.

Read more — Cooling Water Pump explained ▾

What sets a cooling water pump apart

Cooling water pumps on a ship fall into two distinct duties that share a name but little else. Seawater (raw water) pumps draw directly from a sea chest and handle water carrying silt, marine growth and dissolved salts at full corrosion potential; fresh water (jacket water) pumps circulate treated, closed-loop coolant that stays chemically stable for years if properly dosed. Confusing the two in a spare-parts order is a common and expensive mistake, since a bronze or duplex-impeller seawater pump and a cast-iron fresh water pump are not interchangeable.

Centrifugal cooling water pump, cross-section — Cross-section of a centrifugal cooling water pump showing the suction inlet, impeller with vanes inside the volute casing, discharge nozzle, shaft, mechanical seal and bearing housing toward the motor coupling.

Main components

Casing and impeller

Bronze, cast iron or duplex stainless depending on duty; seawater pumps favour corrosion-resistant alloys, fresh water pumps can use plainer cast iron since the medium is non-corrosive when correctly treated.

Shaft seal

Mechanical seal or, on older designs, a packed gland; the seal is usually the first component to leak and the most common reason a pump gets pulled for overhaul.

Bearings

Grease or oil-lubricated bearings carrying radial and axial load from the impeller; bearing condition is what most vibration monitoring on these pumps is actually watching.

Drive

Direct-coupled to an electric motor in most auxiliary applications, or engine-driven off the main engine's power take-off for the primary jacket water pump on many two-stroke installations.

Selection / Sizing

Flow rate and head matched to the heat load being removed and the resistance of the piping and coolers downstream, not just the engine maker's nominal figure.
NPSH available at the pump suction, especially for seawater pumps drawing from a sea chest at draft-dependent submersion.
Material selection against the actual seawater temperature and chloride content on the vessel's trading routes — warm tropical seawater is more aggressive on standard bronze than cold northern water.
Standby arrangement: class requires duplicated cooling water pumps for essential services, so sizing includes confirming the standby pump alone can carry full load.

Regulations / Class

Class rules require duplication of cooling water pumps serving the main engine and essential auxiliaries, with the standby pump capable of automatic or rapid manual start on failure of the running pump. Periodic survey includes confirming the standby pump starts and reaches rated pressure within its required time, and that changeover valves and non-return valves in the system operate correctly.

Typical faults

Fault	Cause	Consequence
Falling discharge pressure	Impeller erosion or marine growth restricting the seawater strainer	Reduced cooling capacity, rising engine or generator temperatures
Mechanical seal leakage	Seal face wear or running the pump dry momentarily on strainer blockage	Water ingress to the bearing housing, accelerated bearing failure
Cavitation noise	Insufficient NPSH from a low sea chest level or clogged strainer	Impeller pitting and progressive loss of flow
Bearing overheating	Misalignment after a seal or bearing replacement	Repeat bearing failures on a shortening interval

What to look for in a supplier

Material certificates confirming the impeller and casing alloy match the specified duty, particularly for seawater service.
A performance curve tested at the actual point of operation, not only at best-efficiency point.
Seal kits and wear rings available as standard spares, since these are the parts replaced most often.
Compatibility confirmed against the existing baseplate and coupling if the pump is a like-for-like replacement.

A seawater pump that suddenly needs the strainer cleared every watch instead of every week is usually telling you marine growth is building somewhere upstream, not that the pump itself is failing.

Inspector Mode Show All 627 total

32 manufacturers · 627 models

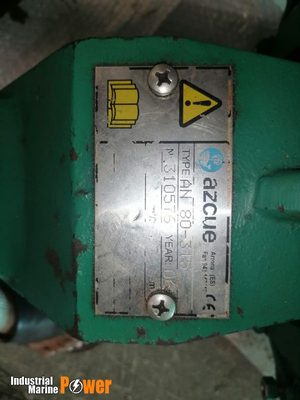

Azcue

140 ✓ 135 verified

Application

Self-priming cooling, ballast, fire systems

Common Failures & Inspection Points

Area: Cavitation damage - pitting and cratering on impeller leading edges, casing wear surfaces
Check: Inspect impeller blade leading edges and pump volute for erosion patterns, pitting, cratering. Install inlet pressure transmitters; baseline trend shows >10% sustained drop indicates strainer/suction piping issues requiring immediate investigation.
Area: Bearing wear - rumbling noise, loss of bearing preload, increased runout
Check: Conduct vibration analysis baseline; 25% increase in any axis warrants investigation; 50% increase indicates imminent failure. Listen for grinding/rattling; verify motor current draw against baseline. Monitor bearing temperature if equipped with sensors.
Area: Wear ring erosion and impeller-to-casing clearance degradation
Check: Visual inspection of wear rings for abrasion patterns; measure impeller-to-casing clearance with feeler gauges per manufacturer specs. Replace renewable wear rings per maintenance interval (quarterly to annually depending on seawater quality).
Area: Mechanical seal failure - leakage, internal recirculation, thermal degradation
Check: Inspect seal faces for wear, corrosion, deposits. Measure seal flush water pressure/flow. Check for weeping or spray from seal cavity. Verify seal water temperature within specification (typically ≤40°C for marine duty). Replace per manufacturer interval or if leakage observed.
Area: Suction line blockage - reduced inlet pressure, cavitation onset, loss of prime
Check: Record baseline inlet pressure at pump suction; check sea chest strainer differential pressure regularly. If inlet pressure drops >10% from baseline, inspect/clean sea chest strainer immediately. Verify suction line diameter adequate per installation design.

Typ-universelle Inspektionspunkte fuer Cooling Water Pumps (verifiziert, 2026-06).
