Library› Engine Room› Cooling Water Pumps› Cooling Water Pump› DESMI NSL
DESMI

NSL

Cooling Water Pump · Cooling Water Pumps

Technical data from manufacturer or class sources · not yet verified by a person

DESMI NSL — Seawater cooling, fresh water cooling.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Flow capacityUp to 1800 m³/h
Pressure ratingUp to 25 bar
Flange sizesDN 65-400
Speed (rpm)960 RPM
Norminal Diameter (DN)80 to 350
Flow rate - 50 HzUp to 2000 m3/h (8800 US gpm)
HeadUp to 195 m (640 ft)
PressureUp to 25 bar (360 psi)
TemperatureUp to 140°C (284°F)
Nominal diameter (DN)65 to 400
Flow rateUp to 1800 m³/h (7900 US gpm)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

DESMI NSL centrifugal pump operates at 3450 rpm on 60 Hz power supply.

Applications

  • District heating/cooling
  • seawater treatment
Source: DESMI NSL datasheet, p. 1

Features

  • high efficiency

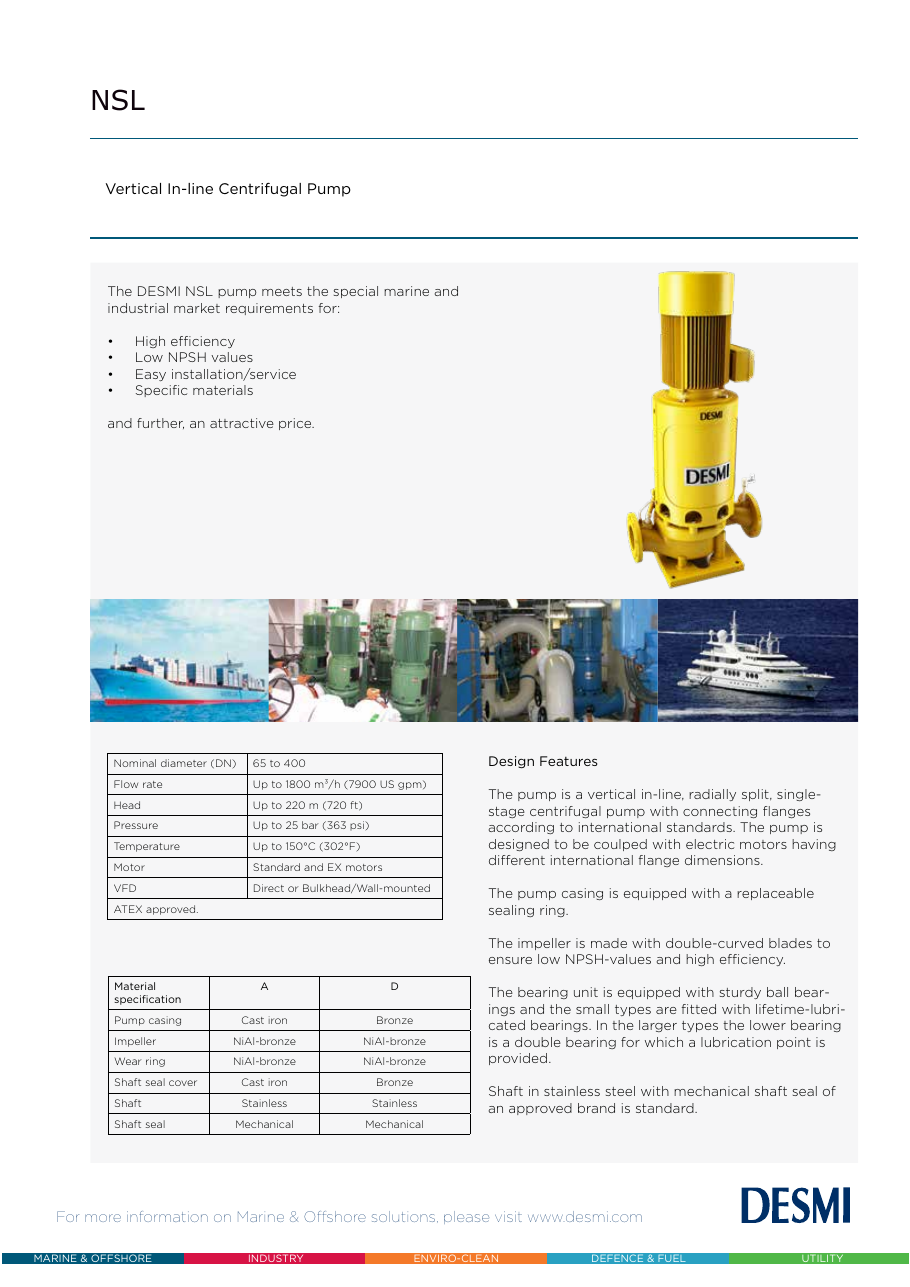

DESMI NSL – Drawing (7963f69a5563_S1-1 S. 1)
Drawing · 7963f69a5563_S1-1 · S. 1

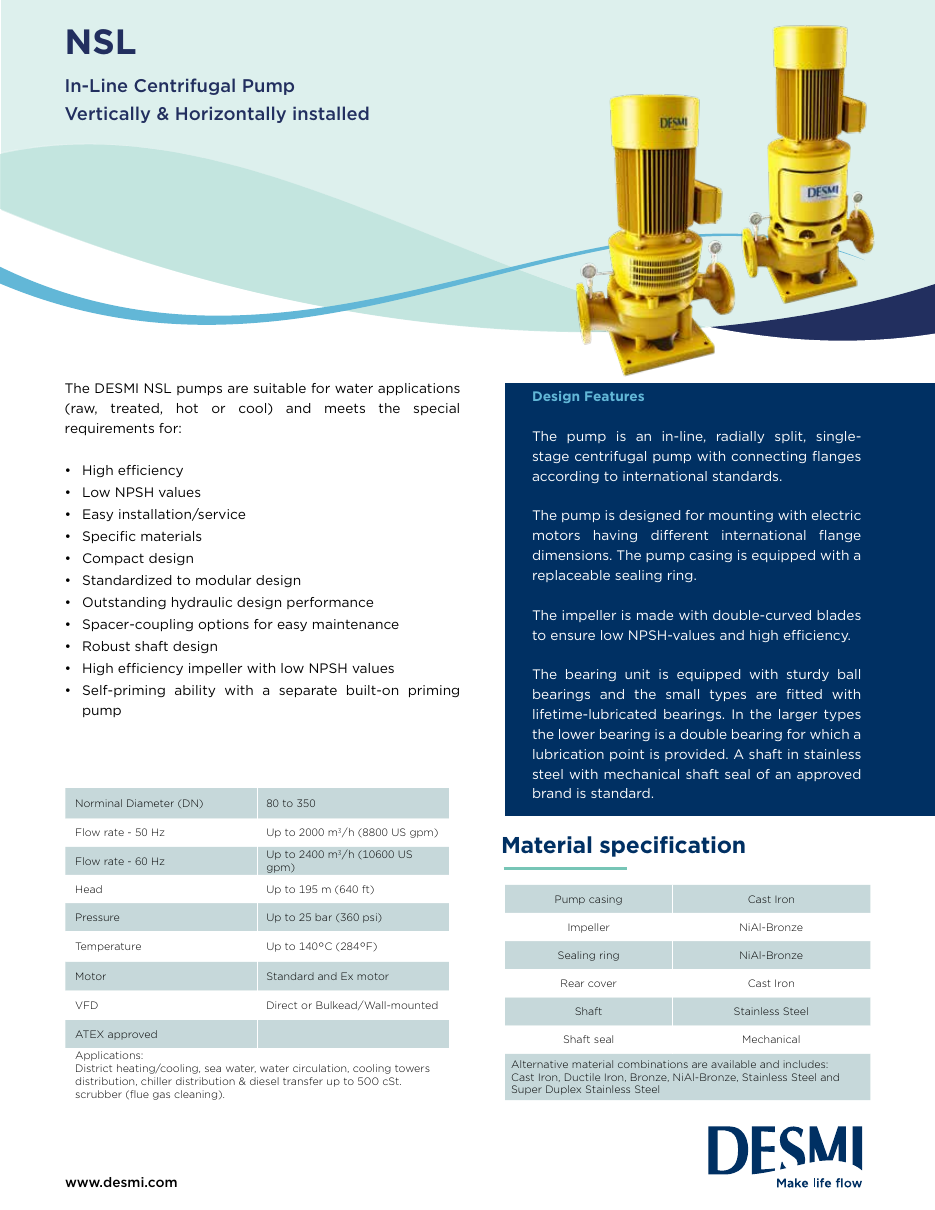

DESMI NSL – Drawing (ea3c8e640666_S1-1 S. 1)
Drawing · ea3c8e640666_S1-1 · S. 1
Source: DESMI NSL datasheet, p. 23
