Library› Engine Room› Cooling Water Pumps› Cooling Water Pump› Sulzer SJT

SJT

Cooling Water Pump · Cooling Water Pumps

Technical data from manufacturer or class sources · not yet verified by a person
1,600 to 180,000 US GPMCapacity
20" (508 mm)Dimensions
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Number of Sizes46 sizes with 69 hydraulic combinations
Capacity Range1,600 - 180,000 USgpm (360 - 41,000 m³/h)
Head RangeUp to 360 ft (110 m)
Pressure Range125 - 925 PSIg (8.6 - 63.8 Bar)
TemperatureUp to 122°F (50°C)
Speed Range320 - 1800 RPM
DesignSingle-stage vertical pump with fully updated hydraulics
Kapazitaet1,600 to 180,000 US GPM🔖
Abmessungen20" (508 mm) in/mm🔖
📄
Download datasheet (PDF) (1719 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

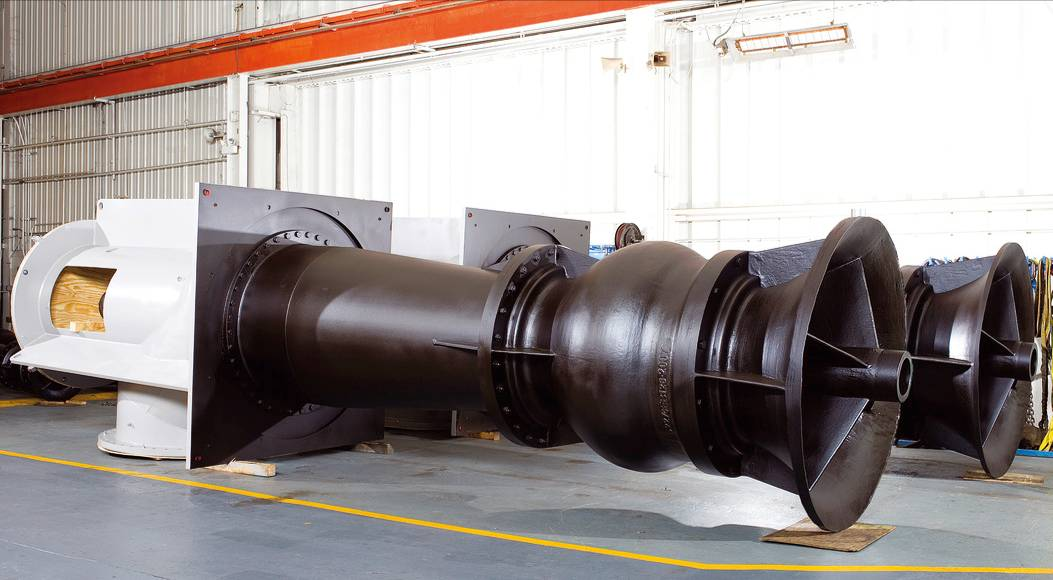

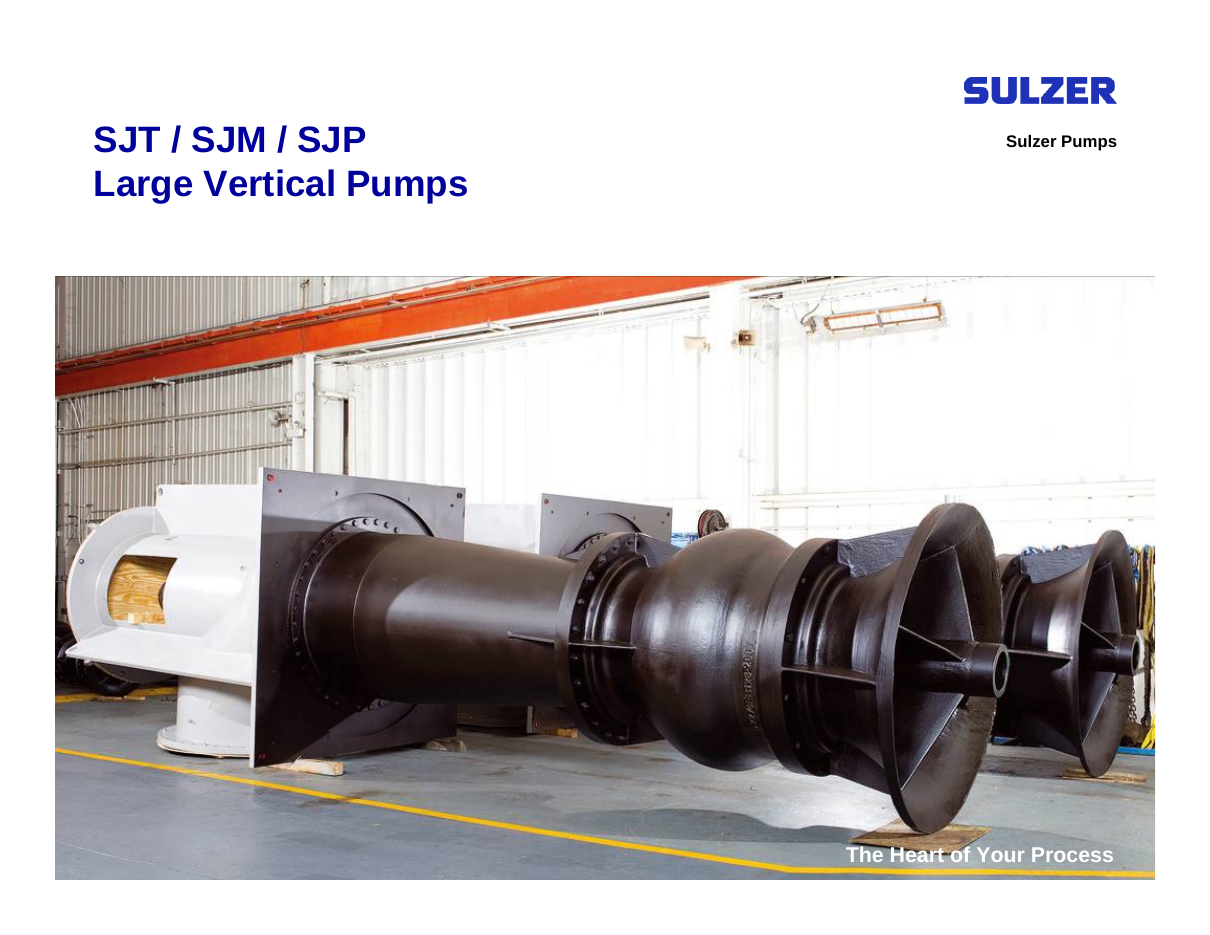

Sulzer SJT – Photo (Sulzer datasheet S. 1)
Photo · Sulzer datasheet · S. 1

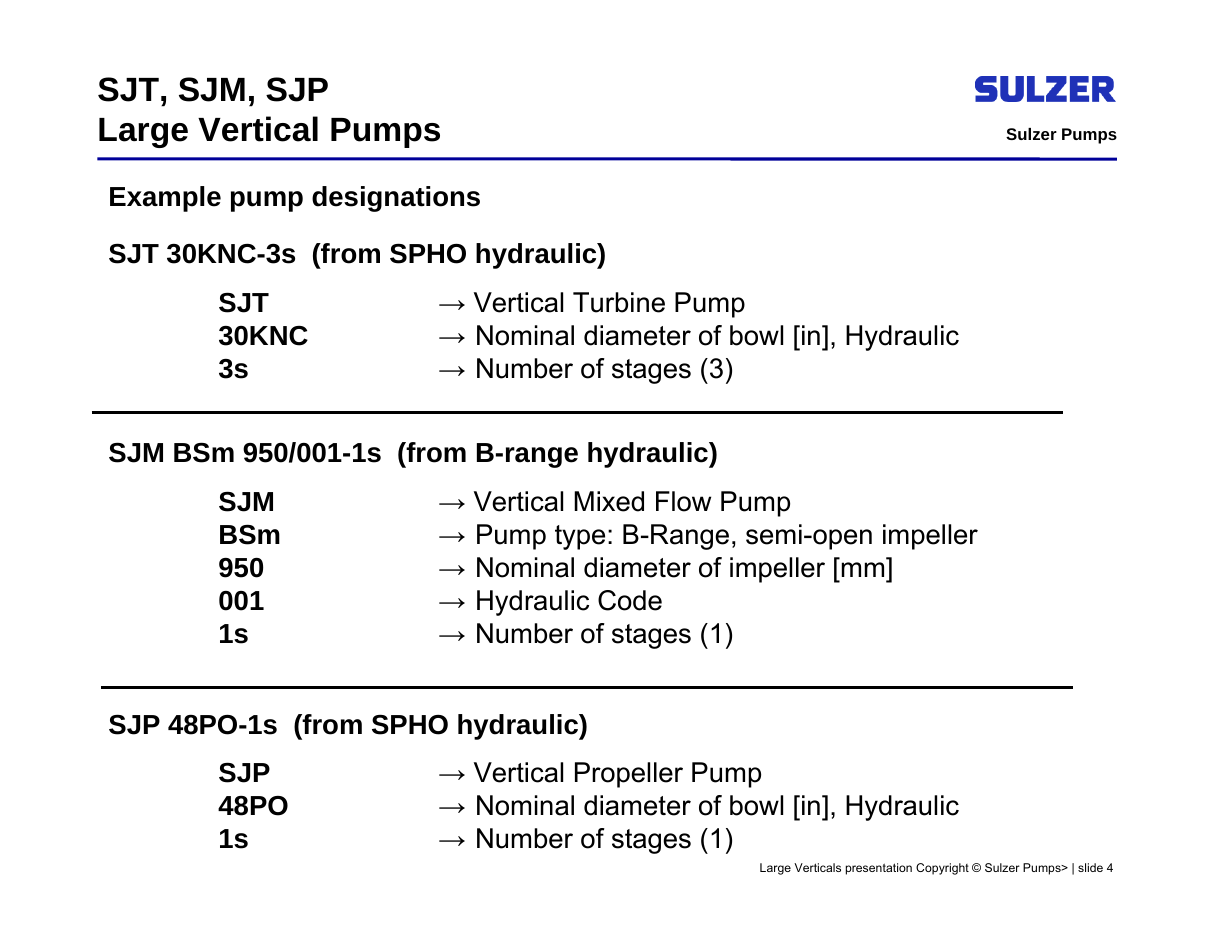

Sulzer SJT – Photo (Sulzer datasheet S. 2)
Photo · Sulzer datasheet · S. 2
Sulzer SJT – Photo (Sulzer datasheet S. 2)
Photo · Sulzer datasheet · S. 2
Sulzer SJT – Photo (Sulzer datasheet S. 2)
Photo · Sulzer datasheet · S. 2
Sulzer SJT – Photo (Sulzer datasheet S. 10)
Photo · Sulzer datasheet · S. 10

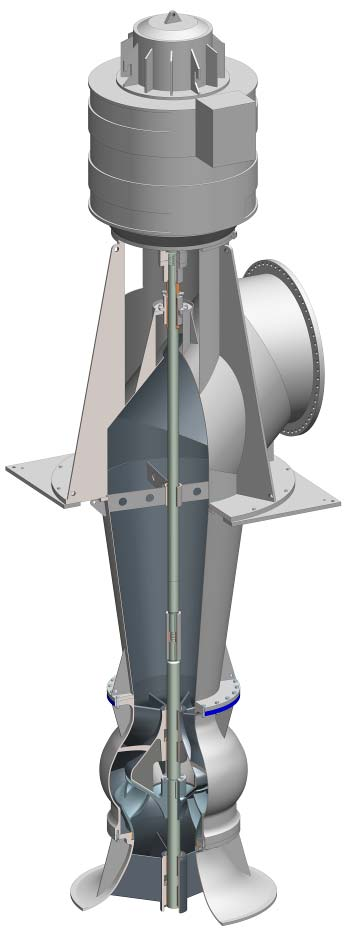

Sulzer SJT – Drawing (Sulzer datasheet S. 1)
Drawing · Sulzer datasheet · S. 1

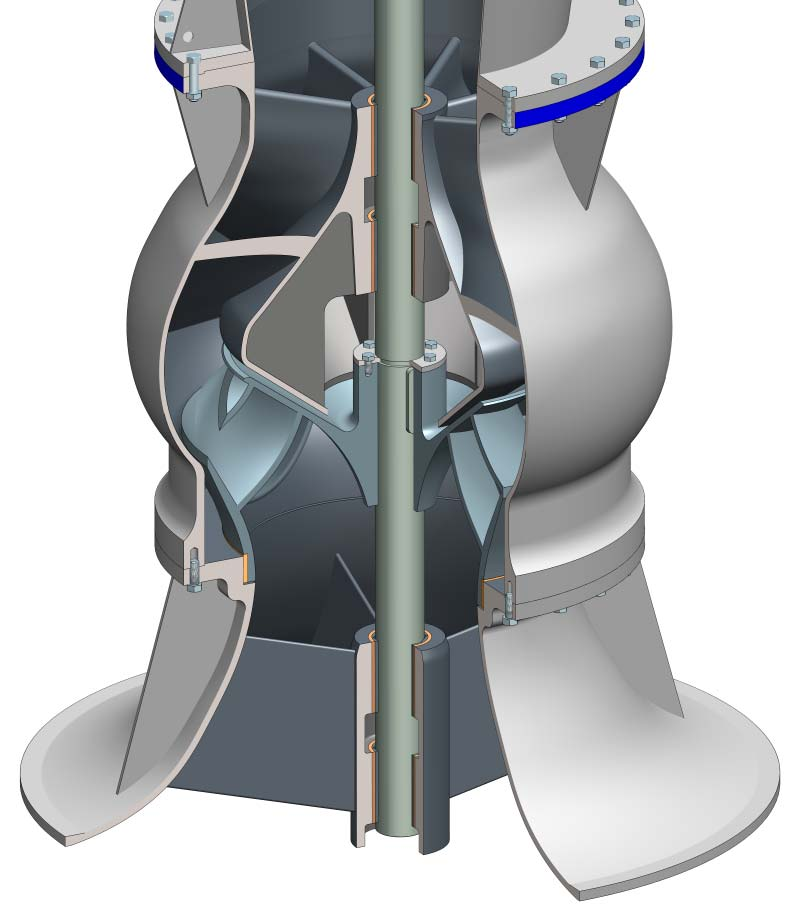

Sulzer SJT – Drawing (Sulzer datasheet S. 3)
Drawing · Sulzer datasheet · S. 3

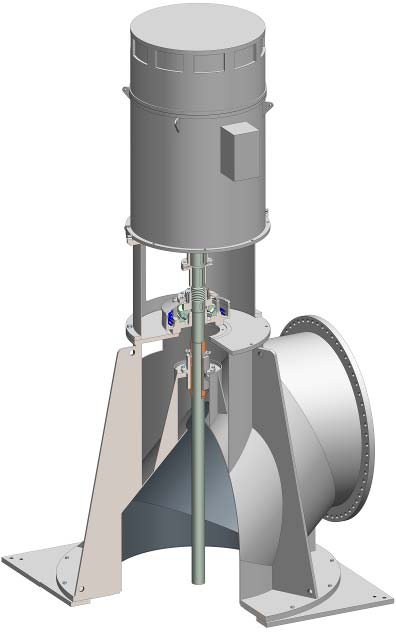

Sulzer SJT – Drawing (Sulzer datasheet S. 4)
Drawing · Sulzer datasheet · S. 4
