Library› Engine Room› Cooling Water Pumps› Cooling Water Pump› Ebara GSO
Ebara

GSO

Cooling Water Pump · Cooling Water Pumps

Technical data from manufacturer or class sources · not yet verified by a person
To 1400Capacity

Ebara GSO — Cooling water, open impeller.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

StandardEN733
CapacityTo 1400 m3/hr
HeadTo 150 m
Liquid temperature-30℃ to 150℃
Max. working pressureUp to 16bar
Materials Casing304/316 Stainless Steel
Impeller304/316 Stainless Steel
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

This is a pump designed for various applications in industries such as petrochemical, inorganic chemical, motor vehicle, steel, paper and pulp, food, semiconductor, metal goods, and fisheries.

Applications

  • Petrochemical
  • Inorganic chemical
  • Motor vehicle
  • Steel
  • Paper and pulp
  • Semiconductor

Features

  • Comply with international standards
  • Available in wide application
  • Extending bearing and seal life
  • Energy saving
  • Maintenance friendly design

Standards

  • ISO2858, ISO5199
Ebara GSO – Photo (df3c7af8be1e_S1-2 S. 1)
Photo · df3c7af8be1e_S1-2 · S. 1

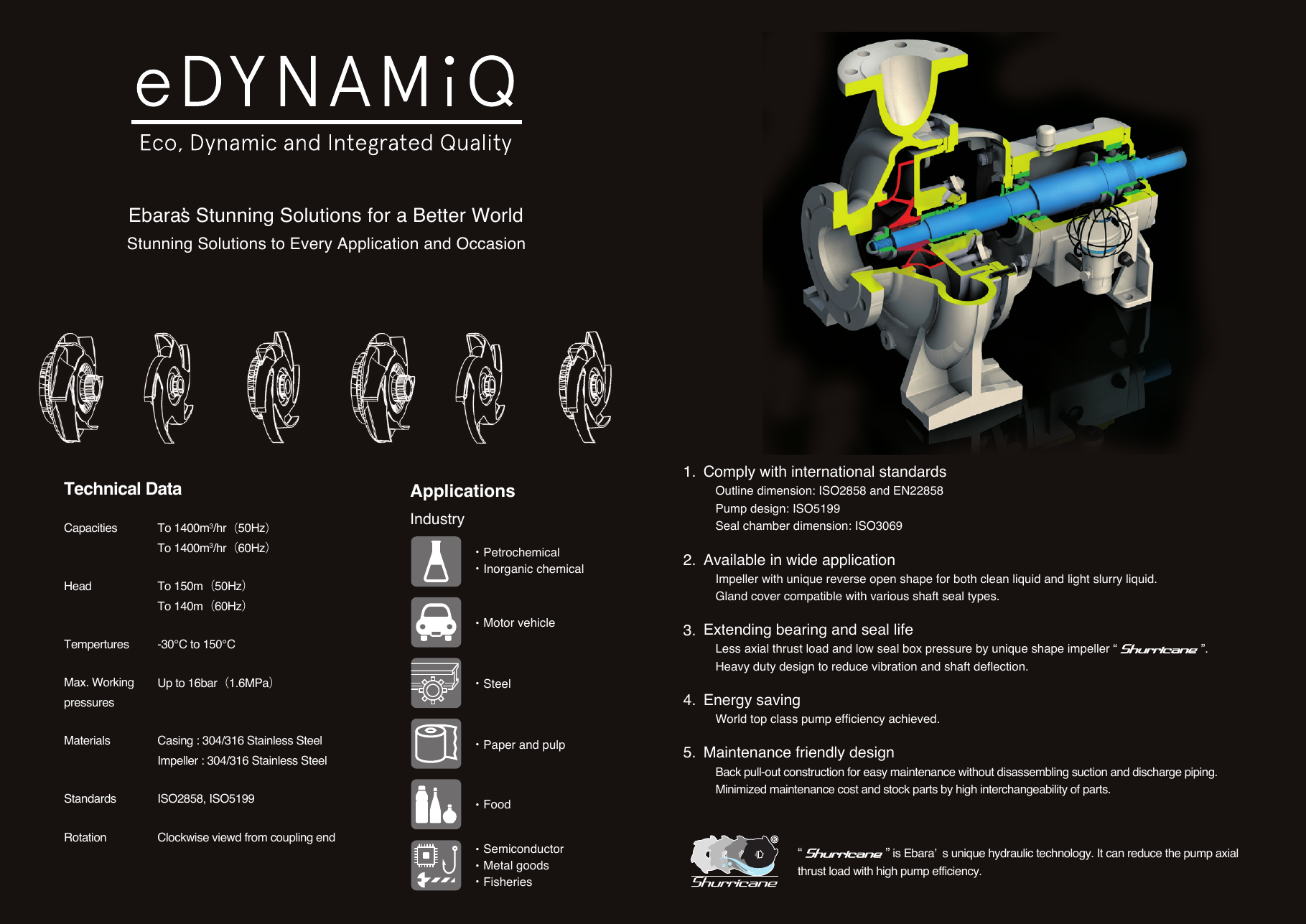

Ebara GSO – Photo (df3c7af8be1e_S1-2 S. 2)
Photo · df3c7af8be1e_S1-2 · S. 2
Ebara GSO – Drawing (df3c7af8be1e_S1-2 S. 1)
Drawing · df3c7af8be1e_S1-2 · S. 1
Ebara GSO – Drawing (df3c7af8be1e_S1-2 S. 2)
Drawing · df3c7af8be1e_S1-2 · S. 2
Source: Ebara GSO datasheet, p. 2
