What to check on a Separator/Purifier.

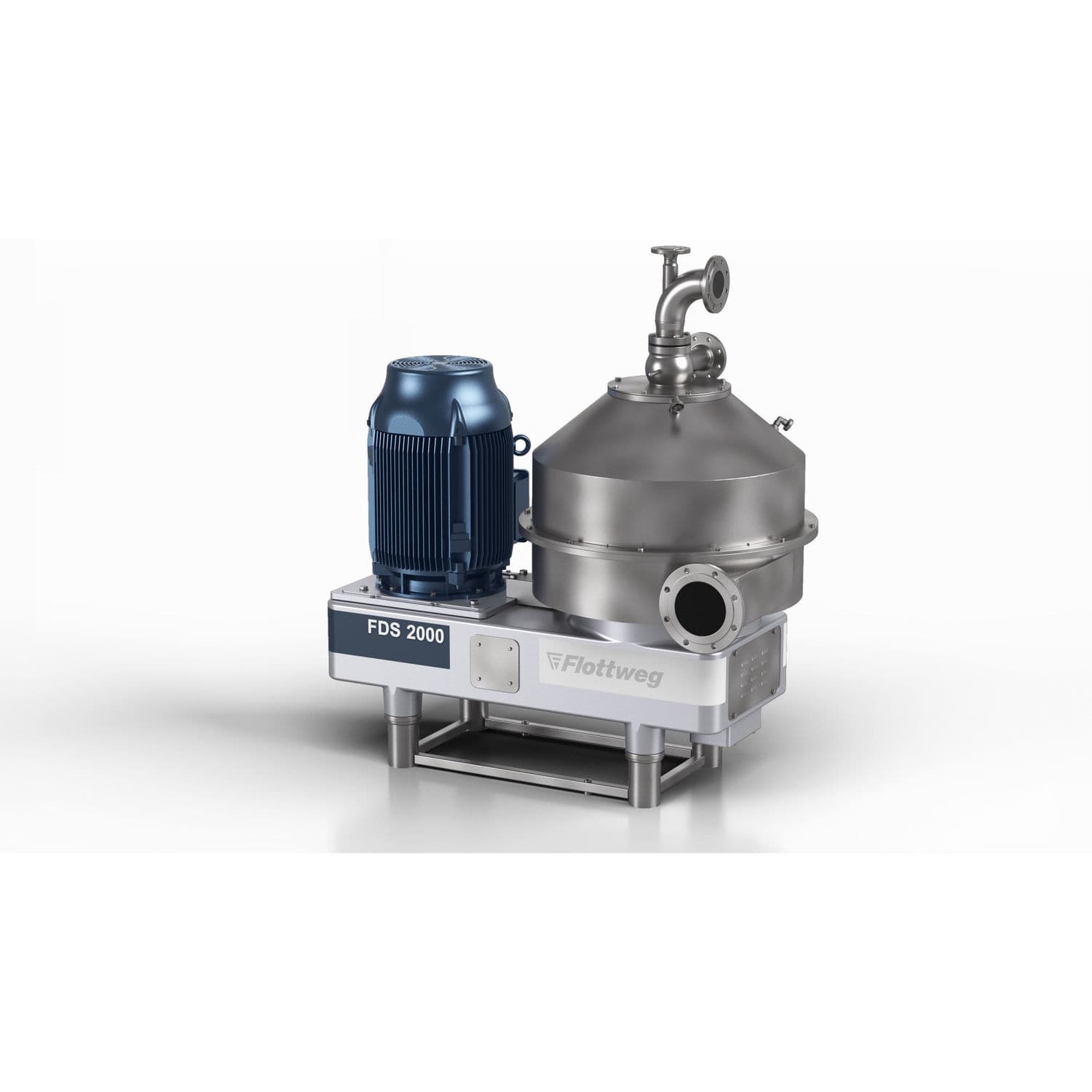

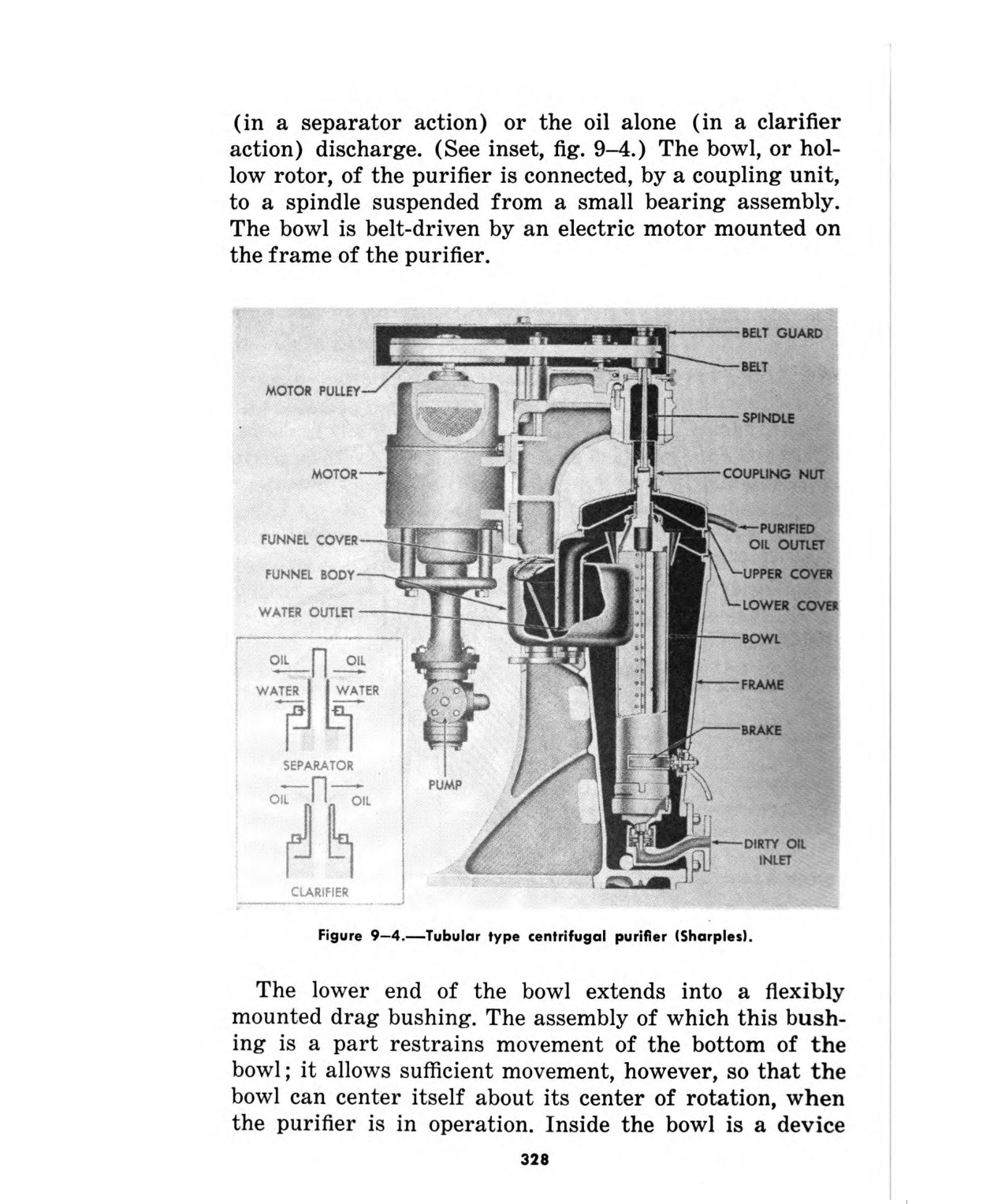

The term separator or purifier on a ship's machinery list covers the same physical machine used in two different modes. Fitted with a gravity disc and set up for three-phase separation, it works as a purifier, discharging oil, water and sludge from separate outlets. Fitted without the gravity disc and configured for two-phase separation, the identical bowl works as a clarifier, removing only solids and passing oil and any residual water through together. Most engine rooms carry two or three units of the same frame size and swap duty between…
What this type covers

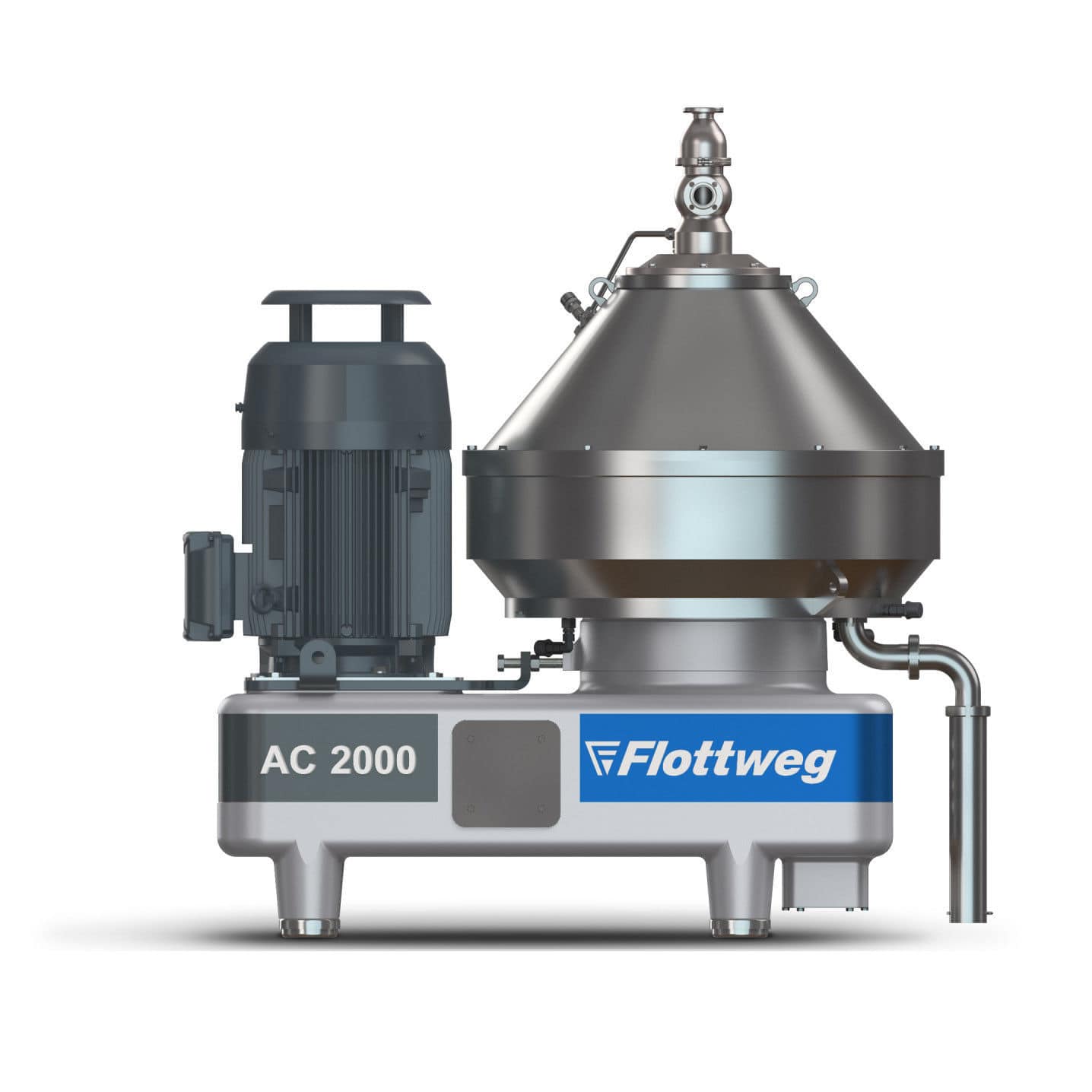

The term separator or purifier on a ship's machinery list covers the same physical machine used in two different modes. Fitted with a gravity disc and set up for three-phase separation, it works as a purifier, discharging oil, water and sludge from separate outlets. Fitted without the gravity disc and configured for two-phase separation, the identical bowl works as a clarifier, removing only solids and passing oil and any residual water through together. Most engine rooms carry two or three units of the same frame size and swap duty between fuel oil, lubricating oil and sometimes marine diesel oil, depending on the maker's piping arrangement.
Main components

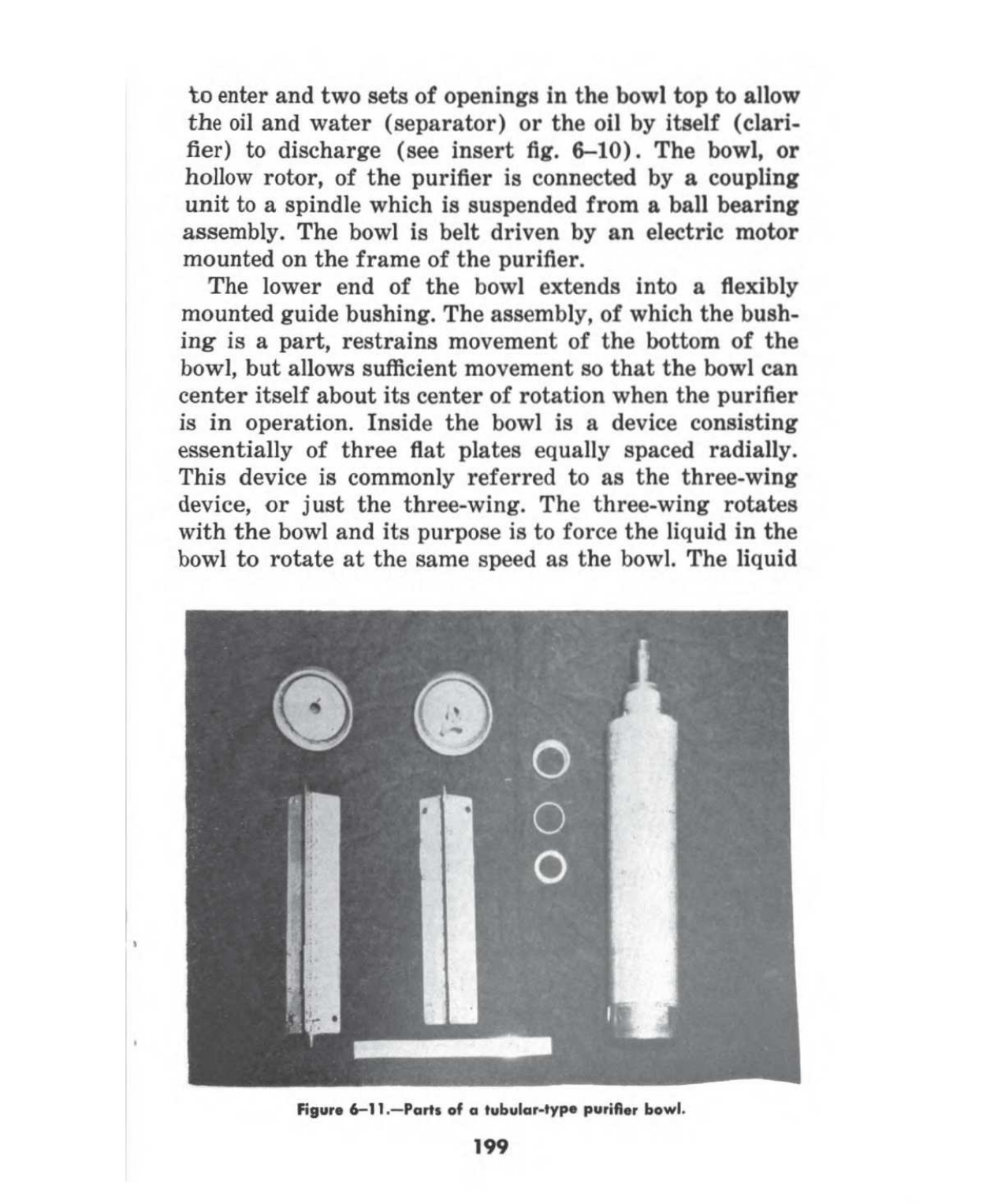

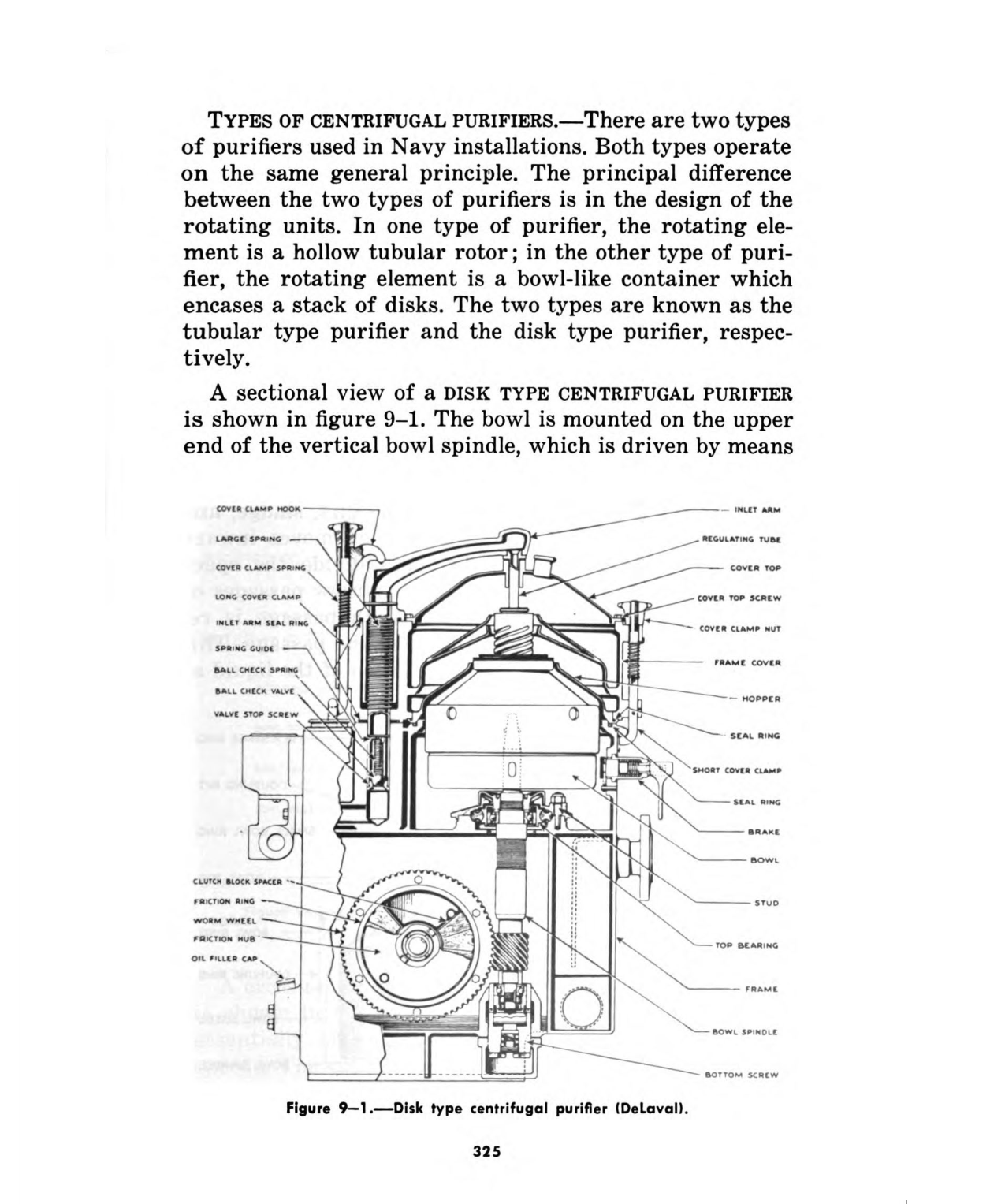

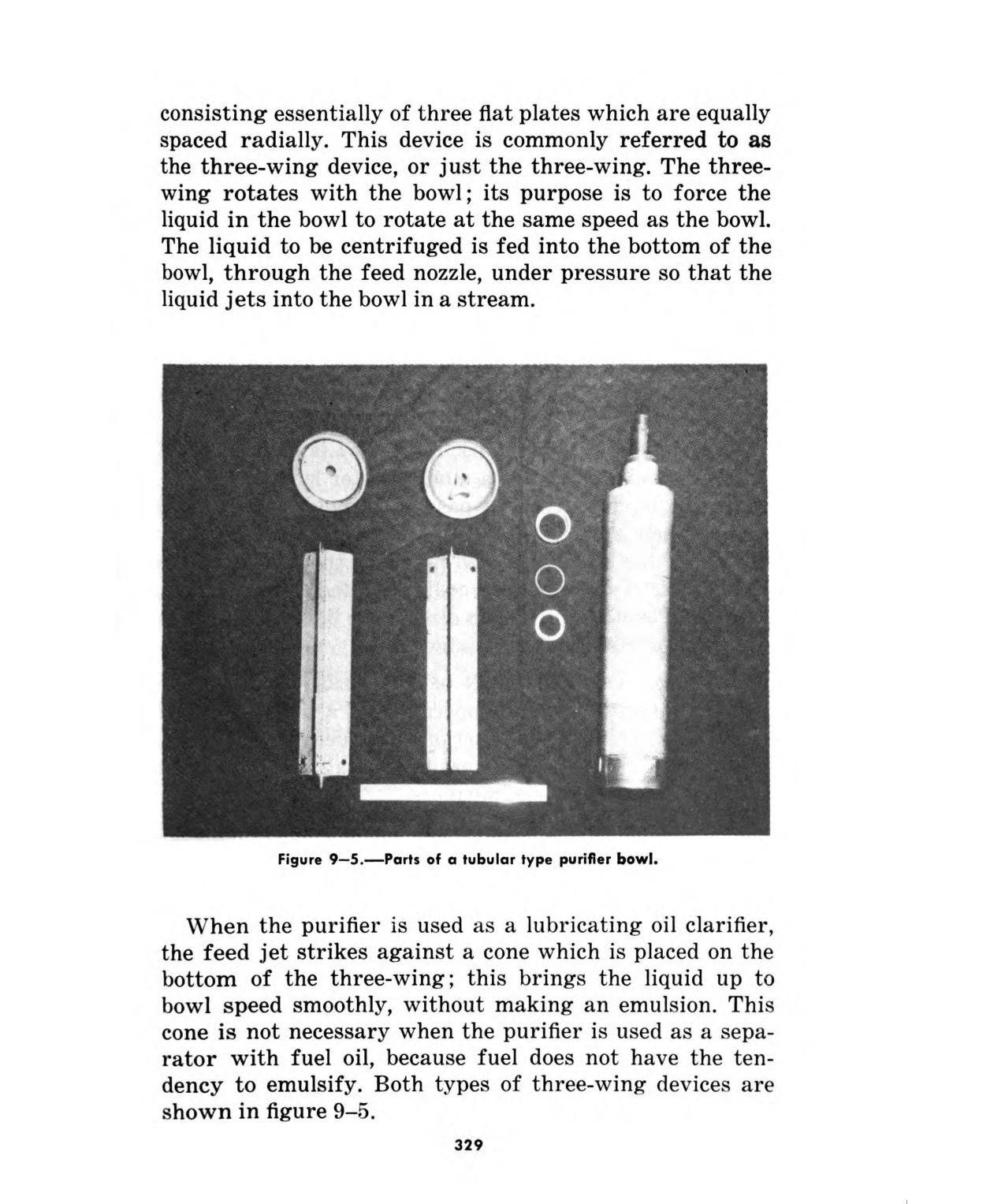

Bowl and disc stack
The bowl holds a stack of thirty to over a hundred conical discs, each with a gap of well under a millimetre. Oil flows between the discs in a thin film, which shortens the distance water droplets and solids need to travel before they hit a disc surface and slide outward under centrifugal force many thousands of times greater than gravity.
Gravity disc
On purifiers, the gravity disc bore diameter sets the interface radius between the oil and water phases inside the bowl. Choosing the wrong disc for the feed density lets the interface shift too far in or out, and either oil is lost to the water outlet or water carries through into the clean oil.
Self-cleaning bowl and sludge discharge
Modern units open a sliding bowl bottom hydraulically at set intervals, or on a signal from a water-in-oil sensor, ejecting accumulated sludge through discharge ports without stopping the machine. The interval is programmed in the control unit and is one of the first things to check when discharge water shows oil carryover or sludge builds up on the bowl wall between runs.
Drive, gearbox and back-drive
A worm or friction-clutch gearbox brings the bowl from standstill up to normal running speed, commonly 6,000-10,000 rpm depending on bowl diameter, over one to several minutes. A back-drive or brake is fitted so the heavy bowl does not free-wheel for an unsafe length of time when stopping.

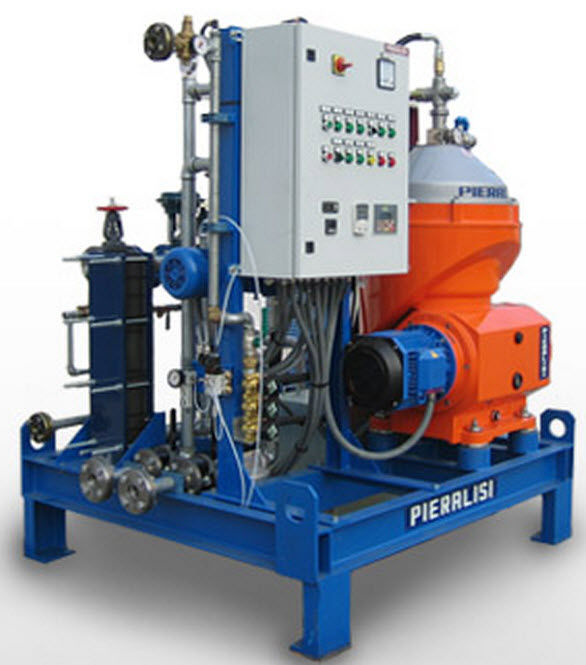

Feed pump and preheater
Feed is normally drawn through a heater that brings fuel oil to 90-98 degrees C or lubricating oil to around 80-85 degrees C, since separation efficiency depends heavily on viscosity. A feed pump delivers a steady, moderate flow; overfeeding a separator reduces residence time in the bowl and is one of the most common causes of poor separation.
Selection and sizing
| Parameter | Typical range |
|---|---|
| Bowl speed | 6,000-10,000 rpm |
| Fuel oil separation temperature | 90-98 degrees C |
| Lubricating oil separation temperature | 80-85 degrees C |
| Duty cycle | continuous, with periodic self-cleaning discharge |
Rated capacity should exceed daily consumption with margin for a standby unit to run alone during maintenance of the duty unit, since class and SOLAS both expect fuel treatment redundancy on most ship types.
Regulations and class
Separators handling fuel or lubricating oil are surveyed as essential auxiliary machinery, with periodic bowl and gearbox opening as part of the machinery survey cycle. Where separator sludge and bilge water reach the engine room bilge system, MARPOL Annex I governs discharge limits and record-keeping through the Oil Record Book, and the separator's sludge discharge is one of the entries surveyors check against tank soundings.
Typical faults
- Wrong gravity disc for feed density - oil losses to the sludge or water side, or water breakthrough into clean oil.
- Overfeeding - reduced residence time, poor separation, water-in-oil alarm activation on downstream monitors.
- Blocked or worn discharge ports - irregular or incomplete sludge ejection, sludge building up inside the bowl and causing vibration.
- Bearing wear from unbalance - usually traced back to sludge building unevenly inside the bowl, felt first as noise during run-up.
- Sensor fouling on the water-in-oil probe - false discharge triggers or, worse, missed ones that let water pass downstream.
What to look for in a supplier
- Availability of genuine bowl discs, gaskets and O-rings without long lead times, since a stopped separator quickly limits fuel or lube oil availability.
- Documented service history and access to the maker's throughput curves for the actual fuel grades the ship burns.
- Support for retrofit of water-in-oil monitoring where an older unit relies on manual interface checks alone.
- Spare parts kits matched to survey intervals rather than generic overhaul kits that omit wear parts specific to the bowl design.
Before blaming the separator for poor cleaning, check feed temperature and throughput first - most separation complaints trace back to those two settings, not to the machine itself.
