Refrigeration Compressor

medium 302 models total

Compresses refrigerant vapour rather than air, driving the provision store and reefer cargo cooling circuits. A wrong refrigerant charge or a slipped low-pressure cutout shows up as spoiled cargo, not a tripped breaker.

Read more — Refrigeration Compressor explained ▾

What makes this type

A refrigeration compressor draws low-pressure refrigerant vapour from the evaporator side of a cooling circuit and raises it to a higher pressure and temperature so it can give up heat at the condenser, completing the vapour-compression cycle that keeps provision stores and, on reefer or reefer-container vessels, cargo holds at their set temperature. It differs from an air compressor in the medium it handles: refrigerant rather than air, at pressures and with lubricants specific to the refrigerant in use, and it runs against a suction and discharge pressure set by the cooling load rather than a fixed working pressure.

Refrigeration compressor, cycle diagram — Refrigerant circuit for a shipboard refrigeration compressor, showing the compressor, condenser, expansion valve and evaporator linked by hot discharge and cold suction lines.

Main components

Compressor body

Reciprocating compressors remain common for provision plants and smaller reefer systems, while larger cargo refrigeration plants often use screw compressors for their continuous duty and easier capacity control.

Suction and discharge valves

Spring-loaded reed or ring valves that open and close each cycle; on reciprocating units these are the component most exposed to wear and breakage.

Capacity control

Cylinder unloading on reciprocating machines, or a sliding valve on screw compressors, adjusts output to match the cooling load without cycling the whole unit on and off.

Lubrication and oil separator

Refrigerant oil circulates with the vapour and must be separated and returned to the compressor crankcase; oil carried over into the circuit reduces heat transfer at the evaporator and condenser.

Selection / Sizing

Refrigeration capacity in kW matched to the cooling load of the stores or cargo spaces served.
Refrigerant type, commonly R404A, R507 or increasingly CO2 and ammonia on newer tonnage, each with its own pressure range and oil compatibility.
Suction and discharge pressure range the compressor is rated for, since this varies significantly by refrigerant.
Number of compressors and standby arrangement, since cargo reefer plants typically run multiple units for redundancy.

Regulations / Class

MARPOL Annex VI and the Kigali Amendment to the Montreal Protocol govern which refrigerants may be used and how leaks and disposal are handled, phasing out high global-warming-potential refrigerants on newer installations. Class rules require periodic survey of refrigeration machinery serving cargo spaces, including pressure vessel and safety valve checks on the refrigerant circuit, and provision plant compressors are covered under general machinery survey requirements.

Typical faults

Fault	Consequence
Refrigerant undercharge or leak	Low suction pressure, compressor short-cycling, inadequate cooling
Worn suction or discharge valves	Reduced capacity, higher discharge temperature, risk of valve failure
Oil carryover from a failed separator	Reduced heat transfer at evaporator, low oil level trips the compressor
Low-pressure cutout bypassed or set incorrectly	Compressor runs into a vacuum, drawing in moisture or air

What to look for in a supplier

Compatibility with the vessel's existing refrigerant and oil type before any replacement unit is ordered.
Spare valve plates and gaskets available locally, since these are routine wear items on reciprocating units.
Capacity control range matching the actual load profile rather than the peak design load alone.

Log suction and discharge pressures at every watch; a slow refrigerant leak shows up in the trend long before the compressor trips on low pressure.

Technical drawings & plates

Historical engineering archive — public domain sources, cited per plate. Principles shown remain valid; always consult the OEM manual for model-specific data.

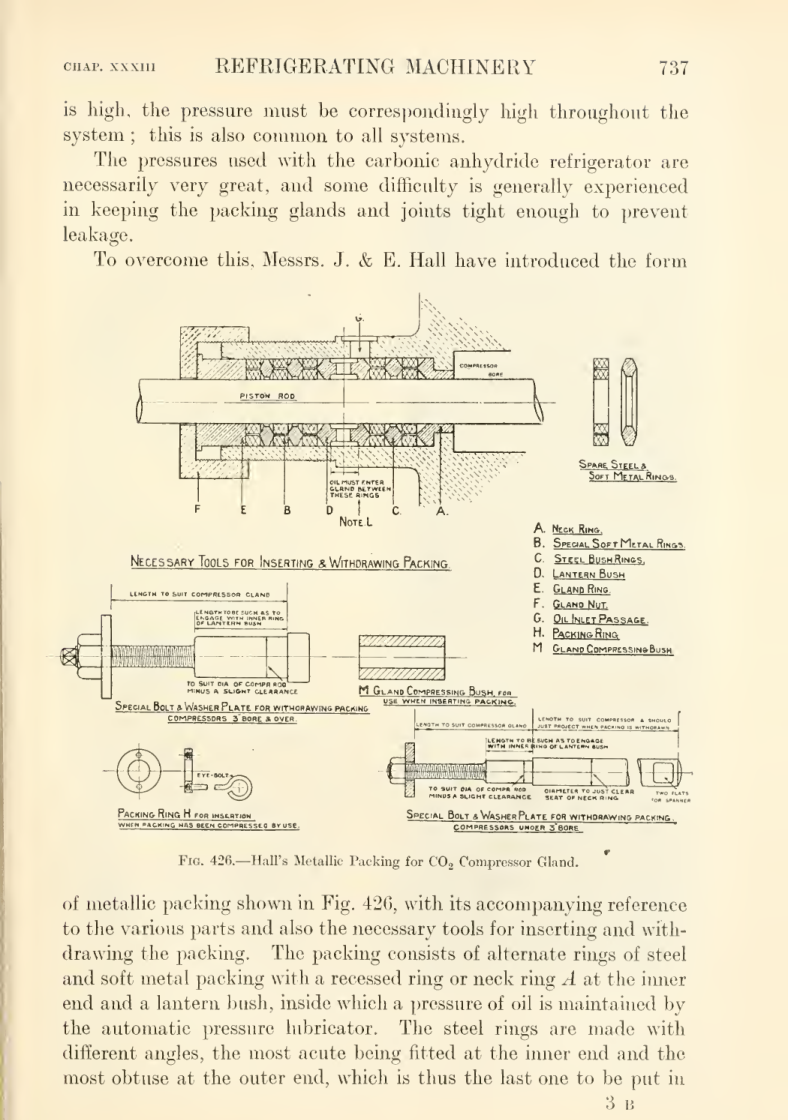

Hcall's Metallic Packing for COo Compressor Gland.
Tompkins, Marine Engineering — a text-book (1917) — public domain

Freon-12 refrigeration cycle.
Machinist's Mate 3, NAVPERS 10522, U.S. Navy (1958) — public domain

Diagram of Freon-12 refrigeration system.
Machinist's Mate 3, NAVPERS 10522, U.S. Navy (1958) — public domain

Freon-12 installation.
Machinist's Mate 3, NAVPERS 10522, U.S. Navy (1958) — public domain

Reciprocating compressor.
Machinist's Mate 3, NAVPERS 10522, U.S. Navy (1958) — public domain

8000h

Service Interval

20 yr

Typical Lifetime

Typical Manufacturers

Bitzer Bock Carrier Sabroe

Inspector Mode Show All 302 total

34 manufacturers · 302 models

Carrier Marine

41 ✓ 13 verified

06DR337

90 kW cooling · 37.0 kW · Refrigerant R404A · Semi-hermetic compressor

Common Failures & Inspection Points

Unloader solenoid failure
Oil pressure differential low
Motor winding fault

Service: Semi-hermetic for larger reefer ships; Carrier-specific oil required.

Spare Parts: Carrier: Keep valve sets and piston rings on board. Lead time: 2–6 weeks. Oil filters and gasket sets as standard ship's stores.

Strengths

Suitable for large reefer ships due to its semi-hermetic design
Specific oil requirement ensures compatibility and potentially better performance
Carrier's reputation for quality and reliability in marine refrigeration systems

Weaknesses

Unloader solenoid failure and motor winding faults have been reported
Requires specific oil, which might be more expensive or harder to find than standard oils
Oil pressure differential issues can lead to maintenance challenges

Typical Vessels: Reefer shipsContainer ships with refrigerated cargoCruise ships with extensive refrigeration needs

Decision Guide: Choose if you prioritize a reliable, semi-hermetic compressor from a well-known manufacturer for your refrigeration needs on larger vessels. Avoid if you are looking for a more versatile compressor that can use standard oils or if you have had negative experiences with Carrier's specific oil requirements.

Use Cases: Typically deployed in the refrigeration systems of large reefer ships and other vessels requiring significant cooling capacities, such as those carrying perishable goods over long distances.

Datasheet

06D ✓ verified

Application

Semi-hermetic reciprocating compressor for commercial refrigeration, air conditioning, process cooling

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

06E ✓ verified

Application

Semi-hermetic reciprocating compressor for commercial refrigeration and air conditioning

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

05G ✓ verified

Application

Open-drive reciprocating compressor for marine refrigeration and air conditioning

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

05K ✓ verified

Application

Open-drive reciprocating compressor for marine air conditioning and refrigeration

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

05T ✓ verified

Application

Twin-screw open-drive compressor for marine refrigeration applications with variable-speed capability

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

06T ✓ verified

Application

Semi-hermetic twin-screw compressor for marine air conditioning and refrigeration

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

06NA ✓ verified

Application

Semi-hermetic gear-driven twin-screw compressor for air-cooled marine condensing applications

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

06NW ✓ verified

Application

Semi-hermetic gear-driven twin-screw compressor for water-cooled marine condensing applications

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Paragon 06TS ✓ verified

Application

Semi-hermetic twin-screw compressor for marine air-cooled condensing applications

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Paragon 06TT ✓ verified

Application

Semi-hermetic twin-screw compressor for marine air-cooled condensing applications

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Paragon 06TU ✓ verified

Application

Semi-hermetic twin-screw compressor for marine air- and water-cooled condensing applications

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Paragon 06TV ✓ verified

Application

Semi-hermetic twin-screw compressor for marine water-cooled condensing applications

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

5H ✓ verified

Application

Open-drive reciprocating compressor for marine refrigeration and air conditioning with automatic capacity control

Common Failures & Inspection Points

Area: Check crankshaft runout, bearing clearances, and oil pump function
Check: Check crankshaft runout, bearing clearances, and oil pump function
Area: Verify suction and discharge valve sealing and operation under load
Check: Verify suction and discharge valve sealing and operation under load
Area: Inspect motor windings for insulation resistance and thermal integrity
Check: Inspect motor windings for insulation resistance and thermal integrity
Area: Monitor oil circulation rate and verify oil pump pressure delivery
Check: Monitor oil circulation rate and verify oil pump pressure delivery
Area: Check refrigerant charge level, purity, and proper oil miscibility
Check: Check refrigerant charge level, purity, and proper oil miscibility
Area: Test capacity control mechanism (unloading valve or variable swashplate)
Check: Test capacity control mechanism (unloading valve or variable swashplate)
Area: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Check: Inspect cylinder walls for scoring, wear patterns, and piston ring sealing
Area: Verify vibration levels and proper mounting isolation to prevent resonance
Check: Verify vibration levels and proper mounting isolation to prevent resonance

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Carrier 06T Series unverified

Model Family

06T

Compressor Type

refrigeration_compressor

Datasheet

Carrier 06T 50/10 unverified

Model Family

06T

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R134a

Datasheet

Carrier 06T 50/15 unverified

Model Family

06T

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R134a

Datasheet

Carrier 06T 100/10 unverified

Model Family

06T

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R134a

Datasheet

Carrier 06T 100/15 unverified

Model Family

06T

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R134a

Datasheet

Carrier 06T 200/10 unverified

Model Family

06T

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R134a

Datasheet

Carrier 06T 200/15 unverified

Model Family

06T

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R134a

Datasheet

Carrier 06T 400/10 unverified

Model Family

06T

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R134a

Datasheet

Carrier 06T 400/15 unverified

Model Family

06T

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R134a

Datasheet

Carrier 06N Series unverified

Model Family

06N

Compressor Type

refrigeration_compressor

Datasheet

Carrier 06N 100/10 unverified

Model Family

06N

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R134a

Datasheet

Carrier 06N 100/15 unverified

Model Family

06N

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R134a

Datasheet

Carrier 06N 200/10 unverified

Model Family

06N

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R134a

Datasheet

Carrier 06N 200/15 unverified

Model Family

06N

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R134a

Datasheet

Carrier 06N 400/10 unverified

Model Family

06N

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R134a

Datasheet

Carrier 06N 400/15 unverified

Model Family

06N

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R134a

Datasheet

Carrier 06N 600/10 unverified

Model Family

06N

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R134a

Datasheet

Carrier 06N 600/15 unverified

Model Family

06N

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R134a

Datasheet

Carrier 06D Series unverified

Model Family

06D

Compressor Type

refrigeration_compressor

Datasheet

Carrier 06D 200/10 unverified

Model Family

06D

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R134a

Datasheet

Carrier 06D 200/15 unverified

Model Family

06D

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R134a

Datasheet

Carrier 06D 400/10 unverified

Model Family

06D

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R134a

Datasheet

Carrier 06D 400/15 unverified

Model Family

06D

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R134a

Datasheet

Carrier 06D 600/10 unverified

Model Family

06D

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R134a

Datasheet

Carrier 06D 600/15 unverified

Model Family

06D

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R134a

Datasheet

Carrier 06D 1000/10 unverified

Model Family

06D

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1000

Refrigerant

R134a

Datasheet

Carrier 06D 1000/15 unverified

Model Family

06D

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1000

Refrigerant

R134a

Datasheet

Bitzer Marine

25 ✓ 17 verified

4HE-18Y

42 kW cooling · 18.0 kW · Refrigerant R404A · semi-hermetic reciprocating compressor

Common Failures & Inspection Points

Valve plate cracking
Oil logging in evaporator
HP cutout tripping
Compressor overheating

Service: Semi-hermetic reciprocating; check oil level sight glass and superheat.

Spare Parts: Bitzer: Keep valve sets and piston rings on board. Lead time: 2–6 weeks. Oil filters and gasket sets as standard ship's stores.

Strengths

Compact design suitable for limited engine room space
Integrated oil level sight glass simplifies routine checks
Good part‑load efficiency typical of reciprocating units
Proven reliability in marine refrigeration applications

Weaknesses

Higher vibration and noise compared with screw or scroll compressors
Valve plate cracking reported as a common failure mode
Requires regular oil monitoring to avoid logging in the evaporator
Limited capacity range; not ideal for very high‑capacity systems

Typical Vessels: Reefer container shipFish processing vesselBulk carrier with refrigerated holdsGeneral cargo vessel requiring deck refrigeration

Decision Guide: Choose if: you need a compact, proven reciprocating compressor for low‑to‑medium capacity marine refrigeration and can accommodate routine oil checks. Avoid if: vibration/noise constraints are critical or the required cooling capacity exceeds the unit’s rating.

Use Cases: Commonly installed in cargo hold cooling loops of refrigerated carriers, deck air‑conditioning systems on fishing vessels, and auxiliary refrigeration plants on bulk carriers that transport temperature‑sensitive cargo.

Datasheet

6GE-34Y

95 kW cooling @ R-134a · 30.0 kW · Refrigerant R-134a · Open piston refrigeration compressor

Medium

Refrigerant R-134a

Power (kW)

Type

Open Piston 6-Cyl

Common Failures & Inspection Points

Shaft seal leakage
Valve plate fatigue
Oil dilution from liquid floodback
Bearing wear

Service: Open-type for belt or direct drive. Check crankcase heater function. Oil analysis every 4000 hrs.

Spare Parts: Bitzer: Keep valve sets and piston rings on board. Lead time: 2–6 weeks. Oil filters and gasket sets as standard ship's stores.

Strengths

Robust open‑type design tolerates occasional liquid floodback
Can be driven by belt or directly coupled to the main engine
Straightforward maintenance; crankcase heater and oil analysis intervals are well defined
High displacement per cylinder gives good efficiency at 30 kW rating
Widely used in marine refrigeration, so spare parts and service expertise are readily available

Weaknesses

Known susceptibility to shaft‑seal leakage and valve‑plate fatigue over long service life
Oil dilution can occur if liquid refrigerant returns to the crankcase
Bearing wear requires regular monitoring; oil analysis every 4 000 h is mandatory
Limited to R‑134a (not compatible with newer low‑GWP refrigerants without redesign)
Relatively large footprint and weight compared with modern screw or scroll units

Typical Vessels: Container ship (reefer containers)Bulk carrier with refrigerated holdsPassenger ferry / cruise ship accommodation areasOffshore platform living quarters

Decision Guide: Choose if you need a proven, service‑friendly 30 kW open piston compressor for R‑134a on vessels that can accommodate belt or direct drive and have established maintenance programmes. Avoid if the installation demands oil‑free operation, low noise, compact size, or compliance with newer low‑GWP refrigerants.

Use Cases: Installed in shipboard cargo refrigeration plants, HVAC chillers for passenger areas, and offshore accommodation modules where reliable, maintainable compression of R‑134a is required. Frequently paired with marine‑grade condensers and evaporators in multi‑zone refrigerated cargo spaces.

Datasheet

CSH8571

250 kW cooling · 75.0 kW · Refrigerant R-134a · Oil‑lubricated screw compressor with slide valve

Medium

Refrigerant R-134a

Power (kW)

Type

Screw Compressor

Common Failures & Inspection Points

Slide valve actuator failure
Rotor bearing wear
Oil separator element saturation
Capacity control malfunction

Service: Screw compressor — low vibration, continuous duty. Slide valve allows 25-100% capacity. Oil change every 10000 hrs.

Spare Parts: Bitzer: Keep valve sets and piston rings on board. Lead time: 2–6 weeks. Oil filters and gasket sets as standard ship's stores.

Strengths

Low vibration and noise due to screw design, suitable for passenger comfort areas
Wide capacity control (25–100%) via slide valve enables efficient load matching
Continuous duty rating ideal for 24/7 cargo refrigeration
Relatively long oil change interval (≈10 000 h) reduces maintenance downtime
Compact footprint compared with reciprocating units of similar power

Weaknesses

Slide‑valve actuator failures have been reported, requiring careful monitoring
Rotor bearing wear can become an issue if lubrication is neglected
Oil separator element may saturate under heavy load, necessitating regular checks
Limited to R‑134a refrigerant; not suitable for vessels mandated to use low‑GWP alternatives
Capacity control malfunction can lead to reduced efficiency if not serviced promptly

Typical Vessels: Reefer container shipsSpecialized refrigerated cargo vessels (fruit, meat, dairy)Chemical tankers using low‑temperature cargo coolingFishery freezer vesselsPassenger ferries with onboard air‑conditioning

Decision Guide: Choose if: you need a reliable, low‑vibration screw compressor for continuous refrigeration on vessels that use R‑134a and benefit from wide capacity control. Avoid if: the vessel requires alternative refrigerants (e.g., R‑404A, low‑GWP blends), higher power output than 75 kW, or an oil‑free design.

Use Cases: Typically installed in cargo hold refrigeration loops for perishable goods, deck‑mounted air‑conditioning plants on passenger vessels, and auxiliary cooling systems on chemical carriers where precise temperature control and low vibration are critical.

Datasheet

HSK8571

300 kW cooling · 90.0 kW · Refrigerant R-134a/R-513A · Variable‑VI screw compressor

Medium

Refrigerant R-134a/R-513A

Power (kW)

Type

Screw Compressor Marine

Common Failures & Inspection Points

Vi ratio actuator failure
Rotor wear
Oil foaming
Discharge temperature alarm

Service: Variable Vi for optimal efficiency across load range. Integral oil separator. Marine-certified vibration.

Spare Parts: Bitzer: Keep valve sets and piston rings on board. Lead time: 2–6 weeks. Oil filters and gasket sets as standard ship's stores.

Strengths

Variable VI actuator provides optimal efficiency over a wide load range
Integrated oil separator reduces external component count and maintenance
Marine‑vibration certification ensures reliable operation on board ships
Compact screw design suitable for limited engine room space
Compatible with widely used refrigerants R‑134a and R‑513A

Weaknesses

VI ratio actuator can be a failure point requiring preventive maintenance
Rotor wear may increase at sustained high‑load operation
Oil foaming issues if oil quality or temperature control is inadequate
Discharge temperature alarm necessitates careful monitoring and possible derating
Limited to R‑134a/R‑513A; not suitable for CO₂, ammonia or newer low‑GWP refrigerants

Typical Vessels: Reefer container shipsDry cargo vessels with refrigerated holdsLPG carriers requiring cargo temperature controlOffshore supply vessels with HVAC/refrigeration needsPassenger ferries with onboard refrigeration

Decision Guide: Choose if you need a compact, high‑efficiency marine compressor for R‑134a/R‑513A with variable capacity and integrated oil separation. Avoid if your application requires other refrigerants, ultra‑low maintenance without actuator parts, or if budget constraints preclude the higher upfront cost of a variable‑VI unit.

Use Cases: The HSK8571 is typically installed in cargo refrigeration plants on reefer ships to maintain temperature for perishable goods, as part of HVAC systems on passenger vessels, and on offshore supply rigs where space‑efficient, marine‑qualified compressors are required for auxiliary cooling.

Datasheet

Bitzer OS.A5561 unverified

Series

OS.

Compressor Type

semi_hermetic_provision

Datasheet

Bitzer OS.A5571 unverified

Series

OS.

Compressor Type

semi_hermetic_provision

Datasheet

Bitzer OS.A7472 unverified

Series

OS.

Compressor Type

semi_hermetic_provision

Datasheet

Bitzer OS.A7562 unverified

Series

OS.

Compressor Type

semi_hermetic_provision

Datasheet

CSH6553-35 ✓ verified

Application

Semi-hermetic compact screw compressor for air-cooled liquid chillers and heat pumps

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CSH7573-90 ✓ verified

Application

Semi-hermetic compact screw compressor for air-cooled liquid chillers and heat pumps

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CSH8593-140 ✓ verified

Application

Semi-hermetic compact screw compressor for air-cooled liquid chillers and heat pumps

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CSH9573-180 ✓ verified

Application

Semi-hermetic compact screw compressor for air-cooled liquid chillers and heat pumps

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CSH95103-280 ✓ verified

Application

Semi-hermetic compact screw compressor for air-cooled liquid chillers and heat pumps

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HS.53 ✓ verified

Application

Semi-hermetic screw compressor for large-scale commercial refrigeration and process cooling

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HS.64 ✓ verified

Application

Semi-hermetic screw compressor for large-scale commercial refrigeration and process cooling

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HS.74 ✓ verified

Application

Semi-hermetic screw compressor for large-scale commercial refrigeration and process cooling

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HS.85 ✓ verified

Application

Semi-hermetic screw compressor for large-scale commercial refrigeration and process cooling

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HSK6451-50 ✓ verified

Application

Semi-hermetic screw compressor for air-conditioning and medium temperature cooling

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HS.95 ✓ verified

Application

Semi-hermetic screw compressor for large-scale commercial, industrial and process cooling with high efficiency

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

OS.53 ✓ verified

Application

Open-drive screw compressor for standard refrigerants in large-scale refrigeration systems

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

OS.74 ✓ verified

Application

Open-drive screw compressor for standard refrigerants in large-scale refrigeration systems

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

OS.85 ✓ verified

Application

Open-drive screw compressor for standard refrigerants in large-scale refrigeration systems

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

OS.95 ✓ verified

Application

Open-drive screw compressor for standard refrigerants in large-scale refrigeration systems

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CSV series ✓ verified

Application

Semi-hermetic frequency-controlled compact screw compressor with integrated inverter for maximum efficiency in liquid chillers and heat pumps

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CSHP series ✓ verified

Application

Semi-hermetic compact screw compressor for hydrocarbon refrigerants (propane R290, propylene R1270)

Common Failures & Inspection Points

Area: Check oil level and condition regularly (contamination, viscosity, acid number)
Check: Check oil level and condition regularly (contamination, viscosity, acid number)
Area: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Check: Monitor oil pressure and differential pressure within permissible range according to manufacturer specifications
Area: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Check: Entladungstemperatur kontrollieren (max. 225°F/107°C für semi-hermetische Verdichter)
Area: Inspect suction and discharge pressure and compare with nominal values
Check: Inspect suction and discharge pressure and compare with nominal values
Area: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Check: Perform vibration measurements (bearing housing, couplings, compressor body check for baseline deviations)
Area: Document motor current draw (amperage) and operating hours as indicators of wear
Check: Document motor current draw (amperage) and operating hours as indicators of wear
Area: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Check: Geräusche kontrollieren (ungewöhnliche Knacklaute, Schleifen, Pfeifen können auf Lagerverschleiß hindeuten)
Area: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)
Check: Take oil samples every 2000 operating hours for laboratory analysis (wear particles, acid number, moisture content)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Danfoss

19 ✓ 19 verified

HGX12P/110-4 S ✓ verified

Application

Refrigeration and air conditioning (suction gas cooled)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://store.danfoss.com/en/Climate-Solutions-for-cooling/Compressors/Semi-hermetic-reciprocating-BOCK-Compressors/All-semi-hermetic-reciprocating-BOCK-compressors/COMPRESSOR

Datasheet

HGX22e/190-4 S ✓ verified

Application

Refrigeration and air conditioning (suction gas cooled)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://store.danfoss.com/en/Climate-Solutions-for-cooling/Compressors/Semi-hermetic-reciprocating-BOCK-Compressors/

Datasheet

HGX34e/380-4 S ✓ verified

Application

Refrigeration and air conditioning (suction gas cooled)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HGX44e/770-4 S ✓ verified

Application

Refrigeration and air conditioning (suction gas cooled)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://store.danfoss.com/en/Climate-Solutions-for-cooling/Compressors/Semi-hermetic-reciprocating-BOCK-Compressors/

Datasheet

HGX56e/1155-4 ✓ verified

Application

Refrigeration and air conditioning (suction gas cooled)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HGX12e/20-4 S CO2 ✓ verified

Application

Low-temperature CO2 refrigeration (subcritical)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://store.danfoss.com/en/Climate-Solutions-for-cooling/Compressors/Compressors-for-heating/Semi-hermetic-reciprocating-BOCK-Compressors/All-semi-hermetic-reciprocating-BOCK-compressors/BOCK

Datasheet

HGX22e/130 S CO2 ✓ verified

Application

Low-temperature CO2 refrigeration (subcritical)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://store.danfoss.com/us/en/Climate-Solutions-for-cooling/Compressors/

Datasheet

HGX34e/255-4 S CO2 ✓ verified

Application

Low-temperature CO2 refrigeration (subcritical)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HGX44e/565-4 S CO2 ✓ verified

Application

Low-temperature CO2 refrigeration (subcritical)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HGX12 CO2 T ✓ verified

Application

Transcritical CO2 refrigeration and heat pump systems

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HGX24 CO2 T ✓ verified

Application

Transcritical CO2 refrigeration and heat pump systems

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HGX34 CO2 T ✓ verified

Application

Transcritical CO2 refrigeration and heat pump systems

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HGX46 CO2 T ✓ verified

Application

Transcritical CO2 refrigeration and heat pump systems

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HGX56 CO2 T ✓ verified

Application

Transcritical CO2 refrigeration and heat pump systems (large capacity)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HRX60-2 CO2 T H ✓ verified

Application

StarCO2mpressor for electric buses and trains (transcritical CO2)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

FKX40/560 K ✓ verified

Application

Bus and vehicle air conditioning (open type, R134a/R407C)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://store.danfoss.com/en/Climate-Solutions-for-cooling/Compressors/BOCK-Compressors-for-transport-mobile/BOCK-Compressors-for-container-refrigeration-(reefer

Datasheet

FX5 ✓ verified

Application

Open type stationary refrigeration

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HG12 HC ✓ verified

Application

Low-GWP hydrocarbon refrigerants (R290, R1270)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HG22 HC ✓ verified

Application

Low-GWP hydrocarbon refrigerants (R290, R1270)

Common Failures & Inspection Points

Area: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Check: Oil level and quality check (visual inspection and oil analysis for water content and acidity)
Area: Discharge and suction pressure measurements (document baseline values for comparison)
Check: Discharge and suction pressure measurements (document baseline values for comparison)
Area: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Check: Oil temperature monitoring (normal 60-80 C for HFC/HFO refrigerants, below 0 C suction side alerts)
Area: Motor amperage and motor surface temperature check
Check: Motor amperage and motor surface temperature check
Area: Vibration and noise monitoring for abnormal operation
Check: Vibration and noise monitoring for abnormal operation
Area: High/low pressure relief valve functionality and settings verification
Check: High/low pressure relief valve functionality and settings verification
Area: Refrigerant charge verification and system leak detection
Check: Refrigerant charge verification and system leak detection
Area: Oil filter and strainer inspection/replacement per maintenance schedule
Check: Oil filter and strainer inspection/replacement per maintenance schedule
Area: Lubrication supply pressure monitoring and oil pump functionality
Check: Lubrication supply pressure monitoring and oil pump functionality

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Dorin

12 ✓ 12 verified

41VSR ✓ verified

Application

Open Type Refrigeration Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

2GVS ✓ verified

Application

Open Type Refrigeration Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

2Q3 ✓ verified

Application

Open Type Refrigeration Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

H80CC ✓ verified

Application

Semi-Hermetic Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

H551CS ✓ verified

Application

Semi-Hermetic Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

H1001CS ✓ verified

Application

Semi-Hermetic Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

H1601CS ✓ verified

Application

Semi-Hermetic Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

H2500CC ✓ verified

Application

Semi-Hermetic Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

H3000CC ✓ verified

Application

Semi-Hermetic Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

H4000CC ✓ verified

Application

Semi-Hermetic Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

H6000CS ✓ verified

Application

Semi-Hermetic Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

H7501CS ✓ verified

Application

Semi-Hermetic Compressor

Common Failures & Inspection Points

Area: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Check: Inspection and regular change of oil filter (pressure drop verifiable over OEM limits)
Area: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Check: Inspect lubricating oil in sight glass; observe oil level, colour and combustion residue
Area: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Check: Inspection and cleaning of suction filter (between suction stop valve and compressor) to prevent foreign matter
Area: Monitoring of suction pressure (undercharging or flow restriction discernible)
Check: Monitoring of suction pressure (undercharging or flow restriction discernible)
Area: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Check: Ueberwachung des Kopfdrucks (Kondensator-Verschmutzung, Luftstromprobleme, Nicht-Kondensierbare Gase)
Area: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Check: Inspection of exhaust temperature for overheating (indication of air flow obstruction or overcharging)
Area: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Check: Functional test of suction, discharge and economizer valves (leakages promote oil losses)
Area: Check electrical connections and motor support (voltage, current consumption)
Check: Check electrical connections and motor support (voltage, current consumption)

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Howden Marine

12 ✓ 12 verified

XRV127-R3 ✓ verified

Application

Industrial refrigeration, R717/NH3 ammonia refrigeration systems

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

XRV204/110 ✓ verified

Application

Industrial refrigeration, single-walled oil-injected, R717/NH3

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

XRV204/145 ✓ verified

Application

Industrial refrigeration, single-walled oil-injected, R717/NH3

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

XRV204/165 ✓ verified

Application

Industrial refrigeration, single-walled oil-injected, R717/NH3

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

XRV204/193 ✓ verified

Application

Industrial refrigeration, single-walled oil-injected, R717/NH3

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

XRV163/165 ✓ verified

Application

Industrial refrigeration, single-walled oil-injected, R717/NH3

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

WRV255/110 ✓ verified

Application

Industrial refrigeration, double-walled high-pressure, R717/NH3

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

WRVI255 ✓ verified

Application

Industrial refrigeration, double-walled oil-injected, R717/NH3

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

WRV204/110 ✓ verified

Application

Industrial refrigeration, double-walled oil-injected, R717/NH3

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

WRV204/145 ✓ verified

Application

Industrial refrigeration, double-walled oil-injected, R717/NH3

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

WRV365/165 ✓ verified

Application

Industrial refrigeration, double-walled oil-injected, R717/NH3, large capacity

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

WRV365/193 ✓ verified

Application

Industrial refrigeration, double-walled oil-injected, R717/NH3, large capacity

Common Failures & Inspection Points

Area: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Check: Oil level check in compressor and reservoir - verify lubricant supply at baseline pressure
Area: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hou
Check: Oil analysis sampling and laboratory testing - viscosity, acid number, moisture content, metallic wear particles (perform quarterly or every 1,000 operating hours minimum)
Area: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Check: Suction and discharge pressure logging - compare against design operating conditions to detect refrigerant shortage, condenser fouling, or valve inefficiency
Area: Rotor timing and slide valve operation inspection on screw compressors
Check: Rotor timing and slide valve operation inspection on screw compressors
Area: Shaft seal condition and integrity verification
Check: Shaft seal condition and integrity verification
Area: Oil separator element inspection and cleaning (oil-injected systems)
Check: Oil separator element inspection and cleaning (oil-injected systems)
Area: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Check: Vibration analysis of compressor and bearing condition (minimum semi-annually)
Area: Motor amperage verification and motor frame inspection at operating conditions
Check: Motor amperage verification and motor frame inspection at operating conditions

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Vilter

12 ✓ 12 verified

VMC 450XL (450 XL) ✓ verified

Application

Industrial Refrigeration - Reciprocating Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

VMC 458XL ✓ verified

Application

Industrial Refrigeration - 8-Cylinder Reciprocating Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

VMC 456XL ✓ verified

Application

Industrial Refrigeration - 6-Cylinder Reciprocating Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://www.genemco.com/products/vilter-456xl-6-cylinder-reciprocating-compressor-package-40-hp-230-460-v-belt-driven-ars06

Datasheet

VMC 440 ✓ verified

Application

Industrial Refrigeration - Reciprocating Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

VMC 350 ES ✓ verified

Application

Industrial Refrigeration - Reciprocating Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

VSS-601 ✓ verified

Application

Industrial Refrigeration - Single Screw Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

VSS-751 ✓ verified

Application

Industrial Refrigeration - Single Screw Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

VSS-1201 ✓ verified

Application

Industrial Refrigeration - Single Screw Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

VSMC-601 ✓ verified

Application

Industrial Refrigeration - Single Screw Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

VSMC-701 ✓ verified

Application

Industrial Refrigeration - Single Screw Compressor

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Transcritical CO2 Single-Screw Compressor (7 displacement models) ✓ verified

Application

Industrial CO2 Refrigeration - Transcritical Systems

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Subcritical CO2 Single-Screw Compressor (11 displacement models) ✓ verified

Application

Industrial CO2 Refrigeration - Cascade Systems

Common Failures & Inspection Points

Area: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Check: Inspect piston wear and scratches on piston rings – for VMC models inspect the critical sealing surface
Area: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Check: Inspect crankshaft for wear, cracks and bearing play – particularly in high-cylinder versions such as VMC 450XL
Area: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Check: Inspect intake valves and discharge valves for wear, varnishing and contamination – at pressure up to 36 bar critical
Area: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Check: Inspect oil separator and oil cooler for varnishing and throttling – continuous maintenance for VSS/VSMC single-screw models
Area: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Check: Inspect Parallex slide system (single-screw models) for wear and positioning accuracy for optimum efficiency
Area: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Check: Inspect bearings and bearing tolerances – particularly critical for VSS models with their 5/15 year warranty
Area: Inspect flange seals, pipe connections and joints for leakage and corrosion
Check: Inspect flange seals, pipe connections and joints for leakage and corrosion
Area: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately
Check: Inspect coolant circulation and thermal condition – for ammonia (R-717) and halocarbon systems assessed separately

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

York

11 ✓ 11 verified

YVAA Series Air-Cooled Screw Chiller (Style A) ✓ verified

Application

Commercial air-cooled liquid chilling with variable speed drive capacity control

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

YVAA0153 ✓ verified

Application

Air-cooled screw compressor chiller - base model

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

YLAA Series Air-Cooled Scroll Chiller (Style A/B) ✓ verified

Application

Commercial air-cooled liquid chilling with variable speed drive fans

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

YLAA0070 ✓ verified

Application

Air-cooled scroll chiller - smaller capacity model

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

YLAA0230HE (High Efficiency) ✓ verified

Application

Air-cooled scroll chiller - high efficiency large capacity

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

YK Centrifugal Chiller Series ✓ verified

Application

Water-cooled centrifugal compressor for industrial and commercial cooling

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

YK-HT Two-Stage Centrifugal Chiller ✓ verified

Application

High-performance water-cooled two-stage economized centrifugal chiller for data centers and large facilities

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (seite leer): https://www.york.com/commercial-equipment/chilled-water-systems/water-cooled-chillers/ykht_ch/yk-ht-two-stage-centrifugal-chiller

Datasheet

YMC2 Centrifugal Magnetic Drive Chiller ✓ verified

Application

Water-cooled centrifugal chiller with magnetic bearing compressor drive

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (seite leer): https://www.york.com/commercial-equipment/chilled-water-systems/water-cooled-chillers/ymc2_ch/ymc-magnetic-bearing-centrifugal-chiller

Datasheet

FRICK RWF II Rotary Screw Compressor Package ✓ verified

Application

Industrial refrigeration screw compressor package with 4+6 rotor design

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

FRICK RXF Rotary Screw Compressor Package ✓ verified

Application

Industrial refrigeration screw compressor package with 5+7 rotor design

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

York FRICK SGC Bare Screw Compressor Series

FRICK SGC Bare Screw Compressor Series ✓ verified

Application

Industrial refrigeration compressors for gas compression, vapor recovery, water chilling

Common Failures & Inspection Points

Area: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Check: Oil pressure verification - ensure operating compressors meet OEM specifications and oil pressure differential is within manufacturer range
Area: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Check: Crankcase/oil reservoir level check - confirm oil is within operating range and free from contamination or degradation
Area: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Check: Discharge temperature monitoring - log compressor discharge temperature against design range; high temperatures indicate low refrigerant or oil issues
Area: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fou
Check: Refrigerant charge and pressure - verify suction and discharge pressures match design conditions; abnormal ratios indicate refrigerant shortage or condenser fouling
Area: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degr
Check: Oil analysis sampling - extract oil samples for laboratory analysis of viscosity, acid number, moisture, and metallic wear particles to detect bearing/seal degradation
Area: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoi
Check: Safety control testing - manually test high-pressure cutout, low-pressure cutout, high-temperature cutout, and oil pressure differential controls against setpoints
Area: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Check: Vibration and noise assessment - inspect for unusual vibrations or acoustic signatures that may indicate compressor wear, internal damage, or bearing issues
Area: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation
Check: Motor amperage and electrical integrity - verify motor current draw, phase balance, and control system voltage stability during operation

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

GEA

8 ✓ 8 verified

Grasso M Series (8 models: C, D, E, G, H, L, M, N) ✓ verified

Application

Industrial refrigeration, marine ship cooling, freezing systems (cruise ships, fishing vessels)

Common Failures & Inspection Points

Area: Daily oil pressure monitoring - verify within OEM specifications
Check: Daily oil pressure monitoring - verify within OEM specifications
Area: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Check: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Area: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Check: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Area: Bolt and coupling security - verify all threaded connections and coupling hood safety
Check: Bolt and coupling security - verify all threaded connections and coupling hood safety
Area: Discharge temperature monitoring - ensure within design operating range
Check: Discharge temperature monitoring - ensure within design operating range
Area: Oil separator and coalescer performance - check oil return rate and separator efficiency
Check: Oil separator and coalescer performance - check oil return rate and separator efficiency
Area: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Check: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Area: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration
Check: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Grasso M Packaged System ✓ verified

Application

Marine refrigeration, cruise ships, reefer ships, fishing vessel cooling systems

Common Failures & Inspection Points

Area: Daily oil pressure monitoring - verify within OEM specifications
Check: Daily oil pressure monitoring - verify within OEM specifications
Area: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Check: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Area: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Check: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Area: Bolt and coupling security - verify all threaded connections and coupling hood safety
Check: Bolt and coupling security - verify all threaded connections and coupling hood safety
Area: Discharge temperature monitoring - ensure within design operating range
Check: Discharge temperature monitoring - ensure within design operating range
Area: Oil separator and coalescer performance - check oil return rate and separator efficiency
Check: Oil separator and coalescer performance - check oil return rate and separator efficiency
Area: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Check: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Area: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration
Check: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Grasso LT Series (16 models: P, R, S, T, V, W, Y, Z, XA, XB, XC, XD, XE, XF, XG, XH) ✓ verified

Application

Large-capacity industrial refrigeration, ammonia systems, process cooling

Common Failures & Inspection Points

Area: Daily oil pressure monitoring - verify within OEM specifications
Check: Daily oil pressure monitoring - verify within OEM specifications
Area: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Check: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Area: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Check: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Area: Bolt and coupling security - verify all threaded connections and coupling hood safety
Check: Bolt and coupling security - verify all threaded connections and coupling hood safety
Area: Discharge temperature monitoring - ensure within design operating range
Check: Discharge temperature monitoring - ensure within design operating range
Area: Oil separator and coalescer performance - check oil return rate and separator efficiency
Check: Oil separator and coalescer performance - check oil return rate and separator efficiency
Area: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Check: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Area: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration
Check: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Grasso V Series (V 300-2, V 450-2, V 600-2, V 700-2, V 1100-2, V 1400-2, V 1800-2) ✓ verified

Application

Reciprocating industrial refrigeration, ammonia systems, heat pump applications

Common Failures & Inspection Points

Area: Daily oil pressure monitoring - verify within OEM specifications
Check: Daily oil pressure monitoring - verify within OEM specifications
Area: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Check: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Area: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Check: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Area: Bolt and coupling security - verify all threaded connections and coupling hood safety
Check: Bolt and coupling security - verify all threaded connections and coupling hood safety
Area: Discharge temperature monitoring - ensure within design operating range
Check: Discharge temperature monitoring - ensure within design operating range
Area: Oil separator and coalescer performance - check oil return rate and separator efficiency
Check: Oil separator and coalescer performance - check oil return rate and separator efficiency
Area: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Check: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Area: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration
Check: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Grasso V XHP Series (V 350 XHP, V 550 XHP, V 750 XHP, V 950 XHP) ✓ verified

Application

Industrial heat pump, high-temperature heating applications (up to 95°C)

Common Failures & Inspection Points

Area: Daily oil pressure monitoring - verify within OEM specifications
Check: Daily oil pressure monitoring - verify within OEM specifications
Area: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Check: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Area: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Check: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Area: Bolt and coupling security - verify all threaded connections and coupling hood safety
Check: Bolt and coupling security - verify all threaded connections and coupling hood safety
Area: Discharge temperature monitoring - ensure within design operating range
Check: Discharge temperature monitoring - ensure within design operating range
Area: Oil separator and coalescer performance - check oil return rate and separator efficiency
Check: Oil separator and coalescer performance - check oil return rate and separator efficiency
Area: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Check: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Area: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration
Check: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

GEA Grasso 5HP Series (35HP, 45HP, 55HP, 65HP)

Grasso 5HP Series (35HP, 45HP, 55HP, 65HP) ✓ verified

Application

CO₂ freezing systems, ammonia heat pump applications, natural refrigerant cooling

Common Failures & Inspection Points

Area: Daily oil pressure monitoring - verify within OEM specifications
Check: Daily oil pressure monitoring - verify within OEM specifications
Area: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Check: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Area: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Check: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Area: Bolt and coupling security - verify all threaded connections and coupling hood safety
Check: Bolt and coupling security - verify all threaded connections and coupling hood safety
Area: Discharge temperature monitoring - ensure within design operating range
Check: Discharge temperature monitoring - ensure within design operating range
Area: Oil separator and coalescer performance - check oil return rate and separator efficiency
Check: Oil separator and coalescer performance - check oil return rate and separator efficiency
Area: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Check: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Area: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration
Check: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Grasso RC 49 ✓ verified

Application

Industrial ammonia refrigeration systems

Common Failures & Inspection Points

Area: Daily oil pressure monitoring - verify within OEM specifications
Check: Daily oil pressure monitoring - verify within OEM specifications
Area: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Check: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Area: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Check: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Area: Bolt and coupling security - verify all threaded connections and coupling hood safety
Check: Bolt and coupling security - verify all threaded connections and coupling hood safety
Area: Discharge temperature monitoring - ensure within design operating range
Check: Discharge temperature monitoring - ensure within design operating range
Area: Oil separator and coalescer performance - check oil return rate and separator efficiency
Check: Oil separator and coalescer performance - check oil return rate and separator efficiency
Area: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Check: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Area: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration
Check: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Grasso X Packaged Screw Compressor System ✓ verified

Application

Marine ship cooling, flexible multi-compressor arrangements, ship machine rooms

Common Failures & Inspection Points

Area: Daily oil pressure monitoring - verify within OEM specifications
Check: Daily oil pressure monitoring - verify within OEM specifications
Area: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Check: Monthly oil sample analysis - test for metals, moisture, acid number, viscosity (laboratory)
Area: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Check: Refrigerant leak detection - visual inspection and ammonia odor/detector checks
Area: Bolt and coupling security - verify all threaded connections and coupling hood safety
Check: Bolt and coupling security - verify all threaded connections and coupling hood safety
Area: Discharge temperature monitoring - ensure within design operating range
Check: Discharge temperature monitoring - ensure within design operating range
Area: Oil separator and coalescer performance - check oil return rate and separator efficiency
Check: Oil separator and coalescer performance - check oil return rate and separator efficiency
Area: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Check: Scheduled oil change - replace according to manufacturer schedule (typically annual or bi-annual)
Area: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration
Check: Vibration and noise assessment - detect abnormal operational sounds or excessive vibration

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Heinen & Hopman

4 ✓ 4 verified

HHSCHSC Series (50 Hz) ✓ verified

Application

Ship water chiller / Marine refrigeration unit

Common Failures & Inspection Points

Area: Check compressor refrigerant charge level and type (R134a or R410a) - proper charging is critical for efficiency and performance
Check: Check compressor refrigerant charge level and type (R134a or R410a) - proper charging is critical for efficiency and performance
Area: Inspect compressor mounting and vibration isolation - ensure all fasteners are tight and rubber mounts are not deteriorated
Check: Inspect compressor mounting and vibration isolation - ensure all fasteners are tight and rubber mounts are not deteriorated
Area: Monitor compressor discharge temperature - excessive temperature may indicate insufficient oil return or overcharging
Check: Monitor compressor discharge temperature - excessive temperature may indicate insufficient oil return or overcharging
Area: Verify oil level and condition in semi-hermetic compressors - contaminated or low oil can cause bearing damage
Check: Verify oil level and condition in semi-hermetic compressors - contaminated or low oil can cause bearing damage
Area: Inspect suction and discharge lines for proper insulation - heat loss reduces efficiency and can cause liquid slugging
Check: Inspect suction and discharge lines for proper insulation - heat loss reduces efficiency and can cause liquid slugging
Area: Check condenser cooling water flow rate and temperature - blockages or inadequate cooling reduce efficiency
Check: Check condenser cooling water flow rate and temperature - blockages or inadequate cooling reduce efficiency
Area: Test capacity control system operation (25/50/75/100% modulation) - ensures proper load matching and efficiency
Check: Test capacity control system operation (25/50/75/100% modulation) - ensures proper load matching and efficiency
Area: Examine electrical connections and ground continuity - proper grounding prevents corrosion in marine environments
Check: Examine electrical connections and ground continuity - proper grounding prevents corrosion in marine environments

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HHSCHFC Series (50 Hz) ✓ verified

Application

Ship water chiller / Marine refrigeration unit

Common Failures & Inspection Points

Area: Check compressor refrigerant charge level and type (R134a or R410a) - proper charging is critical for efficiency and performance
Check: Check compressor refrigerant charge level and type (R134a or R410a) - proper charging is critical for efficiency and performance
Area: Inspect compressor mounting and vibration isolation - ensure all fasteners are tight and rubber mounts are not deteriorated
Check: Inspect compressor mounting and vibration isolation - ensure all fasteners are tight and rubber mounts are not deteriorated
Area: Monitor compressor discharge temperature - excessive temperature may indicate insufficient oil return or overcharging
Check: Monitor compressor discharge temperature - excessive temperature may indicate insufficient oil return or overcharging
Area: Verify oil level and condition in semi-hermetic compressors - contaminated or low oil can cause bearing damage
Check: Verify oil level and condition in semi-hermetic compressors - contaminated or low oil can cause bearing damage
Area: Inspect suction and discharge lines for proper insulation - heat loss reduces efficiency and can cause liquid slugging
Check: Inspect suction and discharge lines for proper insulation - heat loss reduces efficiency and can cause liquid slugging
Area: Check condenser cooling water flow rate and temperature - blockages or inadequate cooling reduce efficiency
Check: Check condenser cooling water flow rate and temperature - blockages or inadequate cooling reduce efficiency
Area: Test capacity control system operation (25/50/75/100% modulation) - ensures proper load matching and efficiency
Check: Test capacity control system operation (25/50/75/100% modulation) - ensures proper load matching and efficiency
Area: Examine electrical connections and ground continuity - proper grounding prevents corrosion in marine environments
Check: Examine electrical connections and ground continuity - proper grounding prevents corrosion in marine environments

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HHSSC Series (50 Hz) ✓ verified

Application

Yacht chilled water unit

Common Failures & Inspection Points

Area: Check compressor refrigerant charge level and type (R134a or R410a) - proper charging is critical for efficiency and performance
Check: Check compressor refrigerant charge level and type (R134a or R410a) - proper charging is critical for efficiency and performance
Area: Inspect compressor mounting and vibration isolation - ensure all fasteners are tight and rubber mounts are not deteriorated
Check: Inspect compressor mounting and vibration isolation - ensure all fasteners are tight and rubber mounts are not deteriorated
Area: Monitor compressor discharge temperature - excessive temperature may indicate insufficient oil return or overcharging
Check: Monitor compressor discharge temperature - excessive temperature may indicate insufficient oil return or overcharging
Area: Verify oil level and condition in semi-hermetic compressors - contaminated or low oil can cause bearing damage
Check: Verify oil level and condition in semi-hermetic compressors - contaminated or low oil can cause bearing damage
Area: Inspect suction and discharge lines for proper insulation - heat loss reduces efficiency and can cause liquid slugging
Check: Inspect suction and discharge lines for proper insulation - heat loss reduces efficiency and can cause liquid slugging
Area: Check condenser cooling water flow rate and temperature - blockages or inadequate cooling reduce efficiency
Check: Check condenser cooling water flow rate and temperature - blockages or inadequate cooling reduce efficiency
Area: Test capacity control system operation (25/50/75/100% modulation) - ensures proper load matching and efficiency
Check: Test capacity control system operation (25/50/75/100% modulation) - ensures proper load matching and efficiency
Area: Examine electrical connections and ground continuity - proper grounding prevents corrosion in marine environments
Check: Examine electrical connections and ground continuity - proper grounding prevents corrosion in marine environments

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Heinen & Hopman Turbocor Chiller (HHSCHSC/HHSCHFC based)

Turbocor Chiller (HHSCHSC/HHSCHFC based) ✓ verified

Application

Energy-efficient ship water chiller with Danfoss Turbocor compressor

Common Failures & Inspection Points

Area: Check compressor refrigerant charge level and type (R134a or R410a) - proper charging is critical for efficiency and performance
Check: Check compressor refrigerant charge level and type (R134a or R410a) - proper charging is critical for efficiency and performance
Area: Inspect compressor mounting and vibration isolation - ensure all fasteners are tight and rubber mounts are not deteriorated
Check: Inspect compressor mounting and vibration isolation - ensure all fasteners are tight and rubber mounts are not deteriorated
Area: Monitor compressor discharge temperature - excessive temperature may indicate insufficient oil return or overcharging
Check: Monitor compressor discharge temperature - excessive temperature may indicate insufficient oil return or overcharging
Area: Verify oil level and condition in semi-hermetic compressors - contaminated or low oil can cause bearing damage
Check: Verify oil level and condition in semi-hermetic compressors - contaminated or low oil can cause bearing damage
Area: Inspect suction and discharge lines for proper insulation - heat loss reduces efficiency and can cause liquid slugging
Check: Inspect suction and discharge lines for proper insulation - heat loss reduces efficiency and can cause liquid slugging
Area: Check condenser cooling water flow rate and temperature - blockages or inadequate cooling reduce efficiency
Check: Check condenser cooling water flow rate and temperature - blockages or inadequate cooling reduce efficiency
Area: Test capacity control system operation (25/50/75/100% modulation) - ensures proper load matching and efficiency
Check: Test capacity control system operation (25/50/75/100% modulation) - ensures proper load matching and efficiency
Area: Examine electrical connections and ground continuity - proper grounding prevents corrosion in marine environments
Check: Examine electrical connections and ground continuity - proper grounding prevents corrosion in marine environments

Typ-universelle Inspektionspunkte fuer Compressors (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Grasso (GEA)

Grasso V 300 Series unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Datasheet

Grasso V 300 50/10 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R717

Datasheet

Grasso V 300 50/15 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R717

Datasheet

Grasso V 300 50/25 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R717

Datasheet

Grasso V 300 100/10 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Grasso V 300 100/15 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Grasso V 300 100/25 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Grasso V 300 200/10 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso V 300 200/15 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso V 300 200/25 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso V 300 400/10 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 300 400/15 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 300 400/25 unverified

Model Family

V 300

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 700 Series unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Datasheet

Grasso V 700 100/10 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Grasso V 700 100/15 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Grasso V 700 100/25 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Grasso V 700 200/10 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso V 700 200/15 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso V 700 200/25 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso V 700 400/10 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 700 400/15 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 700 400/25 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 700 800/10 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Grasso V 700 800/15 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Grasso V 700 800/25 unverified

Model Family

V 700

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Grasso V 1100 Series unverified

Model Family

V 1100

Compressor Type

refrigeration_compressor

Datasheet

Grasso V 1100 200/10 unverified

Model Family

V 1100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso V 1100 200/15 unverified

Model Family

V 1100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso V 1100 400/10 unverified

Model Family

V 1100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 1100 400/15 unverified

Model Family

V 1100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 1100 800/10 unverified

Model Family

V 1100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Grasso V 1100 800/15 unverified

Model Family

V 1100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Grasso V 1100 1200/10 unverified

Model Family

V 1100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1200

Refrigerant

R717

Datasheet

Grasso V 1100 1200/15 unverified

Model Family

V 1100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1200

Refrigerant

R717

Datasheet

Grasso V 1500 Series unverified

Model Family

V 1500

Compressor Type

refrigeration_compressor

Datasheet

Grasso V 1500 400/10 unverified

Model Family

V 1500

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 1500 400/15 unverified

Model Family

V 1500

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso V 1500 800/10 unverified

Model Family

V 1500

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Grasso V 1500 800/15 unverified

Model Family

V 1500

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Grasso V 1500 1200/10 unverified

Model Family

V 1500

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1200

Refrigerant

R717

Datasheet

Grasso V 1500 1200/15 unverified

Model Family

V 1500

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1200

Refrigerant

R717

Datasheet

Grasso V 1500 2000/10 unverified

Model Family

V 1500

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

2000

Refrigerant

R717

Datasheet

Grasso V 1500 2000/15 unverified

Model Family

V 1500

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

2000

Refrigerant

R717

Datasheet

Grasso RC 11 Series unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Datasheet

Grasso RC 11 100/10 unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Grasso RC 11 100/15 unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Grasso RC 11 100/25 unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Grasso RC 11 200/10 unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso RC 11 200/15 unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso RC 11 200/25 unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso RC 11 400/10 unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso RC 11 400/15 unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso RC 11 400/25 unverified

Model Family

RC 11

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso RC 13 Series unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Datasheet

Grasso RC 13 200/10 unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso RC 13 200/15 unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso RC 13 200/25 unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Grasso RC 13 400/10 unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso RC 13 400/15 unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso RC 13 400/25 unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Grasso RC 13 600/10 unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R717

Datasheet

Grasso RC 13 600/15 unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R717

Datasheet

Grasso RC 13 600/25 unverified

Model Family

RC 13

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R717

Datasheet

Sabroe/Johnson Controls

Sabroe SMC 100 Series unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 50/10

Sabroe SMC 100 50/10 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 50/15

Sabroe SMC 100 50/15 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 50/25

Sabroe SMC 100 50/25 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 100/10

Sabroe SMC 100 100/10 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 100/15

Sabroe SMC 100 100/15 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 100/25

Sabroe SMC 100 100/25 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 200/10

Sabroe SMC 100 200/10 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 200/15

Sabroe SMC 100 200/15 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 200/25

Sabroe SMC 100 200/25 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 400/10

Sabroe SMC 100 400/10 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 400/15

Sabroe SMC 100 400/15 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 100 400/25

Sabroe SMC 100 400/25 unverified

Model Family

SMC 100

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe SMC 200 Series unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 200 100/10

Sabroe SMC 200 100/10 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 200 100/15

Sabroe SMC 200 100/15 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 200 100/25

Sabroe SMC 200 100/25 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Sabroe SMC 200 200/10 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe SMC 200 200/15 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SMC 200 200/25

Sabroe SMC 200 200/25 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe SMC 200 400/10 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe SMC 200 400/15 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe SMC 200 400/25 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe SMC 200 800/10 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Sabroe SMC 200 800/15 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Sabroe SMC 200 800/25 unverified

Model Family

SMC 200

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

800

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 128 Series

Sabroe SAB 128 Series unverified

Model Family

SAB 128

Compressor Type

refrigeration_compressor

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 128 200/10

Sabroe SAB 128 200/10 unverified

Model Family

SAB 128

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 128 200/15

Sabroe SAB 128 200/15 unverified

Model Family

SAB 128

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 128 400/10

Sabroe SAB 128 400/10 unverified

Model Family

SAB 128

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 128 400/15

Sabroe SAB 128 400/15 unverified

Model Family

SAB 128

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 128 600/10

Sabroe SAB 128 600/10 unverified

Model Family

SAB 128

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 128 600/15

Sabroe SAB 128 600/15 unverified

Model Family

SAB 128

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 128 1000/10

Sabroe SAB 128 1000/10 unverified

Model Family

SAB 128

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1000

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 128 1000/15

Sabroe SAB 128 1000/15 unverified

Model Family

SAB 128

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1000

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 163 Series

Sabroe SAB 163 Series unverified

Model Family

SAB 163

Compressor Type

refrigeration_compressor

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 163 400/10

Sabroe SAB 163 400/10 unverified

Model Family

SAB 163

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 163 400/15

Sabroe SAB 163 400/15 unverified

Model Family

SAB 163

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

400

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 163 600/10

Sabroe SAB 163 600/10 unverified

Model Family

SAB 163

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 163 600/15

Sabroe SAB 163 600/15 unverified

Model Family

SAB 163

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

600

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 163 1000/10

Sabroe SAB 163 1000/10 unverified

Model Family

SAB 163

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1000

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 163 1000/15

Sabroe SAB 163 1000/15 unverified

Model Family

SAB 163

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1000

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 163 1500/10

Sabroe SAB 163 1500/10 unverified

Model Family

SAB 163

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1500

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe SAB 163 1500/15

Sabroe SAB 163 1500/15 unverified

Model Family

SAB 163

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1500

Refrigerant

R717

Datasheet

Sabroe CMO 24 Series unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Datasheet

Sabroe (Johnson Controls) Sabroe CMO 24 50/10

Sabroe CMO 24 50/10 unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe CMO 24 50/15

Sabroe CMO 24 50/15 unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe CMO 24 50/25

Sabroe CMO 24 50/25 unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe CMO 24 100/10

Sabroe CMO 24 100/10 unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe CMO 24 100/15

Sabroe CMO 24 100/15 unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe CMO 24 100/25

Sabroe CMO 24 100/25 unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

100

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe CMO 24 200/10

Sabroe CMO 24 200/10 unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe CMO 24 200/15

Sabroe CMO 24 200/15 unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Sabroe (Johnson Controls) Sabroe CMO 24 200/25

Sabroe CMO 24 200/25 unverified

Model Family

CMO 24

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Refrigerant

R717

Datasheet

Burckhardt

Burckhardt Process Gas Series unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Max. Pressure (bar)

Datasheet

Burckhardt Process Gas 200/10 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Stages

Datasheet

Burckhardt Process Gas 500/10 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

500

Stages

Datasheet

Burckhardt Process Gas 1000/10 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1000

Stages

Datasheet

Burckhardt Process Gas 2000/10 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

2000

Stages

Datasheet

Burckhardt Process Gas 200/15 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Stages

Datasheet

Burckhardt Process Gas 500/15 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

500

Stages

Datasheet

Burckhardt Process Gas 1000/15 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1000

Stages

Datasheet

Burckhardt Process Gas 2000/15 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

2000

Stages

Datasheet

Burckhardt Process Gas 200/25 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

200

Stages

Datasheet

Burckhardt Process Gas 500/25 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

500

Stages

Datasheet

Burckhardt Process Gas 1000/25 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

1000

Stages

Datasheet

Burckhardt Process Gas 2000/25 unverified

Model Family

Process Gas

Compressor Type

refrigeration_compressor

Pressure (bar)

Capacity (Nm³/h)

2000

Stages

Datasheet

Bock

HGX6/1410-4S

38 kW cooling · 15.0 kW · Refrigerant R404A · open‑type reciprocating refrigeration compressor

Common Failures & Inspection Points

Suction valve leakage
Oil foaming on start
Shaft seal leak

Service: Open-type reciprocating; shaft seal is the main wear item.

Spare Parts: Bock: Keep valve sets and piston rings on board. Lead time: 2–6 weeks. Oil filters and gasket sets as standard ship's stores.

Strengths

Proven Bock brand reliability in harsh marine environments
Open‑type design allows easy access for inspection and overhaul
High displacement per cylinder gives strong cooling capacity for large cargo holds
Compatible with common marine refrigerants approved under IMO D‑2

Weaknesses

Suction valve leakage reported as a recurring failure mode
Oil foaming on start can delay commissioning after shutdowns
Shaft seal is the primary wear item and requires scheduled replacement
Higher vibration and noise compared with oil‑free screw or scroll units

Typical Vessels: Reefer (refrigerated cargo) vesselsContainer ships carrying refrigerated containersBulk carriers transporting perishable bulk cargo (e.g., fruit, meat)Offshore platforms requiring deck refrigeration

Certifications: IMO D-2

Decision Guide: Choose if: you need a rugged, high‑capacity compressor for large cargo refrigeration plants and have the maintenance capability to service shaft seals and suction valves. Avoid if: low vibration, oil‑free operation, or minimal wear‑item maintenance are top priorities; consider screw or scroll compressors instead.

Use Cases: Typically installed as part of the main cargo refrigeration plant on reefer ships, providing chilled ammonia or CO₂ cycles for multiple cargo holds. Also used in auxiliary refrigeration loops for galley/freezer spaces where a reliable, high‑capacity compressor is required.

Datasheet

HGX44

44 kW cooling @ R-134a · 15.0 kW · Refrigerant R-134a/R-404A · Semi-hermetic piston compressor

Medium

Refrigerant R-134a/R-404A

Power (kW)

Type

Semi-Hermetic Piston

Common Failures & Inspection Points

Valve plate cracking
Motor winding burnout
Oil foaming at startup
Suction/discharge valve leakage

Service: Semi-hermetic — field-serviceable motor. Check oil level at sight glass. Acid test oil every 4000 hrs.

Spare Parts: Bock: Keep valve sets and piston rings on board. Lead time: 2–6 weeks. Oil filters and gasket sets as standard ship's stores.

Strengths

Field‑serviceable motor allows on‑site repairs without removing the whole unit
Compact size suitable for limited engine‑room space
Compatible with widely used marine refrigerants (R‑134a, R‑404A)
Sight glass and oil level check simplify routine maintenance
Relatively low power consumption for its cooling capacity

Weaknesses

Valve plate cracking reported in long‑term service
Motor winding burnout can occur if overload protection is inadequate
Oil foaming at startup may require careful pre‑run procedures
Suction/discharge valve leakage possible, demanding regular leak checks
Semi‑hermetic design offers shorter life than hermetic screw units under heavy duty cycles

Typical Vessels: Reefer container shipGeneral cargo vessel with refrigerated holdsOffshore supply vessel (HVAC)Cruise or passenger ship (galley/crew refrigeration)

Decision Guide: Choose if you need a compact, 15 kW compressor for R‑134a/R‑404A with field‑serviceable motor and easy oil monitoring. Avoid if the application demands higher capacity, ultra‑low vibration screw technology, or cannot accommodate the known valve plate and motor wear issues without strict maintenance regimes.

Use Cases: Commonly installed in cargo hold cooling systems on refrigerated vessels, air‑conditioning plants on passenger ships, and small to medium refrigeration loops for provisions storage where space is limited and serviceability is valued.

Datasheet

F16

16 kW cooling · 7.5 kW · Refrigerant R-404A/R-134a · Open piston refrigeration compressor

Medium

Refrigerant R-404A/R-134a

Power (kW)

7.5

Type

Open Piston

Common Failures & Inspection Points

Shaft seal leakage
Valve plate wear
Oil charge loss
Coupling vibration

Service: Open type — check shaft seal for refrigerant leaks. Compact for provision plant rooms.

Spare Parts: Bock: Keep valve sets and piston rings on board. Lead time: 2–6 weeks. Oil filters and gasket sets as standard ship's stores.

Strengths

Compact footprint – fits small provision plant rooms
Moderate power (7.5 kW) suitable for low‑to‑medium cooling loads
Compatible with widely used marine refrigerants R‑404A and R‑134a
Open piston design allows straightforward on‑board maintenance
Bock brand reputation for durability in harsh marine environments

Weaknesses

Shaft seal is a known leak point requiring regular inspection
Valve plate wear can reduce efficiency over time
Oil charge loss may lead to reduced lubrication and overheating
Coupling vibration can cause premature bearing wear
Limited capacity compared with larger screw or scroll compressors

Typical Vessels: Reefer container shipsGeneral cargo vessels with refrigerated holdsPassenger ferries and cruise ships (galley/refrigeration plant)Offshore supply/ accommodation vessels

Certifications: IMO Type Approval

Decision Guide: Choose if: you need a compact, easy‑to‑service compressor for modest cooling loads on vessels that already use R‑404A/R‑134a and value Bock’s service network. Avoid if: the plant requires high capacity, ultra‑low vibration, or must operate with low‑GWP refrigerants not supported by this model.

Use Cases: Typically installed in shipboard provision plants to supply chilled water for galley stores, in cargo hold cooling systems on refrigerated carriers, and in offshore accommodation modules where space is limited and maintenance access is essential.

Datasheet

Bitzer (Germany)

Ecoline Series (Marine)

10-200 kW cooling · R404A / R407C / R134a / R507A

Type

Semi-Hermetic Reciprocating Compressor

Size Range

2GES-2
4FES-3
4HE-18
6FE-40
8GE-60

Power range (kW)

Drive Type

Electric (integral motor)

Construction

Cast iron, semi-hermetic, suction gas cooled motor

Refrigerant types

R404A
R407C
R134a
R507A
R449A

Common Failures & Inspection Points

Motor winding burnout from liquid slugging / low superheat
Valve plate failure from liquid carryover
Oil pump failure on larger models (4HE and above) after 20,000 hrs
Shaft seal leakage on older units (>10 years)

Service: Oil level check daily. Suction/discharge pressure monitoring. Valve plate inspection every 10,000-15,000 hrs. Oil change every 5,000 hrs or annually. Complete overhaul 30,000-40,000 hrs.

Spare Parts: Bitzer global network — excellent availability. Standard parts from any refrigeration supplier. Keep onboard: valve plate set, gasket kit, oil charge. Lead time: 1-2 weeks worldwide.

Datasheet

OS Series (Screw Compressor)

50-800 kW cooling · R404A / R134a / R507A / R717 (Ammonia)

Type

Open-Drive Screw Compressor

Size Range

OS.53
OS.74
OS.85
OS.95
OS.A15

Power range (kW)

Drive Type

Electric (external motor via coupling)

Construction

Cast iron housing, twin-screw rotor, oil-injected

Refrigerant types

R404A
R134a
R507A
R717

Common Failures & Inspection Points

Screw rotor bearing failure after 30,000-50,000 hrs
Oil separator element clogging
Capacity slide valve actuator failure
Shaft seal oil leakage after 15,000-20,000 hrs

Service: Oil analysis every 2,000 hrs. Oil separator element every 8,000-10,000 hrs. Bearing inspection at 25,000 hrs. Complete overhaul 40,000-50,000 hrs.

Spare Parts: Bitzer global network. Screw compressor parts more specialized — lead time: 2-4 weeks for bearings, 4-6 weeks for rotors.

Datasheet

Mycom / Mayekawa (Japan)

N Series

30-500 kW cooling · R717 (Ammonia) / R22 / R404A / CO2

Type

Open-Drive Reciprocating Compressor

Size Range

N4WA
N6WA
N8WA
N12WA
N16WA

Power range (kW)

Drive Type

Electric (external motor)

Construction

Cast iron, open-drive, W-arrangement

Refrigerant types

R717
R22
R404A
CO2

Common Failures & Inspection Points

Valve plate cracking from liquid slugging
Shaft seal leakage on NH3 systems
Oil pressure differential switch malfunction
Capacity unloader solenoid valve failure

Service: Valve overhaul every 8,000-12,000 hrs. Shaft seal every 4,000-6,000 hrs (NH3). Oil analysis every 2,000 hrs. Complete overhaul 30,000-40,000 hrs.

Spare Parts: Mycom/Mayekawa (Tokyo). Service in Japan, Korea, Singapore, Europe (Belgium). Lead time: 2-4 weeks Asia, 4-6 weeks elsewhere.

Datasheet

MYCOM Screw (F/G Series)

100-1,500 kW cooling · R717 (Ammonia) / R22 / R404A / CO2

Type

Open-Drive Screw Compressor

Size Range

F100
F125
F160
F200
G160
G200
G250

Power range (kW)

Drive Type

Electric (external motor via coupling)

Construction

Cast iron housing, twin-screw rotor, oil-injected

Refrigerant types

R717
R22
R404A
CO2

Common Failures & Inspection Points

Screw rotor bearing failure after 40,000-50,000 hrs
Oil separator element saturation
Slide valve actuator wear
Shaft seal leakage on NH3 systems

Service: Oil analysis every 2,000 hrs. Oil separator every 6,000-8,000 hrs. Bearing inspection at 25,000-30,000 hrs. Complete overhaul 40,000-50,000 hrs.

Spare Parts: Mycom/Mayekawa network. Lead time: 3-6 weeks for bearings, 8-10 weeks for rotors.

Datasheet

Sabroe / Johnson Controls (Denmark)

SMC Series

50-500 kW cooling · R717 (Ammonia) / R22 / R404A / R134a

Type

Open-Drive Reciprocating Compressor

Size Range

SMC 6
SMC 8
SMC 100
SMC 104
SMC 108
SMC 112
SMC 116

Power range (kW)

Drive Type

Electric (external motor via coupling)

Construction

Cast iron, open-drive, W-arrangement (larger models)

Refrigerant types

R717
R22
R404A
R134a

Common Failures & Inspection Points

Shaft seal leakage (Ammonia — toxic, requires immediate attention)
Suction/discharge valve plate failure after 8,000-12,000 hrs
Oil pump wear after 20,000 hrs on older SMC 100+ models
Crankshaft bearing failure from oil contamination

Service: Valve overhaul every 6,000-10,000 hrs. Shaft seal inspection every 4,000 hrs on NH3 systems. Oil change every 4,000 hrs. Complete overhaul 25,000-30,000 hrs.

Spare Parts: Johnson Controls/Sabroe service worldwide. Keep onboard: valve plate sets, shaft seal kit, oil charge. Lead time: 2-4 weeks. NH3-rated parts only from JCI.

Datasheet

SAB Series (Screw)

100-2,000 kW cooling · R717 (Ammonia) / R22 / R404A / R134a

Type

Open-Drive Screw Compressor

Size Range

SAB 110
SAB 128
SAB 151
SAB 163
SAB 193
SAB 233
SAB 283

Power range (kW)

Drive Type

Electric (external motor)

Construction

Cast iron housing, twin-screw rotor, oil-injected

Refrigerant types

R717
R22
R404A
R134a

Common Failures & Inspection Points

Screw rotor bearing failure after 40,000-60,000 hrs
Oil separator element saturation
Capacity control slide valve actuator malfunction
Shaft seal leakage on NH3 systems

Service: Oil analysis every 2,000 hrs. Oil separator element every 8,000 hrs. Bearing inspection at 30,000 hrs. Complete overhaul 50,000-60,000 hrs. NH3 leak detection daily.

Spare Parts: JCI/Sabroe service. Screw compressor parts — lead time: 3-6 weeks for bearings, 8-12 weeks for rotors. Keep onboard: oil separator element, shaft seal kit.

Datasheet

Alfa Laval

S/F Series

20-200 kW cooling · R717 (Ammonia) / R22

discontinued

Type

Open-Drive Reciprocating Compressor

Size Range

Power range (kW)

Drive Type

Electric (external motor)

Construction

Cast iron, open-drive, inline arrangement

Refrigerant types

R717
R22

Common Failures & Inspection Points

Valve plate fatigue cracking
Shaft seal leakage on NH3 — chronic issue on older units
Cylinder liner scoring from insufficient oil
Foundation bolt loosening from vibration

Service: Valve overhaul every 5,000-8,000 hrs. Shaft seal inspection every 3,000 hrs (NH3). Complete overhaul 20,000-25,000 hrs. Obsolete — specialist service only.

Spare Parts: Stal brand discontinued — parts via Alfa Laval legacy service or reconditioning specialists. Lead time: 6-12 weeks. Some parts from used-unit stock.

Datasheet

Bock (Germany)

HG Series (Marine)

5-80 kW cooling · R404A / R407C / R134a / R290 (Propane)

Type

Semi-Hermetic / Open-Drive Reciprocating Compressor

Size Range

HG22e
HG34e
HG44e
HG56e
HG66e

Power range (kW)

Drive Type

Electric (integral or external motor)

Construction

Cast iron, modular design

Refrigerant types

R404A
R407C
R134a
R290

Common Failures & Inspection Points

Valve plate failure from liquid slugging
Motor winding burnout from high discharge temperature
Oil foaming at startup
Suction gas filter clogging

Service: Oil level check daily. Valve plate inspection every 12,000-15,000 hrs. Oil change annually. Complete overhaul 30,000 hrs.

Spare Parts: Bock (Frickenhausen, Germany). Good European network. Lead time: 2-3 weeks. Some valve parts interchangeable across HG range.

Datasheet

Carrier / Carlyle (USA)

06D/06E Series

10-80 kW cooling · R404A / R407C / R134a / R22

Type

Semi-Hermetic Reciprocating Compressor

Size Range

06DA
06DR
06DS
06DM
06ET

Power range (kW)

Drive Type

Electric (integral motor)

Construction

Cast iron, semi-hermetic, reed valve

Refrigerant types

R404A
R407C
R134a
R22

Common Failures & Inspection Points

Valve reed breakage from liquid slugging
Motor winding burnout from excessive discharge temperature
Crankcase heater failure causing oil migration
Suction strainer clogging from system contamination

Service: Oil level check daily. Valve inspection every 15,000-20,000 hrs. Oil change annually. Crankcase heater function check weekly during standstill periods.

Spare Parts: Carrier/Carlyle global network. Good availability. Keep onboard: valve plate set, gasket kit. Lead time: 1-3 weeks.

Datasheet

Carrier Transicold (USA)

PrimeLINE / NaturaLINE Series

3-5 kW cooling per unit · R404A / R452A / R744 (CO2)

Voltage: 380-460V 3ph

Type

Reciprocating / Scroll Compressor in Reefer Container Unit

Size Range

PrimeLINE
NaturaLINE (CO2)

Power range (kW)

Drive Type

Electric (ship reefer plug)

Construction

Hermetic compressor, integrated controller, container end-wall

Refrigerant types

R404A
R452A
R744

Common Failures & Inspection Points

Compressor motor burnout from power quality issues
Controller board failure — moisture/vibration
Evaporator coil icing from defrost system failure
NaturaLINE: CO2 high-pressure safety valve weepage

Service: PTI before each loading. PrimeLINE: standard refrigeration service. NaturaLINE (CO2): requires CO2-certified technician. Controller diagnostics via Carrier DataCOLD display.

Spare Parts: Carrier global reefer service network — largest in the world. Lead time: 1-2 weeks in major ports. NaturaLINE CO2 parts: 2-4 weeks.

Datasheet

Copeland / Emerson Climate Technologies (USA)

Discus Series

5-100 kW cooling · R404A / R407C / R134a / R22

Type

Semi-Hermetic Reciprocating Compressor (Discus Valve)

Size Range

Power range (kW)

Drive Type

Electric (integral motor)

Construction

Cast iron, Discus valve technology, suction gas cooled

Refrigerant types

R404A
R407C
R134a
R22

Common Failures & Inspection Points

Discus valve reed breakage from liquid slugging
Motor winding failure from overheating (blocked condenser)
Oil foaming at startup after long standstill
Terminal plate cracks from vibration

Service: Oil level check daily. Discus valve inspection every 15,000-20,000 hrs. Oil change every 5,000 hrs. Suction filter check monthly. Complete overhaul 30,000-40,000 hrs.

Spare Parts: Emerson/Copeland global network — widest availability of any refrigeration compressor. Keep onboard: valve plate set, gasket kit. Lead time: 1-2 weeks worldwide.

Datasheet

Daikin (Japan)

Marine Chiller Series

50-500 kW cooling · R134a / R407C / R410A

Type

Semi-Hermetic Screw / Scroll Compressor (Marine AC Chiller)

Size Range

UWHA30
UWHA50
UWHA80
UWHA120

Power range (kW)

Drive Type

Electric (integral motor)

Construction

Packaged marine chiller unit with screw/scroll compressor

Refrigerant types

R134a
R407C
R410A

Common Failures & Inspection Points

Compressor motor overheating from high seawater condenser temperature (>32°C)
Refrigerant undercharge from slow leaks at flare connections
Chilled water pump seal failure
Control board failure from voltage spikes

Service: Refrigerant charge check monthly. Condenser seawater side cleaning every 3-6 months. Chilled water pump seal inspection annually. Control board inspection at annual survey.

Spare Parts: Daikin Marine service (Japan, Singapore, Dubai). Lead time: 2-4 weeks for standard parts, 6-8 weeks for compressor units.

Datasheet

Danfoss / Turbocor (Denmark/USA)

Turbocor TT/TG Series

200-1,400 kW cooling · R134a / R513A / R1234ze

Type

Oil-Free Centrifugal (Turbo) Compressor with Magnetic Bearings

Size Range

TT300
TT400
TG310
TG390
TG490

Power range (kW)

Drive Type

Electric (variable speed, magnetic levitation bearings)

Construction

Aluminum impeller, magnetic bearings, oil-free

Refrigerant types

R134a
R513A
R1234ze

Common Failures & Inspection Points

Magnetic bearing controller failure — compressor shuts down immediately
Variable frequency drive power module failure from voltage spikes
Impeller erosion from liquid carryover
Communication bus errors with building/ship management system

Service: No oil changes needed (oil-free). Magnetic bearing controller diagnostics via remote monitoring. VFD inspection annually. Impeller inspection at 40,000 hrs.

Spare Parts: Danfoss/Turbocor network. Highly specialized — bearing controller: 4-8 weeks. VFD modules: 2-4 weeks. Requires Danfoss-certified technician for service.

Datasheet

Dorin (Italy)

H Series (Semi-Hermetic)

5-50 kW cooling · R404A / R407C / R134a / R744 (CO2)

Type

Semi-Hermetic Reciprocating Compressor

Size Range

H150CS
H200CS
H250CS
H380CS
H500CS

Power range (kW)

Drive Type

Electric (integral motor)

Construction

Cast iron, semi-hermetic, also available for CO2 transcritical

Refrigerant types

R404A
R407C
R134a
R744

Common Failures & Inspection Points

Valve plate failure from liquid return
Motor winding burnout from overheating
Oil return issues at low ambient condensing

Service: Valve inspection every 10,000-15,000 hrs. Oil change annually. CO2 models: high-pressure safety checks per EN 378.

Spare Parts: Dorin (Compignano, Italy). European network. Lead time: 2-4 weeks. CO2-rated parts: 4-6 weeks.

Datasheet

Frascold (Italy)

S/Q Series (Marine)

5-60 kW cooling · R404A / R407C / R134a / R449A

Type

Semi-Hermetic Reciprocating Compressor

Size Range

S5.5
S7.5
S10
S15
Q10
Q15
Q20

Power range (kW)

Drive Type

Electric (integral motor)

Construction

Cast iron, semi-hermetic, scroll or reciprocating

Refrigerant types

R404A
R407C
R134a
R449A

Common Failures & Inspection Points

Valve plate failure from liquid carryover
Motor winding degradation from voltage fluctuations
Oil return issues in low-load operation

Service: Valve inspection every 10,000-15,000 hrs. Oil change annually. Suction filter check monthly. Complete overhaul 25,000-30,000 hrs.

Spare Parts: Frascold (Milan, Italy). Mediterranean and European network. Lead time: 2-4 weeks.

Datasheet

Grasso / GEA (Netherlands)

RC Series (Reciprocating)

30-300 kW cooling · R717 (Ammonia) / R22 / R404A

Type

Open-Drive Reciprocating Compressor

Size Range

RC6
RC9
RC11
RC12

Power range (kW)

Drive Type

Electric (external motor via coupling)

Construction

Cast iron, open-drive, V/W-arrangement

Refrigerant types

R717
R22
R404A

Common Failures & Inspection Points

Valve plate fatigue cracking after 8,000-12,000 hrs
Shaft seal leakage on NH3 systems
Connecting rod bearing wear after 20,000 hrs
Oil pump gear failure on older RC11/12 models

Service: Valve overhaul every 6,000-10,000 hrs. Shaft seal inspection every 4,000 hrs (NH3). Oil change every 3,000-5,000 hrs. Complete overhaul 25,000-30,000 hrs.

Spare Parts: GEA Refrigeration (formerly Grasso, 's-Hertogenbosch). Service network in Europe and Asia. Lead time: 2-4 weeks.

Datasheet

Hanbell (Taiwan)

RC2 Marine Screw Series

30-250 kW cooling · R404A / R134a / R407C

Type

Semi-Hermetic Screw Compressor

Size Range

RC2-100B
RC2-200B
RC2-300B
RC2-410B
RC2-580B

Power range (kW)

Drive Type

Electric (integral motor)

Construction

Cast iron, semi-hermetic, twin-screw, oil-injected

Refrigerant types

R404A
R134a
R407C

Common Failures & Inspection Points

Screw rotor bearing wear after 25,000-35,000 hrs
Oil separator element clogging
Motor winding overheating from high condenser temperatures
Slide valve actuator malfunction

Service: Oil analysis every 2,000 hrs. Oil separator element every 6,000 hrs. Bearing inspection at 20,000 hrs. Complete overhaul 30,000-40,000 hrs.

Spare Parts: Hanbell (Taoyuan, Taiwan). Growing service network in Asia. Lead time: 2-4 weeks Asia, 6-8 weeks elsewhere.

Datasheet

Heinen & Hopman (Netherlands)

HVAC Chiller Packages

50-1,000 kW cooling · R410A / R134a / R407C

Type

Packaged Marine Chiller (Scroll / Screw Compressor)

Size Range

Chiller 50kW
Chiller 100kW
Chiller 250kW
Chiller 500kW
Chiller 1000kW

Power range (kW)

Drive Type

Electric

Construction

Packaged skid with Bitzer/Copeland/Danfoss compressors

Refrigerant types

R410A
R134a
R407C

Common Failures & Inspection Points

Compressor failures — dependent on OEM compressor brand (see respective entries)
Seawater condenser tube fouling/corrosion
Chilled water pump mechanical seal leakage
Control system PLC communication failures

Service: Per compressor OEM intervals. Seawater condenser cleaning every 3-6 months. Chilled water pump seal inspection annually. PLC software update at surveys.

Spare Parts: Heinen & Hopman (Bunschoten, Netherlands). Compressor parts from OEM. System-level parts: 2-4 weeks. Lead time for custom chiller packages: 8-12 weeks.

Datasheet

Noske-Kaeser / Daikin (Germany/Japan)

Marine HVAC Chiller Range

50-2,000 kW cooling · R134a / R410A / R407C

Type

Packaged Marine Chiller (Screw / Scroll Compressor)

Size Range

HVAC-50
HVAC-150
HVAC-500
HVAC-1000
HVAC-2000

Power range (kW)

Drive Type

Electric

Construction

Packaged marine chiller, various compressor technologies

Refrigerant types

R134a
R410A
R407C

Common Failures & Inspection Points

Seawater condenser tube corrosion/erosion
Compressor motor burnout from power quality
Control system integration issues with ship automation
Refrigerant leakage from vibration-induced pipe cracking

Service: Per compressor OEM specification. Seawater system zinc anode check quarterly. Control system update at each survey. Complete system overhaul every 5 years.

Spare Parts: Noske-Kaeser (Hamburg, acquired by Daikin 2019). Daikin global service. Lead time: 2-6 weeks depending on component.

Datasheet

Panasonic / Sanyo (Japan)

C-SB/C-SC Scroll Marine Series

3-15 kW cooling · R407C / R410A / R134a

Type

Hermetic Scroll Compressor (Marine AC)

Size Range

C-SB263
C-SB373
C-SB453
C-SC603

Power range (kW)

Drive Type

Electric (hermetic)

Construction

Hermetic scroll, compact, low vibration

Refrigerant types

R407C
R410A
R134a

Common Failures & Inspection Points

Scroll orbiting plate wear after 30,000+ hrs
Motor winding burnout from overheating (blocked condenser coil)
Hermetic shell — not field-repairable, must replace entire unit

Service: No field service on compressor itself (hermetic). System-level: refrigerant charge check monthly. Condenser coil cleaning quarterly. Replace compressor unit at failure.

Spare Parts: Panasonic/Sanyo HVAC network. Replacement units: 2-4 weeks. Hermetic — no internal parts available.

Datasheet

Refrigeration Engineering International / REI (USA)

YV/RV Series

20-100 kW cooling · R717 (Ammonia) / R22

discontinued

Type

Open-Drive Reciprocating Compressor

Size Range

Power range (kW)

Drive Type

Electric (external motor)

Construction

Cast iron, open-drive, V-arrangement

Refrigerant types

R717
R22

Common Failures & Inspection Points

Valve plate failure from age/fatigue
Shaft seal chronic leakage on NH3
Bearing wear from long service
Oil pump gear failure

Service: Valve overhaul every 5,000-8,000 hrs. Shaft seal every 3,000 hrs (NH3). Obsolete — specialist service only.

Spare Parts: REI (Tacoma, WA) — company still exists but marine compressor production ceased. Parts from used-unit market or reconditioning. Lead time: 6-12 weeks.

Datasheet

Sabroe

SMC 108L

120 kW cooling · 45.0 kW · Refrigerant R717 (NH3) · oil‑lubricated reciprocating ammonia compressor

Common Failures & Inspection Points

Shaft seal leak
Oil separator malfunction
Liquid slugging
Valve plate damage

Service: Ammonia reciprocating; leak detection critical — NH3 is toxic.

Spare Parts: Sabroe: Keep valve sets and piston rings on board. Lead time: 2–6 weeks. Oil filters and gasket sets as standard ship's stores.

Strengths

Proven reliability in high‑pressure NH₃ service on LPG and chemical tankers
Integrated oil separator reduces oil carry‑over to the refrigerant circuit
Compact layout compared with multi‑stage screw units of similar capacity
Straightforward mechanical maintenance – familiar to most marine engineers

Weaknesses

Requires diligent leak detection and regular oil analysis due to NH₃ toxicity
Sensitive to liquid slugging; must be protected by proper suction piping and level control
Oil‑lubricated design adds routine oil change intervals versus oil‑free screw compressors
Part‑load efficiency lower than modern variable‑speed screw or scroll units

Typical Vessels: LPG carrierChemical tankerBulk liquid carrier (e.g., vegetable oil, ethanol)Refrigerated cargo vessel

Certifications: DNVABS

Decision Guide: Choose the SMC 108L when you need a rugged, well‑known reciprocating compressor for ammonia service on vessels where space is limited and maintenance crews are familiar with oil‑lubricated designs. Avoid it if low part‑load energy consumption or oil‑free operation is a priority, or when the vessel operates in environments with high risk of liquid slugging that exceed the unit’s design safeguards.

Use Cases: The SMC 108L is typically installed on LPG carriers and chemical tankers to drive the ammonia refrigeration loop for cargo temperature control. It is also used on bulk liquid carriers carrying temperature‑sensitive products where a compact, high‑pressure compressor is required and the crew has established leak‑detection procedures.

Datasheet

Shinko (Japan)

RS Series (Provisions Refrigeration)

5-30 kW cooling · R404A / R407C / R134a

Type

Semi-Hermetic Reciprocating Compressor

Size Range

RS-2
RS-3
RS-5
RS-7

Power range (kW)

Drive Type

Electric (integral motor)

Construction

Cast iron, semi-hermetic, compact marine design

Refrigerant types

R404A
R407C
R134a

Common Failures & Inspection Points

Valve reed breakage from liquid return
Motor winding failure from overheating
Oil return issues in long piping runs

Service: Valve inspection every 10,000 hrs. Oil change every 5,000 hrs. Refrigerant charge check monthly. Complete overhaul 25,000-30,000 hrs.

Spare Parts: Shinko Ind. Ltd. (Hiroshima). Good availability in Japan. Lead time: 2-4 weeks Asia.

Datasheet

Trane / Ingersoll Rand (USA)

CenTraVac / CVGF Series (Marine)

500-5,000 kW cooling · R134a / R513A / R1233zd

Type

Centrifugal Water-Cooled Chiller

Size Range

CVGF 800
CVGF 1200
CVGF 1600
CVGF 2000

Power range (kW)

200
1500

Drive Type

Electric (integral centrifugal compressor)

Construction

Hermetic centrifugal compressor, shell-and-tube heat exchangers

Refrigerant types

R134a
R513A
R1233zd

Common Failures & Inspection Points

Compressor motor insulation degradation after 15-20 years
Oil pump failure causing shutdown
Condenser tube fouling from seawater side
Refrigerant charge loss from tube sheet leakage

Service: Oil analysis annually. Condenser tube cleaning every 6-12 months (seawater side). Refrigerant charge verification annually. Motor insulation test every 2 years. Complete overhaul 60,000-80,000 hrs.

Spare Parts: Trane/Ingersoll Rand global network. Marine-specific models — lead time: 4-8 weeks for major components. Oil pumps: 2-3 weeks.

Datasheet
