What to check on a CO2 Fire Suppression.
A fixed CO2 system stores liquid carbon dioxide under its own vapour pressure in a bank of steel cylinders and releases it in one shot through fixed piping into a single protected space or, on larger ships, a selected space chosen at the release station. Unlike water mist or foam, CO2 leaves no residue and does not damage electrical equipment or cargo, which is why it remains the default choice for engine rooms, cargo pump rooms and paint lockers rather than accommodation, where the same suffocation effect would kill anyone…
What makes this type
A fixed CO2 system stores liquid carbon dioxide under its own vapour pressure in a bank of steel cylinders and releases it in one shot through fixed piping into a single protected space or, on larger ships, a selected space chosen at the release station. Unlike water mist or foam, CO2 leaves no residue and does not damage electrical equipment or cargo, which is why it remains the default choice for engine rooms, cargo pump rooms and paint lockers rather than accommodation, where the same suffocation effect would kill anyone left inside.
The extinguishing mechanism is dilution, not cooling. Enough gas has to be discharged to bring the oxygen concentration in the space down to a level that starves combustion, and that concentration has to be reached and held long enough for hot surfaces to cool below re-ignition temperature. A leaking door or an open skylight defeats the whole system regardless of how much CO2 was released.
Main components

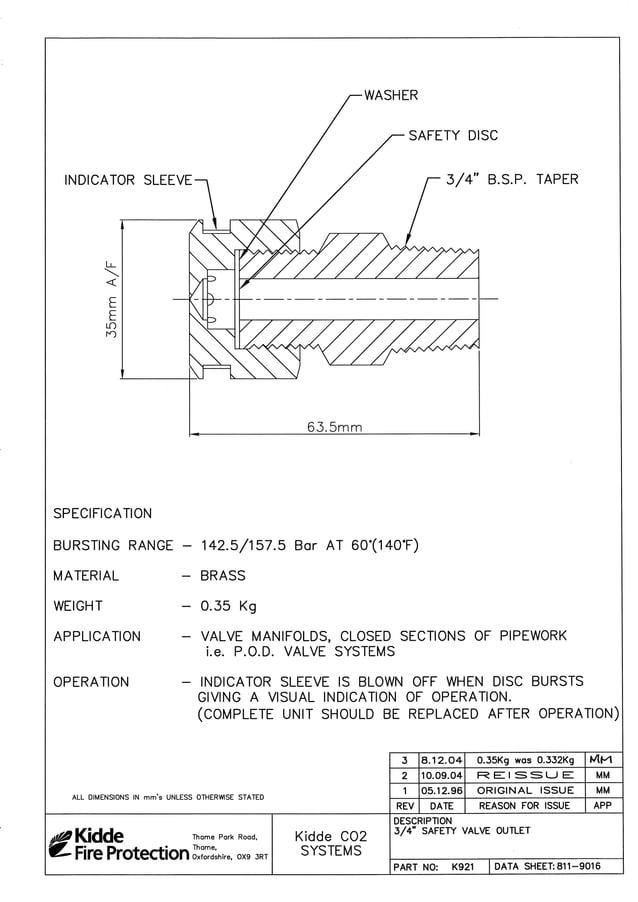

Cylinder bank
High-pressure cylinders, typically 45 kg or 67 kg each, manifolded together in a dedicated CO2 room outside the protected space. The bank is sized on total gas weight, not on cylinder count, and the room itself needs ventilation and temperature control since cylinder pressure rises with ambient heat.
Pilot cylinder and release valve
One or two pilot cylinders fire first, and their pressure operates the master valves on the remaining cylinders and the selector valve that routes gas to the correct space. This staged release is what lets one bank protect several spaces on the same ship.
Distribution piping and nozzles
Fixed steel piping sized to deliver the full charge within the required time, terminating in nozzles positioned to flood the space rather than blast a single point. Pipe runs through hot machinery spaces are prone to corrosion from the outside, not the CO2 inside.
Time delay and alarm
A pneumatic or electronic time delay, usually 20 to 60 seconds, gives crew time to evacuate after the audible and visual alarm sounds and before gas actually discharges. Ventilation dampers and fuel shut-offs are normally interlocked to close automatically on release.
Selection and sizing
Quantity is not a rule of thumb, it is a calculation against the gross volume of the space less the volume of permanent machinery. Machinery spaces generally need enough CO2 to achieve a 30% concentration, rising to 40% where oil-fired boilers are fitted, and the design discharge time is normally two minutes for machinery spaces and longer for cargo holds. The calculation, pipe sizing and nozzle layout all need class approval before the system is accepted; this is not something a yard can size by eye.
Regulations and class
- SOLAS Chapter II-2, Regulation 10, sets the requirement for fixed gas fire-extinguishing systems in machinery spaces.
- The FSS Code, Chapter 5, covers the technical requirements for fixed CO2 systems: quantity, piping, alarms and release arrangements.
- Cylinders are weighed periodically; class rules require replacement or refill once measured loss exceeds a set threshold, commonly around 5% of the nominal charge.
- Class surveyors verify the release alarm, time delay and damper interlocks during periodic surveys, and a five-yearly internal or hydrostatic check of the cylinders is standard.
Typical faults
- Slow leakage past a cylinder valve seat reduces the stored charge below calculated quantity, so a full discharge still fails to reach extinguishing concentration.
- Corrosion inside piping runs that pass through hot, humid engine rooms narrows the bore and starves nozzles at the far end of the distribution network.
- A failed or disconnected alarm siren means crew get no warning before discharge, turning a fire drill into an asphyxiation risk.
- Seized damper actuators leave ventilation open during release, diluting the gas concentration below the level needed to extinguish the fire.
- Corroded pull cables or perished pneumatic tubing on the manual release station cause the system to fail exactly when a crew member tries to fire it by hand.
What to look for in a supplier
- A class-approved discharge calculation and piping drawing specific to the actual space, not a generic layout.
- Cylinder hydrostatic test certificates and a documented weighing history for the bank being purchased or serviced.
- A local service network able to weigh, refill and pressure test cylinders without shipping them abroad.
- Spare discharge heads, pilot valves and selector valve seals held in stock, since these are the parts that fail first.
- Complete documentation for the ship's fire control plan and SOLAS training manual updates.
Treat the cylinder room like a second engine room on rounds: check pressure gauges and look for frost or paint bubbling on any cylinder, both signs of a slow leak long before the annual weighing catches it.
