Library› Safety & LSA› Fire Fighting› CO₂ Fixed System (Engine Room + Cargo)› Minimax CS 2c
Minimax

CS 2c

CO₂ Fixed System (Engine Room + Cargo) · Fire Fighting

Technical data from manufacturer or class sources · not yet verified by a person
7 kgWeight

Minimax CS 2c — Portable CO2 fire extinguisher.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Extinguishing Agent2 kg CO2
Pressure Rating310 bar test pressure, ~58 bar operating pressure
Operating Duration~7 seconds
Throwing Distance~2 meters
Temperature Range-30 to +60°C
Performance Class34 B
TypePressure lever armature with snow nozzle
Weight (kg)7,3 kg🔖
Temperaturbereich-30 bis +60 °C🔖
Höhe510 mm🔖
📄
Download datasheet (PDF) (362 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Feuerlöscher mit dem natürlichen Löschmittel Kohlendioxid sind das ideale Instrument zur Bekämpfung von Entstehungsbränden der Brandklasse B.”

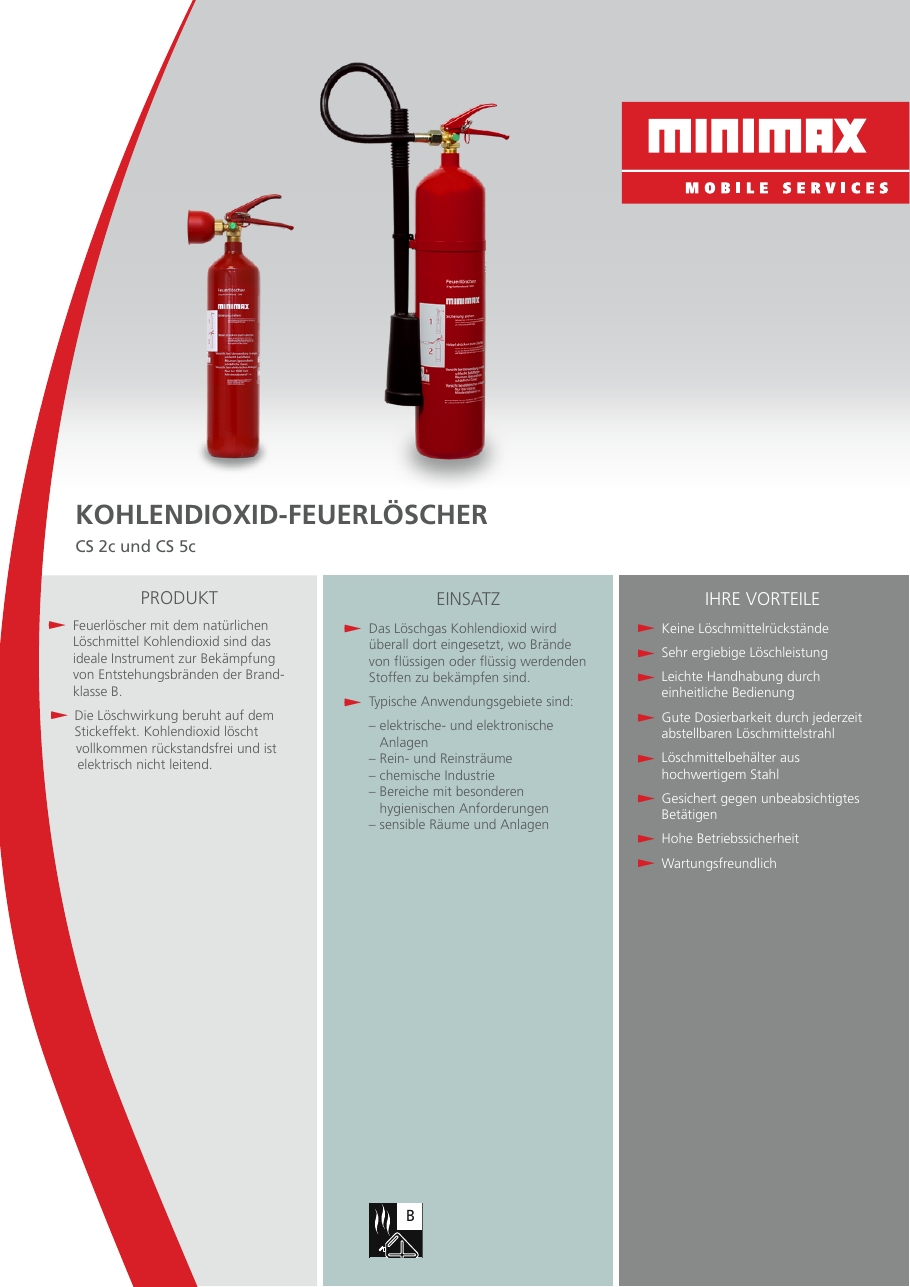

Minimax CS 2c – Drawing (Minimax datasheet S. 1)
Drawing · Minimax datasheet · S. 1

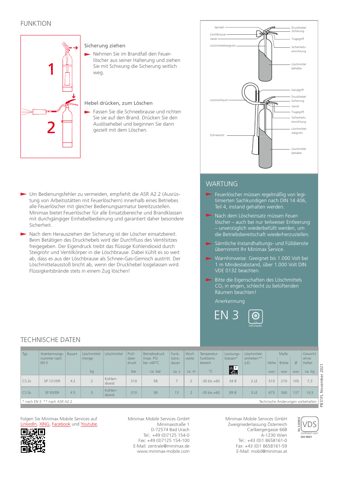

Minimax CS 2c – Drawing (Minimax datasheet S. 2)
Drawing · Minimax datasheet · S. 2
Source: Minimax CS 2c datasheet, p. 1
