What to check on a Axial Fan.
An axial fan moves air parallel to its own shaft, the propeller-like blades pushing a large volume straight through the housing rather than turning it through ninety degrees the way a centrifugal fan does. That gives an axial fan a compact footprint and high flow for its size, but a comparatively low ability to build static pressure against resistance. On board that makes it the right choice for engine room supply and exhaust, where the duct run is short and open, and for cargo hold ventilation, but a poor choice…

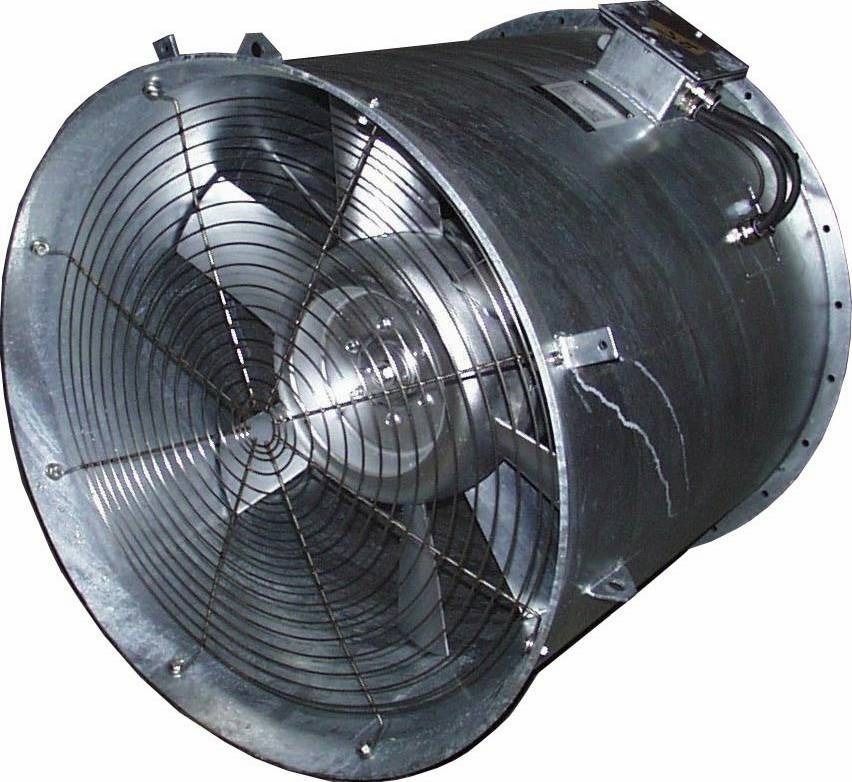

What sets an axial fan apart
An axial fan moves air parallel to its own shaft, the propeller-like blades pushing a large volume straight through the housing rather than turning it through ninety degrees the way a centrifugal fan does. That gives an axial fan a compact footprint and high flow for its size, but a comparatively low ability to build static pressure against resistance. On board that makes it the right choice for engine room supply and exhaust, where the duct run is short and open, and for cargo hold ventilation, but a poor choice anywhere the air has to fight long ductwork, fine filters or several fire dampers in series.
Main components

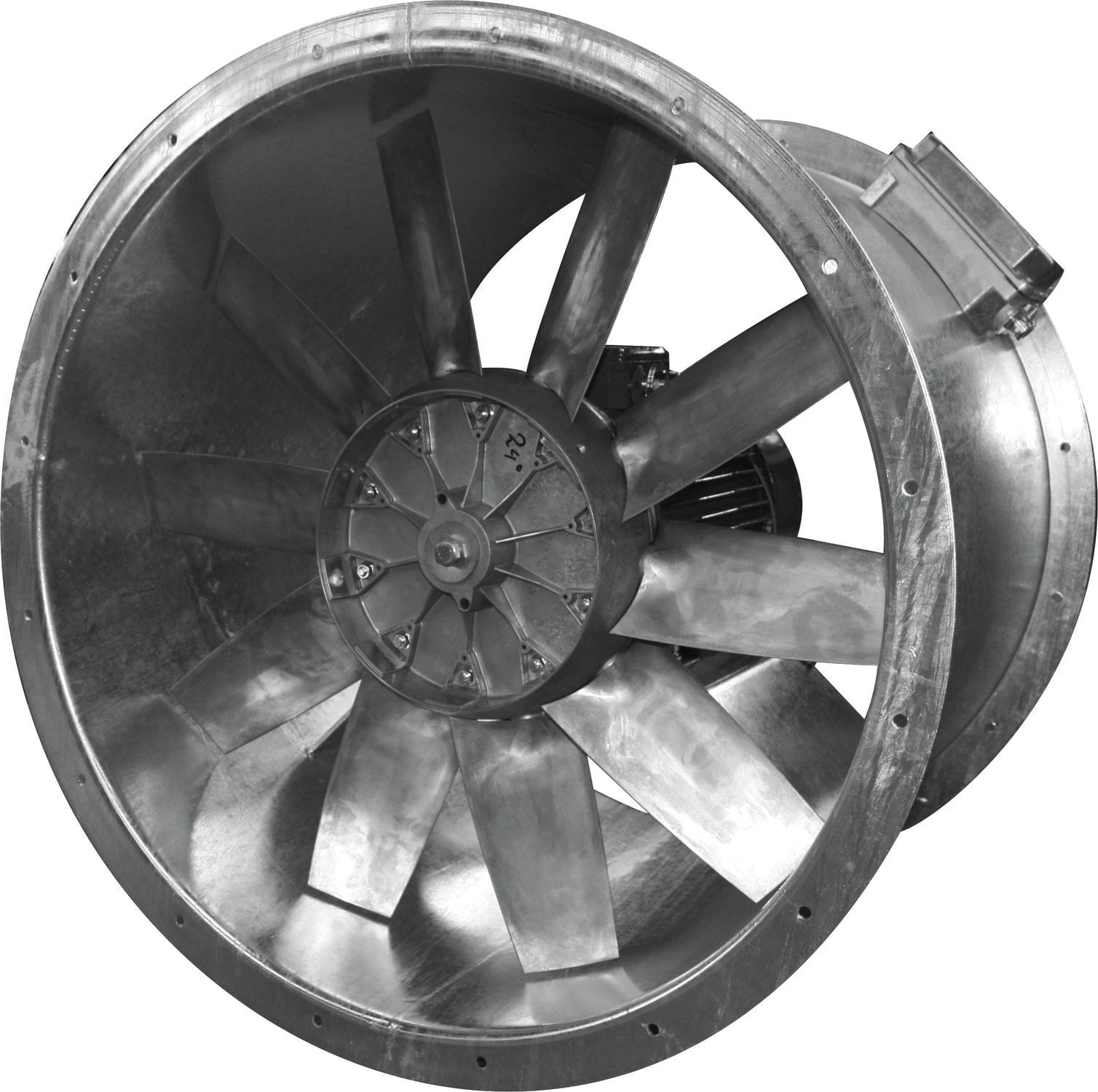

Propeller / impeller
Fixed or adjustable-pitch blades set in a cylindrical casing; adjustable-pitch blades let the same fan be rebalanced for a different duty point without changing the motor.
Casing / guide vanes
A straight cylindrical duct section, sometimes with upstream or downstream guide vanes to straighten the airflow and recover a small amount of pressure that would otherwise be lost to swirl.
Drive
Direct-drive motor mounted in the airstream on a bulb or hub for most marine sizes, occasionally belt-driven where the motor cannot be rated for the exhaust atmosphere.
Bulkhead or deck penetration
Fire damper and weathertight closure where the fan crosses a fire boundary or weather deck, integral to the installation rather than an accessory.
Selection / Sizing
- Volume flow required against the modest system resistance the installation actually presents — oversizing an axial fan for a duty that needs real static pressure just wastes power and noise.
- Blade pitch, fixed for a constant duty or adjustable where the ventilation demand varies with cargo type or ambient temperature.
- Reversibility: engine room and cargo hold fans are frequently specified to run in either direction for supply or extract duty, which axial designs handle more readily than centrifugal ones.
- Motor enclosure rating suited to the exhaust atmosphere, particularly for cargo holds carrying dust or flammable vapours.
Regulations / Class
SOLAS Ch. II-2 requires machinery space ventilation fans to be stoppable from outside the space and, on many vessels, from the bridge, with fire dampers at every boundary the duct crosses. Engine room supply capacity is sized to guarantee sufficient combustion air for all machinery running simultaneously, a figure class surveyors check against the engine builder's stated air consumption. Cargo hold fans on vessels carrying dangerous goods or fumigated cargo follow additional ventilation-rate requirements under the IMDG Code or the ship's cargo securing and ventilation manual.
Typical faults
| Fault | Cause | Consequence |
|---|---|---|
| Vibration and noise increase | Blade fouling or impact damage from debris drawn into the intake | Progressive imbalance, eventual bearing failure |
| Reduced airflow at same power draw | Damper or louvre not fully open, or guide vanes fouled | Under-ventilated engine room, rising ambient temperature |
| Fire damper fails to close | Corrosion or paint build-up seizing the damper linkage | Fails a required fire boundary at the next survey |
| Motor overheating | Fan running against a nearly closed damper for extended periods | Motor insulation degrades, shortens motor life |
What to look for in a supplier
- Confirmed flow and noise data at the actual system resistance, since catalogue free-air figures overstate real performance.
- Fire damper and closure hardware supplied and tested as part of the same package, not sourced separately.
- Motor rating suited to the certified atmosphere of the space served, with documentation to match.
- Blade material and coating appropriate to cargo hold duty if the fan will see dust, moisture or corrosive cargo residue.
An axial fan that seems to be running fine but is quietly losing flow is usually fighting a damper that never fully opens — check the damper position before assuming the fan itself has lost performance.
