A towing winch pays out and hauls in wire under controlled tension rather than simply holding or releasing it, which is what separates it from a fixed towing hook and from an ordinary mooring winch that is never rated for the shock loads a towline sees underway.

Read more — Towing Winch explained ▾

What Sets a Towing Winch Apart

The defining feature of a towing winch is its ability to render, paying out wire under load in a controlled way when the towline sees a sudden surge, then hauling back in once the load eases. A fixed towing hook has no such capability, it either holds the line or releases it in one movement, and a standard mooring winch is not built for the dynamic shock loading a towline generates as a tug works a ship in a seaway. Most towing winches also offer a constant-tension mode, holding a set line tension automatically as the towed vessel moves relative to the tug, which a simple brake-only winch cannot do.

Towing winch arrangement — Side view of a towing winch on its deck foundation, showing the wire-wound drum, the render-recovery brake, the drive gearbox and motor, and the wire rope running out over the fairlead to the tow.

Main Components

Drum – single or split, sized for the towline and, on many designs, a separate pennant or guide wire.
Brake – band or disc, rated to hold the towline at a defined percentage above maximum expected pull.
Drive – hydraulic or electric motor, sized for both hauling speed and render/recover response.
Level wind and spooling gear – keeps the wire laying evenly across the drum under load.
Load cell or tension monitoring – feeds the constant-tension control loop and gives the operator a live reading.
Emergency quick release – drops the load fast if the towline must be let go in an emergency.
Towline and fairlead – wire rope construction chosen for flexibility and resistance to crushing, run out over a stern roller or fairlead.

Selection and Sizing

Brake holding capacity has to exceed the towline's breaking strength by the margin required for the vessel's towing or escort notation, not just match the tug's bollard pull. Drum capacity is set by wire diameter and the length needed for the trade the tug works in, and the rendering speed range and constant-tension band both need to suit the sea states expected, since an escort tug working at speed alongside a large ship sees very different dynamics from a harbour tug on a short line. These duty differences are exactly what separates an escort-rated winch from a basic harbour towing winch of similar drum size.

Regulations and Class

Class towing and escort notations require the winch brake to be tested and certified to hold at a defined margin above the rated towline pull, and the towline itself carries its own certification with periodic proof load testing. Where a winch is fitted as part of a ship's emergency towing arrangement rather than a tug's working gear, SOLAS Chapter II-1 requirements for tankers of 20,000 dwt and above apply, including the ability to bring the arrangement into use quickly and, on many designs, without needing external power.

Typical Faults

Brake lining wear or glazing – reduces holding capacity and risks uncontrolled paying-out under load exactly when the brake is needed most.
Fatigue or broken wires at drum crossover points – the towline can part suddenly under a shock load that a visually intact rope should have survived.
Level wind misalignment – wire piles up and crushes itself on the drum, reducing both capacity and rope life.
Faulty hydraulic valve in constant-tension mode – tension hunts up and down, generating snatch loads on the towline instead of absorbing them.
Load cell drift – the operator sees an inaccurate tension reading and either over- or under-tensions the tow without realising it.

What to Look for in a Supplier

A brake test certificate showing holding capacity at the winch's rated load, not just the drive motor's output.
A towline specification matched to the drum grooving and the constant-tension control system, since not every wire construction suits every winch.
Service support for the hydraulic power unit specific to the winch, rather than a generic hydraulics contractor.
Spare brake linings and load cell calibration held or readily available.

Test render and recover under an actual load before relying on constant-tension mode in service; a winch that behaves correctly on a static bench test can still hunt or snatch once real wave-induced loads are on the line.

Inspector Mode Show All 559 total

28 manufacturers · 559 models

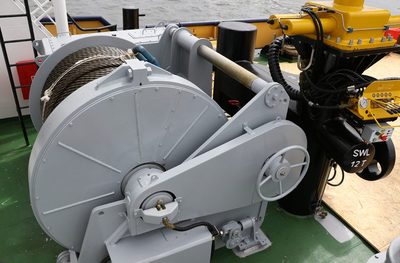

DMT Marine Equipment SA

27 ✓ 21 verified

DMT Marine Towing Winch 50t unverified

50t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

Drive

electro-hydraulic

DMT Marine towing winch, 50t SWL

Datasheet

DMT Marine Towing Winch 75t unverified

75t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

Drive

electro-hydraulic

DMT Marine towing winch, 75t SWL

Datasheet

DMT Marine Towing Winch 100t unverified

100t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

100

Drive

electro-hydraulic

DMT Marine towing winch, 100t SWL

Datasheet

DMT Marine Towing Winch 150t unverified

150t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

150

Drive

electro-hydraulic

DMT Marine towing winch, 150t SWL

Datasheet

DMT Marine Towing Winch 200t unverified

200t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

200

Drive

electro-hydraulic

DMT Marine towing winch, 200t SWL

Datasheet

DMT Marine Towing Winch 300t unverified

300t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

300

Drive

electro-hydraulic

DMT Marine towing winch, 300t SWL

Datasheet

DMT Marine Equipment SA Towing Winch TW-E250kN

Towing Winch TW-E250kN ✓ verified

Application

Electric-drive double-drum towing winch for tugboats; features frequency control, tension and length indication, constant-tension capability

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Towing Winch TW-020-E1370kN

Towing Winch TW-020-E1370kN ✓ verified

Application

Heavy-duty electrically driven towing winch for large tugboats and offshore towing operations

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Towing Winch TW-H1000kN

Towing Winch TW-H1000kN ✓ verified

Application

Hydraulic-drive towing winch for high-capacity tug operations

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Towing Winch TW-H800kN

Towing Winch TW-H800kN ✓ verified

Application

Hydraulic-drive towing winch for large tugboats

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Towing Winch TW-H450kN

Towing Winch TW-H450kN ✓ verified

Application

Hydraulic-drive towing winch for ASD/harbour tugs (e.g. ASD 65T BP class)

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Towing Winch TW-010-H350kN

Towing Winch TW-010-H350kN ✓ verified

Application

Hydraulic-drive towing winch for ASD tugboats (e.g. ASD 2810)

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Towing Winch TW-H300kN

Towing Winch TW-H300kN ✓ verified

Application

Hydraulic-drive towing winch (Type TW-010) for harbour and coastal tugs

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Towing Winch TW-E100kN

Towing Winch TW-E100kN ✓ verified

Application

Electrically driven towing winch for smaller tugs (e.g. RAscal 1800 class)

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Anchor Towing Winch ATW-211-H19k2-350kN

Anchor Towing Winch ATW-211-H19k2-350kN ✓ verified

Application

Hydraulic anchor towing winch for port and terminal tugs; single towing drum with anchor handling; subject of published technical manual (Order No. 218126, YN 513520)

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Anchor Towing Winch ATW-221-H22u2-380kN

Anchor Towing Winch ATW-221-H22u2-380kN ✓ verified

Application

Hydraulic anchor towing winch with dual drum for heavy-duty port and terminal tug operations

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Anchor Towing Winch ATW-222-H19K3-300kN

Anchor Towing Winch ATW-222-H19K3-300kN ✓ verified

Application

Hydraulic anchor towing winch with three-drum configuration for port tugs

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Anchor Towing Winch ATW-222-E24k2-300kN

Anchor Towing Winch ATW-222-E24k2-300kN ✓ verified

Application

Electric anchor towing winch, two towing drums, for port and terminal tugs (e.g. RT Evolution Hybrid Rotortug)

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Anchor Towing Winch ATW-222-E20.5k2-250kN

Anchor Towing Winch ATW-222-E20.5k2-250kN ✓ verified

Application

Electric anchor towing winch, two drums, for harbour tugs

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Anchor Towing Winch ATW-222-E17.5k3-245kN

Anchor Towing Winch ATW-222-E17.5k3-245kN ✓ verified

Application

Electric anchor towing winch, three-drum layout, for harbour and coastal tugs

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Anchor Towing Winch ATW-111-H16k2-200kN

Anchor Towing Winch ATW-111-H16k2-200kN ✓ verified

Application

Hydraulic anchor towing winch for smaller port tugs

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Escort Towing Winch ETW-020-E1800kN

Escort Towing Winch ETW-020-E1800kN ✓ verified

Application

Full-escort electric towing winch with render-and-recovery for large escort/ART tugs; autonomous constant-tension adjustment

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Escort Towing Winch ETW-H1500kN

Escort Towing Winch ETW-H1500kN ✓ verified

Application

Hydraulic full-escort towing winch for high-bollard-pull escort and ART tugs

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Escort Towing Winch ETW-H1000kN

Escort Towing Winch ETW-H1000kN ✓ verified

Application

Hydraulic escort towing winch for escort tugs (e.g. ART 80-32 class with 1000 kN escort notation winch)

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Escort Towing Winch ETW-020-H900kN

Escort Towing Winch ETW-020-H900kN ✓ verified

Application

Hydraulic escort towing winch for escort and ship-handling tugs

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Escort Towing Winch ETW-H800kN

Escort Towing Winch ETW-H800kN ✓ verified

Application

Hydraulic escort towing winch for escort tugs operating in ports and terminals

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DMT Marine Equipment SA Render & Recovery Winch RRW-H800kN

Render & Recovery Winch RRW-H800kN ✓ verified

Application

Hydraulic render-and-recovery winch for harbour and escort tugs; equal power inhaul/payout, dynamic constant-tension system (e.g. ElectRA 2300 SX, RAstar 2900/3200 SX)

Common Failures & Inspection Points

Area: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment
Check: Brake lining wear and brake band condition: inspect brake pads/linings for wear, glazing, or contamination (oil/grease), check brake band seating and adjustment per manufacturer tolerance
Area: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection t
Check: Wire rope / synthetic towline condition: inspect for broken wires, kinks, corrosion, wear, and correct spooling on drum; check end terminations and connection to drum barrel
Area: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings
Check: Hydraulic system integrity (for hydraulic-drive models): check oil level, filter condition, hose and fitting integrity for leaks, pressure relief valve settings, and hydraulic motor condition
Area: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance sc
Check: Gearbox and bearing lubrication: verify oil levels in reduction gearbox, grease all designated lubrication points on bearings and shaft seals per maintenance schedule
Area: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under
Check: Clutch and dog-clutch engagement: inspect clutch plates or dog-clutch teeth for wear and correct engagement; verify declutching mechanism operates freely under no-load
Area: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum f
Check: Structural and foundation integrity: examine winch bedplate, foundation bolts, welded connections, and frame for cracks, corrosion, or deformation; check drum flanges for cracks
Area: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visua
Check: Control system and safety devices: test remote and local controls, verify overload protection / load limiter settings, check e-stop functionality, audible/visual alarms, and constant-tension system calibration
Area: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are fre
Check: Corrosion protection: inspect paint system and sacrificial anodes for condition, treat bare metal areas, verify stainless-steel or galvanized components are free of corrosion

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

MacGregor

17 ✓ 5 verified

MacGregor Pusnes TW-50 unverified

50t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

Series

Pusnes TW

Drive

electro-hydraulic

MacGregor Pusnes TW towing winch, 50t SWL

Datasheet

MacGregor Pusnes TW-100 unverified

100t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

100

Series

Pusnes TW

Drive

electro-hydraulic

MacGregor Pusnes TW towing winch, 100t SWL

Datasheet

MacGregor Pusnes TW-150 unverified

150t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

150

Series

Pusnes TW

Drive

electro-hydraulic

MacGregor Pusnes TW towing winch, 150t SWL

Datasheet

MacGregor Pusnes TW-200 unverified

200t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

200

Series

Pusnes TW

Drive

electro-hydraulic

MacGregor Pusnes TW towing winch, 200t SWL

Datasheet

MacGregor Pusnes TW-300 unverified

300t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

300

Series

Pusnes TW

Drive

electro-hydraulic

MacGregor Pusnes TW towing winch, 300t SWL

Datasheet

MacGregor Pusnes TW-500 unverified

500t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

500

Series

Pusnes TW

Drive

electro-hydraulic

MacGregor Pusnes TW towing winch, 500t SWL

Datasheet

MacGregor Triplex TW-50 unverified

50t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

Series

Triplex TW

Drive

electro-hydraulic

MacGregor Triplex TW towing winch, 50t SWL

Datasheet

MacGregor Triplex TW-100 unverified

100t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

100

Series

Triplex TW

Drive

electro-hydraulic

MacGregor Triplex TW towing winch, 100t SWL

Datasheet

MacGregor Triplex TW-150 unverified

150t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

150

Series

Triplex TW

Drive

electro-hydraulic

MacGregor Triplex TW towing winch, 150t SWL

Datasheet

MacGregor Triplex TW-200 unverified

200t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

200

Series

Triplex TW

Drive

electro-hydraulic

MacGregor Triplex TW towing winch, 200t SWL

Datasheet

MacGregor Triplex TW-300 unverified

300t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

300

Series

Triplex TW

Drive

electro-hydraulic

MacGregor Triplex TW towing winch, 300t SWL

Datasheet

MacGregor Anchor Handling Towing Winch (AHTW) — Hydraulic Drive Range

Anchor Handling Towing Winch (AHTW) — Hydraulic Drive Range ✓ verified

Application

Anchor handling tug supply (AHTS) vessels; anchor handling and towing operations offshore. Available as single, double, or triple drum arrangement. Driven by low-pressure or medium/high-pressure hydraulic motors.

Common Failures & Inspection Points

Area: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits
Check: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits (typically 10% diameter reduction or reaching 5% broken wires per lay length per class rules)
Area: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and fre
Check: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and free movement across the full rope traverse width
Area: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake hol
Check: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake holding capacity by load test per class requirement
Area: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-test
Check: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-tested to rated working pressure; for electric drives inspect motor insulation resistance, VFD parameters, contactor condition, and dynamic braking resistors
Area: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinde
Check: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinders, and pilots for leaks and wear
Area: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and au
Check: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and automatic cut-out at minimum drum turns
Area: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check
Check: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check rope guide rollers and shark-jaw towing pin/stopper for wear and free rotation
Area: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide
Check: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide rails; check gearbox oil level and condition

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

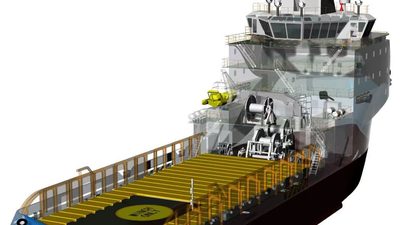

MacGregor Anchor Handling Towing Winch (AHTW) — Electric Variable Frequency Drive Range

Anchor Handling Towing Winch (AHTW) — Electric Variable Frequency Drive Range ✓ verified

Application

AHTS vessels requiring electric-drive anchor handling and towing; introduced as electrically driven counterpart to the hydraulic AHTW range. Same modular frame and drum design as hydraulic version.

Common Failures & Inspection Points

Area: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits
Check: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits (typically 10% diameter reduction or reaching 5% broken wires per lay length per class rules)
Area: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and fre
Check: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and free movement across the full rope traverse width
Area: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake hol
Check: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake holding capacity by load test per class requirement
Area: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-test
Check: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-tested to rated working pressure; for electric drives inspect motor insulation resistance, VFD parameters, contactor condition, and dynamic braking resistors
Area: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinde
Check: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinders, and pilots for leaks and wear
Area: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and au
Check: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and automatic cut-out at minimum drum turns
Area: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check
Check: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check rope guide rollers and shark-jaw towing pin/stopper for wear and free rotation
Area: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide
Check: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide rails; check gearbox oil level and condition

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

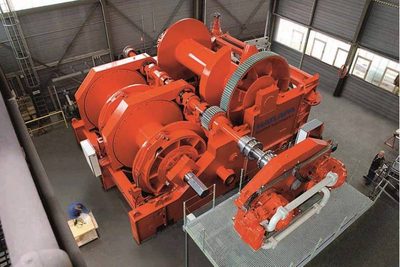

MacGregor Towing Winch — Offshore Deck Machinery (dedicated towing winch)

Towing Winch — Offshore Deck Machinery (dedicated towing winch) ✓ verified

Application

Dedicated towing operations on offshore support vessels and towing vessels. Equipped with VHSS wire-spooling system for flexible installation. Can be fitted with constant tensioning and heave compensation.

Common Failures & Inspection Points

Area: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits
Check: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits (typically 10% diameter reduction or reaching 5% broken wires per lay length per class rules)
Area: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and fre
Check: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and free movement across the full rope traverse width
Area: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake hol
Check: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake holding capacity by load test per class requirement
Area: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-test
Check: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-tested to rated working pressure; for electric drives inspect motor insulation resistance, VFD parameters, contactor condition, and dynamic braking resistors
Area: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinde
Check: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinders, and pilots for leaks and wear
Area: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and au
Check: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and automatic cut-out at minimum drum turns
Area: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check
Check: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check rope guide rollers and shark-jaw towing pin/stopper for wear and free rotation
Area: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide
Check: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide rails; check gearbox oil level and condition

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

MacGregor Plimsoll Chain-Tensioning / Riser Pull-In Winch (FPSO)

Plimsoll Chain-Tensioning / Riser Pull-In Winch (FPSO) ✓ verified

Application

FPSO mooring chain tensioning and pipeline riser pull-in. Supplied to Single Buoy Moorings' Frade FPSO (Campos Basin). Named 'Plimsoll' product line from MacGregor Offshore division.

Common Failures & Inspection Points

Area: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits
Check: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits (typically 10% diameter reduction or reaching 5% broken wires per lay length per class rules)
Area: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and fre
Check: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and free movement across the full rope traverse width
Area: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake hol
Check: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake holding capacity by load test per class requirement
Area: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-test
Check: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-tested to rated working pressure; for electric drives inspect motor insulation resistance, VFD parameters, contactor condition, and dynamic braking resistors
Area: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinde
Check: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinders, and pilots for leaks and wear
Area: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and au
Check: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and automatic cut-out at minimum drum turns
Area: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check
Check: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check rope guide rollers and shark-jaw towing pin/stopper for wear and free rotation
Area: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide
Check: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide rails; check gearbox oil level and condition

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

MacGregor Anchor Handling Towing Winch Package (AHTS newbuilds — SPA90 class)

Anchor Handling Towing Winch Package (AHTS newbuilds — SPA90 class) ✓ verified

Application

Complete AHTW deck machinery package for 90T bollard-pull AHTS vessels (diesel-electric / battery hybrid, shallow draft, worldwide operation). Supplied for SINOPACIFIC Engineering & Contracting Co Ltd (SPEC) SPA90-class AHTS newbuilds; delivery from April 2026.

Common Failures & Inspection Points

Area: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits
Check: Wire rope condition and wear: inspect for broken wires, kinks, corrosion, and reduction in nominal diameter; replace rope when wear exceeds manufacturer limits (typically 10% diameter reduction or reaching 5% broken wires per lay length per class rules)
Area: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and fre
Check: Drum and spooling gear: check drum surface for grooves, corrosion, and weld integrity; verify VHSS or mechanical spooling device alignment, lubrication, and free movement across the full rope traverse width
Area: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake hol
Check: Brake system: inspect hydraulic fail-safe spring-loaded brake for spring tension, pad/disc wear, hydraulic seals, and actuator function; verify static brake holding capacity by load test per class requirement
Area: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-test
Check: Hydraulic/electric drive system: check hydraulic oil level, contamination (water ingress, particles), filter condition, hose/fitting integrity and pressure-tested to rated working pressure; for electric drives inspect motor insulation resistance, VFD parameters, contactor condition, and dynamic braking resistors
Area: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinde
Check: Clutch and clutch coupling: verify engagement/disengagement function under no-load and loaded conditions; inspect friction surfaces, hydraulic actuation cylinders, and pilots for leaks and wear
Area: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and au
Check: Control system and interlocks: test all control stations (local and remote), emergency stop functions, load/tension monitoring displays, overload alarms, and automatic cut-out at minimum drum turns
Area: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check
Check: Structural integrity and foundation: inspect winch frame, bedplate, bolting torque, weld seams and deck foundation for cracks, corrosion, and deformation; check rope guide rollers and shark-jaw towing pin/stopper for wear and free rotation
Area: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide
Check: Lubrication: verify grease nipple accessibility and correct lubrication intervals for all bearings, shaft seals, reduction gearboxes, and spooling device guide rails; check gearbox oil level and condition

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Towing Winch Range

Pull 200-2,000 kN · Tow Wire / Synthetic Tow Line

Type

Towing Winch (Single/Double Drum, Waterfall/Split)

Size Range

TW-200
TW-500
TW-1000
TW-1500
TW-2000

Power range (kW)

Drive Type

Hydraulic / Electric

Construction

Heavy-duty welded/cast steel, disc/band brake, cascade control

Common Failures & Inspection Points

Disc brake overheating from emergency stops
Wire rope drum groove wear
Hydraulic motor seal failure
Cascade control valve malfunction
Tow pin/hook mechanism wear

Service: Disc brake inspection every 3 months. Wire rope inspection per manufacturer schedule. Cascade control calibration annually. Tow pin/hook mechanism test before each tow operation.

Spare Parts: MacGregor/Cargotec. Lead time: 4-8 weeks. Brake pads: keep onboard.

Datasheet

Kongsberg Maritime

12 ✓ 6 verified

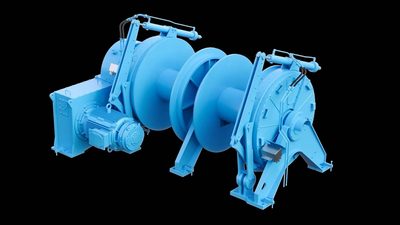

Kongsberg BV-TW-50 unverified

50t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

Series

Brattvaag BV-TW

Drive

electro-hydraulic

Kongsberg/Brattvaag towing winch BV-TW, 50t SWL

Datasheet

Kongsberg BV-TW-100 unverified

100t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

100

Series

Brattvaag BV-TW

Drive

electro-hydraulic

Kongsberg/Brattvaag towing winch BV-TW, 100t SWL

Datasheet

Kongsberg BV-TW-150 unverified

150t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

150

Series

Brattvaag BV-TW

Drive

electro-hydraulic

Kongsberg/Brattvaag towing winch BV-TW, 150t SWL

Datasheet

Kongsberg BV-TW-200 unverified

200t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

200

Series

Brattvaag BV-TW

Drive

electro-hydraulic

Kongsberg/Brattvaag towing winch BV-TW, 200t SWL

Datasheet

Kongsberg BV-TW-300 unverified

300t SWL · Electro-Hydraulic Towing Winch

Winch type

towing

Safe working load tonnes

300

Series

Brattvaag BV-TW

Drive

electro-hydraulic

Kongsberg/Brattvaag towing winch BV-TW, 300t SWL

Datasheet

Kongsberg Maritime Towing Winch Type BSL250/SL250

Towing Winch Type BSL250/SL250 ✓ verified

Application

Waterfall (Zweitrommel) Schleppseilwinde fuer Schlepper (Escort- und Hafenschlepper), Tauwerk- und Drahtseilbetrieb

Common Failures & Inspection Points

Area: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Soc
Check: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Sockelbefestigung) auf Sitz und Korrosion kontrollieren
Area: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Lec
Check: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Leckage testen, Bremshaltekraft gemaess Hersteller-Sollwert pruefen
Area: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen au
Check: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen auf Leckagen und Druckabfall kontrollieren
Area: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Fi
Check: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Filter auf Leckagen und Zustand inspizieren
Area: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Check: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Area: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) au
Check: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) auf Verschleiss und Funktion pruefen
Area: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast,
Check: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast, Seil-Ende) testen
Area: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorha
Check: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorhanden) kontrollieren; Beschichtungsschaeden dokumentieren und ausbessern

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Kongsberg Maritime Hydraulic Towing Winch for Tugs

Hydraulic Towing Winch for Tugs ✓ verified

Application

Hydraulische Schleppseilwinde fuer Hafen-, Escort- und Kuestenschlepper; einfach, doppelt oder Split-Trommel; Waterfall-Konfiguration bis 300 t

Common Failures & Inspection Points

Area: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Soc
Check: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Sockelbefestigung) auf Sitz und Korrosion kontrollieren
Area: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Lec
Check: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Leckage testen, Bremshaltekraft gemaess Hersteller-Sollwert pruefen
Area: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen au
Check: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen auf Leckagen und Druckabfall kontrollieren
Area: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Fi
Check: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Filter auf Leckagen und Zustand inspizieren
Area: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Check: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Area: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) au
Check: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) auf Verschleiss und Funktion pruefen
Area: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast,
Check: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast, Seil-Ende) testen
Area: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorha
Check: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorhanden) kontrollieren; Beschichtungsschaeden dokumentieren und ausbessern

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Kongsberg Maritime Electric Towing Winch for Tugs (Next-Generation)

Electric Towing Winch for Tugs (Next-Generation) ✓ verified

Application

Elektrische Schleppseilwinde fuer Hafenschlepper; neu vorgestellt auf TugTechnology 2025 (Antwerpen); fuer leichtere Schleppeinsaetze bis 35 t

Common Failures & Inspection Points

Area: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Soc
Check: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Sockelbefestigung) auf Sitz und Korrosion kontrollieren
Area: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Lec
Check: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Leckage testen, Bremshaltekraft gemaess Hersteller-Sollwert pruefen
Area: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen au
Check: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen auf Leckagen und Druckabfall kontrollieren
Area: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Fi
Check: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Filter auf Leckagen und Zustand inspizieren
Area: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Check: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Area: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) au
Check: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) auf Verschleiss und Funktion pruefen
Area: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast,
Check: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast, Seil-Ende) testen
Area: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorha
Check: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorhanden) kontrollieren; Beschichtungsschaeden dokumentieren und ausbessern

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Kongsberg Maritime PM Escort Winch (Electrical Escort Winch)

PM Escort Winch (Electrical Escort Winch) ✓ verified

Application

Permanentmagnetmotor-getriebene elektrische Escort-Schleppseilwinde fuer Hochleistungs-Schlepper; regenerative Energierueckspeisung; TX140 PM-Motor

Common Failures & Inspection Points

Area: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Soc
Check: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Sockelbefestigung) auf Sitz und Korrosion kontrollieren
Area: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Lec
Check: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Leckage testen, Bremshaltekraft gemaess Hersteller-Sollwert pruefen
Area: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen au
Check: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen auf Leckagen und Druckabfall kontrollieren
Area: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Fi
Check: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Filter auf Leckagen und Zustand inspizieren
Area: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Check: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Area: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) au
Check: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) auf Verschleiss und Funktion pruefen
Area: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast,
Check: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast, Seil-Ende) testen
Area: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorha
Check: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorhanden) kontrollieren; Beschichtungsschaeden dokumentieren und ausbessern

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Kongsberg Maritime Escort Towing Winch (Hydraulic)

Escort Towing Winch (Hydraulic) ✓ verified

Application

Hydraulische Escort-Schleppseilwinde fuer Escort- und Hochseeschlepper; einstellbare Schleppkraft und Rendering-Kraft; einfach- oder Splittrommel

Common Failures & Inspection Points

Area: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Soc
Check: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Sockelbefestigung) auf Sitz und Korrosion kontrollieren
Area: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Lec
Check: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Leckage testen, Bremshaltekraft gemaess Hersteller-Sollwert pruefen
Area: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen au
Check: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen auf Leckagen und Druckabfall kontrollieren
Area: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Fi
Check: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Filter auf Leckagen und Zustand inspizieren
Area: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Check: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Area: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) au
Check: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) auf Verschleiss und Funktion pruefen
Area: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast,
Check: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast, Seil-Ende) testen
Area: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorha
Check: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorhanden) kontrollieren; Beschichtungsschaeden dokumentieren und ausbessern

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Kongsberg Maritime SL 150W-2T Towing Winch

SL 150W-2T Towing Winch ✓ verified

Application

Hydraulische Schleppseilwinde (frueheres Rolls-Royce-Marine-Modell), Zweitrommel-Konfiguration; nachgewiesene Nutzung auf Schleppern, Baujahr 2010 (unveraenderte Einheiten dokumentiert)

Common Failures & Inspection Points

Area: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Soc
Check: Seilzustand und Verschleiss pruefen: Draht- bzw. Faserseil auf Kinken, Korrosion, Drahtbrueche, Abnutzung und Quetschstellen inspizieren; Seilendverbindung (Sockelbefestigung) auf Sitz und Korrosion kontrollieren
Area: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Lec
Check: Bremsanlage (Bandbremse): Bremsband-Verschleissdicke messen, Bremslining auf Risse und Abrieb pruefen, Bremsgestaenge und Hydraulikzylinder auf Funktion und Leckage testen, Bremshaltekraft gemaess Hersteller-Sollwert pruefen
Area: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen au
Check: Reibungskupplung (Friction Clutch): Kupplungsbelag-Verschleiss pruefen, Einrueckzeit und Schnellloesefunktion (< 3 s) verifizieren, Hydraulik-Steuerleitungen auf Leckagen und Druckabfall kontrollieren
Area: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Fi
Check: Hydrauliksystem: Oelstand, Oelqualitaet (Viskositaet, Wassergehalt, Partikel) pruefen; Pumpengeraeusch und Druckniveau messen; alle Schlaeuche, Armaturen und Filter auf Leckagen und Zustand inspizieren
Area: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Check: Getriebe und Lager: Getriebeoel-Stand und Zustand kontrollieren; Lagergeraeusch und -temperatur beim Betrieb messen; Wellenabdichtungen auf Leckagen pruefen
Area: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) au
Check: Trommelstruktur und Flansche: Trommelprofil auf Verformungen, Risse und Korrosion visuell inspizieren; Drahtfuehrung und Spulervorrichtung (Fleeting/Spiegel) auf Verschleiss und Funktion pruefen
Area: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast,
Check: Steuerungs- und Anzeigesystem: Spannungs-, Laengen- und Geschwindigkeitsanzeige im Steuerstand kalibrieren und auf korrekte Funktion pruefen; Alarme (Ueberlast, Seil-Ende) testen
Area: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorha
Check: Korrosionsschutz und Lackierung: Alle Aussenoberflaechen, Schraubenverbindungen und Fundamentverschraubungen auf Korrosion pruefen; Anodenanordnung (falls vorhanden) kontrollieren; Beschichtungsschaeden dokumentieren und ausbessern

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Towing Winch Series

Pull 200-1,500 kN · Tow Wire

Type

Towing Winch (Hydraulic)

Size Range

RR-TW-200
RR-TW-500
RR-TW-1000
RR-TW-1500

Power range (kW)

Drive Type

Hydraulic

Construction

Heavy-duty steel, disc brake, cascade control

Common Failures & Inspection Points

Disc brake overheating
Wire drum groove wear
Hydraulic system seal failures
Cascade valve malfunction

Service: Disc brake inspection quarterly. Cascade calibration annually. Wire inspection per schedule.

Spare Parts: Kongsberg Maritime. Lead time: 4-8 weeks.

Datasheet

Markey Machine

12 ✓ 12 verified

TES-24 ✓ verified

Application

Single-drum electric towing winch for ASD tugs where aft deck space is at a premium

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

TES-40-75HP ✓ verified

Application

Single-drum electric towing winch with fairlead and warping head for ASD tugs

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

TES-40UL-125HP ✓ verified

Application

Single-drum electric towing winch for Ice-class tugs (Canadian Super Ice Class)

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

TES-34UL-100HP ✓ verified

Application

Single-drum Ice-class electric towing winch designed for enclosed winch rooms on Ice-class 1A tugs

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

TESD-34B-100HP ✓ verified

Application

Double-drum electric towing winch for ASD tugboats (ship-assist and coastal/offshore towing)

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

TESD-34-100HP ✓ verified

Application

Double-drum electric towing winch for ASD tugboats (ship-assist and offshore towing)

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

TDSD-32 ✓ verified

Application

Diesel-driven double-drum towing winch for offshore towing and anchor-handling operations

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DEPCF-52-75HP ✓ verified

Application

Class II electric hawser winch with Render/Recover for ship-assist and escort tugs

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DESDF-48-200HP ✓ verified

Application

Class III electric divided-drum hawser winch for indirect towing and escort of tankers/LNG carriers in extreme seaways

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DEPC-48-50HP ✓ verified

Application

Class II electric single-drum hawser winch for ship-assist and escort tugs

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DESF-48A ✓ verified

Application

Class III electric escort hawser winch for indirect towing and escort operations

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DYSF-42 ✓ verified

Application

Hydraulic single-drum hawser/towing winch with custom underlead fairlead for escort and ship-assist tugs

Common Failures & Inspection Points

Area: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings
Check: Brake lining thickness and brake drum wear — inspect for wear beyond minimum thickness limits, scoring, glazing, or contamination by oil/grease; replace linings as required
Area: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to origina
Check: Wire rope / HMPE soft-line condition — check for broken wires, kinks, bird-caging, corrosion, flat spots, and diameter reduction; measure and compare to original diameter; replace at manufacturer-specified intervals
Area: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw
Check: Drum and fairlead/levelwind inspection — examine drum shell for cracks, weld defects, and corrosion; verify levelwind traversing mechanism (chain, diamond screw, guides) for wear, lubrication, and proper alignment
Area: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydrau
Check: Clutch and disconnect mechanism — inspect multi-disc or jaw clutches for wear, engagement/disengagement function, and torque capacity; check pneumatic or hydraulic actuators and control interlocks
Area: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil
Check: Gearbox and bearing inspection — check gear tooth condition for pitting, spalling, and wear; inspect bearings for noise, temperature rise, and play; verify oil level, quality, and change intervals
Area: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fi
Check: Render/Recover and automatic tension control — test set-point accuracy, response time, and slip-brake function under load; verify water-cooling system (where fitted) for flow, temperature, and hose condition
Area: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote
Check: Electrical and control systems — inspect motor insulation resistance, VFD drive parameters, control wiring, limit switches, proximity sensors, wheelhouse/remote control stations, and emergency stop circuits; verify IEEE-45 compliance
Area: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of
Check: Foundation, fasteners, and structural integrity — check deck mounting bolts for torque and corrosion, weld integrity of frame and warping head, and alignment of towing wire lead relative to fairlead or levelwind

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

IBERCISA Deck Machinery

8 ✓ 8 verified

MR-E/930/2/2500-89 ✓ verified

Application

Anchor Handling Tug Supply (AHTS) waterfall towing winch; installed on vessels 'Bylgia' and 'Kolga' for Heerema Marine Contractors (Armon shipyard, Vigo)

Common Failures & Inspection Points

Area: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Check: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Area: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect bra
Check: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect brake actuator seals
Area: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Check: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Area: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Check: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Area: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Check: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Area: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaini
Check: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaining safe working load
Area: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Check: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Area: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, e
Check: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, etc.) documentation is current

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

IBERCISA Deck Machinery MR-H/200/2/300-80

MR-H/200/2/300-80 ✓ verified

Application

Double-drum hydraulic escort towing winch for harbour/escort tug; installed on VB XALOC (Boluda Towage and Salvage, Zamakona Shipyard)

Common Failures & Inspection Points

Area: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Check: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Area: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect bra
Check: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect brake actuator seals
Area: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Check: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Area: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Check: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Area: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Check: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Area: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaini
Check: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaining safe working load
Area: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Check: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Area: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, e
Check: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, etc.) documentation is current

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

IBERCISA Deck Machinery MR-MAN/H/70/2x120-64/19-S/1

MR-MAN/H/70/2x120-64/19-S/1 ✓ verified

Application

Combined hydraulic towing winch for harbour/escort tug; installed on Svitzer Brazil tugboat fleet (Damen Shipyards)

Common Failures & Inspection Points

Area: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Check: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Area: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect bra
Check: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect brake actuator seals
Area: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Check: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Area: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Check: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Area: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Check: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Area: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaini
Check: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaining safe working load
Area: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Check: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Area: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, e
Check: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, etc.) documentation is current

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

IBERCISA Deck Machinery MR-MAN/H/160/200-88/26-S/1

MR-MAN/H/160/200-88/26-S/1 ✓ verified

Application

Hydraulic combined windlass and towing winch (escort/harbour tug); installed on 37-metre Italian tug for Rimorchiatori Laziali (Armón shipyard, Vigo)

Common Failures & Inspection Points

Area: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Check: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Area: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect bra
Check: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect brake actuator seals
Area: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Check: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Area: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Check: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Area: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Check: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Area: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaini
Check: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaining safe working load
Area: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Check: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Area: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, e
Check: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, etc.) documentation is current

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

IBERCISA Deck Machinery MR-MAN/h/140/2x100/22

MR-MAN/h/140/2x100/22 ✓ verified

Application

Combined hydraulic towing/mooring winch for harbour tug (RUSA/ARMON shipyard)

Common Failures & Inspection Points

Area: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Check: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Area: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect bra
Check: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect brake actuator seals
Area: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Check: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Area: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Check: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Area: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Check: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Area: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaini
Check: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaining safe working load
Area: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Check: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Area: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, e
Check: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, etc.) documentation is current

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

IBERCISA Deck Machinery Escort Towing Winch (Waterfall, double-drum, 100t/250t)

Escort Towing Winch (Waterfall, double-drum, 100t/250t) ✓ verified

Application

Escort towing winch waterfall configuration for 37m escort tug (Rimorchiatori Laziali, Armón shipyard, Vigo); two separate drums for main towing wire and secondary rope

Common Failures & Inspection Points

Area: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Check: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Area: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect bra
Check: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect brake actuator seals
Area: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Check: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Area: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Check: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Area: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Check: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Area: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaini
Check: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaining safe working load
Area: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Check: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Area: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, e
Check: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, etc.) documentation is current

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

MR-/H90/700-52 ✓ verified

Application

Hydraulic towing winch for harbour/escort tug (Brazilian shipyard series)

Common Failures & Inspection Points

Area: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Check: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Area: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect bra
Check: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect brake actuator seals
Area: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Check: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Area: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Check: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Area: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Check: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Area: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaini
Check: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaining safe working load
Area: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Check: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Area: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, e
Check: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, etc.) documentation is current

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

MR-H/5/150-80/1 ✓ verified

Application

Hydraulic harbour towing winch; documented in spare parts supply chain (Poclain hydraulic components P/N 20360545)

Common Failures & Inspection Points

Area: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Check: Inspect and lubricate all wire rope/synthetic rope drums, flanges, and grooves for wear, deformation, and Lebus/criss-cross spooling alignment
Area: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect bra
Check: Check and test hydraulic or pneumatic brake system: measure brake band thickness, verify holding capacity matches rated SWL (static brake test), and inspect brake actuator seals
Area: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Check: Test constant tension (render-recovery) system and automatic rendering function across full load range; verify response time meets specification
Area: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Check: Inspect gearbox oil level and quality (split or enclosed type), check for leaks, and record vibration/noise signatures
Area: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Check: Check all electrical connections, frequency converter/VFD parameters, motor insulation resistance, and encoder/sensor calibration (for electric drive units)
Area: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaini
Check: Inspect towing line (wire rope or HMPE) for broken wires, kinking, bird-caging, corrosion, and end terminations (spelter socket, swaged fitting); verify remaining safe working load
Area: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Check: Verify load cell and line-length monitoring system calibration; test overload protection and automatic stop functions
Area: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, e
Check: Test quick-release/emergency release mechanism (where fitted) and inspect hook, swivel, and shackle SWL markings; confirm classification society (DNV, BV, LR, etc.) documentation is current

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

EMCÉ Winches

7 ✓ 7 verified

A20 L / A20 H / A20 M / A20 SP220 ✓ verified

Application

Electric single-drum towing / ship winch (marine, general purpose traversing); A20 SP220 variant runs on 230V AC single phase

Common Failures & Inspection Points

Area: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Check: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Area: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Check: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Area: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Check: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Area: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Check: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Area: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated
Check: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated load
Area: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lu
Check: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lug condition if applicable
Area: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; ver
Check: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; verify emergency stop operation
Area: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial
Check: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial anodes on marine installations

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

A30 H / A30 L / A30 M ✓ verified

Application

Electric single-drum towing / ship winch (marine, heavy duty pulling and traversing up to 650 kg)

Common Failures & Inspection Points

Area: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Check: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Area: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Check: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Area: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Check: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Area: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Check: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Area: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated
Check: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated load
Area: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lu
Check: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lug condition if applicable
Area: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; ver
Check: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; verify emergency stop operation
Area: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial
Check: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial anodes on marine installations

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

A35 H / A35 L / A35 M ✓ verified

Application

Electric single-drum towing / ship winch (marine, heavy duty pulling and traversing up to 900 kg)

Common Failures & Inspection Points

Area: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Check: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Area: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Check: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Area: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Check: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Area: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Check: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Area: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated
Check: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated load
Area: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lu
Check: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lug condition if applicable
Area: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; ver
Check: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; verify emergency stop operation
Area: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial
Check: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial anodes on marine installations

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

A50 H / A50 L / A50 M ✓ verified

Application

Electric single-drum towing / ship winch (marine, heavy duty pulling and traversing up to 1800 kg)

Common Failures & Inspection Points

Area: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Check: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Area: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Check: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Area: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Check: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Area: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Check: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Area: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated
Check: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated load
Area: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lu
Check: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lug condition if applicable
Area: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; ver
Check: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; verify emergency stop operation
Area: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial
Check: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial anodes on marine installations

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

EMCÉ Winches OHW series (e.g. OHW4.5, OHW20)

OHW series (e.g. OHW4.5, OHW20) ✓ verified

Application

Hydraulic single-drum towing / ship winch for offshore and marine applications; ultra-compact planetary design with gearbox and brake inside drum core; third-party certification available (Lloyd's, ABS, DNV)

Common Failures & Inspection Points

Area: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Check: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Area: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Check: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Area: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Check: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Area: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Check: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Area: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated
Check: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated load
Area: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lu
Check: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lug condition if applicable
Area: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; ver
Check: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; verify emergency stop operation
Area: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial
Check: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial anodes on marine installations

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

F 20 GP2 ✓ verified

Application

Air-driven single-drum towing / ship winch (marine, air drive with contactless maintenance-free gear motor, in-line helical gearbox)

Common Failures & Inspection Points

Area: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Check: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Area: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Check: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Area: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Check: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Area: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Check: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Area: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated
Check: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated load
Area: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lu
Check: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lug condition if applicable
Area: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; ver
Check: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; verify emergency stop operation
Area: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial
Check: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial anodes on marine installations

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

F 31 GP2 / F 31 LV ✓ verified

Application

Air-driven single-drum towing / ship winch (marine); F 31 GP2 uses contactless gear motor, F 31 LV uses rotary vane motor; both with automatic disc brake and lever-operated proportional control valve

Common Failures & Inspection Points

Area: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Check: Brake system inspection: check oil-bath disc brake and/or band brake for wear, oil level, and correct spring tension; verify fail-safe engagement under load
Area: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Check: Wire rope/cable inspection: examine for broken wires, kinks, corrosion, flattening, and correct fleet angle onto drum; check termination and drum anchor point
Area: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Check: Drum and flanges: inspect drum surface for grooves, cracks, and corrosion; verify proper level-winding and equal rope layering across drum width
Area: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Check: Gearbox inspection: check for oil leaks, correct oil level and grade, unusual noise or vibration; inspect planetary or worm gear mesh and bearing condition
Area: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated
Check: Motor and drive unit: test electric/hydraulic/pneumatic motor for overheating, abnormal current draw, air/fluid leaks, and correct pressure or voltage at rated load
Area: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lu
Check: Structural and mounting integrity: inspect winch frame, foundation bolts, welds, and deck/base plate for cracks, corrosion, and proper torque; verify lifting lug condition if applicable
Area: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; ver
Check: Control system and limit switches: function-test control valves, push-buttons, remote controls, overload protection, and any automatic load-sensing devices; verify emergency stop operation
Area: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial
Check: Corrosion protection and coating: inspect paint/coating condition (ISO 12944 C4-High or marine-grade systems); treat any bare metal areas and check sacrificial anodes on marine installations

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Palfinger Marine

6 ✓ 6 verified

Towing Winch (Forward/Aft Tug Towing Winch) ✓ verified

Application

Forward and aft towing winches for tugs (ship-assist, escort, harbour tugs); single or double drum in waterfall or side-by-side configuration; electric or hydraulic drive; active escort tug requirements supported

Common Failures & Inspection Points

Area: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class
Check: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class society limits
Area: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydra
Check: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydraulic brake actuators for leaks
Area: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear,
Check: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear, check hydraulic hose integrity
Area: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubr
Check: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubrication
Area: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manua
Check: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manual spooling function
Area: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload pro
Check: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload protection settings, test emergency stop function
Area: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment
Check: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment with towing pin/fairlead
Area: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection
Check: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection where fitted; check seals on enclosed gear housings

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

PALFINGER Marine Anchor Handling and Towing (AHT) Winch

Anchor Handling and Towing (AHT) Winch ✓ verified

Application

Anchor handling and towing operations on AHT and AHTS vessels; custom-built and tightly integrated into vessel structure; double or triple drum in waterfall or side-by-side configuration; optional chain pulling variants, chain rollers, secondary winches

Common Failures & Inspection Points

Area: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class
Check: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class society limits
Area: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydra
Check: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydraulic brake actuators for leaks
Area: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear,
Check: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear, check hydraulic hose integrity
Area: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubr
Check: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubrication
Area: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manua
Check: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manual spooling function
Area: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload pro
Check: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload protection settings, test emergency stop function
Area: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment
Check: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment with towing pin/fairlead
Area: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection
Check: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection where fitted; check seals on enclosed gear housings

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

PALFINGER Marine Spare Towing Wire Storage Winch

Spare Towing Wire Storage Winch ✓ verified

Application

Storage of spare towing wire, rope, icenet, streamer cable and special purpose media aboard offshore and research vessels

Common Failures & Inspection Points

Area: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class
Check: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class society limits
Area: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydra
Check: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydraulic brake actuators for leaks
Area: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear,
Check: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear, check hydraulic hose integrity
Area: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubr
Check: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubrication
Area: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manua
Check: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manual spooling function
Area: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload pro
Check: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload protection settings, test emergency stop function
Area: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment
Check: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment with towing pin/fairlead
Area: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection
Check: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection where fitted; check seals on enclosed gear housings

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Streamer Storage Winch ✓ verified

Application

Storage of seismic streamer cable on research and survey vessels

Common Failures & Inspection Points

Area: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class
Check: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class society limits
Area: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydra
Check: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydraulic brake actuators for leaks
Area: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear,
Check: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear, check hydraulic hose integrity
Area: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubr
Check: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubrication
Area: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manua
Check: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manual spooling function
Area: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload pro
Check: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload protection settings, test emergency stop function
Area: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment
Check: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment with towing pin/fairlead
Area: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection
Check: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection where fitted; check seals on enclosed gear housings

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Tugger Winch ✓ verified

Application

Deck tugger operations on offshore and commercial vessels under extreme sea conditions; single drum with or without warping end

Common Failures & Inspection Points

Area: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class
Check: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class society limits
Area: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydra
Check: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydraulic brake actuators for leaks
Area: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear,
Check: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear, check hydraulic hose integrity
Area: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubr
Check: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubrication
Area: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manua
Check: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manual spooling function
Area: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload pro
Check: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload protection settings, test emergency stop function
Area: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment
Check: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment with towing pin/fairlead
Area: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection
Check: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection where fitted; check seals on enclosed gear housings

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

PALFINGER Marine 10T Towing Winch (R/V OceanXplorer)

10T Towing Winch (R/V OceanXplorer) ✓ verified

Application

Towing of manned submersibles (Triton Nadir and Neptune) during launch and recovery operations aboard research vessel OceanXplorer; part of the 40T A-frame LARS system

Common Failures & Inspection Points

Area: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class
Check: Wire rope condition inspection: check for broken wires, kinks, corrosion, and wear at drum fleeting points and fairleads; replace if strand breaks exceed class society limits
Area: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydra
Check: Brake system inspection: measure brake lining thickness, check brake band/disc condition, verify holding torque against rated brake holding force, inspect hydraulic brake actuators for leaks
Area: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear,
Check: Drive system inspection: check hydraulic motor/electric motor coupling, verify oil levels and condition in gearbox, inspect motor mounts and couplings for wear, check hydraulic hose integrity
Area: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubr
Check: Drum and clutch inspection: examine drum flange welds for cracks, check clutch engagement/disengagement operation, inspect drum shaft bearings for wear and lubrication
Area: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manua
Check: Spooling device inspection: verify level-wind or spooling gear alignment and lubrication, check for damage to worm/guide screw threads, test automatic and manual spooling function
Area: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload pro
Check: Control system and sensors inspection: test all control stations (bridge, local, remote), verify tension and speed indicators, check load cells and overload protection settings, test emergency stop function
Area: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment
Check: Structural attachment inspection: inspect winch bed and foundation bolts for tightness and corrosion, examine deck penetration welds for cracks, check alignment with towing pin/fairlead
Area: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection
Check: Corrosion protection inspection: check paint/coating condition on winch body, drum, and exposed steel surfaces; inspect zinc anodes or other cathodic protection where fitted; check seals on enclosed gear housings

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Adria Winch d.o.o.

3 ✓ 3 verified

Double Towing Winch (ARC 130 Icebreaker, 2 x 100 t) ✓ verified

Application

Towing winch for Icebreaking Support Vessels (Aker ARC 130 series), two 121-metre vessels built by Vyborg Shipyard for Gazprom Neft. Double-drum arrangement in waterfall composition for arctic towing operations at temperatures down to -50 °C.

Common Failures & Inspection Points

Area: Wire rope / tow line inspection: Check for broken wires, kinks, corrosion, and wear; measure diameter at multiple points and compare against minimum allowable d
Check: Wire rope / tow line inspection: Check for broken wires, kinks, corrosion, and wear; measure diameter at multiple points and compare against minimum allowable diameter; inspect end terminations (sockets, ferrules, splices).
Area: Drum and spooling device inspection: Verify drum grooves for wear and deformation; check automatic spooling device alignment and traversing motion; inspect drum
Check: Drum and spooling device inspection: Verify drum grooves for wear and deformation; check automatic spooling device alignment and traversing motion; inspect drum flanges and core for cracks.
Area: Brake system inspection: Test automatic disc/band brake holding capacity under rated load; inspect brake lining/pad thickness and disc surface condition; verify
Check: Brake system inspection: Test automatic disc/band brake holding capacity under rated load; inspect brake lining/pad thickness and disc surface condition; verify fail-safe function (spring-applied, hydraulically released or equivalent).
Area: Clutch inspection: Test friction clutch engagement and slipping torque; inspect clutch plates or cone surfaces for wear; verify quick-release function operation
Check: Clutch inspection: Test friction clutch engagement and slipping torque; inspect clutch plates or cone surfaces for wear; verify quick-release function operation and hydraulic actuation if applicable.
Area: Hydraulic system inspection (hydraulic drive units): Check HPU oil level, cleanliness (particle count), and filter condition; inspect hoses, fittings, and manif
Check: Hydraulic system inspection (hydraulic drive units): Check HPU oil level, cleanliness (particle count), and filter condition; inspect hoses, fittings, and manifolds for leaks; verify pressure relief valve settings.
Area: Structural and mounting inspection: Inspect bed plate, foundation bolts, and deck welds for cracks or corrosion; check bearing housings for play and lubrication
Check: Structural and mounting inspection: Inspect bed plate, foundation bolts, and deck welds for cracks or corrosion; check bearing housings for play and lubrication; inspect paint coating condition and corrosion protection.
Area: Control and instrumentation inspection: Test PLC controller, load cells, and drum encoder calibration; verify local and bridge control panel operation including
Check: Control and instrumentation inspection: Test PLC controller, load cells, and drum encoder calibration; verify local and bridge control panel operation including touchscreen HMI; test all limit switches and overload protection relays.
Area: Lubrication and sealing inspection: Verify oil-bath or grease-lubricated gearbox levels; inspect shaft seals for leakage; confirm lubrication intervals are met
Check: Lubrication and sealing inspection: Verify oil-bath or grease-lubricated gearbox levels; inspect shaft seals for leakage; confirm lubrication intervals are met and correct lubricant grades are used.

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Adria Winch d.o.o. Hydraulic Towing Winch 300 kN

Hydraulic Towing Winch 300 kN ✓ verified

Application

Towing winch supplied as part of a complete deck machinery package for a tug vessel. Accompanied by Towing Hook 300 kN SWL, Towing Pins & Fork Unit, Hydraulic Tugger Winch 80 kN, Electric Anchor-Mooring Capstans (20.5K2), Chain Stoppers, and Hydraulic Cylinder for Mast.

Common Failures & Inspection Points

Area: Wire rope / tow line inspection: Check for broken wires, kinks, corrosion, and wear; measure diameter at multiple points and compare against minimum allowable d
Check: Wire rope / tow line inspection: Check for broken wires, kinks, corrosion, and wear; measure diameter at multiple points and compare against minimum allowable diameter; inspect end terminations (sockets, ferrules, splices).
Area: Drum and spooling device inspection: Verify drum grooves for wear and deformation; check automatic spooling device alignment and traversing motion; inspect drum
Check: Drum and spooling device inspection: Verify drum grooves for wear and deformation; check automatic spooling device alignment and traversing motion; inspect drum flanges and core for cracks.
Area: Brake system inspection: Test automatic disc/band brake holding capacity under rated load; inspect brake lining/pad thickness and disc surface condition; verify
Check: Brake system inspection: Test automatic disc/band brake holding capacity under rated load; inspect brake lining/pad thickness and disc surface condition; verify fail-safe function (spring-applied, hydraulically released or equivalent).
Area: Clutch inspection: Test friction clutch engagement and slipping torque; inspect clutch plates or cone surfaces for wear; verify quick-release function operation
Check: Clutch inspection: Test friction clutch engagement and slipping torque; inspect clutch plates or cone surfaces for wear; verify quick-release function operation and hydraulic actuation if applicable.
Area: Hydraulic system inspection (hydraulic drive units): Check HPU oil level, cleanliness (particle count), and filter condition; inspect hoses, fittings, and manif
Check: Hydraulic system inspection (hydraulic drive units): Check HPU oil level, cleanliness (particle count), and filter condition; inspect hoses, fittings, and manifolds for leaks; verify pressure relief valve settings.
Area: Structural and mounting inspection: Inspect bed plate, foundation bolts, and deck welds for cracks or corrosion; check bearing housings for play and lubrication
Check: Structural and mounting inspection: Inspect bed plate, foundation bolts, and deck welds for cracks or corrosion; check bearing housings for play and lubrication; inspect paint coating condition and corrosion protection.
Area: Control and instrumentation inspection: Test PLC controller, load cells, and drum encoder calibration; verify local and bridge control panel operation including
Check: Control and instrumentation inspection: Test PLC controller, load cells, and drum encoder calibration; verify local and bridge control panel operation including touchscreen HMI; test all limit switches and overload protection relays.
Area: Lubrication and sealing inspection: Verify oil-bath or grease-lubricated gearbox levels; inspect shaft seals for leakage; confirm lubrication intervals are met
Check: Lubrication and sealing inspection: Verify oil-bath or grease-lubricated gearbox levels; inspect shaft seals for leakage; confirm lubrication intervals are met and correct lubricant grades are used.

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Adria Winch d.o.o. Towing Winch (Custom, up to 125 t rated pull)

Towing Winch (Custom, up to 125 t rated pull) ✓ verified

Application

Custom-designed towing winches for tugs, offshore and naval vessels, merchant vessels and ice-class ships. Available as single or double drum in waterfall or in-line configuration, driven by hydraulic motors or frequency-controlled electric motors. Suitable for operation at -40 °C.

Common Failures & Inspection Points

Area: Wire rope / tow line inspection: Check for broken wires, kinks, corrosion, and wear; measure diameter at multiple points and compare against minimum allowable d
Check: Wire rope / tow line inspection: Check for broken wires, kinks, corrosion, and wear; measure diameter at multiple points and compare against minimum allowable diameter; inspect end terminations (sockets, ferrules, splices).
Area: Drum and spooling device inspection: Verify drum grooves for wear and deformation; check automatic spooling device alignment and traversing motion; inspect drum
Check: Drum and spooling device inspection: Verify drum grooves for wear and deformation; check automatic spooling device alignment and traversing motion; inspect drum flanges and core for cracks.
Area: Brake system inspection: Test automatic disc/band brake holding capacity under rated load; inspect brake lining/pad thickness and disc surface condition; verify
Check: Brake system inspection: Test automatic disc/band brake holding capacity under rated load; inspect brake lining/pad thickness and disc surface condition; verify fail-safe function (spring-applied, hydraulically released or equivalent).
Area: Clutch inspection: Test friction clutch engagement and slipping torque; inspect clutch plates or cone surfaces for wear; verify quick-release function operation
Check: Clutch inspection: Test friction clutch engagement and slipping torque; inspect clutch plates or cone surfaces for wear; verify quick-release function operation and hydraulic actuation if applicable.
Area: Hydraulic system inspection (hydraulic drive units): Check HPU oil level, cleanliness (particle count), and filter condition; inspect hoses, fittings, and manif
Check: Hydraulic system inspection (hydraulic drive units): Check HPU oil level, cleanliness (particle count), and filter condition; inspect hoses, fittings, and manifolds for leaks; verify pressure relief valve settings.
Area: Structural and mounting inspection: Inspect bed plate, foundation bolts, and deck welds for cracks or corrosion; check bearing housings for play and lubrication
Check: Structural and mounting inspection: Inspect bed plate, foundation bolts, and deck welds for cracks or corrosion; check bearing housings for play and lubrication; inspect paint coating condition and corrosion protection.
Area: Control and instrumentation inspection: Test PLC controller, load cells, and drum encoder calibration; verify local and bridge control panel operation including
Check: Control and instrumentation inspection: Test PLC controller, load cells, and drum encoder calibration; verify local and bridge control panel operation including touchscreen HMI; test all limit switches and overload protection relays.
Area: Lubrication and sealing inspection: Verify oil-bath or grease-lubricated gearbox levels; inspect shaft seals for leakage; confirm lubrication intervals are met
Check: Lubrication and sealing inspection: Verify oil-bath or grease-lubricated gearbox levels; inspect shaft seals for leakage; confirm lubrication intervals are met and correct lubricant grades are used.

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Damen Marine Components

3 ✓ 3 verified

Direct-drive towing winches ✓ verified

Application

Extreme-condition tugboat towing operations: LNG terminals with large tidal differences, rough waves, and narrow waterways such as the Panama Canal. Motors directly attached to main shaft for exceptionally low mass moment of inertia, preventing cable breakage during rapid acceleration. Motors also act as dynamic brakes, eliminating conventional brake discs.

Common Failures & Inspection Points

Area: Check hydraulic hose and fitting condition: inspect for leaks, chafing, and corrosion at all hydraulic connections and pressure relief valves
Check: Check hydraulic hose and fitting condition: inspect for leaks, chafing, and corrosion at all hydraulic connections and pressure relief valves
Area: Verify brake system function: test holding brake engagement and release, measure brake pad/disc wear, confirm brake holding force meets rated capacity
Check: Verify brake system function: test holding brake engagement and release, measure brake pad/disc wear, confirm brake holding force meets rated capacity
Area: Inspect wire rope or synthetic towing line: check for broken wires, kinks, bird-caging, corrosion, or wear; verify correct spooling and drum capacity remaining
Check: Inspect wire rope or synthetic towing line: check for broken wires, kinks, bird-caging, corrosion, or wear; verify correct spooling and drum capacity remaining
Area: Check drum and shaft bearings: inspect for play, noise, and lubrication; verify bearing seals are intact and free of contamination
Check: Check drum and shaft bearings: inspect for play, noise, and lubrication; verify bearing seals are intact and free of contamination
Area: Test clutch and gearbox operation: verify smooth engagement/disengagement, check gearbox oil level and condition, inspect for abnormal noise or vibration
Check: Test clutch and gearbox operation: verify smooth engagement/disengagement, check gearbox oil level and condition, inspect for abnormal noise or vibration
Area: Inspect motor and drive system: check hydraulic motor or electric motor for leaks, overheating, and correct pressure/flow or electrical parameters; verify drive
Check: Inspect motor and drive system: check hydraulic motor or electric motor for leaks, overheating, and correct pressure/flow or electrical parameters; verify drive coupling alignment
Area: Functional load test: verify pulling force and braking force against rated values; confirm line-force measurement and line-length measurement systems are calibr
Check: Functional load test: verify pulling force and braking force against rated values; confirm line-force measurement and line-length measurement systems are calibrated and accurate
Area: Structural inspection: check winch foundation bolts for correct torque, inspect winch frame and drum flanges for cracks or deformation, verify corrosion protect
Check: Structural inspection: check winch foundation bolts for correct torque, inspect winch frame and drum flanges for cracks or deformation, verify corrosion protection (paint/coating) condition

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Damen Marine Components Escort towing winches

Escort towing winches ✓ verified

Application

Open-sea escort operations in the harshest conditions, fully meeting class requirements. Equipped with an active haul-and-pay-out system braking on the motor rather than conventional brakes. Can be configured from the direct-drive towing winch platform by adding a second motor.

Common Failures & Inspection Points

Area: Check hydraulic hose and fitting condition: inspect for leaks, chafing, and corrosion at all hydraulic connections and pressure relief valves
Check: Check hydraulic hose and fitting condition: inspect for leaks, chafing, and corrosion at all hydraulic connections and pressure relief valves
Area: Verify brake system function: test holding brake engagement and release, measure brake pad/disc wear, confirm brake holding force meets rated capacity
Check: Verify brake system function: test holding brake engagement and release, measure brake pad/disc wear, confirm brake holding force meets rated capacity
Area: Inspect wire rope or synthetic towing line: check for broken wires, kinks, bird-caging, corrosion, or wear; verify correct spooling and drum capacity remaining
Check: Inspect wire rope or synthetic towing line: check for broken wires, kinks, bird-caging, corrosion, or wear; verify correct spooling and drum capacity remaining
Area: Check drum and shaft bearings: inspect for play, noise, and lubrication; verify bearing seals are intact and free of contamination
Check: Check drum and shaft bearings: inspect for play, noise, and lubrication; verify bearing seals are intact and free of contamination
Area: Test clutch and gearbox operation: verify smooth engagement/disengagement, check gearbox oil level and condition, inspect for abnormal noise or vibration
Check: Test clutch and gearbox operation: verify smooth engagement/disengagement, check gearbox oil level and condition, inspect for abnormal noise or vibration
Area: Inspect motor and drive system: check hydraulic motor or electric motor for leaks, overheating, and correct pressure/flow or electrical parameters; verify drive
Check: Inspect motor and drive system: check hydraulic motor or electric motor for leaks, overheating, and correct pressure/flow or electrical parameters; verify drive coupling alignment
Area: Functional load test: verify pulling force and braking force against rated values; confirm line-force measurement and line-length measurement systems are calibr
Check: Functional load test: verify pulling force and braking force against rated values; confirm line-force measurement and line-length measurement systems are calibrated and accurate
Area: Structural inspection: check winch foundation bolts for correct torque, inspect winch frame and drum flanges for cracks or deformation, verify corrosion protect
Check: Structural inspection: check winch foundation bolts for correct torque, inspect winch frame and drum flanges for cracks or deformation, verify corrosion protection (paint/coating) condition

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Damen Marine Components Gearbox driven towing winches

Gearbox driven towing winches ✓ verified

Application

Port tugboats assisting container ships and other cargo vessels in ports and port terminals. Variable-speed drive automatically adjusts winch speed to required pulling force, enabling highest possible speed at all times. Available with hydraulic or electric drive.

Common Failures & Inspection Points

Area: Check hydraulic hose and fitting condition: inspect for leaks, chafing, and corrosion at all hydraulic connections and pressure relief valves
Check: Check hydraulic hose and fitting condition: inspect for leaks, chafing, and corrosion at all hydraulic connections and pressure relief valves
Area: Verify brake system function: test holding brake engagement and release, measure brake pad/disc wear, confirm brake holding force meets rated capacity
Check: Verify brake system function: test holding brake engagement and release, measure brake pad/disc wear, confirm brake holding force meets rated capacity
Area: Inspect wire rope or synthetic towing line: check for broken wires, kinks, bird-caging, corrosion, or wear; verify correct spooling and drum capacity remaining
Check: Inspect wire rope or synthetic towing line: check for broken wires, kinks, bird-caging, corrosion, or wear; verify correct spooling and drum capacity remaining
Area: Check drum and shaft bearings: inspect for play, noise, and lubrication; verify bearing seals are intact and free of contamination
Check: Check drum and shaft bearings: inspect for play, noise, and lubrication; verify bearing seals are intact and free of contamination
Area: Test clutch and gearbox operation: verify smooth engagement/disengagement, check gearbox oil level and condition, inspect for abnormal noise or vibration
Check: Test clutch and gearbox operation: verify smooth engagement/disengagement, check gearbox oil level and condition, inspect for abnormal noise or vibration
Area: Inspect motor and drive system: check hydraulic motor or electric motor for leaks, overheating, and correct pressure/flow or electrical parameters; verify drive
Check: Inspect motor and drive system: check hydraulic motor or electric motor for leaks, overheating, and correct pressure/flow or electrical parameters; verify drive coupling alignment
Area: Functional load test: verify pulling force and braking force against rated values; confirm line-force measurement and line-length measurement systems are calibr
Check: Functional load test: verify pulling force and braking force against rated values; confirm line-force measurement and line-length measurement systems are calibrated and accurate
Area: Structural inspection: check winch foundation bolts for correct torque, inspect winch frame and drum flanges for cracks or deformation, verify corrosion protect
Check: Structural inspection: check winch foundation bolts for correct torque, inspect winch frame and drum flanges for cracks or deformation, verify corrosion protection (paint/coating) condition

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

YMV Crane and Winch Systems

2 ✓ 2 verified

TW ✓ verified

Application

Towing winch for tugboats, multipurpose supply/utility vessels, workboats, multicats, and AHTS (anchor handling tug supply) vessels. Available as single drum, double drum, or waterfall type. Hydraulic or electric drive. Optional autotensioning and constant tension functionality. Monitoring of wire length, speed, and tension available as option.

Common Failures & Inspection Points

Area: Inspect wire rope condition: check for broken wires, kinks, corrosion, and deformation along full length; replace if wear exceeds manufacturer limits
Check: Inspect wire rope condition: check for broken wires, kinks, corrosion, and deformation along full length; replace if wear exceeds manufacturer limits
Area: Brake system inspection: verify brake lining thickness, brake band/disc condition, and correct holding capacity under rated load
Check: Brake system inspection: verify brake lining thickness, brake band/disc condition, and correct holding capacity under rated load
Area: Gearbox and drive unit: check oil level and condition, inspect for leaks, verify torque output and gear engagement
Check: Gearbox and drive unit: check oil level and condition, inspect for leaks, verify torque output and gear engagement
Area: Hydraulic system (where applicable): inspect hoses, fittings, seals, and HPU pressure settings; check hydraulic fluid level and cleanliness
Check: Hydraulic system (where applicable): inspect hoses, fittings, seals, and HPU pressure settings; check hydraulic fluid level and cleanliness
Area: Drum and fleeting angle: inspect drum surface for grooves or deformation, verify correct spooling/fleeting angle to prevent wire overlap damage
Check: Drum and fleeting angle: inspect drum surface for grooves or deformation, verify correct spooling/fleeting angle to prevent wire overlap damage
Area: Clutch and coupling inspection: check clutch engagement/disengagement operation, inspect coupling elements for wear or misalignment
Check: Clutch and coupling inspection: check clutch engagement/disengagement operation, inspect coupling elements for wear or misalignment
Area: Load monitoring and control systems: function-test tension measurement, wire length counters, speed indicators, and remote/auto-tension control electronics
Check: Load monitoring and control systems: function-test tension measurement, wire length counters, speed indicators, and remote/auto-tension control electronics
Area: Classification survey and load test: perform periodic statutory load tests and present documentation to relevant class society (DNV GL, BV, RINA, ABS, etc.) per
Check: Classification survey and load test: perform periodic statutory load tests and present documentation to relevant class society (DNV GL, BV, RINA, ABS, etc.) per applicable intervals

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CONSTANT ✓ verified

Application

Constant tension towing/ship winch with active heave compensation (AHC) and constant tension (CT) mode selection. Hydraulic drive. Designed for offshore operations under harsh marine conditions. Optional containerized HPU and portable winch system design available. Monitoring of load, wire length, and speed included.

Common Failures & Inspection Points

Area: Inspect wire rope condition: check for broken wires, kinks, corrosion, and deformation along full length; replace if wear exceeds manufacturer limits
Check: Inspect wire rope condition: check for broken wires, kinks, corrosion, and deformation along full length; replace if wear exceeds manufacturer limits
Area: Brake system inspection: verify brake lining thickness, brake band/disc condition, and correct holding capacity under rated load
Check: Brake system inspection: verify brake lining thickness, brake band/disc condition, and correct holding capacity under rated load
Area: Gearbox and drive unit: check oil level and condition, inspect for leaks, verify torque output and gear engagement
Check: Gearbox and drive unit: check oil level and condition, inspect for leaks, verify torque output and gear engagement
Area: Hydraulic system (where applicable): inspect hoses, fittings, seals, and HPU pressure settings; check hydraulic fluid level and cleanliness
Check: Hydraulic system (where applicable): inspect hoses, fittings, seals, and HPU pressure settings; check hydraulic fluid level and cleanliness
Area: Drum and fleeting angle: inspect drum surface for grooves or deformation, verify correct spooling/fleeting angle to prevent wire overlap damage
Check: Drum and fleeting angle: inspect drum surface for grooves or deformation, verify correct spooling/fleeting angle to prevent wire overlap damage
Area: Clutch and coupling inspection: check clutch engagement/disengagement operation, inspect coupling elements for wear or misalignment
Check: Clutch and coupling inspection: check clutch engagement/disengagement operation, inspect coupling elements for wear or misalignment
Area: Load monitoring and control systems: function-test tension measurement, wire length counters, speed indicators, and remote/auto-tension control electronics
Check: Load monitoring and control systems: function-test tension measurement, wire length counters, speed indicators, and remote/auto-tension control electronics
Area: Classification survey and load test: perform periodic statutory load tests and present documentation to relevant class society (DNV GL, BV, RINA, ABS, etc.) per
Check: Classification survey and load test: perform periodic statutory load tests and present documentation to relevant class society (DNV GL, BV, RINA, ABS, etc.) per applicable intervals

Typ-universelle Inspektionspunkte fuer Towing Equipment (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Markey Machinery

TDSD-36 unverified

Line Pull (t)

Datasheet

TDSD-48 unverified

Line Pull (t)

Datasheet

TDSD-60 unverified

Line Pull (t)

Datasheet

TDSD-72 unverified

Line Pull (t)

Datasheet

TESS-10 unverified

Line Pull (t)

Datasheet

TESS-20 unverified

Line Pull (t)

Datasheet

TESS-30 unverified

Line Pull (t)

Datasheet

TESS-40 unverified

Line Pull (t)

Datasheet

DEPC-40 unverified

Line Pull (t)

Datasheet

DEPC-60 unverified

Line Pull (t)

Datasheet

DEPC-80 unverified

Line Pull (t)

Datasheet

DEPC-100 unverified

Line Pull (t)

100

Datasheet

CEW-40 unverified

Line Pull (t)

Datasheet

CEW-60 unverified

Line Pull (t)

Datasheet

CEW-80 unverified

Line Pull (t)

Datasheet

Markey Machinery Markey Machinery TW-10t Hydraulic-C

Markey Machinery TW-10t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-10t Electric-C

Markey Machinery TW-10t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-15t Hydraulic-C

Markey Machinery TW-15t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-15t Electric-C

Markey Machinery TW-15t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-20t Hydraulic-C

Markey Machinery TW-20t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-20t Electric-C

Markey Machinery TW-20t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-25t Hydraulic-C

Markey Machinery TW-25t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-25t Electric-C

Markey Machinery TW-25t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-30t Hydraulic-C

Markey Machinery TW-30t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-30t Electric-C

Markey Machinery TW-30t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-35t Hydraulic-C

Markey Machinery TW-35t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-35t Electric-C

Markey Machinery TW-35t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-40t Hydraulic-C

Markey Machinery TW-40t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-40t Electric-C

Markey Machinery TW-40t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-45t Hydraulic-C

Markey Machinery TW-45t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-45t Electric-C

Markey Machinery TW-45t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-50t Hydraulic-C

Markey Machinery TW-50t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-50t Electric-C

Markey Machinery TW-50t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-55t Hydraulic-C

Markey Machinery TW-55t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-55t Electric-C

Markey Machinery TW-55t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-60t Hydraulic-C

Markey Machinery TW-60t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-60t Electric-C

Markey Machinery TW-60t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-65t Hydraulic-C

Markey Machinery TW-65t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-65t Electric-C

Markey Machinery TW-65t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-70t Hydraulic-C

Markey Machinery TW-70t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-70t Electric-C

Markey Machinery TW-70t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-75t Hydraulic-C

Markey Machinery TW-75t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-75t Electric-C

Markey Machinery TW-75t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-80t Hydraulic-C

Markey Machinery TW-80t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-80t Electric-C

Markey Machinery TW-80t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-85t Hydraulic-C

Markey Machinery TW-85t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-85t Electric-C

Markey Machinery TW-85t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-90t Hydraulic-C

Markey Machinery TW-90t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-90t Electric-C

Markey Machinery TW-90t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-100t Hydraulic-C

Markey Machinery TW-100t Hydraulic-C unverified

Line Pull (t)

100

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-100t Electric-C

Markey Machinery TW-100t Electric-C unverified

Line Pull (t)

100

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-110t Hydraulic-C

Markey Machinery TW-110t Hydraulic-C unverified

Line Pull (t)

110

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-110t Electric-C

Markey Machinery TW-110t Electric-C unverified

Line Pull (t)

110

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-120t Hydraulic-C

Markey Machinery TW-120t Hydraulic-C unverified

Line Pull (t)

120

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-120t Electric-C

Markey Machinery TW-120t Electric-C unverified

Line Pull (t)

120

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-130t Hydraulic-C

Markey Machinery TW-130t Hydraulic-C unverified

Line Pull (t)

130

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-130t Electric-C

Markey Machinery TW-130t Electric-C unverified

Line Pull (t)

130

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-140t Hydraulic-C

Markey Machinery TW-140t Hydraulic-C unverified

Line Pull (t)

140

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-140t Electric-C

Markey Machinery TW-140t Electric-C unverified

Line Pull (t)

140

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-150t Hydraulic-C

Markey Machinery TW-150t Hydraulic-C unverified

Line Pull (t)

150

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-150t Electric-C

Markey Machinery TW-150t Electric-C unverified

Line Pull (t)

150

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-175t Hydraulic-C

Markey Machinery TW-175t Hydraulic-C unverified

Line Pull (t)

175

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-175t Electric-C

Markey Machinery TW-175t Electric-C unverified

Line Pull (t)

175

Drive

Electric

Datasheet

Markey Machinery Markey Machinery TW-200t Hydraulic-C

Markey Machinery TW-200t Hydraulic-C unverified

Line Pull (t)

200

Drive

Hydraulic

Datasheet

Markey Machinery Markey Machinery TW-200t Electric-C

Markey Machinery TW-200t Electric-C unverified

Line Pull (t)

200

Drive

Electric

Datasheet

Kongsberg

RR-TW-30t unverified

Line Pull (t)

Datasheet

RR-TW-40t unverified

Line Pull (t)

Datasheet

RR-TW-50t unverified

Line Pull (t)

Datasheet

RR-TW-60t unverified

Line Pull (t)

Datasheet

RR-TW-80t unverified

Line Pull (t)

Datasheet

RR-TW-100t unverified

Line Pull (t)

100

Datasheet

RR-TW-120t unverified

Line Pull (t)

120

Datasheet

RR-TW-150t unverified

Line Pull (t)

150

Datasheet

RR-TW-200t unverified

Line Pull (t)

200

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-10t Hydraulic-C

Rolls-Royce TW-10t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-10t Electric-C

Rolls-Royce TW-10t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-15t Hydraulic-C

Rolls-Royce TW-15t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-15t Electric-C

Rolls-Royce TW-15t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-20t Hydraulic-C

Rolls-Royce TW-20t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-20t Electric-C

Rolls-Royce TW-20t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-25t Hydraulic-C

Rolls-Royce TW-25t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-25t Electric-C

Rolls-Royce TW-25t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-30t Hydraulic-C

Rolls-Royce TW-30t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-30t Electric-C

Rolls-Royce TW-30t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-35t Hydraulic-C

Rolls-Royce TW-35t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-35t Electric-C

Rolls-Royce TW-35t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-40t Hydraulic-C

Rolls-Royce TW-40t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-40t Electric-C

Rolls-Royce TW-40t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-45t Hydraulic-C

Rolls-Royce TW-45t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-45t Electric-C

Rolls-Royce TW-45t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-50t Hydraulic-C

Rolls-Royce TW-50t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-50t Electric-C

Rolls-Royce TW-50t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-55t Hydraulic-C

Rolls-Royce TW-55t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-55t Electric-C

Rolls-Royce TW-55t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-60t Hydraulic-C

Rolls-Royce TW-60t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-60t Electric-C

Rolls-Royce TW-60t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-65t Hydraulic-C

Rolls-Royce TW-65t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-65t Electric-C

Rolls-Royce TW-65t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-70t Hydraulic-C

Rolls-Royce TW-70t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-70t Electric-C

Rolls-Royce TW-70t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-75t Hydraulic-C

Rolls-Royce TW-75t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-75t Electric-C

Rolls-Royce TW-75t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-80t Hydraulic-C

Rolls-Royce TW-80t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-80t Electric-C

Rolls-Royce TW-80t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-85t Hydraulic-C

Rolls-Royce TW-85t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-85t Electric-C

Rolls-Royce TW-85t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-90t Hydraulic-C

Rolls-Royce TW-90t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-90t Electric-C

Rolls-Royce TW-90t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-100t Hydraulic-C

Rolls-Royce TW-100t Hydraulic-C unverified

Line Pull (t)

100

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-100t Electric-C

Rolls-Royce TW-100t Electric-C unverified

Line Pull (t)

100

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-110t Hydraulic-C

Rolls-Royce TW-110t Hydraulic-C unverified

Line Pull (t)

110

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-110t Electric-C

Rolls-Royce TW-110t Electric-C unverified

Line Pull (t)

110

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-120t Hydraulic-C

Rolls-Royce TW-120t Hydraulic-C unverified

Line Pull (t)

120

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-120t Electric-C

Rolls-Royce TW-120t Electric-C unverified

Line Pull (t)

120

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-130t Hydraulic-C

Rolls-Royce TW-130t Hydraulic-C unverified

Line Pull (t)

130

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-130t Electric-C

Rolls-Royce TW-130t Electric-C unverified

Line Pull (t)

130

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-140t Hydraulic-C

Rolls-Royce TW-140t Hydraulic-C unverified

Line Pull (t)

140

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-140t Electric-C

Rolls-Royce TW-140t Electric-C unverified

Line Pull (t)

140

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-150t Hydraulic-C

Rolls-Royce TW-150t Hydraulic-C unverified

Line Pull (t)

150

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-150t Electric-C

Rolls-Royce TW-150t Electric-C unverified

Line Pull (t)

150

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-175t Hydraulic-C

Rolls-Royce TW-175t Hydraulic-C unverified

Line Pull (t)

175

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-175t Electric-C

Rolls-Royce TW-175t Electric-C unverified

Line Pull (t)

175

Drive

Electric

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-200t Hydraulic-C

Rolls-Royce TW-200t Hydraulic-C unverified

Line Pull (t)

200

Drive

Hydraulic

Datasheet

Rolls-Royce / Kongsberg Rolls-Royce TW-200t Electric-C

Rolls-Royce TW-200t Electric-C unverified

Line Pull (t)

200

Drive

Electric

Datasheet

Ibercisa

IB-TW-20t unverified

Line Pull (t)

Datasheet

IB-TW-30t unverified

Line Pull (t)

Datasheet

IB-TW-40t unverified

Line Pull (t)

Datasheet

IB-TW-50t unverified

Line Pull (t)

Datasheet

IB-TW-60t unverified

Line Pull (t)

Datasheet

IB-TW-80t unverified

Line Pull (t)

Datasheet

IB-TW-100t unverified

Line Pull (t)

100

Datasheet

IB-TW-150t unverified

Line Pull (t)

150

Datasheet

Ibercisa TW-10t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-10t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-15t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-15t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-20t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-20t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-25t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-25t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-30t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-30t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-35t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-35t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-40t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-40t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-45t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-45t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-50t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-50t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-55t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-55t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-60t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-60t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-65t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-65t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-70t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-70t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-75t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-75t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-80t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-80t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-85t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-85t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-90t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Ibercisa TW-90t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Ibercisa TW-100t Hydraulic-C unverified

Line Pull (t)

100

Drive

Hydraulic

Datasheet

Ibercisa TW-100t Electric-C unverified

Line Pull (t)

100

Drive

Electric

Datasheet

Ibercisa TW-110t Hydraulic-C unverified

Line Pull (t)

110

Drive

Hydraulic

Datasheet

Ibercisa TW-110t Electric-C unverified

Line Pull (t)

110

Drive

Electric

Datasheet

Ibercisa TW-120t Hydraulic-C unverified

Line Pull (t)

120

Drive

Hydraulic

Datasheet

Ibercisa TW-120t Electric-C unverified

Line Pull (t)

120

Drive

Electric

Datasheet

Ibercisa TW-130t Hydraulic-C unverified

Line Pull (t)

130

Drive

Hydraulic

Datasheet

Ibercisa TW-130t Electric-C unverified

Line Pull (t)

130

Drive

Electric

Datasheet

Ibercisa TW-140t Hydraulic-C unverified

Line Pull (t)

140

Drive

Hydraulic

Datasheet

Ibercisa TW-140t Electric-C unverified

Line Pull (t)

140

Drive

Electric

Datasheet

Ibercisa TW-150t Hydraulic-C unverified

Line Pull (t)

150

Drive

Hydraulic

Datasheet

Ibercisa TW-150t Electric-C unverified

Line Pull (t)

150

Drive

Electric

Datasheet

Ibercisa TW-175t Hydraulic-C unverified

Line Pull (t)

175

Drive

Hydraulic

Datasheet

Ibercisa TW-175t Electric-C unverified

Line Pull (t)

175

Drive

Electric

Datasheet

Ibercisa TW-200t Hydraulic-C unverified

Line Pull (t)

200

Drive

Hydraulic

Datasheet

Ibercisa TW-200t Electric-C unverified

Line Pull (t)

200

Drive

Electric

Datasheet

Karmøy Winch

KTW-20t unverified

Line Pull (t)

Datasheet

KTW-30t unverified

Line Pull (t)

Datasheet

KTW-40t unverified

Line Pull (t)

Datasheet

KTW-50t unverified

Line Pull (t)

Datasheet

KTW-60t unverified

Line Pull (t)

Datasheet

KTW-80t unverified

Line Pull (t)

Datasheet

KTW-100t unverified

Line Pull (t)

100

Datasheet

KTW-120t unverified

Line Pull (t)

120

Datasheet

Karmøy Winch Karmøy Winch TW-10t Hydraulic-C

Karmøy Winch TW-10t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-10t Electric-C

Karmøy Winch TW-10t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-15t Hydraulic-C

Karmøy Winch TW-15t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-15t Electric-C

Karmøy Winch TW-15t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-20t Hydraulic-C

Karmøy Winch TW-20t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-20t Electric-C

Karmøy Winch TW-20t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-25t Hydraulic-C

Karmøy Winch TW-25t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-25t Electric-C

Karmøy Winch TW-25t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-30t Hydraulic-C

Karmøy Winch TW-30t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-30t Electric-C

Karmøy Winch TW-30t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-35t Hydraulic-C

Karmøy Winch TW-35t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-35t Electric-C

Karmøy Winch TW-35t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-40t Hydraulic-C

Karmøy Winch TW-40t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-40t Electric-C

Karmøy Winch TW-40t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-45t Hydraulic-C

Karmøy Winch TW-45t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-45t Electric-C

Karmøy Winch TW-45t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-50t Hydraulic-C

Karmøy Winch TW-50t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-50t Electric-C

Karmøy Winch TW-50t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-55t Hydraulic-C

Karmøy Winch TW-55t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-55t Electric-C

Karmøy Winch TW-55t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-60t Hydraulic-C

Karmøy Winch TW-60t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-60t Electric-C

Karmøy Winch TW-60t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-65t Hydraulic-C

Karmøy Winch TW-65t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-65t Electric-C

Karmøy Winch TW-65t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-70t Hydraulic-C

Karmøy Winch TW-70t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-70t Electric-C

Karmøy Winch TW-70t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-75t Hydraulic-C

Karmøy Winch TW-75t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-75t Electric-C

Karmøy Winch TW-75t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-80t Hydraulic-C

Karmøy Winch TW-80t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-80t Electric-C

Karmøy Winch TW-80t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-85t Hydraulic-C

Karmøy Winch TW-85t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-85t Electric-C

Karmøy Winch TW-85t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-90t Hydraulic-C

Karmøy Winch TW-90t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-90t Electric-C

Karmøy Winch TW-90t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-100t Hydraulic-C

Karmøy Winch TW-100t Hydraulic-C unverified

Line Pull (t)

100

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-100t Electric-C

Karmøy Winch TW-100t Electric-C unverified

Line Pull (t)

100

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-110t Hydraulic-C

Karmøy Winch TW-110t Hydraulic-C unverified

Line Pull (t)

110

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-110t Electric-C

Karmøy Winch TW-110t Electric-C unverified

Line Pull (t)

110

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-120t Hydraulic-C

Karmøy Winch TW-120t Hydraulic-C unverified

Line Pull (t)

120

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-120t Electric-C

Karmøy Winch TW-120t Electric-C unverified

Line Pull (t)

120

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-130t Hydraulic-C

Karmøy Winch TW-130t Hydraulic-C unverified

Line Pull (t)

130

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-130t Electric-C

Karmøy Winch TW-130t Electric-C unverified

Line Pull (t)

130

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-140t Hydraulic-C

Karmøy Winch TW-140t Hydraulic-C unverified

Line Pull (t)

140

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-140t Electric-C

Karmøy Winch TW-140t Electric-C unverified

Line Pull (t)

140

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-150t Hydraulic-C

Karmøy Winch TW-150t Hydraulic-C unverified

Line Pull (t)

150

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-150t Electric-C

Karmøy Winch TW-150t Electric-C unverified

Line Pull (t)

150

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-175t Hydraulic-C

Karmøy Winch TW-175t Hydraulic-C unverified

Line Pull (t)

175

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-175t Electric-C

Karmøy Winch TW-175t Electric-C unverified

Line Pull (t)

175

Drive

Electric

Datasheet

Karmøy Winch Karmøy Winch TW-200t Hydraulic-C

Karmøy Winch TW-200t Hydraulic-C unverified

Line Pull (t)

200

Drive

Hydraulic

Datasheet

Karmøy Winch Karmøy Winch TW-200t Electric-C

Karmøy Winch TW-200t Electric-C unverified

Line Pull (t)

200

Drive

Electric

Datasheet

Data Marine

DMM-30 unverified

Line Pull (t)

Datasheet

DMM-40 unverified

Line Pull (t)

Datasheet

DMM-50 unverified

Line Pull (t)

Datasheet

DMM-60 unverified

Line Pull (t)

Datasheet

DMM-80 unverified

Line Pull (t)

Datasheet

DMM-100 unverified

Line Pull (t)

100

Datasheet

DMM-120 unverified

Line Pull (t)

120

Datasheet

Data Marine Data Marine TW-10t Hydraulic-C

Data Marine TW-10t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-10t Electric-C

Data Marine TW-10t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-15t Hydraulic-C

Data Marine TW-15t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-15t Electric-C

Data Marine TW-15t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-20t Hydraulic-C

Data Marine TW-20t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-20t Electric-C

Data Marine TW-20t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-25t Hydraulic-C

Data Marine TW-25t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-25t Electric-C

Data Marine TW-25t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-30t Hydraulic-C

Data Marine TW-30t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-30t Electric-C

Data Marine TW-30t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-35t Hydraulic-C

Data Marine TW-35t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-35t Electric-C

Data Marine TW-35t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-40t Hydraulic-C

Data Marine TW-40t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-40t Electric-C

Data Marine TW-40t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-45t Hydraulic-C

Data Marine TW-45t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-45t Electric-C

Data Marine TW-45t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-50t Hydraulic-C

Data Marine TW-50t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-50t Electric-C

Data Marine TW-50t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-55t Hydraulic-C

Data Marine TW-55t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-55t Electric-C

Data Marine TW-55t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-60t Hydraulic-C

Data Marine TW-60t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-60t Electric-C

Data Marine TW-60t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-65t Hydraulic-C

Data Marine TW-65t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-65t Electric-C

Data Marine TW-65t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-70t Hydraulic-C

Data Marine TW-70t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-70t Electric-C

Data Marine TW-70t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-75t Hydraulic-C

Data Marine TW-75t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-75t Electric-C

Data Marine TW-75t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-80t Hydraulic-C

Data Marine TW-80t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-80t Electric-C

Data Marine TW-80t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-85t Hydraulic-C

Data Marine TW-85t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-85t Electric-C

Data Marine TW-85t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-90t Hydraulic-C

Data Marine TW-90t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-90t Electric-C

Data Marine TW-90t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Data Marine Data Marine TW-100t Hydraulic-C

Data Marine TW-100t Hydraulic-C unverified

Line Pull (t)

100

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-100t Electric-C

Data Marine TW-100t Electric-C unverified

Line Pull (t)

100

Drive

Electric

Datasheet

Data Marine Data Marine TW-110t Hydraulic-C

Data Marine TW-110t Hydraulic-C unverified

Line Pull (t)

110

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-110t Electric-C

Data Marine TW-110t Electric-C unverified

Line Pull (t)

110

Drive

Electric

Datasheet

Data Marine Data Marine TW-120t Hydraulic-C

Data Marine TW-120t Hydraulic-C unverified

Line Pull (t)

120

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-120t Electric-C

Data Marine TW-120t Electric-C unverified

Line Pull (t)

120

Drive

Electric

Datasheet

Data Marine Data Marine TW-130t Hydraulic-C

Data Marine TW-130t Hydraulic-C unverified

Line Pull (t)

130

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-130t Electric-C

Data Marine TW-130t Electric-C unverified

Line Pull (t)

130

Drive

Electric

Datasheet

Data Marine Data Marine TW-140t Hydraulic-C

Data Marine TW-140t Hydraulic-C unverified

Line Pull (t)

140

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-140t Electric-C

Data Marine TW-140t Electric-C unverified

Line Pull (t)

140

Drive

Electric

Datasheet

Data Marine Data Marine TW-150t Hydraulic-C

Data Marine TW-150t Hydraulic-C unverified

Line Pull (t)

150

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-150t Electric-C

Data Marine TW-150t Electric-C unverified

Line Pull (t)

150

Drive

Electric

Datasheet

Data Marine Data Marine TW-175t Hydraulic-C

Data Marine TW-175t Hydraulic-C unverified

Line Pull (t)

175

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-175t Electric-C

Data Marine TW-175t Electric-C unverified

Line Pull (t)

175

Drive

Electric

Datasheet

Data Marine Data Marine TW-200t Hydraulic-C

Data Marine TW-200t Hydraulic-C unverified

Line Pull (t)

200

Drive

Hydraulic

Datasheet

Data Marine Data Marine TW-200t Electric-C

Data Marine TW-200t Electric-C unverified

Line Pull (t)

200

Drive

Electric

Datasheet

Rapp Marine

TW-20t unverified

Line Pull (t)

Datasheet

TW-30t unverified

Line Pull (t)

Datasheet

TW-40t unverified

Line Pull (t)

Datasheet

TW-50t unverified

Line Pull (t)

Datasheet

TW-60t unverified

Line Pull (t)

Datasheet

TW-80t unverified

Line Pull (t)

Datasheet

TW-100t unverified

Line Pull (t)

100

Datasheet

Rapp Marine Rapp Marine TW-10t Hydraulic-C

Rapp Marine TW-10t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-10t Electric-C

Rapp Marine TW-10t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-15t Hydraulic-C

Rapp Marine TW-15t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-15t Electric-C

Rapp Marine TW-15t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-20t Hydraulic-C

Rapp Marine TW-20t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-20t Electric-C

Rapp Marine TW-20t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-25t Hydraulic-C

Rapp Marine TW-25t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-25t Electric-C

Rapp Marine TW-25t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-30t Hydraulic-C

Rapp Marine TW-30t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-30t Electric-C

Rapp Marine TW-30t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-35t Hydraulic-C

Rapp Marine TW-35t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-35t Electric-C

Rapp Marine TW-35t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-40t Hydraulic-C

Rapp Marine TW-40t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-40t Electric-C

Rapp Marine TW-40t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-45t Hydraulic-C

Rapp Marine TW-45t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-45t Electric-C

Rapp Marine TW-45t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-50t Hydraulic-C

Rapp Marine TW-50t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-50t Electric-C

Rapp Marine TW-50t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-55t Hydraulic-C

Rapp Marine TW-55t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-55t Electric-C

Rapp Marine TW-55t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-60t Hydraulic-C

Rapp Marine TW-60t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-60t Electric-C

Rapp Marine TW-60t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-65t Hydraulic-C

Rapp Marine TW-65t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-65t Electric-C

Rapp Marine TW-65t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-70t Hydraulic-C

Rapp Marine TW-70t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-70t Electric-C

Rapp Marine TW-70t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-75t Hydraulic-C

Rapp Marine TW-75t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-75t Electric-C

Rapp Marine TW-75t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-80t Hydraulic-C

Rapp Marine TW-80t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-80t Electric-C

Rapp Marine TW-80t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-85t Hydraulic-C

Rapp Marine TW-85t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-85t Electric-C

Rapp Marine TW-85t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-90t Hydraulic-C

Rapp Marine TW-90t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-90t Electric-C

Rapp Marine TW-90t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-100t Hydraulic-C

Rapp Marine TW-100t Hydraulic-C unverified

Line Pull (t)

100

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-100t Electric-C

Rapp Marine TW-100t Electric-C unverified

Line Pull (t)

100

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-110t Hydraulic-C

Rapp Marine TW-110t Hydraulic-C unverified

Line Pull (t)

110

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-110t Electric-C

Rapp Marine TW-110t Electric-C unverified

Line Pull (t)

110

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-120t Hydraulic-C

Rapp Marine TW-120t Hydraulic-C unverified

Line Pull (t)

120

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-120t Electric-C

Rapp Marine TW-120t Electric-C unverified

Line Pull (t)

120

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-130t Hydraulic-C

Rapp Marine TW-130t Hydraulic-C unverified

Line Pull (t)

130

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-130t Electric-C

Rapp Marine TW-130t Electric-C unverified

Line Pull (t)

130

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-140t Hydraulic-C

Rapp Marine TW-140t Hydraulic-C unverified

Line Pull (t)

140

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-140t Electric-C

Rapp Marine TW-140t Electric-C unverified

Line Pull (t)

140

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-150t Hydraulic-C

Rapp Marine TW-150t Hydraulic-C unverified

Line Pull (t)

150

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-150t Electric-C

Rapp Marine TW-150t Electric-C unverified

Line Pull (t)

150

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-175t Hydraulic-C

Rapp Marine TW-175t Hydraulic-C unverified

Line Pull (t)

175

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-175t Electric-C

Rapp Marine TW-175t Electric-C unverified

Line Pull (t)

175

Drive

Electric

Datasheet

Rapp Marine Rapp Marine TW-200t Hydraulic-C

Rapp Marine TW-200t Hydraulic-C unverified

Line Pull (t)

200

Drive

Hydraulic

Datasheet

Rapp Marine Rapp Marine TW-200t Electric-C

Rapp Marine TW-200t Electric-C unverified

Line Pull (t)

200

Drive

Electric

Datasheet

Towimor

TW-TBR-15t unverified

Line Pull (t)

Datasheet

TW-TBR-20t unverified

Line Pull (t)

Datasheet

TW-TBR-25t unverified

Line Pull (t)

Datasheet

TW-TBR-30t unverified

Line Pull (t)

Datasheet

TW-TBR-40t unverified

Line Pull (t)

Datasheet

TW-TBR-50t unverified

Line Pull (t)

Datasheet

TW-TBR-60t unverified

Line Pull (t)

Datasheet

Towimor TW-10t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-10t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-15t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-15t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-20t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-20t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-25t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-25t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-30t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-30t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-35t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-35t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-40t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-40t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-45t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-45t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-50t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-50t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-55t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-55t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-60t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-60t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-65t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-65t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-70t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-70t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-75t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-75t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

Towimor TW-80t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

Towimor TW-80t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway

ASL-TW-20t unverified

Line Pull (t)

Datasheet

ASL-TW-30t unverified

Line Pull (t)

Datasheet

ASL-TW-40t unverified

Line Pull (t)

Datasheet

ASL-TW-50t unverified

Line Pull (t)

Datasheet

ASL-TW-60t unverified

Line Pull (t)

Datasheet

ASL-TW-80t unverified

Line Pull (t)

Datasheet

ASL Norway ASL Norway TW-10t Hydraulic-C

ASL Norway TW-10t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-10t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-15t Hydraulic-C

ASL Norway TW-15t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-15t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-20t Hydraulic-C

ASL Norway TW-20t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-20t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-25t Hydraulic-C

ASL Norway TW-25t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-25t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-30t Hydraulic-C

ASL Norway TW-30t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-30t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-35t Hydraulic-C

ASL Norway TW-35t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-35t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-40t Hydraulic-C

ASL Norway TW-40t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-40t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-45t Hydraulic-C

ASL Norway TW-45t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-45t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-50t Hydraulic-C

ASL Norway TW-50t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-50t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-55t Hydraulic-C

ASL Norway TW-55t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-55t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-60t Hydraulic-C

ASL Norway TW-60t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-60t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-65t Hydraulic-C

ASL Norway TW-65t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-65t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-70t Hydraulic-C

ASL Norway TW-70t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-70t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-75t Hydraulic-C

ASL Norway TW-75t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-75t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

ASL Norway ASL Norway TW-80t Hydraulic-C

ASL Norway TW-80t Hydraulic-C unverified

Line Pull (t)

Drive

Hydraulic

Datasheet

ASL Norway TW-80t Electric-C unverified

Line Pull (t)

Drive

Electric

Datasheet

JonRie InterTech

RENDER 500 Manual unverified

Brake pull (t)

50.0

Render type

Manual

Datasheet

RENDER 500 Auto unverified

Brake pull (t)

50.0

Render type

Auto

Datasheet

RENDER 500 Hydraulic unverified

Brake pull (t)

50.0

Render type

Hydraulic

Datasheet

RENDER 750 Manual unverified

Brake pull (t)

75.0

Render type

Manual

Datasheet

RENDER 750 Auto unverified

Brake pull (t)

75.0

Render type

Auto

Datasheet

RENDER 750 Hydraulic unverified

Brake pull (t)

75.0

Render type

Hydraulic

Datasheet

RENDER 1000 Manual unverified

Brake pull (t)

100.0

Render type

Manual

Datasheet

RENDER 1000 Auto unverified

Brake pull (t)

100.0

Render type

Auto

Datasheet

RENDER 1000 Hydraulic unverified

Brake pull (t)

100.0

Render type

Hydraulic

Datasheet

RENDER 250 Manual unverified

Brake pull (t)

25.0

Render type

Manual

Datasheet

RENDER 250 Auto unverified

Brake pull (t)

25.0

Render type

Auto

Datasheet

RENDER 250 Hydraulic unverified

Brake pull (t)

25.0

Render type

Hydraulic

Datasheet

RENDER 1500 Manual unverified

Brake pull (t)

150.0

Render type

Manual

Datasheet

RENDER 1500 Auto unverified

Brake pull (t)

150.0

Render type

Auto

Datasheet

RENDER 1500 Hydraulic unverified

Brake pull (t)

150.0

Render type

Hydraulic

Datasheet

Markey

Markey DEPC-75 unverified

75t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

Series

DEPC

Origin

USA

Drive

electric

Markey DEPC towing winch, 75t SWL

Datasheet

Markey DEPC-100 unverified

100t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

100

Series

DEPC

Origin

USA

Drive

electric

Markey DEPC towing winch, 100t SWL

Datasheet

Markey DEPC-150 unverified

150t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

150

Series

DEPC

Origin

USA

Drive

electric

Markey DEPC towing winch, 150t SWL

Datasheet

Markey DEPC-200 unverified

200t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

200

Series

DEPC

Origin

USA

Drive

electric

Markey DEPC towing winch, 200t SWL

Datasheet

Markey DESH-100 unverified

100t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

100

Series

DESH

Origin

USA

Drive

electric

Markey DESH towing winch, 100t SWL

Datasheet

Markey DESH-150 unverified

150t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

150

Series

DESH

Origin

USA

Drive

electric

Markey DESH towing winch, 150t SWL

Datasheet

Markey DESH-200 unverified

200t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

200

Series

DESH

Origin

USA

Drive

electric

Markey DESH towing winch, 200t SWL

Datasheet

Markey DESH-300 unverified

300t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

300

Series

DESH

Origin

USA

Drive

electric

Markey DESH towing winch, 300t SWL

Datasheet

Markey DETF-100 unverified

100t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

100

Series

DETF

Origin

USA

Drive

electric

Markey DETF towing winch, 100t SWL

Datasheet

Markey DETF-200 unverified

200t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

200

Series

DETF

Origin

USA

Drive

electric

Markey DETF towing winch, 200t SWL

Datasheet

Markey DETF-300 unverified

300t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

300

Series

DETF

Origin

USA

Drive

electric

Markey DETF towing winch, 300t SWL

Datasheet

Markey DETF-500 unverified

500t SWL · Electric Towing Winch

Winch type

towing

Safe working load tonnes

500

Series

DETF

Origin

USA

Drive

electric

Markey DETF towing winch, 500t SWL

Datasheet

DMT Marine Equipment (South Korea)

DMT Towing Winch

Pull 100-1,000 kN · Tow Wire

Type

Towing Winch

Size Range

DMT-TW-100
DMT-TW-300
DMT-TW-500
DMT-TW-1000

Power range (kW)

Drive Type

Hydraulic / Electric

Construction

Heavy-duty steel, disc brake

Common Failures & Inspection Points

Disc brake quality varies
Casting inconsistency
Hydraulic seal issues

Service: Standard towing winch maintenance.

Spare Parts: DMT Busan. Lead time: 2-4 weeks Korea.

Datasheet

Fukushima (Japan)

FK Towing Winch

Pull 100-800 kN · Tow Wire

Type

Towing Winch

Size Range

FK-TW-100
FK-TW-300
FK-TW-500
FK-TW-800

Power range (kW)

Drive Type

Electric / Hydraulic

Construction

Cast steel, disc brake

Common Failures & Inspection Points

Disc brake wear
Gear oil leak
Motor bearing failure

Service: Standard Japanese deck machinery maintenance.

Spare Parts: Fukushima Japan. Lead time: 3-5 weeks Asia.

Datasheet

Ibercisa (Spain)

Marine Towing Winch

Pull 100-1,000 kN · Tow Wire / Synthetic Line

Type

Towing Winch (Hydraulic)

Size Range

IB-TW-100
IB-TW-300
IB-TW-500
IB-TW-1000

Power range (kW)

Drive Type

Hydraulic

Construction

Heavy-duty steel, disc brake, render/recover

Common Failures & Inspection Points

Disc brake wear
Hydraulic motor seal leak
Wire drum groove wear
Render control valve malfunction

Service: Disc brake quarterly. Hydraulic oil analysis annually.

Spare Parts: Ibercisa (Vigo, Spain). Lead time: 3-6 weeks.

Datasheet

IHC (Royal IHC) (Netherlands)

Towing/Anchor Handling Winch

Pull 300-2,000 kN · Tow Wire / Anchor Handling Wire

Type

Combined Towing/AH Winch (Heavy Duty)

Size Range

IHC-TW-300
IHC-TW-500
IHC-TW-1000
IHC-TW-2000

Power range (kW)

Drive Type

Hydraulic

Construction

Heavy-duty steel, disc brake, waterfall drum

Common Failures & Inspection Points

Disc brake overheating from emergency render
Waterfall drum chain guide wear
Hydraulic HPU overheating in tropical climates

Service: Quarterly disc brake inspection. Waterfall drum check annually. Hydraulic system per OEM schedule.

Spare Parts: Royal IHC Kinderdijk. Lead time: 4-8 weeks.

Datasheet

MAN Energy Solutions

Towing Winch Type TW

Pull 200-1,500 kN · Tow Wire

Type

Towing Winch (Electric/Hydraulic)

Size Range

TW-200
TW-500
TW-1000
TW-1500

Power range (kW)

Drive Type

Electric / Hydraulic

Construction

Heavy-duty steel, disc brake

Common Failures & Inspection Points

Disc brake wear
Electric motor insulation failure
Wire drum wear

Service: Standard towing winch maintenance.

Spare Parts: MAN PrimeServ. Lead time: 3-6 weeks.

Datasheet

Markey Machinery (USA)

TDSD/TDSF Series

Pull 100-1,500 kN · Tow Wire / Synthetic Line

Type

Towing Winch (Hydraulic/Electric)

Size Range

TDSD-24
TDSD-34
TDSF-40
TDSF-48

Power range (kW)

Drive Type

Hydraulic / Electric

Construction

Heavy-duty steel, disc brake, render/recover

Common Failures & Inspection Points

Disc brake wear from render operations
Wire rope drum scoring
Hydraulic motor seal failure
Control valve sticking

Service: Disc brake inspection quarterly. Render/recover system test before each operation. Annual hydraulic system overhaul.

Spare Parts: Markey Machinery (Seattle, WA). Lead time: 3-6 weeks USA, 6-10 weeks international.

Datasheet

Rapp Marine Group (Norway)

Rapp Hydema Towing Winch

Pull 100-800 kN · Tow Wire

Type

Towing Winch (Hydraulic)

Size Range

RH-TW-100
RH-TW-300
RH-TW-500
RH-TW-800

Power range (kW)

Drive Type

Hydraulic

Construction

Welded steel, disc brake, cascade control

Common Failures & Inspection Points

Disc brake wear
Hydraulic motor seal failure
Cascade valve issues

Service: Standard towing winch maintenance.

Spare Parts: Rapp Marine (Bodø, Norway). Lead time: 3-5 weeks.

Datasheet

Towimor (Poland)

Towing Winch Series

Pull 100-500 kN · Tow Wire

Type

Towing Winch

Size Range

TW-TW-100
TW-TW-200
TW-TW-350
TW-TW-500

Power range (kW)

Drive Type

Electric / Hydraulic

Construction

Welded steel, disc brake

Common Failures & Inspection Points

Disc brake wear
Gear housing oil leak
Motor moisture ingress

Service: Standard towing winch maintenance.

Spare Parts: Towimor Torun. Lead time: 2-4 weeks Europe.

Datasheet
