Library› Engine Room› Fuel Oil Treatment› Fuel Oil Filter› SAB Georg Schünemann GmbH Duplex Filter F311
SAB Georg Schünemann GmbH

Duplex Filter F311

Fuel Oil Filter · Fuel Oil Treatment

Technical data from manufacturer or class sources · not yet verified by a person

SAB Georg Schünemann GmbH Duplex Filter F311 — Multi-purpose cast duplex filter for liquid media including fuel and fuel oil. Designed for high-volume flows with flanged connections (DIN/ANSI). Used in applications where service shutdowns are not practical.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Flow (m³/h)max. 610
Pressure (bar)6 / 10 / 16
Connection dnDN25–DN200 (DIN, ANSI)
Housing materialGG-25; GGG50 (DN80–150)
In- / outletDN 65 – DN 200
Volume flowmax. 280 m³/h
Design pressure6 bar, 10 bar, 16 bar
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Duplex Filter F311 is a multi-purpose filter for liquid media, featuring continuous operation during cleaning and high filtration down to very low microns.

Applications

  • slop oil treatment
  • lube oil filtration
  • fuel oil filtration
  • cooling water filtration

Features

  • continuous operation during cleaning
  • high filtration efficiency
  • customizable maintenance access
  • optional differential pressure monitoring
  • magnetic inserts available
  • sacrificial anode option

Options

  • magnetic inserts
  • sacrificial anode
  • various differential pressure indicators
  • different filter cover solutions

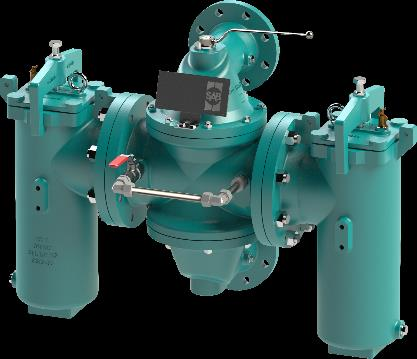

SAB Georg Schünemann GmbH Duplex Filter F311 – Photo (5e3caa5ad116_S1-1 S. 1)
Photo · 5e3caa5ad116_S1-1 · S. 1
SAB Georg Schünemann GmbH Duplex Filter F311 – Photo (5e3caa5ad116_S1-1 S. 1)
Photo · 5e3caa5ad116_S1-1 · S. 1
SAB Georg Schünemann GmbH Duplex Filter F311 – Drawing (5e3caa5ad116_S1-1 S. 1)
Drawing · 5e3caa5ad116_S1-1 · S. 1

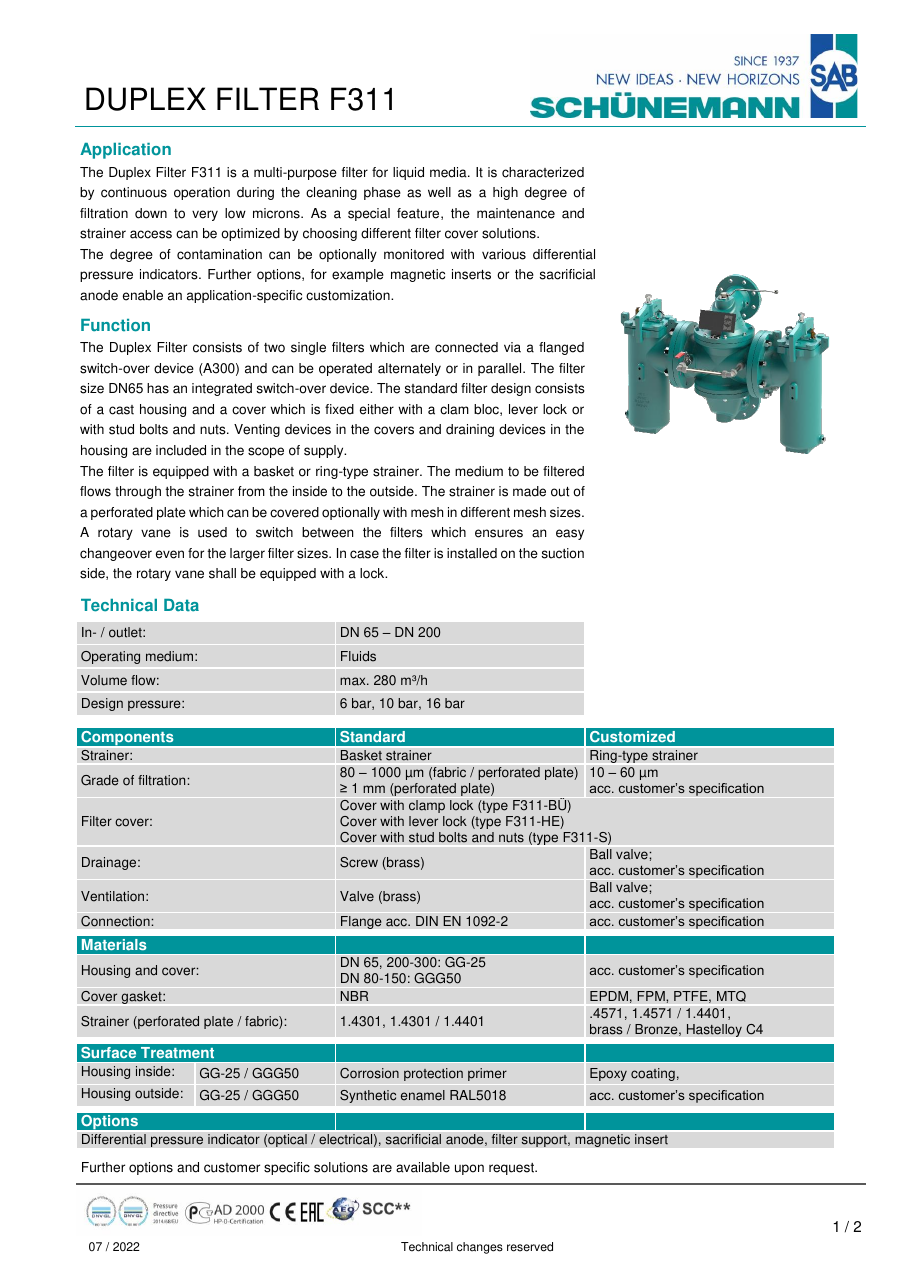

Source: SAB Georg Schünemann GmbH Duplex Filter F311 datasheet, p. 1
