Library› Engine Room› Auxiliary Engines› Auxiliary Engine (Generator Set)› Scania Marine DI09 070M
Scania Marine

DI09 070M

Auxiliary Engine (Generator Set) · Auxiliary Engines

Technical data from manufacturer or class sources · not yet verified by a person
162 kWPower

Regular servicing and adherence to maintenance schedules can significantly extend the operational life of the DI09 070M marine engine from Scania Marine. This robust engine delivers 162 kW (220 hp) and is designed to meet IMO Tier II and EU Stage IIIA emissions standards. Equipped with a Scania Engine Management System (EMS) and unit injectors, it ensures optimal performance and fuel efficiency. The engine's design includes a robust cylinder block with wet cylinder liners and individual cylinder heads with four valves per cylinder, enhancing its repairability and durability. Standard features include a turbocharger, fuel and oil filtration systems, and a closed crankcase ventilation system. The DI09 070M also offers options such as a sea water pump, heat exchanger, and charge air cooler for optimal cooling. With a weight of 1150 kg (excluding oil and coolant), it is suitable for various marine applications requiring reliable and efficient power delivery.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Configuration5-cylinder in-line, 4-stroke
Displacement9.3 litres🔖
Bore x Stroke130 x 140 mm
Power Range162-257 kW (220-350 hp)
Speed (rpm)1800-2300
Power (kW)162 kW🔖
Power162 kW (220 hp)🔖
Output220 hp🔖
No of cylinders5 in-line🔖
Bore x stroke130 x 140 mm🔖
Compression ratio18:1🔖
Engine power162 kW/220 hp🔖
Heat rejection in the charge air coolant circuit (kW)15 kW🔖
1,20039🔖
1,50039🔖
1,80039🔖
📄
Download datasheet (PDF) (1501 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The DI09 070M marine engine is a robust and reliable power source for various marine applications.

Applications

  • marine power generation

Features

  • Scania Engine Management System (EMS)
  • Unit injectors, PDE
  • Turbocharger
  • Fuel pre-filter with water separator
  • Fuel filter
  • Oil filter, full flow
  • Centrifugal oil cleaner
  • Oil cooler, integrated in block

Options

  • Hydraulic pump
  • Side-mounted PTO
  • Front-mounted PTO
  • Exhaust connections

Standards

  • IMO Tier II
  • EU Stage IIIA

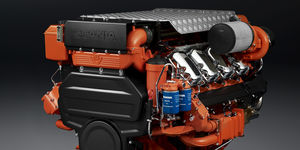

Scania Marine DI09 070M – Photo (Scania Marine datasheet S. 1)
Photo · Scania Marine datasheet · S. 1

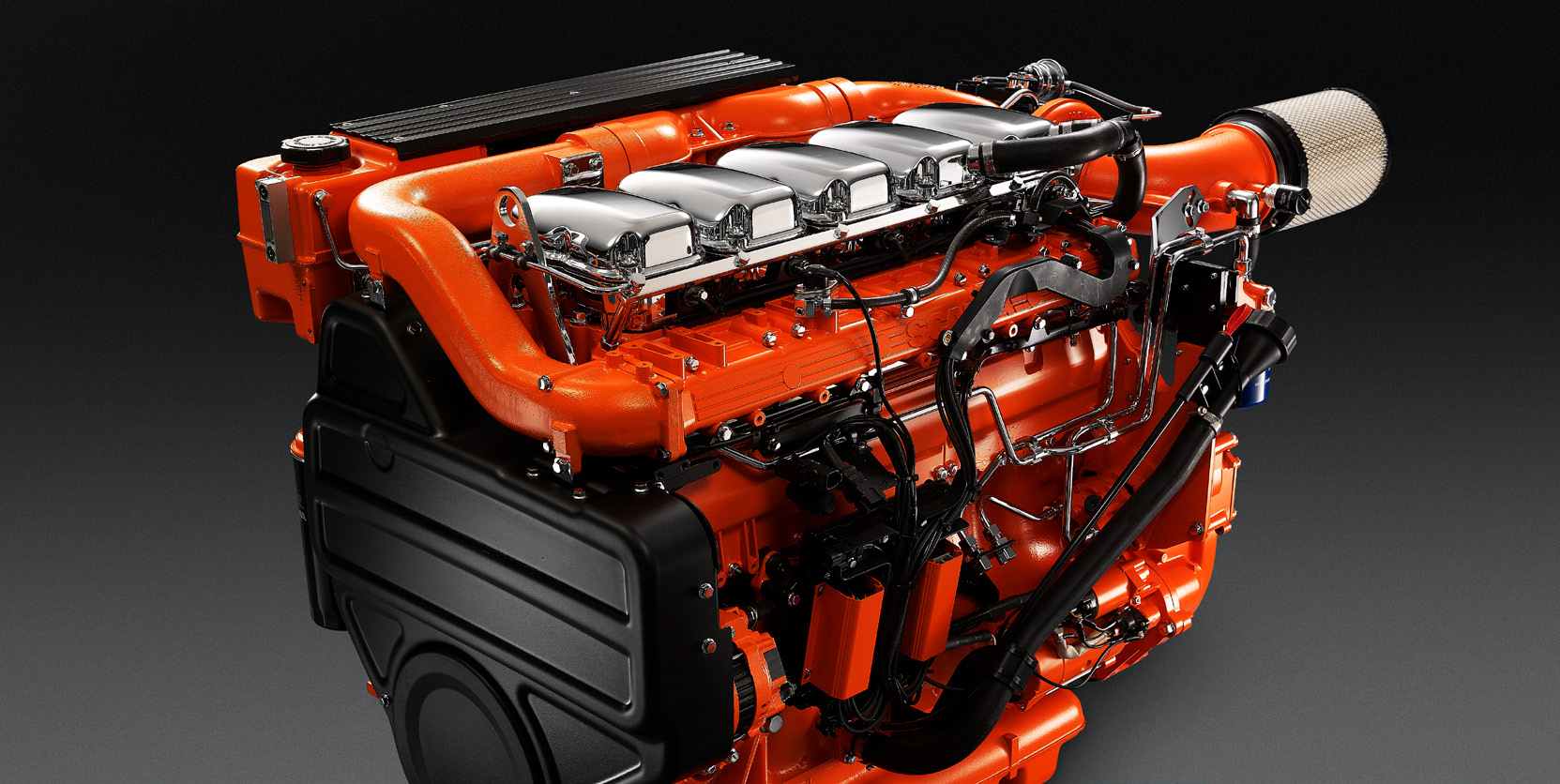

Scania Marine DI09 070M – Photo (Scania Marine datasheet S. 1)
Photo · Scania Marine datasheet · S. 1

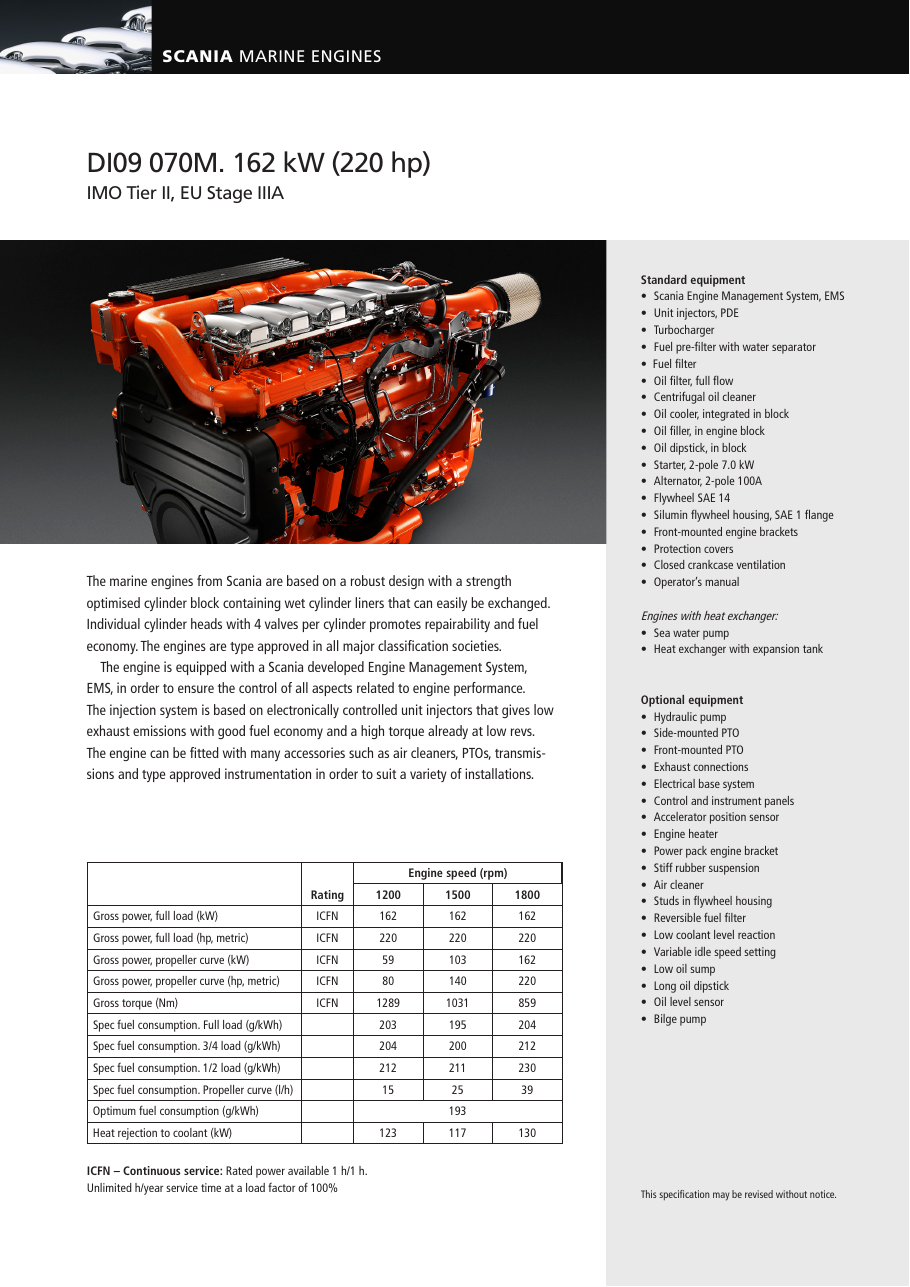

Scania Marine DI09 070M – Photo (8131de321094_S1-2 S. 1)
Photo · 8131de321094_S1-2 · S. 1

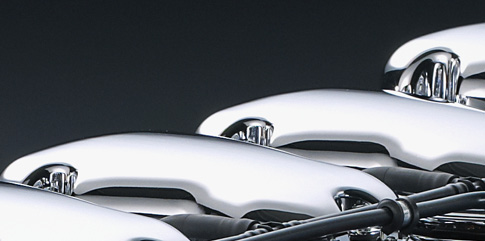

Scania Marine DI09 070M – Photo (8131de321094_S1-2 S. 1)
Photo · 8131de321094_S1-2 · S. 1

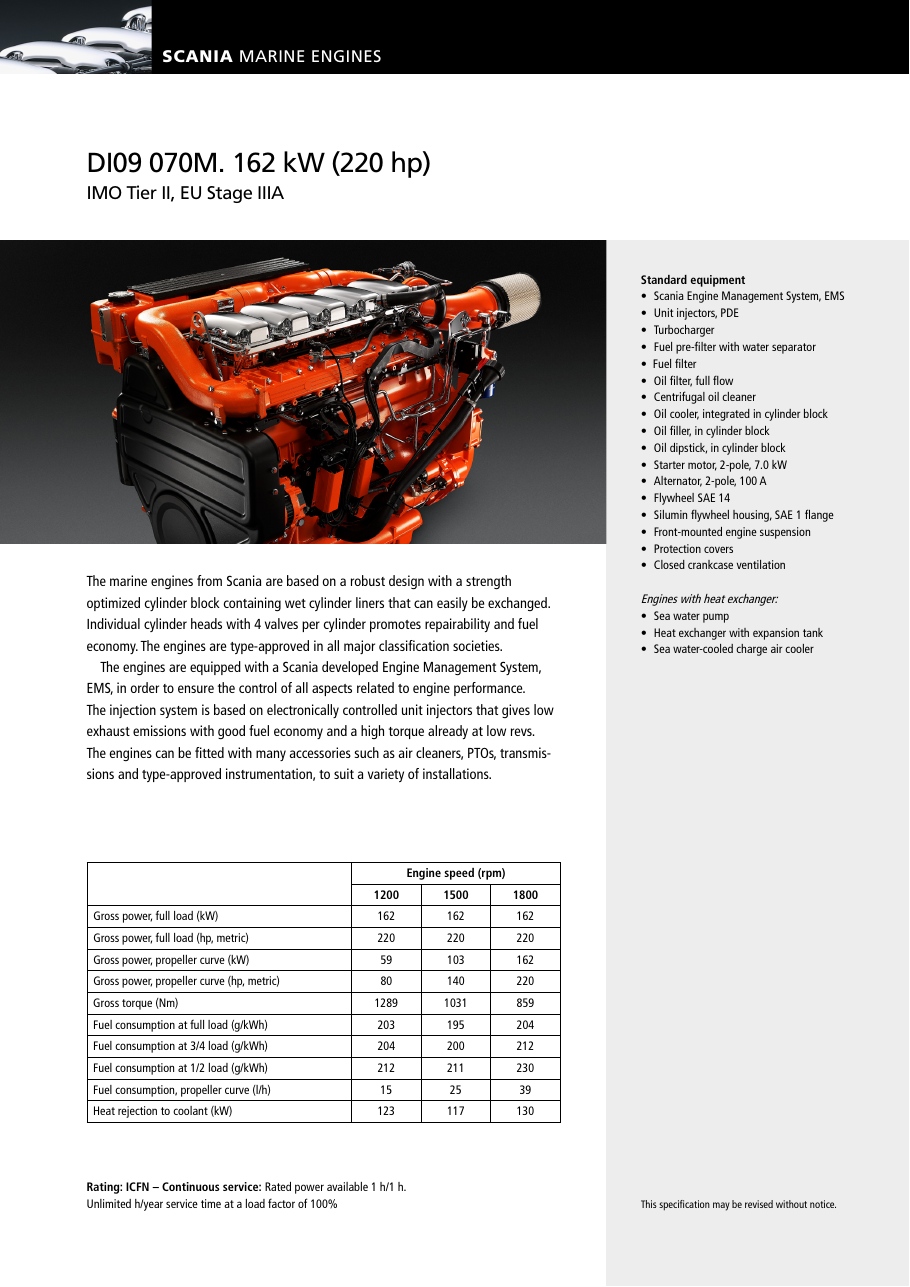

Scania Marine DI09 070M – Drawing (Scania Marine datasheet S. 1)
Drawing · Scania Marine datasheet · S. 1

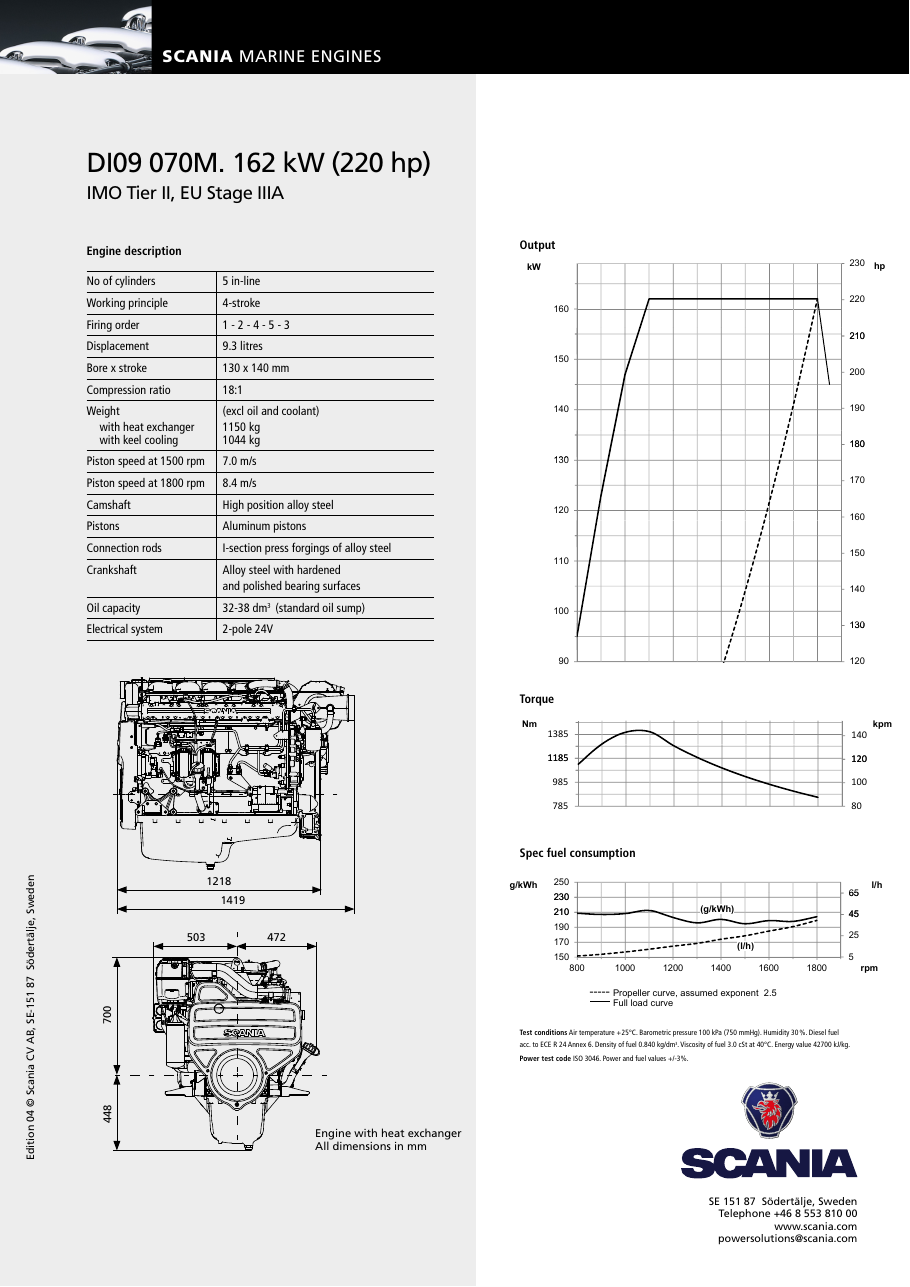

Scania Marine DI09 070M – Drawing (Scania Marine datasheet S. 2)
Drawing · Scania Marine datasheet · S. 2

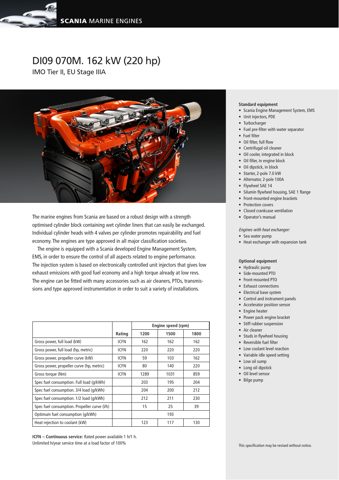

Scania Marine DI09 070M – Drawing (8131de321094_S1-2 S. 1)
Drawing · 8131de321094_S1-2 · S. 1
Scania Marine DI09 070M – Page preview (db4f7e7892ce_S3-30 S. 3)
Page preview · db4f7e7892ce_S3-30 · S. 3
Source: Scania Marine DI09 070M datasheet, p. 1
