Library› Engine Room› Auxiliary Engines› Auxiliary Engine (Generator Set)› Scania Marine DI13 072M
Scania Marine

DI13 072M

Auxiliary Engine (Generator Set) · Auxiliary Engines

Technical data from manufacturer or class sources · not yet verified by a person
441.0 kWPower
12.7Capacity
1,285 kgWeight
24Voltage
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Configuration6-cylinder in-line, 4-stroke
Displacement12.7 liters
Bore x Stroke130 x 160 mm
Power Output441 kW (600 hp)
ComplianceIMO Tier II, US Tier 2, EU Stage IIIA
Spannung24 V🔖
Kapazitaet12.7 litres🔖
Leistung (kW)441 kW🔖
Gewicht (kg)1285 kg🔖
📄
Download datasheet (PDF) (1292 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“The marine engines from Scania are based on a robust design with a strength optimized cylinder block containing wet cylinder liners that can easily be exchanged. Individual cylinder heads with 4…”

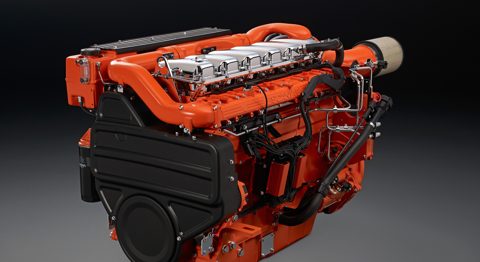

Scania Marine DI13 072M – Photo (Scania Marine datasheet S. 1)
Photo · Scania Marine datasheet · S. 1
Scania Marine DI13 072M – Photo (Scania Marine datasheet S. 1)
Photo · Scania Marine datasheet · S. 1
Scania Marine DI13 072M – Drawing (Scania Marine datasheet S. 1)
Drawing · Scania Marine datasheet · S. 1

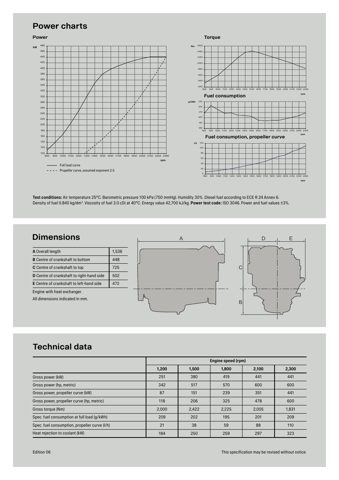

Scania Marine DI13 072M – Drawing (Scania Marine datasheet S. 2)
Drawing · Scania Marine datasheet · S. 2
Source: Scania Marine DI13 072M datasheet, p. 1
