Bilge Pump

critical 282 models total

A dedicated bilge pump is sized, self-priming and positioned as a safety system under SOLAS, remaining the first line of defence against flooding even when general service or fire pumps are already committed to other duties.

What sets a bilge pump apart from a general service pump

A dedicated bilge pump is built and piped specifically to remove water from bilge wells and, in an emergency, from a flooded compartment, which is why SOLAS treats bilge pumping capacity as a safety system rather than an ordinary utility. Many ships also permit general service or fire pumps to be cross-connected into the bilge system as a backup, but the dedicated bilge pump is sized, self-priming, and positioned so it remains the first line of defence even if other pumps are occupied with firefighting or ballast duties at the same moment flooding starts.

Self-priming bilge pump, cross-section — Cross-section of a self-priming centrifugal bilge pump showing the priming chamber, impeller, suction line with strainer and non-return valve, discharge outlet and motor drive.

Main components

Pump unit

Usually a self-priming centrifugal pump, since bilge suction lines run dry between uses and a non-self-priming pump would need manual priming before it could draw water at all.

Bilge main and branch lines

Piping running from bilge wells in each watertight compartment to a distribution manifold, with non-return valves preventing water flowing back into a compartment that is not flooded.

Strainers and mud boxes

Catch debris, rag, and scale before it reaches the pump impeller — one of the most frequently blocked items in the whole system.

Oily water separator interface

Machinery space bilge water is oily and cannot be discharged overboard directly; it is routed through an OWS or to a holding tank, with the bilge pump often feeding that system rather than the sea directly during normal, non-emergency pumping.

Remote and local controls

Bilge high-level alarms in each compartment, and valve remote controls operable from above the bulkhead deck so a compartment does not need to be entered to open its bilge suction during flooding.

Selection and sizing

Capacity set by class rules as a function of ship length, breadth, and depth, not by an arbitrary engineering choice — the minimum pipe diameter and pump capacity are calculated from a formula in the applicable class rules.
Number of independent power-driven bilge pumps required, which increases with ship size and passenger ship status.
Self-priming lift capability against the actual suction head in the deepest bilge well served.
Material selection resistant to bilge water contaminants — oil, salt water, and occasional chemical residue depending on cargo.

Regulations and class

SOLAS Chapter II-1 sets out bilge pumping and drainage requirements in detail, including minimum number of pumps, minimum bilge main diameter calculated from ship dimensions, and the requirement that at least one power bilge pump be operable with the main engine stopped. MARPOL Annex I Regulation 14 requires that machinery space bilge water be processed through oily water separating equipment, the 15 ppm bilge alarm and separator, before any overboard discharge, which is why the bilge and OWS systems are usually described together even though they perform different jobs. Class surveys verify pump capacity by test, check non-return valve function, and confirm remote valve operation from the required position.

Typical faults

Fault	Cause	Consequence
Pump loses prime repeatedly	Worn mechanical seal or a leaking suction line joint drawing in air	Pump runs without moving water, and a genuine flooding event would go unaddressed
Reduced flow at rated speed	Blocked strainer or mud box not cleaned on schedule	Bilge levels rise faster than the pump can clear them during heavy washdown or a real leak
Non-return valve stuck open	Debris lodged in the valve seat or corrosion of the hinge pin	Water can flow backward between compartments, defeating the watertight subdivision the system is meant to protect
OWS 15 ppm alarm trips constantly	Emulsified oil from detergent use in the bilge, or a worn separator element	Bilge water cannot be discharged and accumulates, and crew face pressure to bypass the system illegally, which is a serious MARPOL violation if it happens

What to look for in a supplier

Pump capacity certified against the class formula for the specific ship dimensions, not a generic catalogue rating.
Self-priming performance data at the actual suction lift the installation requires.
Material compatibility with the ship's actual bilge water chemistry, particularly for chemical or product tankers.
Spares and service support for the mechanical seal, the component most likely to need attention between dry-dockings.

Test remote bilge valve operation from its required position regularly, not just the pump itself — a pump that runs perfectly is useless if the valve to the flooded compartment cannot be opened from outside it.

Inspector Mode Show All 282 total

2 manufacturers · 1–100 of 282 models

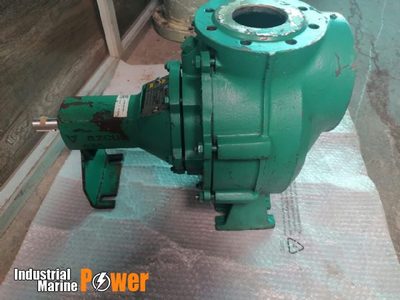

Azcue

93 ✓ 89 verified

Application

Marine bilge, grey/black water, contaminated water transfer

Common Failures & Inspection Points

Area: Mechanical seal leakage at pump casing or shaft
Check: Visually inspect around the seal area for signs of seawater or bilge water leakage. Check for moisture or salt crystallization. Listen for unusual sounds indicating seal dry-running.
Area: Cavitation damage to impeller and seal faces from low NPSH or vapor bubble formation
Check: Listen for grinding/gravel sounds during pump operation. Visually inspect impeller blade surfaces for pitting. Check net positive suction head (NPSH) availability against pump curve requirements. Verify suction strainer is clean.
Area: Swing check valve stuck or debris-clogged, preventing proper discharge closure
Check: Manually test check valve closure (if accessible). Verify no water backflow. Inspect strainer basket for debris accumulation. Check valve should seal when pump is not running.
Area: Hose deterioration: kinks, cracks, loose clamps, non-tight or leaking connections at discharge/suction lines
Check: Visually inspect all visible hose sections for cracks, perishing, discoloration. Verify clamp tightness. Check connection points for seeping or spraying water. Press hoses for softness/degradation.
Area: Float mechanism stuck due to debris, salt encrustations, or corrosion in automatic models
Check: For automatic pumps with float switches: Manually operate float arm to verify smooth movement. Inspect for visible corrosion or deposits. Clean salt/debris from mechanism. Verify electrical continuity.

Typ-universelle Inspektionspunkte fuer Bilge Pumps (verifiziert, 2026-06).
