Garbage Compactor
low
21 models total
A garbage compactor reduces the volume of dry waste, plastic, paper, cans, by hydraulic or screw compression before it is bagged or baled, cutting storage space and the number of port disposal cycles needed on a voyage.
Read more — Garbage Compactor explained ▾
What sets a compactor apart from a shredder or incinerator
A garbage compactor does not destroy waste; it reduces its volume by hydraulic or mechanical compression, typically by a ratio of 4:1 to 8:1, so that dry, non-combustible or non-incinerable waste such as plastics, metal cans and glass can be stored on board for longer between port disposals. This is distinct from a shredder, which cuts waste into pieces for discharge, where permitted, or easier handling, and from an incinerator, which actually destroys combustible waste by burning it. Many vessels run all three in sequence: shred or sort, compact what cannot be burned, incinerate what can.
Main components
Compression chamber and ram
A hydraulically or mechanically driven ram presses waste against a fixed platen inside a steel chamber, sized to produce a compacted bale or bag of a fixed weight and dimension for easy handling and stacking.
Bagging or baling arrangement
Compacted waste is either pressed into a disposable bag held in a cassette, or, on larger units, tied off as a self-contained bale that does not need a separate bag at all.
Hydraulic power pack
A dedicated hydraulic pump and cylinder provide the compression force; smaller units instead use an electric screw or rack-and-pinion drive.
Selection and sizing
Sizing follows daily waste generation rate, which scales with crew or passenger numbers, and the storage volume available between port calls.
- Compression force and achievable volume reduction ratio for the waste streams actually generated on board.
- Bag or bale size compatible with the ship's waste storage room and disposal logistics ashore.
- Cycle time and whether the unit can be loaded continuously or needs the chamber cleared between cycles.
- Materials of construction resistant to the corrosive mix of a shipboard waste stream.
Typical faults
| Fault | Cause | Consequence |
|---|---|---|
| Hydraulic leak | Worn seals on the ram cylinder | Loss of compression force, oil contamination of waste stream |
| Ram jamming | Oversized or rigid item (metal drum, pallet fragment) loaded into the chamber | Unit stops mid-cycle, manual clearing required, injury risk if not isolated first |
| Bag failure | Sharp waste items puncturing the bag under compression | Waste spillage in the storage room, odour and hygiene issues |
| Limit switch fault | Corrosion or vibration affecting the chamber end-stop sensor | Ram over-travel or unit fails to cycle at all |
Regulations and class requirements
Garbage management on board is governed by MARPOL Annex V, which restricts what may be discharged at sea, essentially nothing plastic, and most other waste only beyond defined distances from land or not at all, and requires a Garbage Management Plan and Garbage Record Book on ships above the size threshold set in the annex. A compactor itself is not typically class-approved equipment, but its role in the ship's waste management plan is checked as part of that plan's implementation.
What to look for in a supplier
- Robust construction for the actual waste stream on board, not a design intended for shoreside commercial use.
- Interlocks and guarding that prevent the ram operating with the chamber door open.
- Availability of replacement bags or baling consumables through the ship's normal supply chain.
- Manageable service access for hydraulic seal replacement without removing the whole unit.
Never load a compactor with anything that has not been visually checked for aerosol cans or sealed containers; compression can rupture them violently inside a closed chamber.
4000h
Service Interval
15 yr
Typical Lifetime
Typical Manufacturers
Delitek
Bronneberg
Marin Teknik
12 manufacturers · 21 models
OEG Offshore
4
ENVIRO-PAK Model 3000
Application
Offshore and marine waste compactor for bag and drum crushing
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
ENVIRO-PAK Model 4000
Application
Mid-size offshore waste compactor for marine and industrial use
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
ENVIRO-PAK Model 4000 CB
Application
Dual-chamber compactor and baler for comprehensive waste management
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
ENVIRO-PAK Model 5000
Application
Large capacity offshore waste compactor
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
Chicago Trashpacker (Compactors Inc)
3
TA3000SS
Application
Vertical stainless steel trash compactor for ABS-certified marine use
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
TA4500SS
Application
Mid-size vertical stainless steel trash compactor for marine vessels
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
TA7000SS
Application
Large capacity vertical stainless steel trash compactor for ships
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
Delitek
3
GP500 Eco
500 kg/cycle
· 3.0 kW
· Dry garbage
· hydraulic garbage compactor
Common Failures & Inspection Points
- Hydraulic ram seal leak
- Door interlock switch failure
- Hydraulic hose burst
Service: Check hydraulic oil level monthly; clean ram surface.
Spare Parts: Ersatzteile über Delitek oder zugelassene Vertriebspartner. Lead time: 2-6 Wochen.
Strengths
- High compaction ratio reduces required storage space for solid waste
- Compact footprint suitable for medium‑size vessels
- Integrated door interlock enhances crew safety during operation
- Hydraulic system allows smooth, controllable ram movement
- Simple maintenance routine (oil level check, ram surface cleaning)
Weaknesses
- Potential hydraulic seal leaks requiring periodic inspection
- Door interlock switch can fail and may need replacement
- Hydraulic hose burst risk if not inspected regularly
- Requires dedicated hydraulic power source on board
- Limited capacity compared with larger‑scale waste handling systems
Typical Vessels:
General CargoContainer ShipBulk CarrierFerryOffshore Supply Vessel
Decision Guide: Choose if: you need a compact, hydraulic waste‑reduction solution on vessels with existing hydraulic infrastructure and limited storage volume for garbage. Avoid if: the ship lacks sufficient hydraulic capacity, prefers low‑maintenance pneumatic or electric compaction, or requires higher throughput than the GP500 Eco can provide.
Use Cases: Commonly installed in galley waste handling areas and cargo decks of medium‑size merchant vessels to compact food waste, packaging material, and other solid garbage before storage for later disposal at port reception facilities.
DT-200MC
Application
Smallest multi-fraction waste and bale compactor for shipboard use
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
DT-40E
Application
Mini compactor for galley refrigerated waste
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
Delitek (Goltens Green Ship)
2
DT-500MC
Application
Multi-fraction waste compactor for vessel garbage compaction
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
DT-1500MC
Application
Multi-fraction waste compactor for large vessel garbage compaction
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
ENERPAT
2

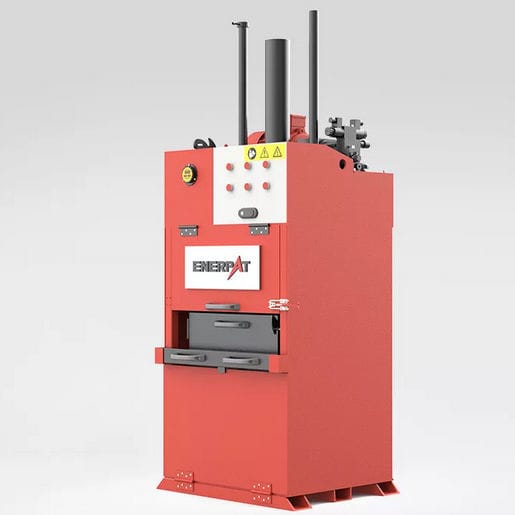

RC-4
Application
Compact marine garbage baler for 15-crew vessel applications
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
RC-5XL
Application
Large marine garbage baler for 30-crew vessel applications
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
Bronneberg
1
DB-8
400 kg/cycle
· 2.2 kW
· Dry garbage
· hydraulic vertical compaction
Common Failures & Inspection Points
- Hydraulic pump wear
- Safety interlock bypass (dangerous!)
- Cylinder seal failure
Service: Vertical press; never bypass safety interlocks; maintain hydraulic fluid.
Spare Parts: Ersatzteile über Bronneberg oder zugelassene Vertriebspartner. Lead time: 2-6 Wochen.
Strengths
- Compact vertical footprint saves deck space compared with horizontal presses
- Hydraulic drive provides high compaction force for dense waste reduction
- Integrated safety interlocks prevent accidental operation
- Simple maintenance – only hydraulic fluid level and seal checks required
Weaknesses
- Known wear of the hydraulic pump can increase downtime if not serviced regularly
- Cylinder seals may fail under heavy duty use, requiring periodic inspection
- Bypassing safety interlocks is possible but dangerous and voids warranty
- Limited to solid waste; cannot handle liquid or oily water streams directly
Typical Vessels:
Container shipBulk carrierGeneral cargo vesselRo‑Ro ferry
Decision Guide: Choose if: you need a space‑efficient, high‑force compactor for solid garbage on medium‑size vessels and can commit to regular hydraulic maintenance. Avoid if: you require integrated oily water treatment or cannot guarantee strict adherence to safety interlock procedures.
Use Cases: Commonly installed in the waste management area of container ships and bulk carriers where deck space is at a premium, used to reduce volume of packaged garbage before storage for shore discharge.
Evac
1
UMCC (Universal Multi Chamber Compactor)
Application
Electromechanical multi-chamber waste compactor for marine vessels
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
KenBay
1
RotoPac SeaPac
Application
Heavy-duty rotary compactor for offshore ships and platforms
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
Makabale Machinery
1
Mini Baler / Marine Garbage Compactor (5 models)
Application
Small to medium capacity marine garbage compactor systems
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
Marin Teknik
1
MPC 600
600 kg/cycle
· 4.0 kW
· Dry garbage
· hydraulic garbage compactor
Common Failures & Inspection Points
- Ram sticking
- Oil overheating
- Electrical control fault
Service: Marine-grade compactor; drain condensate from hydraulic tank quarterly.
Spare Parts: Ersatzteile über Marin Teknik oder zugelassene Vertriebspartner. Lead time: 2-6 Wochen.
Strengths
- Marine‑grade corrosion‑resistant construction suitable for harsh sea environments
- Integrated condensate drainage simplifies routine hydraulic maintenance (quarterly)
- Compact footprint allows installation on vessels with limited space
- Hydraulic drive provides high compaction force for efficient waste volume reduction
Weaknesses
- Reported ram sticking can lead to downtime if not regularly inspected
- Oil overheating issues may require additional cooling or monitoring measures
- Electrical control faults have been noted, potentially increasing spare‑part inventory
- Requires periodic hydraulic oil maintenance and condensate disposal
Typical Vessels:
TankerBulk carrierContainer shipGeneral cargo vesselCruise ship
Decision Guide: Choose if you need a robust, space‑efficient compactor that meets MARPOL Annex V waste‑volume reduction and you can perform quarterly hydraulic condensate drainage. Avoid if your operation cannot accommodate regular hydraulic maintenance or is highly sensitive to potential ram sticking and control electronics failures.
Use Cases: Installed on cargo and passenger vessels to compact solid garbage (e.g., food waste, packaging) before storage for later off‑loading, helping meet MARPOL Annex V requirements and reducing stowage space needed for waste holds.
Vacompact
1
Maritim 60L
Application
Vacuum-packaging waste compactor for yachts and ships
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
WasteCare
1
CB-4920M
Application
Continuous-feed marine compactor for bagged waste on pallets
Common Failures & Inspection Points
- Area: Hydraulic system leakage and seal degradationCheck: Inspect all hydraulic hoses, cylinders, and seals for oil seepage, rust, or pitting. Check hydraulic fluid level and condition. Listen for unusual noises indicating pump wear. Verify pressure relief valve operation and pressure gauge readings against specifications.
- Area: Corrosion of stainless steel components and electrical enclosuresCheck: Examine stainless steel construction (verify AISI 304/316 grade in salt-water environments), inspect electrical enclosure seals (IP54-67 rating required), check for salt spray damage on motors and controls, verify protective coating integrity on painted surfaces.
- Area: Safety interlock system failure and emergency stop malfunctionCheck: Test door/loading hatch interlocks - machine must not operate when open. Verify emergency stop button functionality and pressure release mechanisms. Check all safety placards and warning labels. Test automatic power cutoff when chamber is opened.
- Area: Compaction plate wear, drum damage, and reduced efficiencyCheck: Visually inspect compaction plate for wear marks and surface damage. Check drum/compression chamber for dents, cracks, or obstruction. Test compaction ratio by measuring input/output volumes. Verify pressing force reaches specified tons (10-20 tons typical).
- Area: Electrical system failure and motor overloadCheck: Verify motor voltage matches shipboard supply (220-690V capability). Check motor ground, phase order, and thermal overload protection settings. Test all push-button controls for proper operation. Confirm noise level does not exceed 65-78 dB specification.
Typ-universelle Inspektionspunkte fuer Garbage Compactor (verifiziert, 2026-06).
