CS5000

Oily Water Separator (15 ppm) · Oily Water Separator

Technical data from manufacturer or class sources · not yet verified by a person​‍​⁠⁠⁠‌⁠‌‍‍⁠‌⁠‌‍⁠​⁠‌
1.5 kWPower
770 kgWeight

Marine engineers and crew rely on reliable and efficient oily water separators to ensure compliance with international regulations and protect marine environments. The Victor Marine CS5000 is a compact and easy-to-install unit designed for small engine rooms. It features a three-stage separation system, including a Hi-VOR system, an oleophilic coalescing filter element, and an AGM filtration unit, ensuring that the discharged water meets the stringent requirement of less than 15ppm of oil content as per IMO resolution MEPC 107(49). The CS5000 is supplied as a complete turnkey package, requiring no special training and minimal maintenance, with no backwashing or cleaning cycle needed. It is approved by multiple international bodies, including ABS, BV, UKCA, USCG, and MED, and complies with DNV’s 5ppm CLEAN-DESIGN notation. The unit is also equipped with an Oil Content Monitor and a standard direct-on-line starter control panel, making it a reliable and economical solution for on-board operations.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Capacity5.0 m³/hour🔖
Separation Standard15ppm OWS, IMO MEPC 107(49) compliant
MaterialSteel construction
Separation Process3-stage: Hi-VOR system, coalescing filters, AGM filtration
Datasheet AvailableYes - victormarine.com/wp-content/uploads/2024/08/CS5000-Datasheet.pdf
Power (kW)1.5 kW🔖
Weight (kg)770 kg🔖
Max Width* (Inc. Maint)1646mm (2452)🔖
Max Depth* (Inc. Maint)1045mm (1715)🔖
Max height* (Inc. Maint)1513mm (2000)🔖
WeightDry – 770kg🔖
Power (kw) – 50Hz (60Hz)1.5 (1.8) kw🔖
Connections (mm/inch)Inlet Suction - 65 (2.5”) mm🔖
Pressure (Bar/psi)Operation - 1.38 (20) Bar🔖
Flow Rate5.0 m³/h🔖
Electricity supply380/3/50, 415/3/50, 440/3/60🔖
Ingress ProtectionIP 55🔖
Power Absorbed1.5 kW🔖
Max. Delivery head30 MWC🔖
CertificationsSGS Institut Fresenius GmbH Test Type Approval according to IMO MEPC 107(49)🔖
Max. Suction head6 MWC🔖
📄
Download datasheet (PDF) (431 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The CS5000 is a compact oily water separator designed for small engine rooms, easy to install and maintain.

Applications

  • engine room
  • bilge water treatment

Features

  • fully compliant with IMO regulation
  • easy to operate
  • no special training required
  • complete turnkey package
  • economical to run
  • no backwashing or cleaning cycle required
  • proven discharges below 5ppm oil content
  • worldwide support and service

Options

  • DNV Bilge Water Separator - 5ppm 'Clean Design' notation
Source: Victor Marine CS5000 datasheet, p. 4

Standards

  • IMO resolution MEPC 107(49)
Source: Victor Marine CS5000 datasheet, p. 2

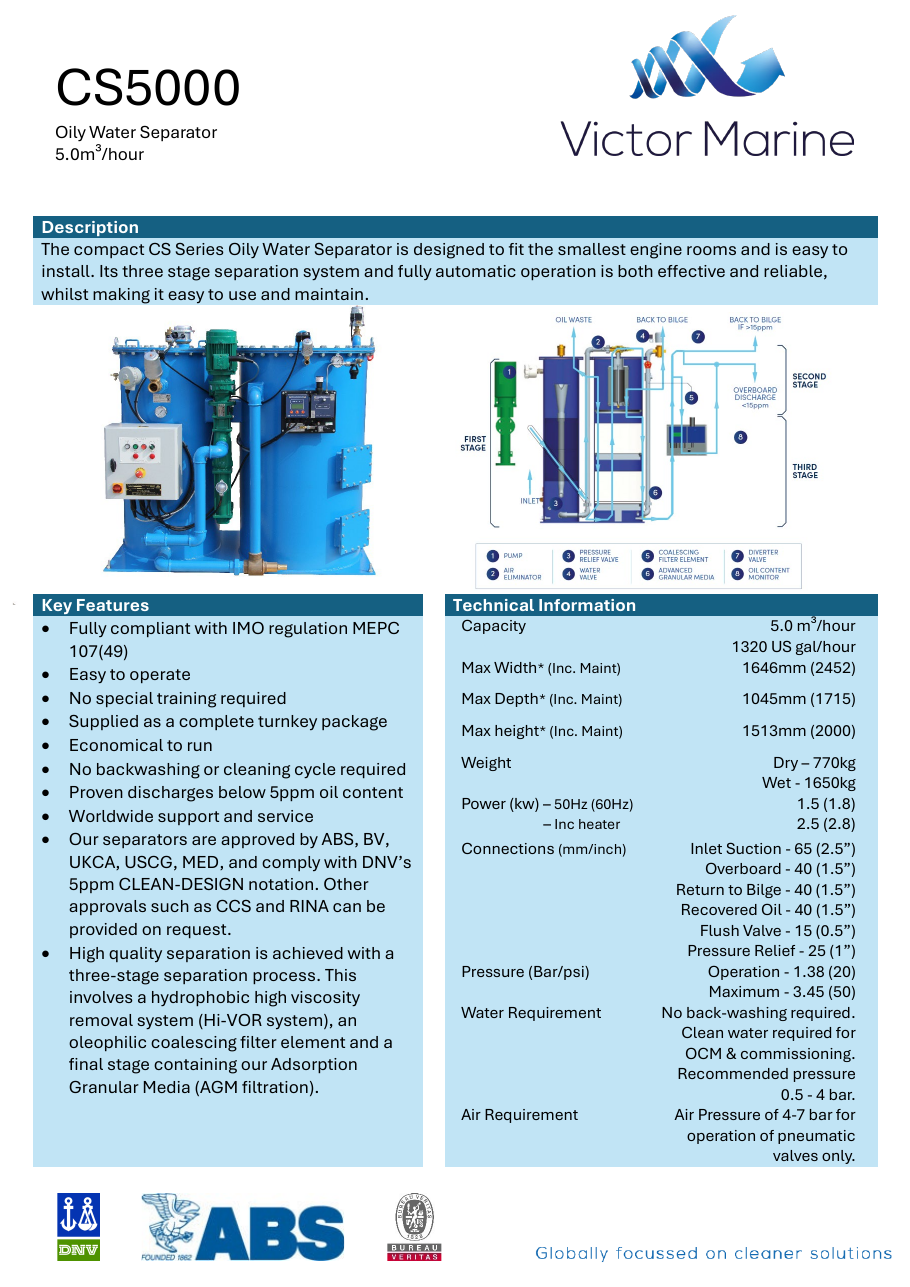

Victor Marine CS5000 – Photo (Victor Marine datasheet S. 1)
Photo · Victor Marine datasheet · S. 1
Victor Marine CS5000 – Drawing (Victor Marine datasheet S. 1)
Drawing · Victor Marine datasheet · S. 1

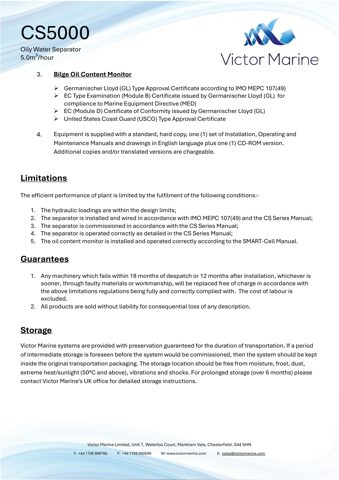

Victor Marine CS5000 – Drawing (Victor Marine datasheet S. 5)
Drawing · Victor Marine datasheet · S. 5
Victor Marine CS5000 – Drawing (3c0e23b60545_S1-4 S. 1)
Drawing · 3c0e23b60545_S1-4 · S. 1

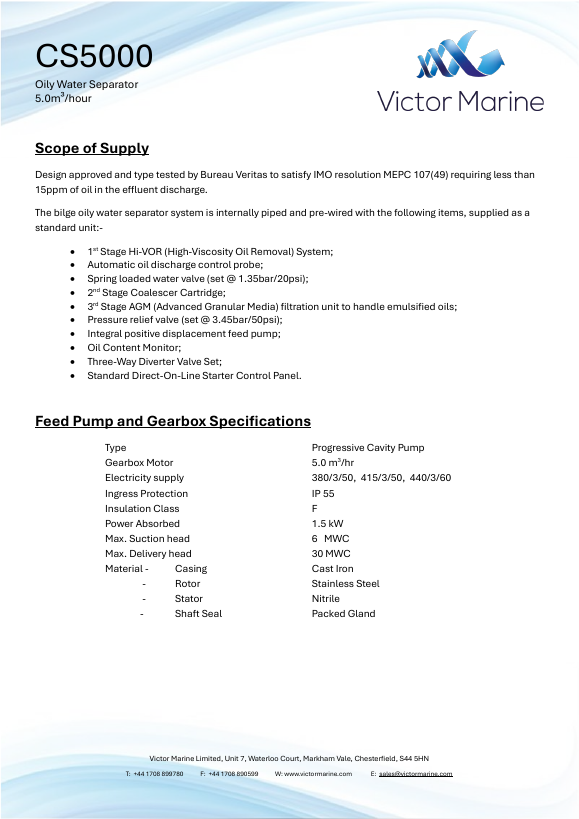

Victor Marine CS5000 – Page preview (Victor Marine datasheet S. 2)
Page preview · Victor Marine datasheet · S. 2

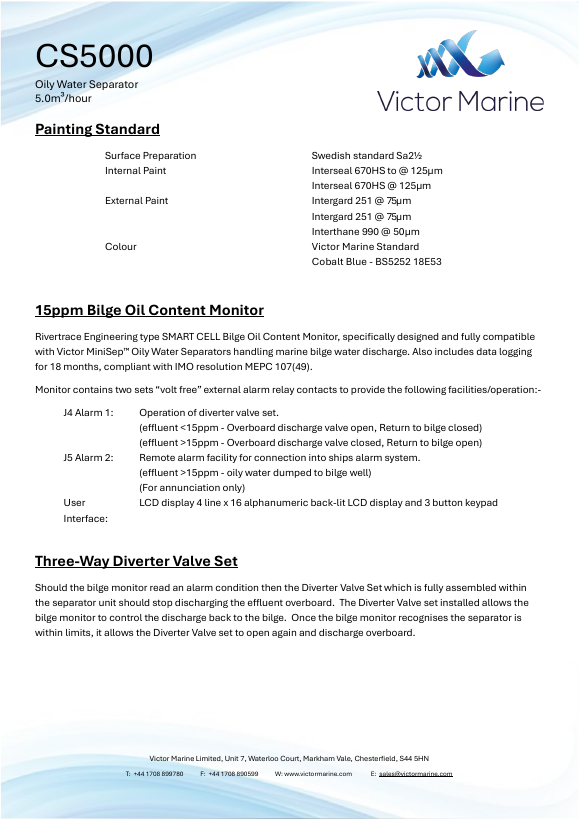

Victor Marine CS5000 – Page preview (Victor Marine datasheet S. 3)
Page preview · Victor Marine datasheet · S. 3
Victor Marine CS5000 – Page preview (Victor Marine datasheet S. 4)
Page preview · Victor Marine datasheet · S. 4
Source: Victor Marine CS5000 datasheet, p. 1
