Library› Engine Room› Oily Water Separator› Oily Water Separator (15 ppm)› Victor Marine CS2000
Victor Marine

CS2000

Oily Water Separator (15 ppm) · Oily Water Separator

Technical data from manufacturer or class sources · not yet verified by a person

Victor Marine CS2000 — Oily water separator, bilge cleaner.

Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Capacity2.00 m³/hr🔖
Oil Content15 ppm (IMO MEPC.107(49))
TechnologyThree-stage: Hi-VOR, coalescing, AGM filtration
Power1.1 kW (50/60 Hz)
Dimensions1300x831x1474 mm (width x depth x height)
Max Width* (Inc. Maint)1300mm (2075)🔖
Max Depth* (Inc. Maint)832mm (1310)🔖
Max height* (Inc. Maint)1473mm (1750)🔖
WeightDry - 500kg🔖
Power (kw) – 50Hz (60Hz)1.1 (1.1) kw🔖
Connections (mm/inch)Inlet Suction - 50 (2”) mm🔖
Pressure (Bar/psi)Operation - 1.38 (20) Bar🔖
Flow Rate2.0 m³/hour🔖
Electricity supply380/3/50, 415/3/50, 440/3/60🔖
Ingress ProtectionIP 55🔖
Power Absorbed1.1 kW🔖
Max. Delivery head30 MWC🔖
ZertifikateSGS Institut Fresenius GmbH Test Type Approval according to IMO MEPC 107(49)🔖
Capacity m3/hr2.00 m3/hr🔖
Capacity US gal/hr528 US gal/hr🔖
Dimensions (mm) Width (Inc. Maint.)1300 (2075) mm🔖
Dimensions (mm) Depth (Inc. Maint.)832 (1310) mm🔖
Dimensions (mm) Height (Inc. Maint.)1473 (1750) mm🔖
Weight (Kg) Dry500 Kg🔖
Weight (Kg) Wet950 Kg🔖
Power (kw) 50Hz (60Hz)1.1 (1.1) kw🔖
Power (kw) inc. heater 50Hz (60Hz)2.1 (2.1) kw🔖
Connections (mm/inch) Inlet Suction50 (2" ) mm/inch🔖
Connections (mm/inch) Overboard25 (1" ) mm/inch🔖
Connections (mm/inch) Return to Bilge40 (1.5" ) mm/inch🔖
Connections (mm/inch) Recovered oil40 (1.5" ) mm/inch🔖
Connections (mm/inch) Flush Valve15 (0.5" ) mm/inch🔖
Connections (mm/inch) Pressure Relief15 (0.5" ) mm/inch🔖
Pressure (Bar/psi) Operating1.38 (20) Bar/psi🔖
Pressure (Bar/psi) Maximum3.45 (50) Bar/psi🔖
US gal/hr528 US gal/hr🔖
Width (Inc. Maint.)1370 (2075) mm🔖
Depth (Inc. Maint.)861 (1300) mm🔖
Height (Inc. Maint.)1474 (1750) mm🔖
Weight (kg)540 kg🔖
Power (kW)1.1 (1.1) kW🔖
📄
Download datasheet (17 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The CS2000 is a compact Oily Water Separator designed for small engine rooms, easy to install and maintain.

Applications

  • bilge water treatment

Features

  • fully compliant with IMO regulation MEPC 107(49)
  • easy to operate
  • no special training required
  • complete turnkey package
  • proven discharges below 5ppm oil content
  • worldwide support and service

Standards

  • IMO resolution MEPC 107(49)
Source: Victor Marine CS2000 datasheet, p. 2

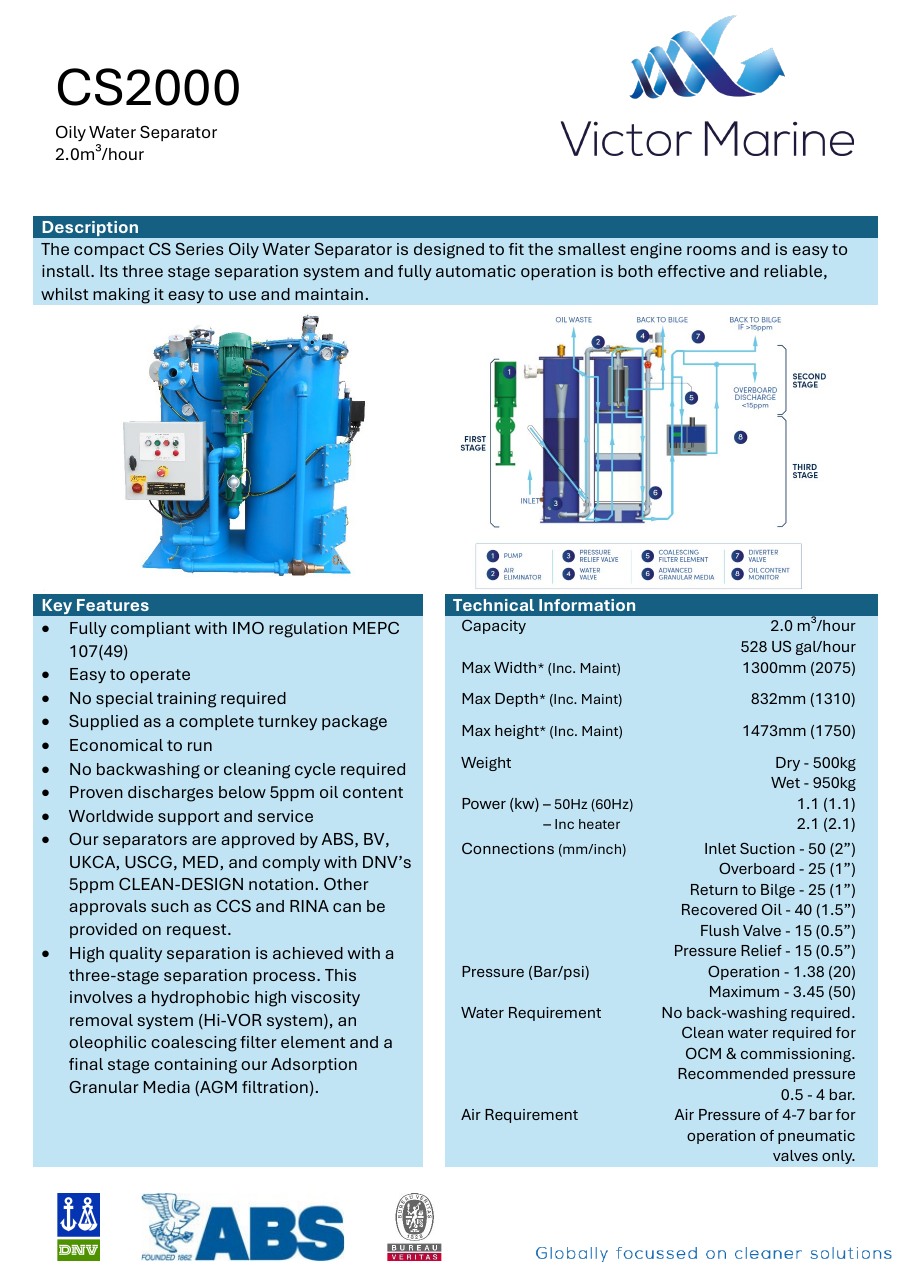

Victor Marine CS2000 – Drawing (0d6f08fce69b_S1-4 S. 1)
Drawing · 0d6f08fce69b_S1-4 · S. 1

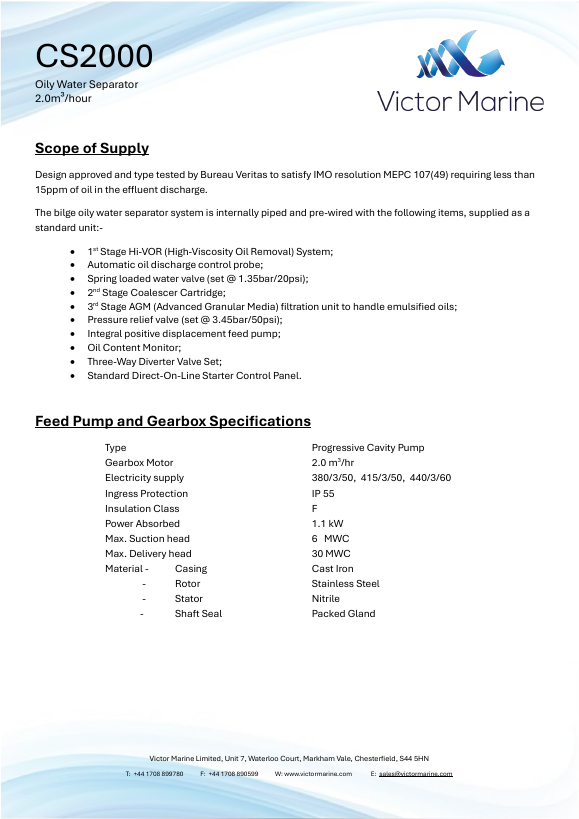

Victor Marine CS2000 – Page preview (0d6f08fce69b_S1-4 S. 2)
Page preview · 0d6f08fce69b_S1-4 · S. 2
Victor Marine CS2000 – Page preview (0d6f08fce69b_S1-4 S. 3)
Page preview · 0d6f08fce69b_S1-4 · S. 3

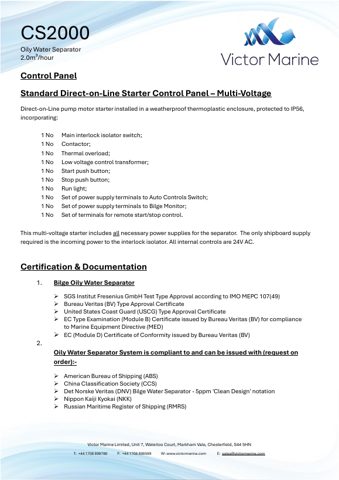

Victor Marine CS2000 – Page preview (0d6f08fce69b_S1-4 S. 4)
Page preview · 0d6f08fce69b_S1-4 · S. 4
Source: Victor Marine CS2000 datasheet, p. 1
