Victor Marine

CS1000

Bilge Water Separator · Separators & Purifiers

Technical data from manufacturer or class sources · not yet verified by a person
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Capacity1.0 m³/hour🔖
Separation Standard15ppm OWS, IMO MEPC 107(49) compliant
MaterialSteel construction
Separation Process3-stage: Hi-VOR system, coalescing filters, AGM filtration
Datasheet AvailableYes - victormarine.com/wp-content/uploads/2024/08/CS1000-Datasheet.pdf
Max Width* (Inc. Maint)1269mm (2075)🔖
Max Depth* (Inc. Maint)849mm (1310)🔖
Max height* (Inc. Maint)1473mm (1750)🔖
WeightDry - 500kg🔖
Power (kw) – 50Hz (60Hz)0.75 (0.75) kw🔖
Connections (mm/inch)Inlet Suction - 50 (2”) mm🔖
Pressure (Bar/psi)Operation - 1.38 (20) Bar🔖
Flow Rate1.0 m³/h🔖
Electricity supply380/3/50, 415/3/50, 440/3/60🔖
Ingress ProtectionIP 55🔖
Power Absorbed0.75 kW🔖
Max. Delivery head30 MWC🔖
ZertifikateSGS Institut Fresenius GmbH Test Type Approval according to IMO MEPC 107(49)🔖
Capacity m3/hr1.00 m3/hr🔖
Capacity US gal/hr264 US gal/hr🔖
Dimensions (mm) Width (Inc. Maint.)1269 (2075) mm🔖
Dimensions (mm) Depth (Inc. Maint.)849 (1310) mm🔖
Dimensions (mm) Height (Inc. Maint.)1473 (1750) mm🔖
Weight (Kg) Dry500 Kg🔖
Weight (Kg) Wet950 Kg🔖
Power (kw) 50Hz (60Hz)0.75 (0.75) kw🔖
Power (kw) inc. heater 50Hz (60Hz)1.75 (1.75) kw🔖
Connections (mm/inch) Inlet Suction50 (2" ) mm/inch🔖
Connections (mm/inch) Overboard25 (1" ) mm/inch🔖
Connections (mm/inch) Return to Bilge40 (1.5" ) mm/inch🔖
Connections (mm/inch) Recovered oil40 (1.5" ) mm/inch🔖
Connections (mm/inch) Flush Valve15 (0.5" ) mm/inch🔖
Connections (mm/inch) Pressure Relief15 (0.5" ) mm/inch🔖
Pressure (Bar/psi) Operating1.38 (20) Bar/psi🔖
Pressure (Bar/psi) Maximum3.45 (50) Bar/psi🔖
📄
Download datasheet (4 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The CS1000 is a compact oily water separator designed for small engine rooms, easy to install and maintain.

Applications

  • engine room maintenance
  • bilge water treatment
  • oily water compliance

Features

  • fully compliant with IMO regulation
  • easy to operate
  • no special training required
  • complete turnkey package
  • economical to run
  • no backwashing or cleaning cycle required
  • proven discharges below 5ppm oil content
  • worldwide support and service

Options

  • DNV Bilge Water Separator - 5ppm 'Clean Design' notation
Source: Victor Marine CS1000 datasheet, p. 4

Standards

  • IMO resolution MEPC 107(49)
Source: Victor Marine CS1000 datasheet, p. 2

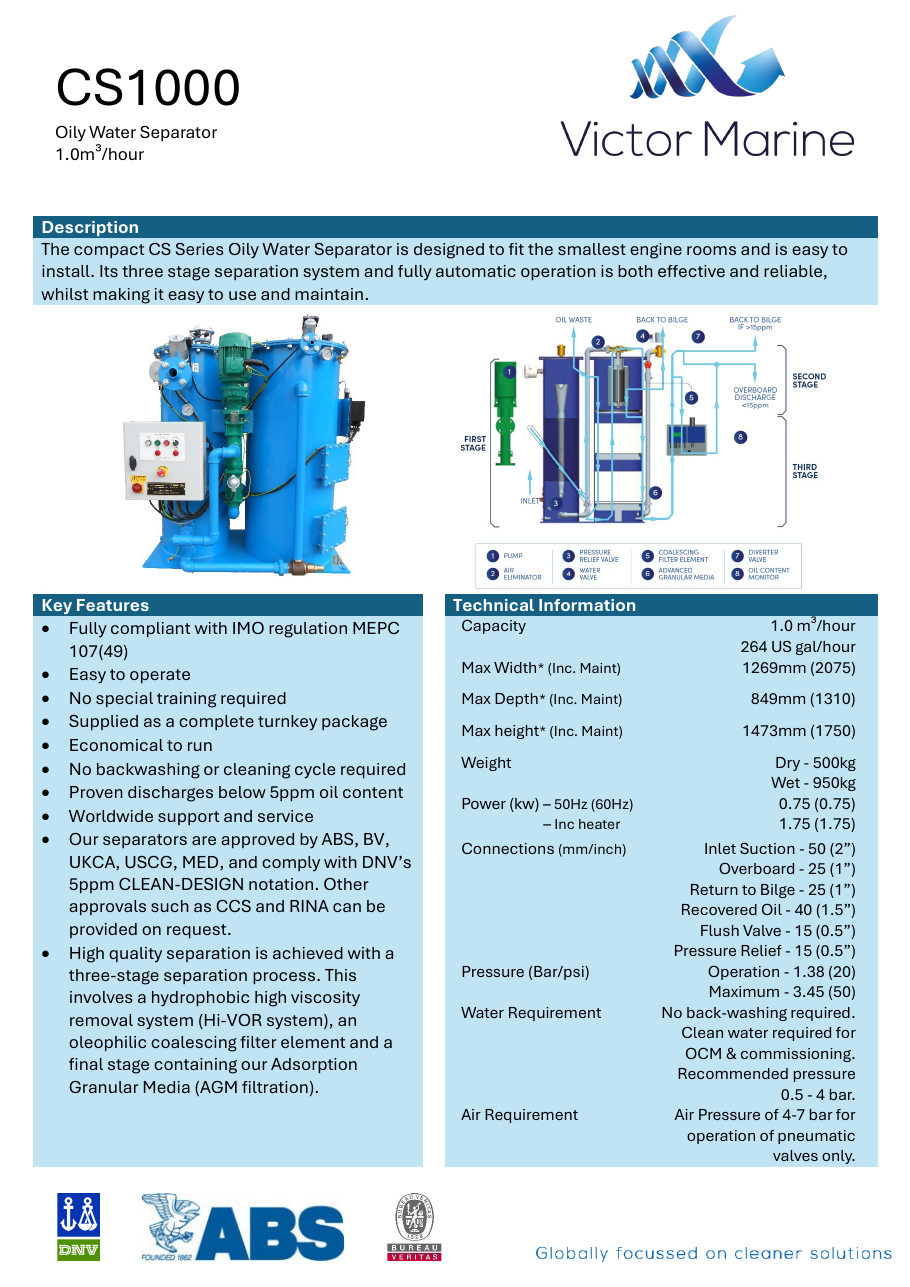

Victor Marine CS1000 – Drawing (7263bcd09551_S1-4 S. 1)
Drawing · 7263bcd09551_S1-4 · S. 1

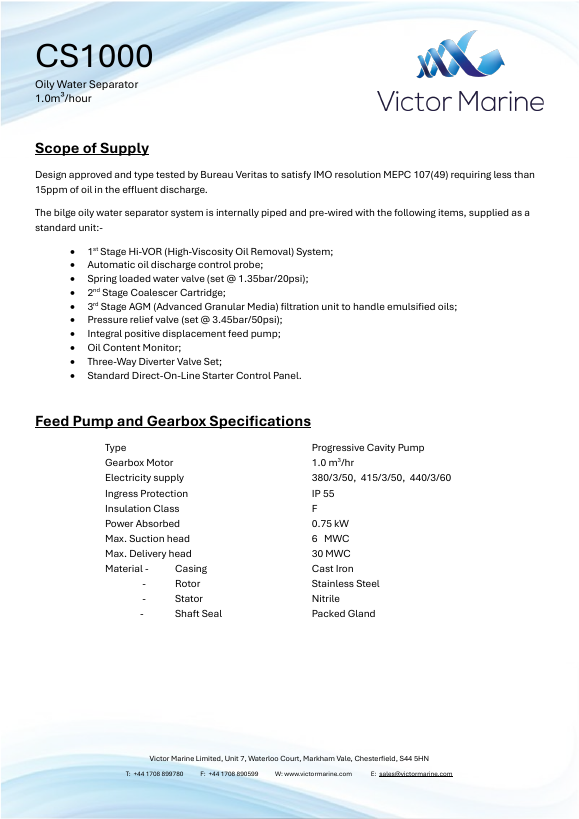

Victor Marine CS1000 – Page preview (7263bcd09551_S1-4 S. 2)
Page preview · 7263bcd09551_S1-4 · S. 2

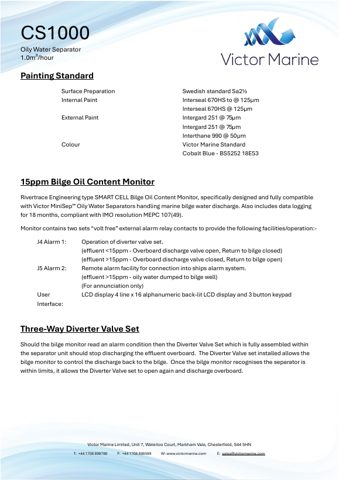

Victor Marine CS1000 – Page preview (7263bcd09551_S1-4 S. 3)
Page preview · 7263bcd09551_S1-4 · S. 3

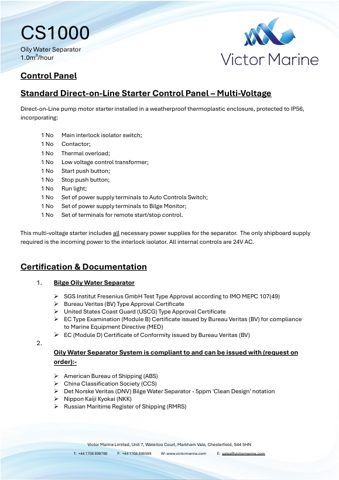

Victor Marine CS1000 – Page preview (7263bcd09551_S1-4 S. 4)
Page preview · 7263bcd09551_S1-4 · S. 4
Source: Victor Marine CS1000 datasheet, p. 1
