Victor Marine

CS4000

Bilge Water Separator · Separators & Purifiers

Technical data from manufacturer or class sources · not yet verified by a person

Victor Marine CS4000 — Large vessels, VLCC, chemical tankers, offshore service vessels (4.0 m³/hr capacity).

Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Capacity4.00 m³/hr🔖
Separation Standard15ppm OWS, IMO MEPC 107(49) compliant
MaterialSteel construction
Separation Process3-stage: Hi-VOR system, coalescing filters, AGM filtration
Datasheet AvailableYes - victormarine.com/wp-content/uploads/2024/08/CS4000-Datasheet.pdf
Max Width* (Inc. Maint)1515mm (2300)🔖
Max Depth* (Inc. Maint)1046mm (1570)🔖
Max height* (Inc. Maint)1513mm (1760)🔖
WeightDry – 600kg🔖
Power (kw) – 50Hz (60Hz)1.5 (1.5) kw🔖
Connections (mm/inch)Inlet Suction - 65 (2.5”) mm🔖
Pressure (Bar/psi)Operation - 1.38 (20) Bar🔖
Flow Rate4.0🔖
Electricity supply380/3/50, 415/3/50, 440/3/60🔖
Ingress ProtectionIP 55🔖
Power Absorbed1.5 kW🔖
Max. Delivery head30 MWC🔖
ZertifikateSGS Institut Fresenius GmbH Test Type Approval according to IMO MEPC 107(49)🔖
US gal/hr1056 US gal/hr🔖
Width (Inc. Maint.)1519 (2300) mm🔖
Depth (Inc. Maint.)985 (1560) mm🔖
Height (Inc. Maint.)1547 (1750) mm🔖
Weight (kg)700 kg🔖
Power (kW)1.5 (1.5) kW🔖
📄
Download datasheet (4 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The CS4000 is a compact oily water separator designed for small engine rooms, easy to install and maintain.

Applications

  • engine room maintenance
  • bilge water treatment
  • oily water compliance

Features

  • fully compliant with IMO regulation MEPC 107(49)
  • easy to operate
  • no special training required
  • complete turnkey package
  • economical to run
  • no backwashing or cleaning cycle required
  • proven discharges below 5ppm oil content
  • worldwide support and service

Standards

  • IMO resolution MEPC 107(49)
Source: Victor Marine CS4000 datasheet, p. 2

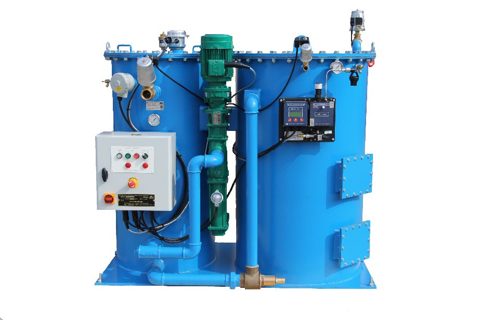

Victor Marine CS4000 – Photo (b3e68a879fd1_S1-4 S. 1)
Photo · b3e68a879fd1_S1-4 · S. 1

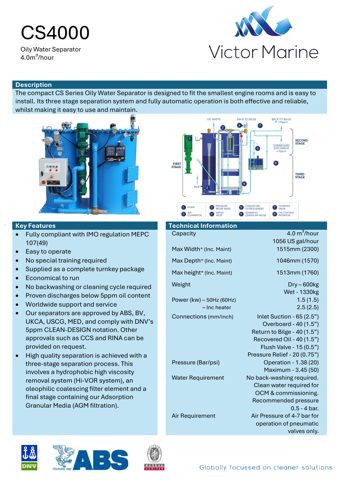

Victor Marine CS4000 – Drawing (b3e68a879fd1_S1-4 S. 1)
Drawing · b3e68a879fd1_S1-4 · S. 1

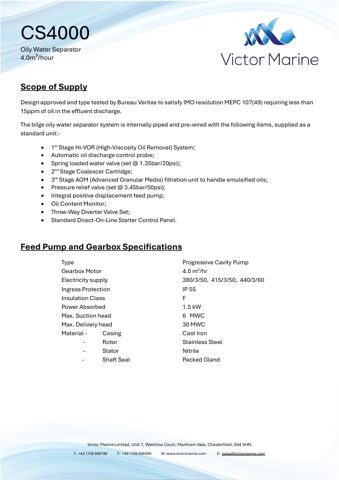

Victor Marine CS4000 – Page preview (b3e68a879fd1_S1-4 S. 2)
Page preview · b3e68a879fd1_S1-4 · S. 2

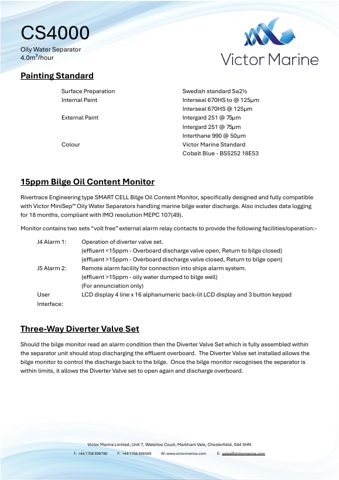

Victor Marine CS4000 – Page preview (b3e68a879fd1_S1-4 S. 3)
Page preview · b3e68a879fd1_S1-4 · S. 3
Victor Marine CS4000 – Page preview (b3e68a879fd1_S1-4 S. 4)
Page preview · b3e68a879fd1_S1-4 · S. 4
Source: Victor Marine CS4000 datasheet, p. 1
