Flexible Coupling
high
10 models total
A torsionally flexible coupling sits at the engine flywheel and absorbs torque pulses and misalignment that a rigid coupling cannot handle. Its stiffness and damping figures feed directly into the shaft line's torsional vibration calculation, and a worn coupling can quietly shift the resonance into the normal running range.
Read more — Flexible Coupling explained ▾
What sets a flexible coupling apart
A torsionally flexible coupling sits between the engine and the rest of the shaft line, usually right at the engine flywheel or between engine and gearbox, and its job is to absorb torsional vibration and angular misalignment rather than simply transmit torque. A rigid flange coupling, by contrast, assumes the two shafts it joins are already close to perfectly aligned and torsionally compatible; it is fine further down a shaft line between two already-flexible sections, but it cannot be used straight off a diesel engine's crankshaft, where torque pulses from each cylinder firing would otherwise be passed straight into the gearbox and propeller shaft. The flexible coupling's rubber or steel-disc elements twist slightly under each torque pulse and damp it, which is what keeps the shaft line's torsional natural frequencies clear of the engine's normal running speed range.
Main components
Flexible element
Rubber-block or rubber-bushing couplings use pre-compressed rubber elements between metal segments to give both torsional flexibility and some vibration damping through internal hysteresis. Steel-disc couplings use thin flexing steel discs instead, giving high torque capacity and no rubber to age, at the cost of less inherent damping.
Hub flanges and bolting
Two hub flanges, one keyed or shrunk onto the engine flywheel or output shaft and one onto the driven shaft, sandwich the flexible elements and are held together with fitted bolts torqued to a specified value; correct bolt tension is what keeps the joint from working loose under cyclic torque.
Torque limiter or shear pin
Some couplings include a deliberately weaker element, a shear pin or friction-slip section, designed to fail or slip before an overload event, such as a fouled propeller, damages the engine or gearbox.
Selection and sizing
Coupling selection is driven by the shaft line's torsional vibration behaviour, not just by torque capacity:
- Nominal and peak torque capacity, with margin for the engine's maximum continuous rating plus transient loads
- Torsional stiffness and damping, since these figures feed directly into the ship's torsional vibration calculation and determine whether a barred speed range is needed
- Permissible misalignment, angular, radial and axial, matched to the actual installation tolerances achievable at the engine seating
Regulations and class
Class societies require a torsional vibration analysis of the complete shaft line, from engine crankshaft to propeller, before the coupling is approved, and the coupling manufacturer's stiffness and damping data are a direct input to that calculation. Where the analysis shows a resonance within the normal operating range, class will impose a barred speed range that the engine must pass through quickly rather than run in continuously, and the coupling forms part of the survey scope at each shaft line examination.
Typical faults
- Rubber elements hardening and cracking from oil contamination or sustained overheating, gradually shifting the coupling's torsional stiffness and moving the resonance point
- Bolts loosening under cyclic load when not torqued or locked correctly at installation, leading to fretting and eventual failure
- Undetected misalignment from engine seating settlement, showing up as uneven wear across the flexible elements
- Wrong stiffness selection at the newbuilding stage producing a barred speed range that falls inside the ship's normal service speed
What to look for in a supplier
- Full torsional stiffness and damping data for the exact coupling size, supplied in the format class societies require for the vibration calculation
- Rubber compound rated for the expected engine room temperature and any oil mist exposure
- Availability of flexible elements as a separate spare, so the whole coupling does not need replacing for a routine element change
- Track record on comparable engine and gearbox combinations, since torsional behaviour is installation-specific
A coupling that looks fine on the outside can already have degraded torsional stiffness; if running speeds start drifting into a range that used to be barred, treat it as a shaft line problem, not a governor problem.
Technical drawings & plates
Historical engineering archive — public domain sources, cited per plate. Principles shown remain valid; always consult the OEM manual for model-specific data.
Boilerman 3 & 2, NAVPERS 10535-C, U.S. Navy (1955) — public domain
Boilerman 3 & 2, NAVPERS 10535-C, U.S. Navy (1955) — public domain
Diesel Engine Maintenance Training Manual, Bureau of Ships, U.S. Navy (1946) — public domain
Diesel Engine Maintenance Training Manual, Bureau of Ships, U.S. Navy (1946) — public domain
8000h
Service Interval
20 yr
Typical Lifetime
Typical Manufacturers
Vulkan

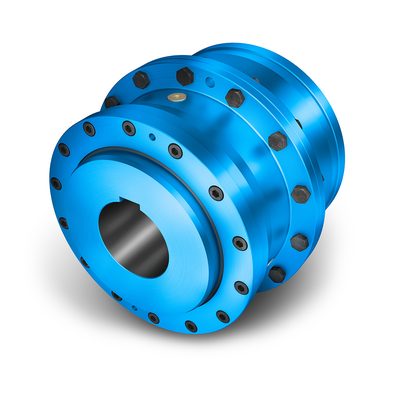

Geislinger
2 manufacturers · 10 models
Vulkan
9
RATO S
15000 kW
· N/A (mechanical)
· rubber-in-shear flexible coupling
Common Failures & Inspection Points
- Rubber element ageing/cracking
- Bolt loosening
- Torsional vibration damage
- Misalignment wear
Service: Rubber-in-shear type; inspect rubber elements for cracks every 2 years.
Spare Parts: Vulkan: Dichtungs-Elemente und Verschleißmesswerkzeuge an Bord vorhalten. Lead time: 4-8 Wochen.
Strengths
- High torsional vibration damping due to rubber element
- Compact design with relatively low weight for its torque class
- Simple installation – bolted connection without need for complex alignment tools
- Cost‑effective compared with hydraulic or fluid couplings for moderate power ranges
Weaknesses
- Rubber element ages and can crack, requiring inspection every two years
- Bolt loosening is a known failure mode if torque checks are not performed regularly
- Limited speed capability relative to metal gear couplings
- Misalignment beyond design limits leads to premature wear of the rubber
Typical Vessels:
Bulk CarrierTankerContainer ShipGeneral Cargo VesselOffshore Supply Vessel
Decision Guide: Choose if: you need a low‑cost, compact coupling with good vibration damping for moderate torque and speed applications, and you can commit to regular rubber inspections. Avoid if: the propulsion system operates at high RPM, requires very tight alignment tolerances, or demands long intervals between maintenance.
Use Cases: Commonly installed between main engine output shafts and reduction gears or directly on propeller shafts in merchant vessels where space is limited and vibration control is important. Also used in auxiliary machinery drive lines such as pumps and compressors on board.
VULKARDAN L
8000 kW
· N/A (mechanical)
· elastic elastomeric coupling
Common Failures & Inspection Points
- Elastomer wear
- Hub keyway fretting
- Vibration increase over time
Service: Highly elastic coupling; replace elastomer elements per Vulkan schedule.
Spare Parts: Vulkan: Dichtungs-Elemente und Verschleißmesswerkzeuge an Bord vorhalten. Lead time: 4-8 Wochen.
Strengths
- Excellent shock‑absorption reduces stress on downstream gearboxes and propellers
- Allows moderate angular, axial and radial misalignment without re‑machining
- Compact design simplifies installation in confined shaft line spaces
- Standardized replacement schedule for elastomer elements eases maintenance planning
Weaknesses
- Elastomer elements wear and must be replaced according to Vulkan’s schedule
- Hub keyway fretting can develop, leading to increased vibration over time
- Torque capacity is lower than that of rigid gear couplings, limiting use on high‑power shafts
- Performance degrades at extreme temperatures (very low or very high)
- Potential for vibration increase if wear is not monitored closely
Typical Vessels:
Container shipBulk carrierTankerOffshore supply vesselCruise liner
Decision Guide: Choose if: you need a flexible, shock‑absorbing connection for moderate torque shafts and value easy alignment tolerance. Avoid if: the propulsion line requires maximum torque transmission, ultra‑low vibration levels, or operates in extreme temperature environments where elastomer degradation is critical.
Use Cases: Commonly installed between main engine output shafts and reduction gears, between gearboxes and propeller shafts, or on auxiliary drive lines (e.g., pumps, generators) where torsional shock mitigation and misalignment accommodation are required.
Vulkan RATO R 150
unverified
· 500.0 kW
· torsionally resilient marine coupling
Coupling type
torsionally resilient marine coupling
Rated power (kW)
500
Application
marine flexible coupling
Strengths
- High torque capacity (up to 500 kW) suitable for main propulsion shafts on medium‑size vessels
- Provides axial, angular and radial flexibility, reducing shaft stress and vibration
- Compact, lightweight design simplifies installation in confined engine rooms
- Low maintenance – no lubrication required for the elastomeric elements
- Designed to meet marine class standards for shock and fatigue resistance
Weaknesses
- Maximum torque rating limits use on high‑power (>500 kW) propulsion systems
- Elastomeric elements may require periodic inspection/replacement in harsh sea water environments
- Not suitable for ultra‑high speed shafts where centrifugal forces exceed design limits
- Initial purchase price higher than basic rigid couplings
- Limited availability of spare parts outside Vulkan’s authorized network
Typical Vessels:
TankerContainer shipBulk carrierOffshore supply vesselCruise liner
Decision Guide: Choose if: you need a reliable flexible coupling for propulsion or auxiliary shafts up to 500 kW, require vibration damping and misalignment tolerance, and operate on vessels where space is limited. Avoid if: the shaft power exceeds 500 kW, the application demands ultra‑high rotational speeds, or budget constraints favor a basic rigid coupling.
Use Cases: The RATO R‑150 is typically installed between main engines and reduction gears, or between gearboxes and propeller shafts on medium‑size merchant ships. It is also used on auxiliary drive lines for generators and pumps where shaft alignment can vary due to hull flexure.
Vulkan RATO R 250
unverified
· 1500.0 kW
· torsionally resilient marine coupling
Coupling type
torsionally resilient marine coupling
Rated power (kW)
1500
Application
marine flexible coupling
Strengths
- High torsional flexibility reduces stress on shafts and bearings
- Accommodates angular, axial and radial misalignments up to typical limits for marine drives
- Compact design suitable for confined engine rooms
- Low maintenance elastomeric elements with predictable wear life
- Rated for 1500 kW, fitting a wide range of medium‑size vessel propulsion systems
Weaknesses
- Elastomeric inserts have temperature and speed limits; extreme conditions may require special material grades
- Limited overload capacity compared with rigid gear couplings
- Periodic inspection/replacement of the flexible element adds scheduled downtime
- Higher initial cost than basic gear or jaw couplings for the same power rating
- Not ideal for applications with very high shock‑load frequency (e.g., heavy‑duty tug propulsion)
Typical Vessels:
Product TankerFeeder Container ShipSmall to Mid‑size Bulk CarrierOffshore Supply VesselCruise Ferry
Decision Guide: Choose the Vulkan RATO R‑250 when you need a reliable, medium‑power (≤1500 kW) flexible coupling that can tolerate shaft misalignment and damp torsional vibrations in standard marine propulsion lines. Avoid it for ultra‑high shock‑load environments, very low‑maintenance requirements, or where temperature/ speed exceed the elastomeric limits.
Use Cases: Typically installed between a main engine output shaft and reduction gear, or between gearboxes and propeller shafts on medium‑size merchant vessels, providing vibration isolation and alignment tolerance in both primary propulsion and auxiliary drive lines.
Vulkan RATO R 400
unverified
· 3000.0 kW
· torsionally resilient flexible coupling
Coupling type
torsionally resilient marine coupling
Rated power (kW)
3000
Application
marine flexible coupling
Strengths
- High torque capacity (up to 3000 kW) suitable for main propulsion shafts
- Marine‑grade corrosion‑resistant materials extend service life in saltwater environments
- Built‑in torsional vibration damping reduces stress on bearings and gearboxes
- Compact design saves space in crowded shaft line arrangements
Weaknesses
- Rated only to 3000 kW; not applicable for very high‑power vessels (>4000 kW)
- Installation requires careful alignment and torque control to achieve full performance
- Specific certification (IMO D‑2, USCG Type Approval, etc.) is not publicly documented
Typical Vessels:
Bulk CarrierTankerContainer ShipGeneral Cargo VesselRo‑Ro Ferry
Decision Guide: Choose the RATO R‑400 when a vessel needs a reliable, high‑torque flexible coupling for propulsion shafts up to 3000 kW and values built‑in vibration damping in a compact marine‑grade package. Avoid it if the required power exceeds its rating, if specific certification (e.g., IMO D‑2) is mandatory and not verified, or if the installation environment cannot guarantee the precise alignment needed for optimal performance.
Use Cases: Typically installed between the main engine output shaft and the reduction gear or directly to the propeller shaft on medium‑size merchant ships where misalignment tolerance and torsional vibration control are critical for drivetrain reliability.
Vulkan RATO R 600
unverified
· 6000.0 kW
· torsionally resilient marine coupling
Coupling type
torsionally resilient marine coupling
Rated power (kW)
6000
Application
marine flexible coupling
Strengths
- Handles up to 6 MW torque capacity, suitable for large propulsion shafts
- Compensates angular, axial and radial misalignment, reducing alignment‑related wear
- Built‑in torsional damping lowers vibration and protects downstream equipment
- Compact design relative to its power rating, easing installation in confined spaces
- Corrosion‑resistant marine‑grade materials extend service life
Weaknesses
- Higher initial purchase cost compared with rigid couplings of similar size
- Elastomeric or damping elements require periodic inspection and replacement
- Maximum operating speed may be limited by the coupling’s design
- Axial length can be a constraint in retro‑fit applications
- Performance can degrade if operated outside specified temperature ranges
Decision Guide: Choose if you need a 6 MW flexible coupling that provides misalignment compensation and torsional damping for high‑power propulsion shafts, especially on new builds or major repower projects where space is limited. Avoid if the installation cannot accommodate the coupling’s axial length, if operating temperatures exceed the elastomer rating, or if budget constraints favor simpler rigid couplings.
Use Cases: Installed on high‑power shaft lines of large commercial vessels and offshore platforms where propulsion or drive systems exceed several megawatts and require flexibility to mitigate alignment errors and shock loads.
Vulkan VULASTIK L 200
unverified
· 1000.0 kW
· highly flexible marine coupling
Coupling type
highly flexible marine coupling
Rated power (kW)
1000
Application
marine flexible coupling
Strengths
- Rated torque capacity of up to 1000 kW for medium‑size propulsion systems
- Wide angular and axial misalignment tolerance reduces alignment‑related wear
- Built‑in damping characteristics lower vibration and shock loads on the shaft line
- Corrosion‑resistant alloy construction suitable for continuous seawater exposure
- Compact, modular design simplifies installation and integration with existing shaft lines
Weaknesses
- Maximum power rating limits use to vessels with engines ≤1000 kW
- Requires periodic lubrication/maintenance of the elastomeric elements
- Spare‑part availability may be constrained outside the manufacturer’s primary market
- Weight is higher than some lightweight aluminium couplings, affecting overall shaft line mass
- Initial purchase cost can be higher than basic rigid couplings
Typical Vessels:
Product TankerOffshore Supply VesselFerrySmall Container ShipCoastal Bulk Carrier
Decision Guide: Choose if you need a robust, vibration‑damping coupling for propulsion shafts up to 1000 kW and expect significant misalignment or shock loading. Avoid if the engine power exceeds the rating, weight is a critical constraint, or you require a low‑cost, minimal‑maintenance rigid solution.
Use Cases: Commonly installed on auxiliary propulsion shafts of product tankers, as the main coupling in offshore supply vessels’ reduction gear sets, and in retrofit projects where shaft misalignment tolerance must be increased without major redesign.
Vulkan VULASTIK L 350
unverified
· 2500.0 kW
· elastomeric flexible coupling
Coupling type
highly flexible marine coupling
Rated power (kW)
2500
Application
marine flexible coupling
Strengths
- High torsional flexibility reduces vibration and shock loads on the propulsion system
- Accommodates angular, axial and radial misalignments up to several millimetres
- Compact design saves space in crowded shaft line arrangements
- Low maintenance – no lubrication required for the elastomer element
- Simple installation with bolt‑on flanges
Weaknesses
- Maximum torque rating (≈2500 kW) limits use on very high‑power main engines
- Elastomer material has temperature and chemical exposure limits requiring periodic inspection
- Not suitable for ultra‑high shaft speeds (>300 rpm) where heat buildup can degrade the elastomer
- Replacement of the elastomer element may require dry‑dock time
Typical Vessels:
Bulk CarrierProduct TankerContainer Ship (up to 3,000 TEU)Offshore Supply VesselCruise Ferry
Decision Guide: Choose if: shaft power does not exceed 2500 kW, you need built‑in vibration damping and misalignment tolerance, and space is at a premium. Avoid if: the propulsion system requires higher torque or operates at very high speeds where metal gear couplings are preferred.
Use Cases: Commonly installed between main engine output shaft and reduction gearbox or directly to the propeller shaft on medium‑speed diesel‑driven vessels; also used in auxiliary drive lines for pumps, compressors and generators where flexible coupling benefits are required.
Vulkan VULASTIK L 500
unverified
· 5000.0 kW
· highly flexible marine coupling
Coupling type
highly flexible marine coupling
Rated power (kW)
5000
Application
marine flexible coupling
Strengths
- Rated for up to 5 000 kW (≈5 MW) continuous power, suitable for large main‑propulsion lines
- Compensates angular, axial and radial misalignments, reducing shaft stress
- Absorbs torsional shock loads, protecting downstream gearboxes and propellers
- Compact design with corrosion‑resistant alloy housings for marine environments
- Low maintenance – sealed unit requiring only periodic visual inspection
Weaknesses
- Higher initial purchase price compared with rigid couplings of similar rating
- Limited to typical low‑speed propulsion shafts; not intended for very high rpm applications
- Installation requires careful alignment and torque verification to achieve full flexibility benefits
- Periodic oil‑lubrication checks are needed if the model uses an oil‑filled damping element
Typical Vessels:
Crude Oil TankerContainer ShipBulk CarrierLNG/LPG CarrierCruise ShipOffshore Supply Vessel
Decision Guide: Choose if: you need a coupling that can handle ≥5 MW shaft power, tolerate misalignment and absorb shock loads on low‑speed propulsion shafts, and require high corrosion resistance for seawater service. Avoid if: the installation budget is very tight, the shaft speed exceeds typical low‑speed limits, or a simpler rigid coupling will meet the alignment tolerances.
Use Cases: The VULASTIK L 500 is commonly installed on main‑propulsion shafts of large commercial vessels where high torque transmission and flexibility are critical – for example linking diesel engines to reduction gears on tankers, container ships, and cruise liners, or connecting gas turbines to propeller shafts on LNG carriers.
Geislinger
1
Gesilco D
20000 kW
· N/A (mechanical)
· Steel-spring damping coupling
Common Failures & Inspection Points
- Leaf spring fatigue
- Oil leakage from damper
- Damping characteristic change
Service: Steel-spring damping coupling; check oil level in damper chamber.
Spare Parts: Geislinger: Dichtungs-Elemente und Verschleißmesswerkzeuge an Bord vorhalten. Lead time: 4-8 Wochen.
Strengths
- High torsional vibration attenuation thanks to leaf‑spring design combined with oil damping
- Compact and relatively lightweight compared with hydraulic couplings
- Proven track record in merchant vessels; easy to install between engine and reduction gear
- Oil damper allows fine tuning of damping characteristics
- No external power required for operation
Weaknesses
- Leaf‑spring fatigue can develop after many operating hours, requiring periodic inspection or replacement
- Potential oil leakage from the damper chamber if seals deteriorate
- Damping performance may change over time as oil viscosity varies with temperature and age
- Limited overload capacity compared with hydraulic or elastomeric couplings
- Requires regular oil‑level checks and maintenance of the damper
Typical Vessels:
Bulk CarrierTankerContainer ShipGeneral Cargo VesselOffshore Supply Vessel
Certifications:
ABSDNV GL
Decision Guide: Choose if: you need a robust, mechanically simple solution for medium‑power shafts where space is limited and proven vibration damping is required; you can commit to regular oil‑level checks and periodic spring inspections. Avoid if: the propulsion system experiences frequent high overload shocks, requires variable or adjustable damping on‑the‑fly, or an oil‑free solution is mandated.
Use Cases: The Gesilco D is typically installed between a low‑speed diesel engine and its reduction gear on merchant ships to suppress torsional vibrations generated by piston firing impulses. It is also used on auxiliary propulsion shafts where compact damping is needed without the complexity of hydraulic couplings.
