Library› Engine Room› Compressors› Refrigeration Compressor› Danfoss DSH105
Danfoss

DSH105

Refrigeration Compressor · Compressors

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Swept volume103.5 cm3/rev
Displacement (50 Hz) (1)18 m3/h
Displacement (60 Hz) (2)636 cu.ft/h
Oil charge3.3 dm3
Net weight (3)112 oz
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Technical specification 50-60 Hz data Single compressor Table 7: Technical specification 50-60 Hz data Single compressor Model”

Danfoss DSH105 – Drawing (069330d407b9_S12-67 S. 12)
Drawing · 069330d407b9_S12-67 · S. 12

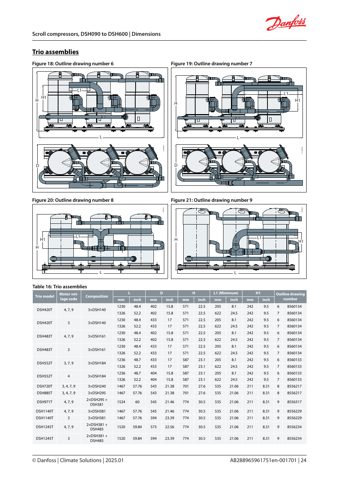

Danfoss DSH105 – Drawing (069330d407b9_S12-67 S. 13)
Drawing · 069330d407b9_S12-67 · S. 13

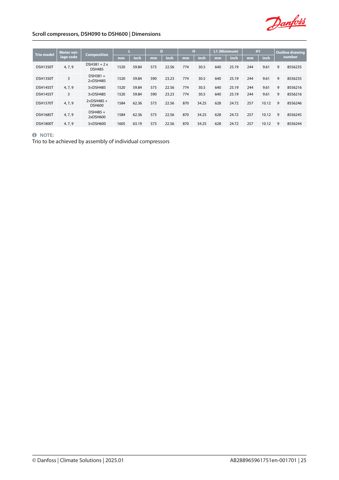

Danfoss DSH105 – Drawing (069330d407b9_S12-67 S. 14)
Drawing · 069330d407b9_S12-67 · S. 14

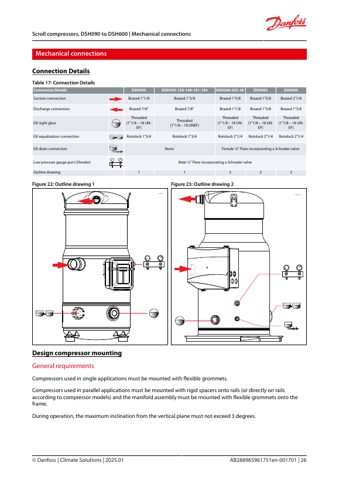

Danfoss DSH105 – Page preview (069330d407b9_S12-67 S. 15)
Page preview · 069330d407b9_S12-67 · S. 15

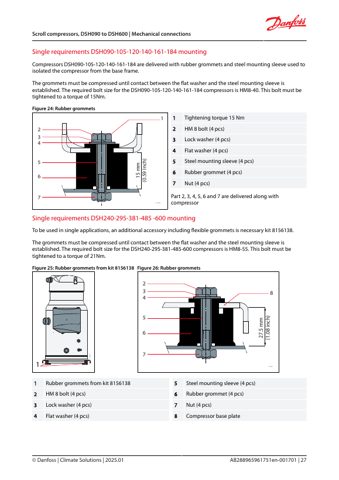

Danfoss DSH105 – Page preview (069330d407b9_S12-67 S. 16)
Page preview · 069330d407b9_S12-67 · S. 16

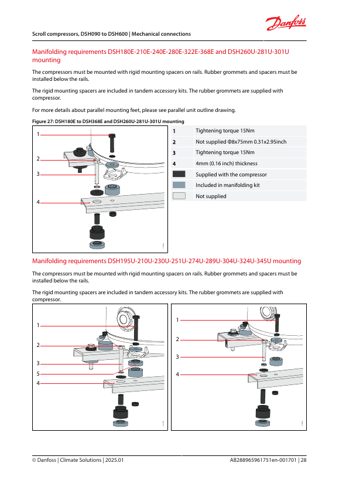

Danfoss DSH105 – Page preview (069330d407b9_S12-67 S. 17)
Page preview · 069330d407b9_S12-67 · S. 17

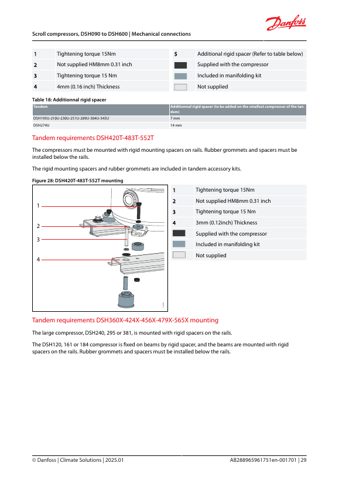

Danfoss DSH105 – Page preview (069330d407b9_S12-67 S. 18)
Page preview · 069330d407b9_S12-67 · S. 18
Source: Danfoss DSH105 datasheet, p. 1
