BD35F

Refrigeration Compressor · Compressors

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Code number (without electronic units)101Z0204
Electronic unit - standard101N0210, 30 pcs: 101N0211
Electronic unit 12-24V DC - with metal shielding101N0220, 30 pcs: 101N0221
Electronic unit 12-24V DC - AEO & metal shielding101N0320, 30 pcs: 101N0321
Electronic unit 10-45V - solar applications101N0400, 30 pcs: 101N0401
Electronic unit 12-24V DC & 100-240V AC 50/60Hz101N0500, 36 pcs: 101N0501
Electronic unit 12-24V DC - automotive applications101N0600, 30 pcs: 101N0601
Compressors on pallet150
Evaporating temperature-20 to 50 °F
Voltage range (DC& AC)12-24V DC & 100-240V AC 50/60Hz
Max. condensing temperature continuous (short)140 (158) °F
Max. winding temperature continuous (short)257 (275) °F
Capacity (EN 12900 Household/CECOMAF)12V DC, static cooling watt
RPM °F -20 -13 -100 10 14
RPM °F 2,00074 101 113 159 214 238
RPM °F 2,50095 127 142 199 268 298
RPM °F 3,000104 138 155 222 307 344
RPM °F 3,500119 153 171 248 349 396
Capacity (ASHRAE LBP)12V DC, static cooling watt
RPM °F 0 10 14 20 30 40 41 45 5037.6 50.6 56.6 66.4 85.5 109 111 122 136
Power consumption12V DC, static cooling watt
RPM °F -20 -13 -1019.1 23.5 25.3
RPM °F 0 10 14 20 30 40 41 45 5030.8 36.1 38.3 41.3 46.6 52.5 53.4 55.7 59.1
RPM °F -20 -13 -10 0 10 14 20 30 40 41 45 501.59 1.96 2.10 2.57 3.01 3.19 3.44 3.89 4.37 4.45 4.64 4.93
COP (ASHRAE LBP)12V DC, static cooling W/W
Max. machine compartment temp.131 (55) °F (°C)
Max. machine compartment temperature55 °C
Displacement2.00 cm³
Maximum refrigerant charge300 g
Free gas vol. in compressor870 cm³
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The BD35F is a direct current compressor that uses R134a refrigerant. It is designed for various applications, including marine and automotive.

Applications

  • solar applications
  • automotive applications

Features

  • Variable speed motor
  • Oil cooling
  • Fan cooling

Options

  • Electronic units with different voltage ranges

Standards

  • EN 12900
  • ASHRAE LBP
Source: Danfoss BD35F datasheet, p. 2

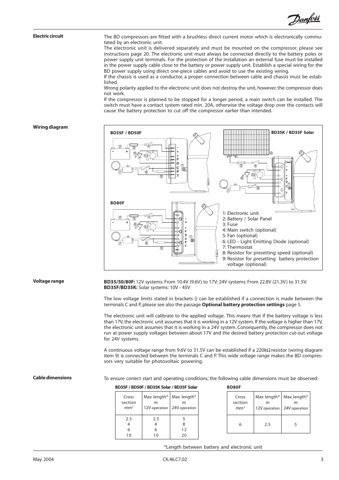

Danfoss BD35F – Drawing (54df090d4673_S2-16 S. 2)
Drawing · 54df090d4673_S2-16 · S. 2

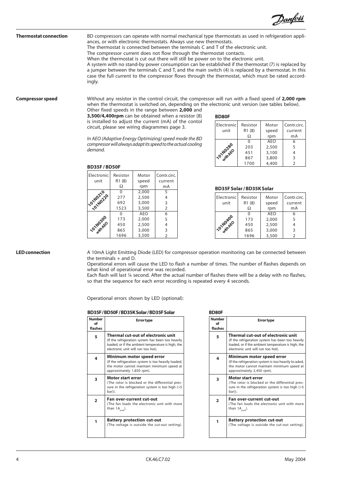

Danfoss BD35F – Drawing (54df090d4673_S2-16 S. 3)
Drawing · 54df090d4673_S2-16 · S. 3

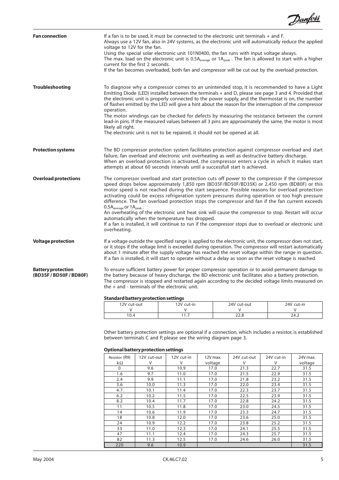

Danfoss BD35F – Drawing (54df090d4673_S2-16 S. 4)
Drawing · 54df090d4673_S2-16 · S. 4

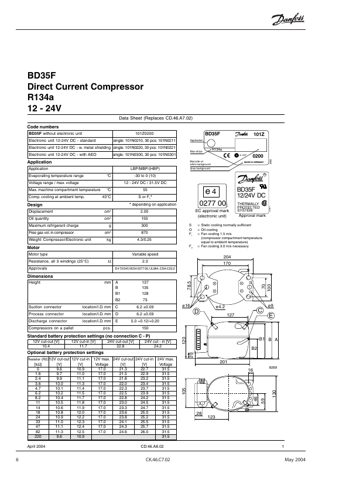

Danfoss BD35F – Page preview (54df090d4673_S2-16 S. 5)
Page preview · 54df090d4673_S2-16 · S. 5
Danfoss BD35F – Page preview (54df090d4673_S2-16 S. 6)
Page preview · 54df090d4673_S2-16 · S. 6
Danfoss BD35F – Page preview (54df090d4673_S2-16 S. 7)
Page preview · 54df090d4673_S2-16 · S. 7

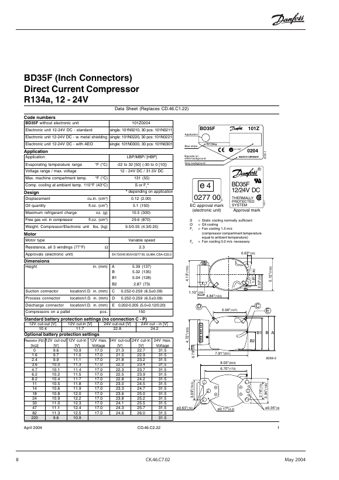

Danfoss BD35F – Page preview (54df090d4673_S2-16 S. 8)
