Library› Engine Room› Compressors› Refrigeration Compressor› Danfoss BD80F
Danfoss

BD80F

Refrigeration Compressor · Compressors

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Evaporating temperature range-30 to -5 °C
Voltage range / max. voltage12 - 24V DC / 31.5V DC
Max. machine compartment temperature43 °C
Displacement3.00 cm3
Maximum refrigerant charge300 g
Free gas vol. in compressor870 cm3
Weight: Compressor/Electronic unit4.3/0.3 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“General Electric circuit Wiring diagram Voltage range Cable dimensions Thermostat connection Compressor speed Fan connection Troubleshooting LED connection Protection systems”

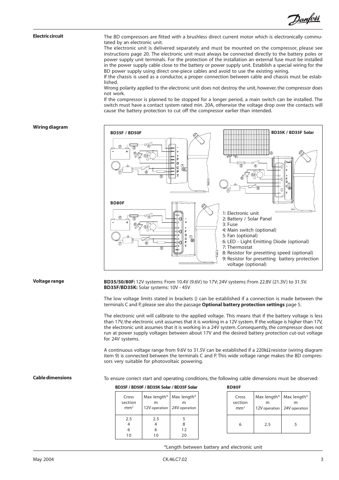

Danfoss BD80F – Drawing (5faecaed0dd3_S2-14 S. 2)
Drawing · 5faecaed0dd3_S2-14 · S. 2
Danfoss BD80F – Drawing (5faecaed0dd3_S2-14 S. 3)
Drawing · 5faecaed0dd3_S2-14 · S. 3
Danfoss BD80F – Drawing (5faecaed0dd3_S2-14 S. 4)
Drawing · 5faecaed0dd3_S2-14 · S. 4

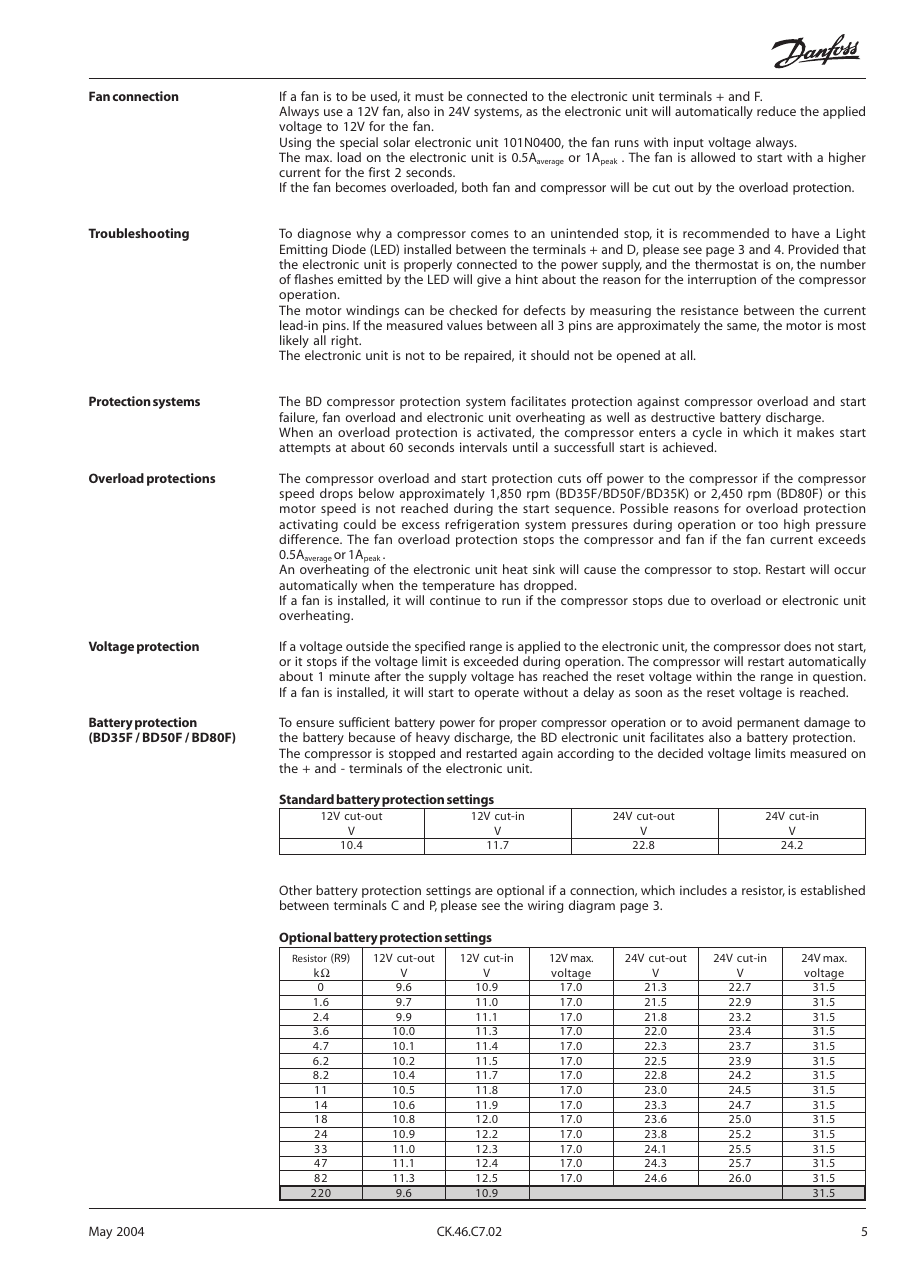

Danfoss BD80F – Page preview (5faecaed0dd3_S2-14 S. 5)
Page preview · 5faecaed0dd3_S2-14 · S. 5

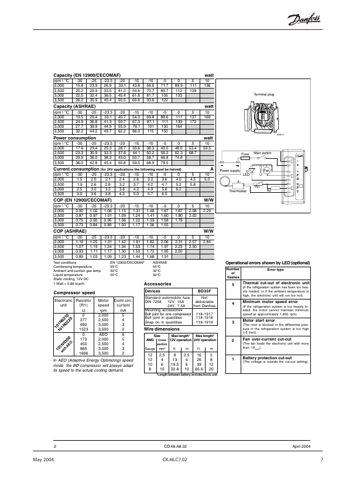

Danfoss BD80F – Page preview (5faecaed0dd3_S2-14 S. 6)
Page preview · 5faecaed0dd3_S2-14 · S. 6
Danfoss BD80F – Page preview (5faecaed0dd3_S2-14 S. 7)
Page preview · 5faecaed0dd3_S2-14 · S. 7

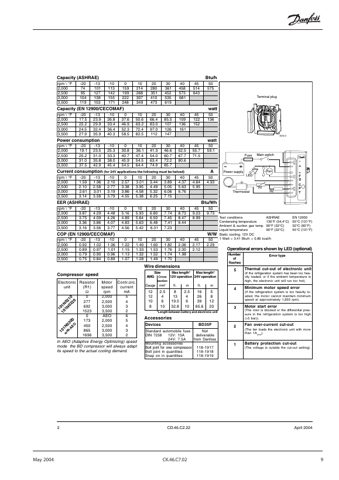

Danfoss BD80F – Page preview (5faecaed0dd3_S2-14 S. 8)
Page preview · 5faecaed0dd3_S2-14 · S. 8
Source: Danfoss BD80F datasheet, p. 1
