Library› Deck› Deck Machinery› Deck Winch (General)› comeupwinch DV-18 12V DC
comeupwinch

DV-18 12V DC

Deck Winch (General) · Deck Machinery

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Line pull8,181 kg / 18,000 lb🔖
Wire rope12.7 mm × 25 m (1/2" × 82"){6 × 29 - IWRC}🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“．The wire rope shall be wound in an under-wound orientation only. ．Eight (8) M12 x 1.75 pitch 8.8 grade high tensile steel bolts must be used in order to sustain the loads imposed on the winch…”

comeupwinch DV-18 12V DC – Photo (0080ea490c51_S1-1 S. 1)
Photo · 0080ea490c51_S1-1 · S. 1
comeupwinch DV-18 12V DC – Photo (0080ea490c51_S1-1 S. 1)
Photo · 0080ea490c51_S1-1 · S. 1

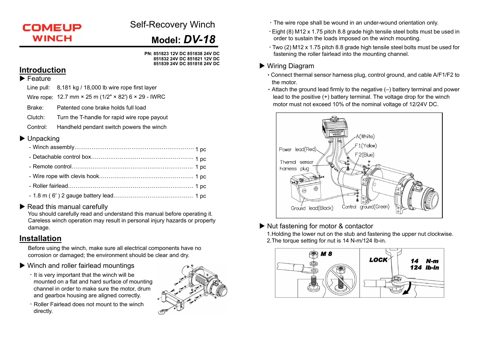

comeupwinch DV-18 12V DC – Drawing (0080ea490c51_S1-1 S. 1)
Drawing · 0080ea490c51_S1-1 · S. 1
Source: comeupwinch DV-18 12V DC datasheet, p. 1
