Library› Deck› Deck Machinery› Deck Winch (General)› comeupwinch 16.5s 12V
comeupwinch

16.5s 12V

Deck Winch (General) · Deck Machinery

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Line pull7,484 kg / 16,500 lb🔖
BrakePatented cone brake holds full load🔖
ClutchTurn the T-handle for rapid wire rope payout🔖
ControlHandheld pendant switch powers the winch🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

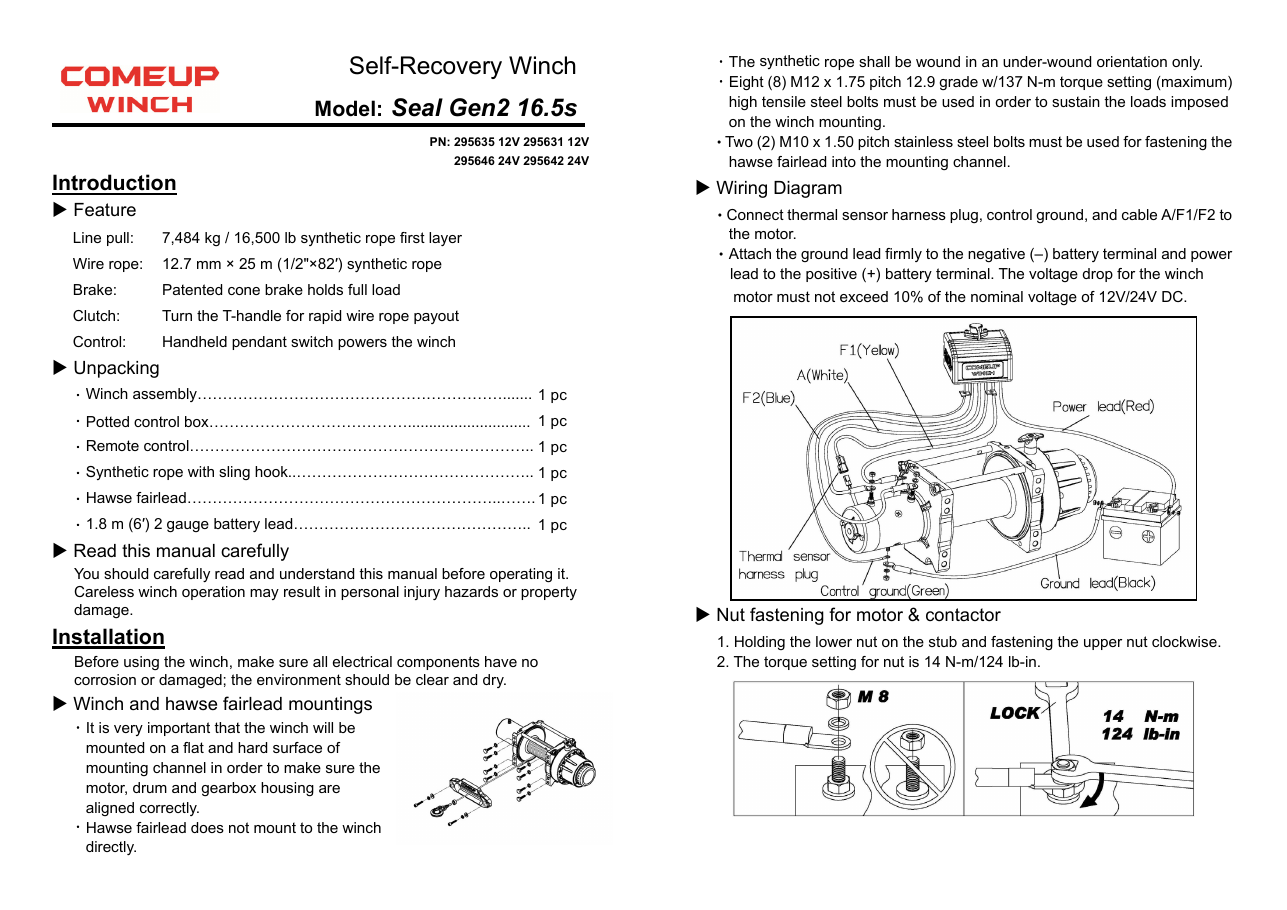

“．The synthetic rope shall be wound in an under-wound orientation only. ．Eight (8) M12 x 1.75 pitch 12.9 grade w/137 N-m torque setting (maximum) high tensile steel bolts must be used in order to…”

comeupwinch 16.5s 12V – Photo (7240bc684a89_S1-1 S. 1)
Photo · 7240bc684a89_S1-1 · S. 1
comeupwinch 16.5s 12V – Photo (7240bc684a89_S1-1 S. 1)
Photo · 7240bc684a89_S1-1 · S. 1

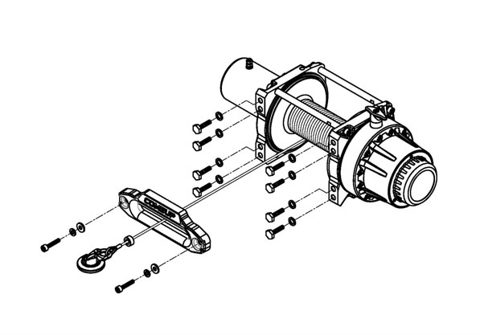

comeupwinch 16.5s 12V – Drawing (7240bc684a89_S1-1 S. 1)
Drawing · 7240bc684a89_S1-1 · S. 1
Source: comeupwinch 16.5s 12V datasheet, p. 1
