Library› Deck› Deck Machinery› Deck Winch (General)› comeupwinch 22.0 24V
comeupwinch

22.0 24V

Deck Winch (General) · Deck Machinery

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Line pull9,980 kg / 22,000 lb🔖
Wire rope12.7 mm × 25 m (1/2"×82"){6 × 29 - IWRC}🔖
BrakePatented cone brake holds full load🔖
ControlHandheld pendant switch powers the winch🔖
Voltage24V DC🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

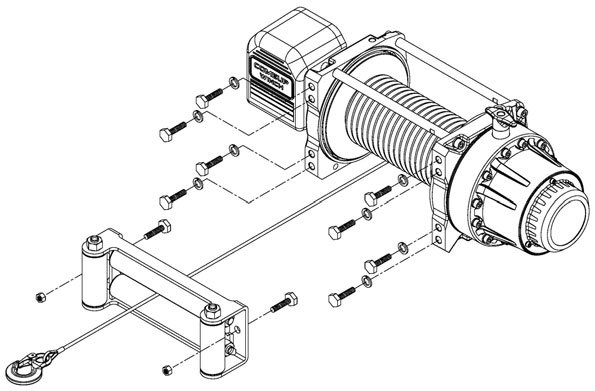

“ Roller fairlead does not mount to the winch directly.  The wire rope shall be wound in an under-wound orientation only.  Eight (8) M12 x 1.75 pitch SUS high tensile steel bolts must be used in…”

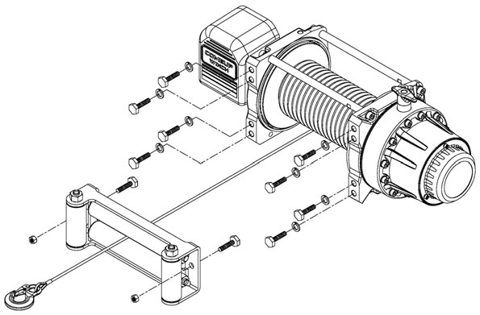

comeupwinch 22.0 24V – Photo (149ff38e6876_S1-1 S. 1)
Photo · 149ff38e6876_S1-1 · S. 1
comeupwinch 22.0 24V – Photo (149ff38e6876_S1-1 S. 1)
Photo · 149ff38e6876_S1-1 · S. 1

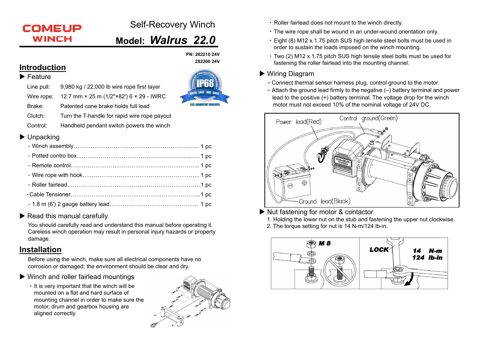

comeupwinch 22.0 24V – Drawing (149ff38e6876_S1-1 S. 1)
Drawing · 149ff38e6876_S1-1 · S. 1
Source: comeupwinch 22.0 24V datasheet, p. 1
