COMEUP Winch

12.5rs 12V

Deck Winch (General) · Deck Machinery

Class-certified type (DNV register) · technical data sheet not yet verified​‍⁠⁠⁠‌‌‌​​⁠‌‌‌‍​‌‌‍‌
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Line pull5,670 kg / 12,500 lb
Synthetic rope11 mm × 25 m (7/16"×82′)
BrakePatented cone brake
ClutchTurn the T-handle for rapid rope payout
ControlHandheld pendant switch
Battery lead1.8 m (6′) 2 gauge
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

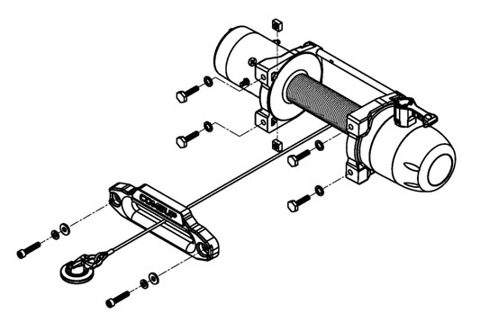

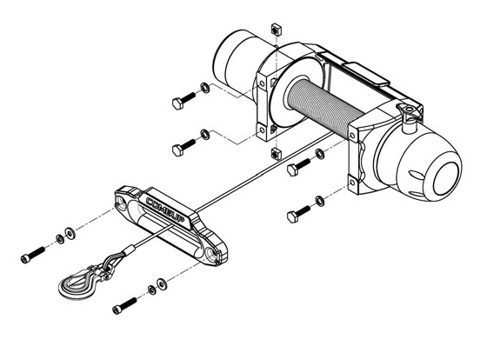

“‧Hawse fairlead does not mount to the winch directly. ‧The synthetic rope shall be wound in an under-wound orientation only. ‧Four (4) M10 x 1.50 pitch 10.9 grade with 63.8 N-m torque settings…”

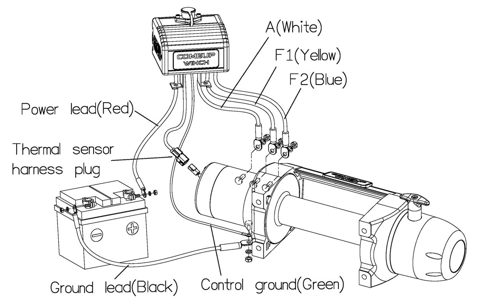

COMEUP Winch 12.5rs 12V – Photo (928ffc853a04_S1-1 S. 1)
Photo · 928ffc853a04_S1-1 · S. 1
COMEUP Winch 12.5rs 12V – Photo (928ffc853a04_S1-1 S. 1)
Photo · 928ffc853a04_S1-1 · S. 1

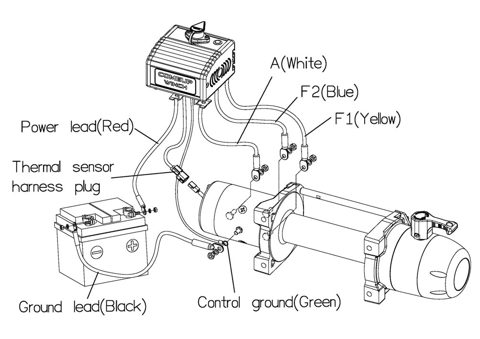

COMEUP Winch 12.5rs 12V – Photo (2a9d4bd2f8c0_S1-1 S. 1)
Photo · 2a9d4bd2f8c0_S1-1 · S. 1
COMEUP Winch 12.5rs 12V – Photo (2a9d4bd2f8c0_S1-1 S. 1)
Photo · 2a9d4bd2f8c0_S1-1 · S. 1

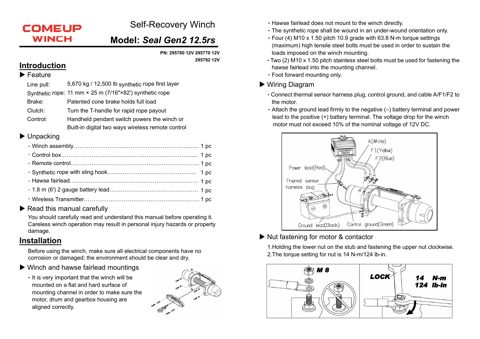

COMEUP Winch 12.5rs 12V – Drawing (928ffc853a04_S1-1 S. 1)
Drawing · 928ffc853a04_S1-1 · S. 1
COMEUP Winch 12.5rs 12V – Drawing (2a9d4bd2f8c0_S1-1 S. 1)
Drawing · 2a9d4bd2f8c0_S1-1 · S. 1

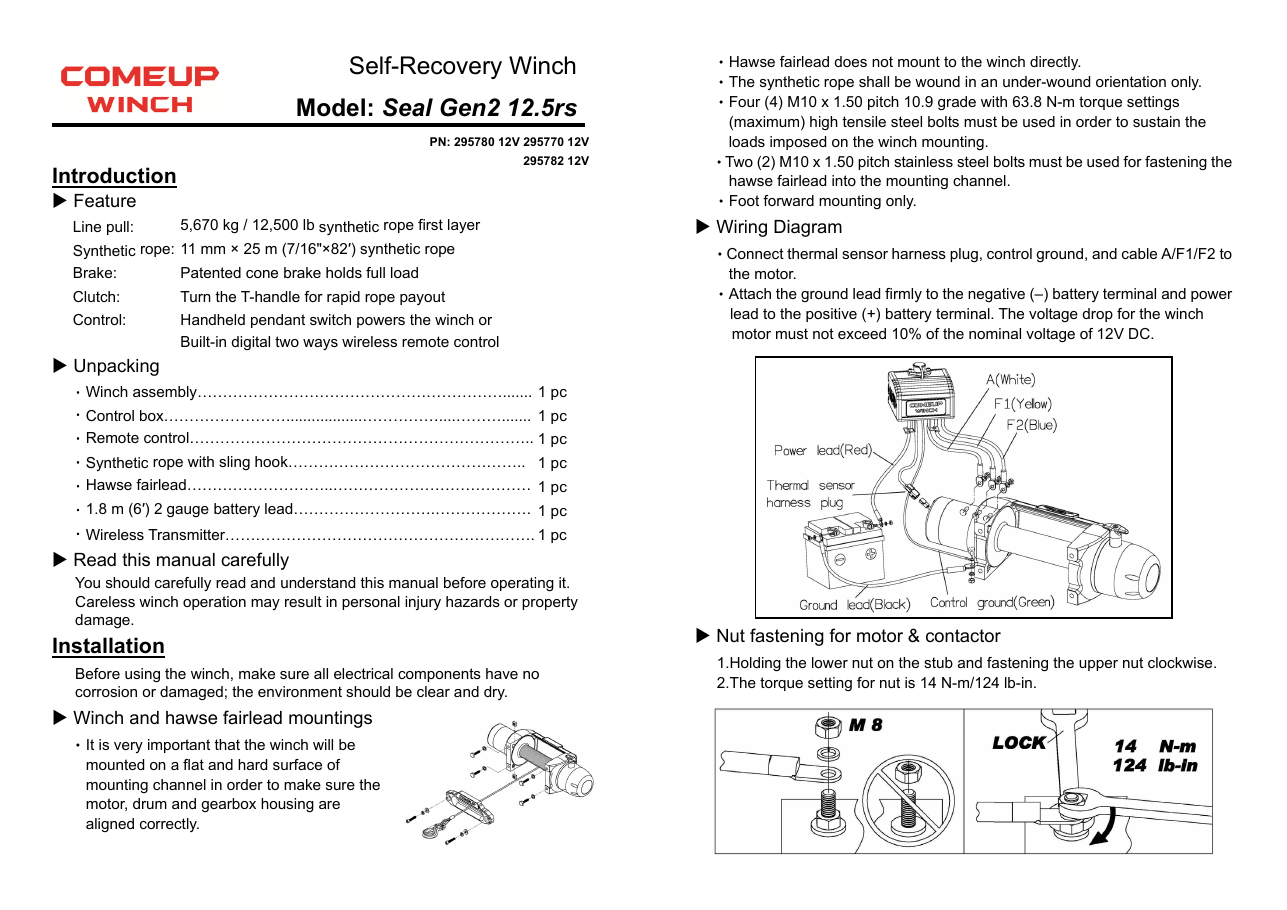

Source: COMEUP Winch 12.5rs 12V datasheet, p. 1
