Library› Deck› Deck Machinery› Deck Winch (General)› comeupwinch DV-2500i 12VDC
comeupwinch

DV-2500i 12VDC

Deck Winch (General) · Deck Machinery

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Line pull1,134 kg / 2,500 lb🔖
Wire rope4.8 mm x 15.2 m (3/16" x 50')🔖
BrakeMechanical and dynamic🔖
ControlHandheld pendant switch🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“1,134 kg / 2,500 lb wire rope first layer 4.8 mm x 15.2 m (3/16" x 50') galvanized aircraft A7 × 19 Mechanical and dynamic brakes hold full load Raise the clutch lever for rapid wire rope payout…”

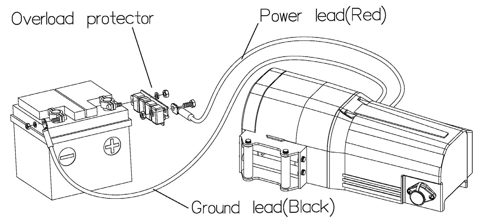

comeupwinch DV-2500i 12VDC – Photo (59cb5e9d18c2_S1-1 S. 1)
Photo · 59cb5e9d18c2_S1-1 · S. 1
comeupwinch DV-2500i 12VDC – Photo (59cb5e9d18c2_S1-1 S. 1)
Photo · 59cb5e9d18c2_S1-1 · S. 1

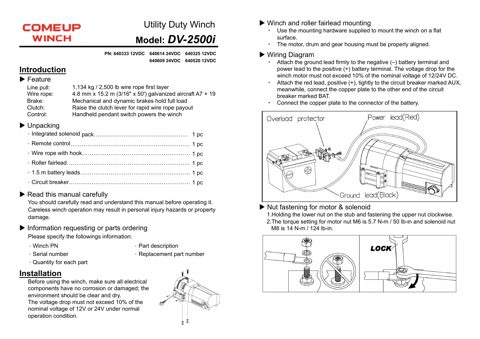

comeupwinch DV-2500i 12VDC – Drawing (59cb5e9d18c2_S1-1 S. 1)
Drawing · 59cb5e9d18c2_S1-1 · S. 1
Source: comeupwinch DV-2500i 12VDC datasheet, p. 1
