Library› Safety & LSA› Fixed Fire Suppression› Foam Fire System› Skum/Tyco PI Inductor
Skum/Tyco

PI Inductor

Foam Fire System · Fixed Fire Suppression

Technical data from manufacturer or class sources · not yet verified by a person
View photo ↗

Skum/Tyco PI Inductor — Around-the-pump foam inductor for proportioning.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeAround-the-pump inductor
InstallationPump-mounted configuration
Pick-up adjustmentAdjustable concentrate rate
Proportioning methodVenturi-based
ConsistencyConsistent mixture delivery
System capacity range100 Lpm to 22,500 Lpm🔖
Maximum working pressure16 bar🔖
📄
Download datasheet (PDF) (237 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

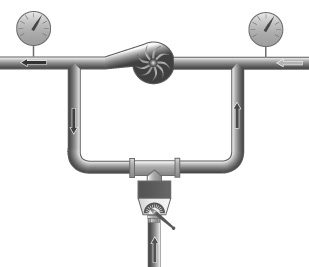

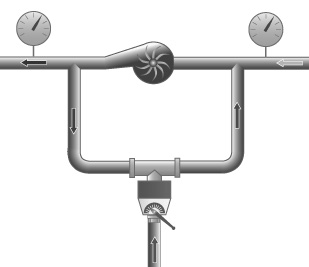

“General Description The Around-the-Pump Inductor is a foam concentrate proportioning unit designed for connection in a by-pass between the pressure and suction side of the fire water pump. This…”

Skum/Tyco PI Inductor – Photo (Skum/Tyco datasheet S. 2)
Photo · Skum/Tyco datasheet · S. 2
Skum/Tyco PI Inductor – Photo (Skum/Tyco datasheet S. 2)
Photo · Skum/Tyco datasheet · S. 2
Skum/Tyco PI Inductor – Photo (Skum/Tyco datasheet S. 2)
Photo · Skum/Tyco datasheet · S. 2

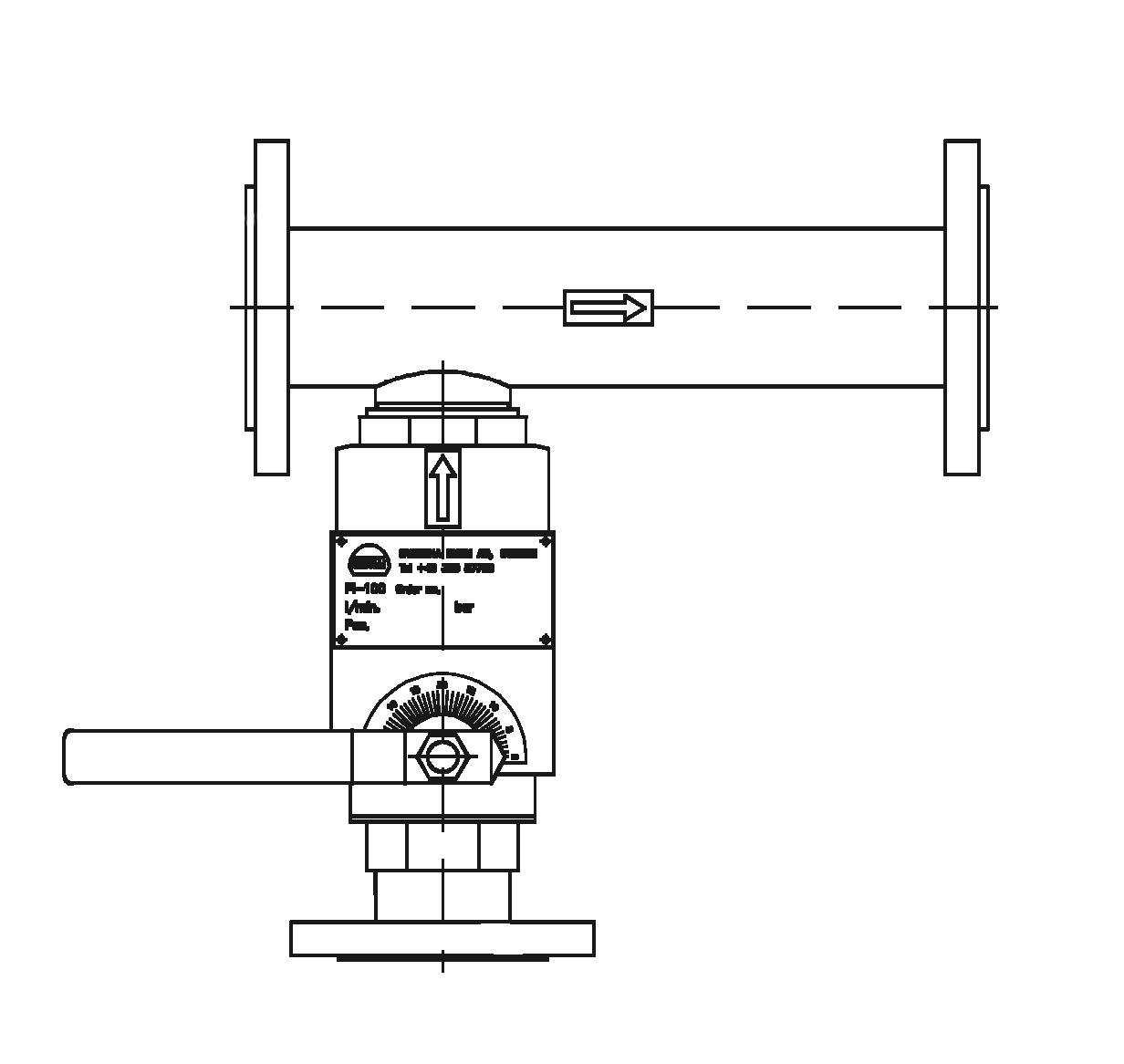

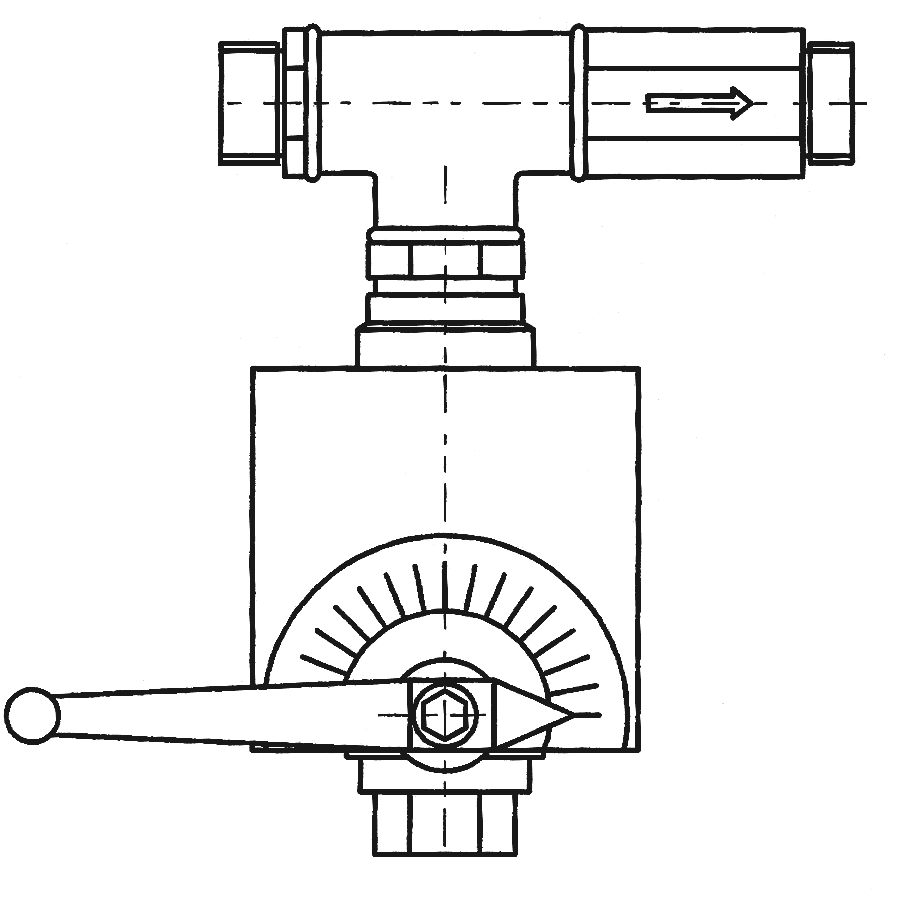

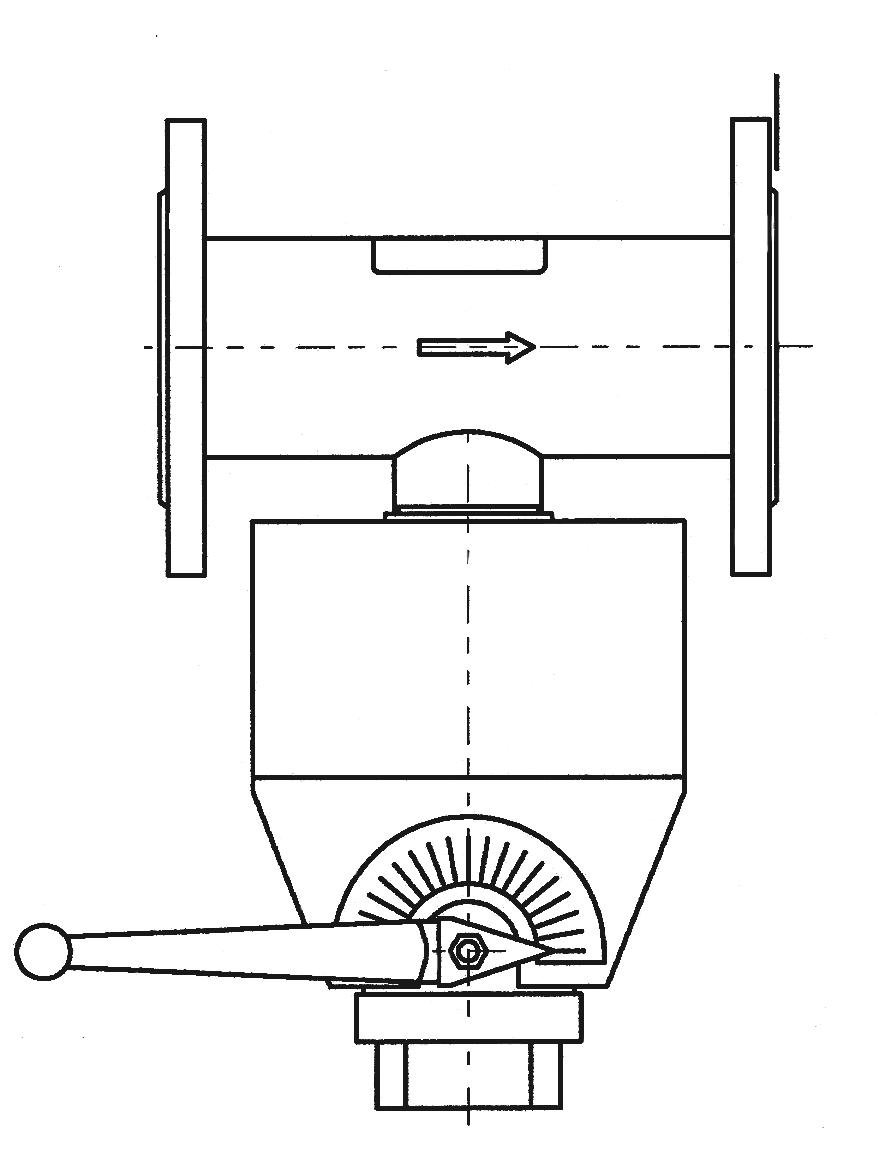

Skum/Tyco PI Inductor – Drawing (Skum/Tyco datasheet S. 2)
Drawing · Skum/Tyco datasheet · S. 2

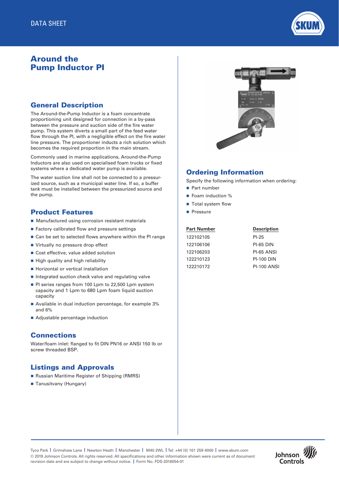

Skum/Tyco PI Inductor – Drawing (Skum/Tyco datasheet S. 1)
Drawing · Skum/Tyco datasheet · S. 1

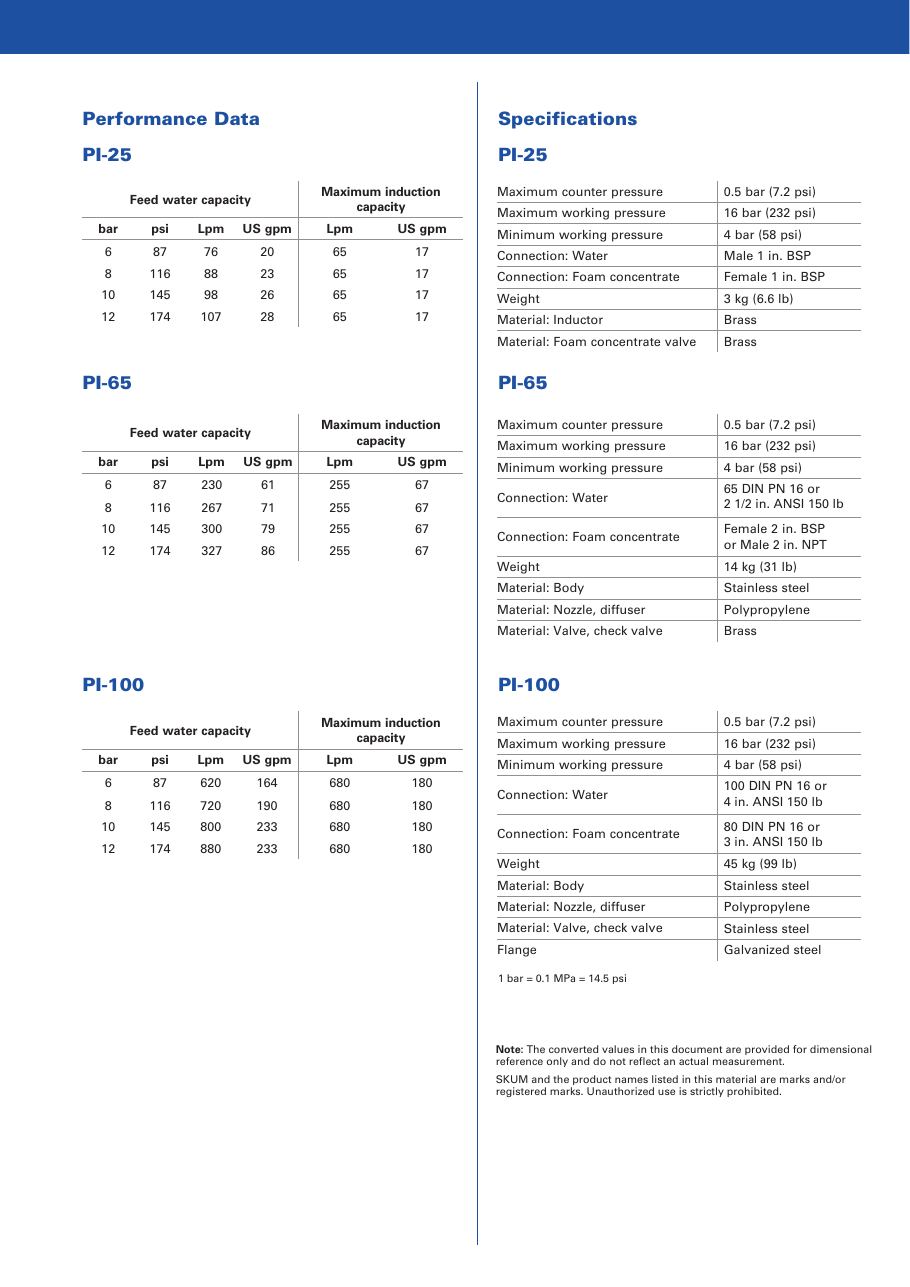

Skum/Tyco PI Inductor – Drawing (Skum/Tyco datasheet S. 2)
Drawing · Skum/Tyco datasheet · S. 2

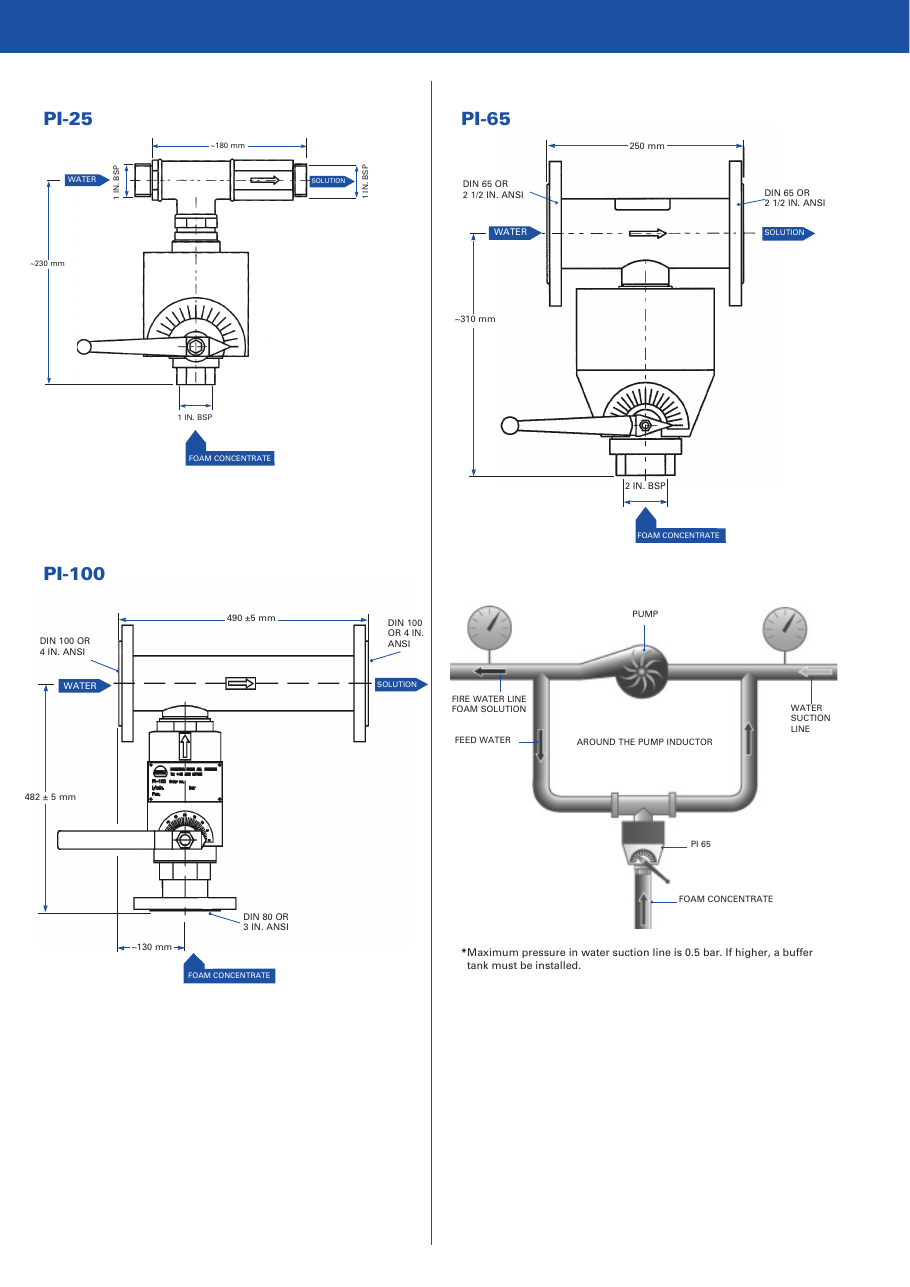

Skum/Tyco PI Inductor – Drawing (Skum/Tyco datasheet S. 3)
Drawing · Skum/Tyco datasheet · S. 3
Skum/Tyco PI Inductor – Drawing (Skum/Tyco datasheet S. 2)
Drawing · Skum/Tyco datasheet · S. 2

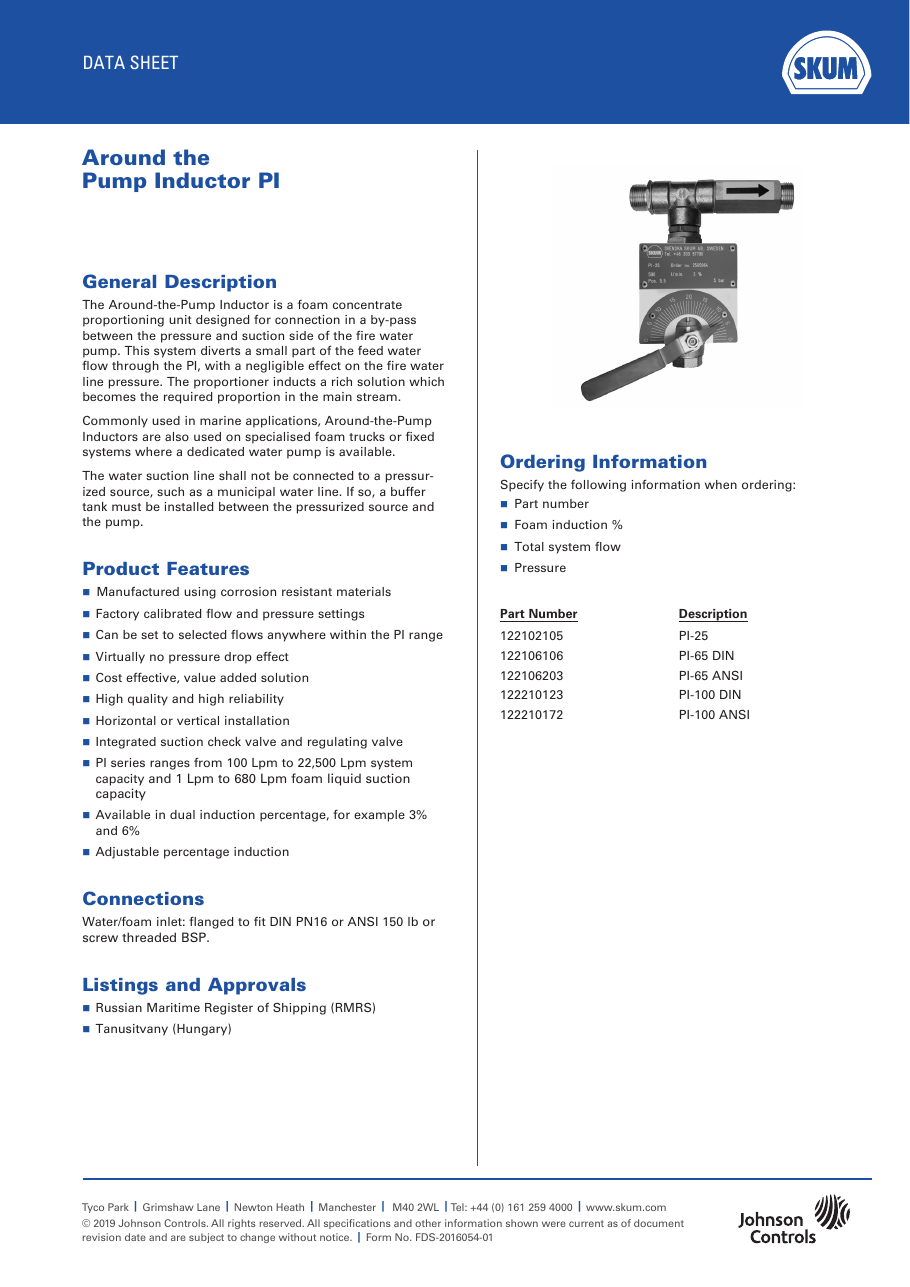

Source: Tyco PI Inductor datasheet, p. 1
