Library› Safety & LSA› Fixed Fire Suppression› Foam Fire System› Skum/Tyco FJM-200
Skum/Tyco

FJM-200

Foam Fire System · Fixed Fire Suppression

Technical data from manufacturer or class sources · not yet verified by a person
20000Capacity
View photo ↗

Skum/Tyco FJM-200 — High-capacity foam monitor for extensive fire protection.

Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Water capacity20000 l/min (max), 8000 l/min (min)
Foam capacity600 l/min
Design pressure4-13 bar (optimum 10-12 bar)
Weight93 kg
Elevation-45 to +70 degrees
Kapazitaet20000 lpm🔖
ZertifikateEN 13565-1, Russian Maritime Register of Shipping, Det Norske Veritas (DNV), Bureau Veritas, Lloyds Register of Shipping (LRS), KFSD (Kuwait)🔖
📄
Download datasheet (PDF) (719 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“High capacity foam protection Delivering large volumes of firefighting water and foam for complex hazard response requires the proper equipment. With flows up to 20,000 litres per minute from…”

Skum/Tyco FJM-200 – Photo (Skum/Tyco datasheet S. 1)
Photo · Skum/Tyco datasheet · S. 1
Skum/Tyco FJM-200 – Photo (Skum/Tyco datasheet S. 1)
Photo · Skum/Tyco datasheet · S. 1
Skum/Tyco FJM-200 – Photo (Skum/Tyco datasheet S. 2)
Photo · Skum/Tyco datasheet · S. 2
Skum/Tyco FJM-200 – Photo (Skum/Tyco datasheet S. 1)
Photo · Skum/Tyco datasheet · S. 1
Skum/Tyco FJM-200 – Drawing (Skum/Tyco datasheet S. 2)
Drawing · Skum/Tyco datasheet · S. 2

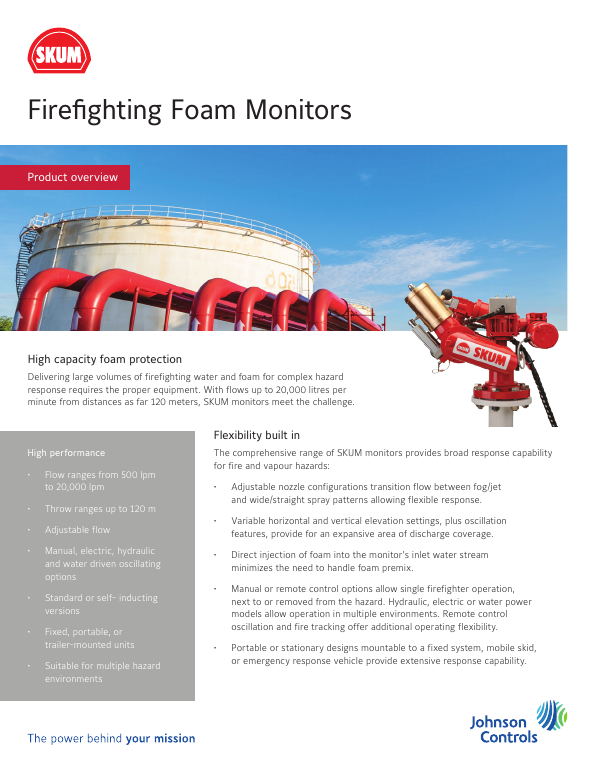

Skum/Tyco FJM-200 – Page preview (Skum/Tyco datasheet S. 1)
Page preview · Skum/Tyco datasheet · S. 1
Source: Tyco FJM-200 datasheet, p. 1
