OceanSphereENGINES
Skum/Tyco

FJM-H

Foam Fire System · Fixed Fire Suppression

Technical data from manufacturer or class sources · not yet verified by a person​‍‌​‌‌​⁠‌⁠​‌‍‌⁠⁠‍​‍⁠
~380 mmDimensions
View photo ↗

The SKUM FJM-H Hydraulic Fog/Jet Monitor operates through a variable stream pattern that can be adjusted for different site requirements. This monitor features hydraulic remote control and can deliver water or foam in a range of patterns from solid jet to fog. With a compact and balanced design, the FJM-H model is suitable for fixed mounting and comes with built-in manual override capabilities. It supports both manual operation and remotely operated fog/jet pattern controls, making it adaptable to various operational needs. The monitor is manufactured using bronze and stainless steel, ensuring high quality and reliability. Available in part numbers 161610818 through 161615813, customers can specify the type, connection type, and other details during ordering.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeHydraulic monitor with remote control
ControlHydraulic elevation and rotation
NozzleFog/jet variable pattern
Power packCustom design
Stream patternAdjustable jet to fog
Dimensions~380 mm🔖
📄
Download datasheet (PDF) (325 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“FJM-H Hydraulic Fog/Jet Monitor Description The SKUM FJM-H Hydraulic Fog/Jet Monitor is a powerful fire suppression monitor with exceptional performance characteristics. The FJM-H monitor has a…”

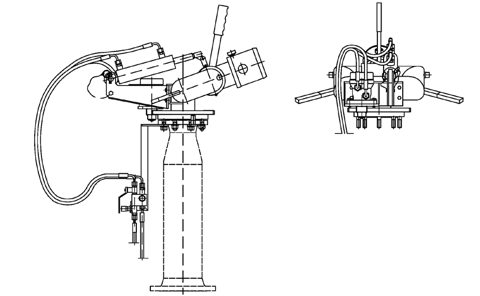

Skum/Tyco FJM-H – Photo (Skum/Tyco datasheet S. 2)
Photo · Skum/Tyco datasheet · S. 2
Skum/Tyco FJM-H – Photo (Skum/Tyco datasheet S. 2)
Photo · Skum/Tyco datasheet · S. 2

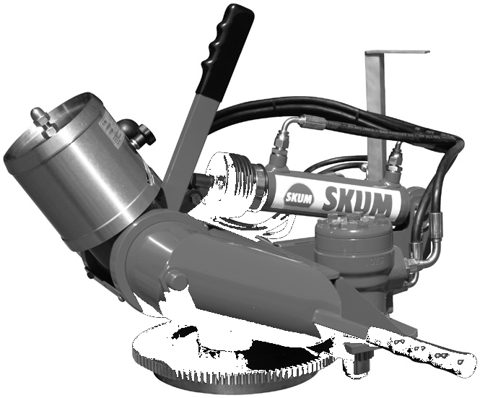

Skum/Tyco FJM-H – Photo (Skum/Tyco datasheet S. 1)
Photo · Skum/Tyco datasheet · S. 1

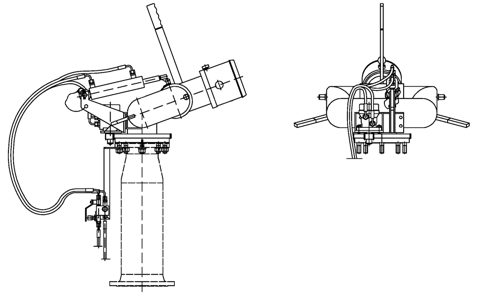

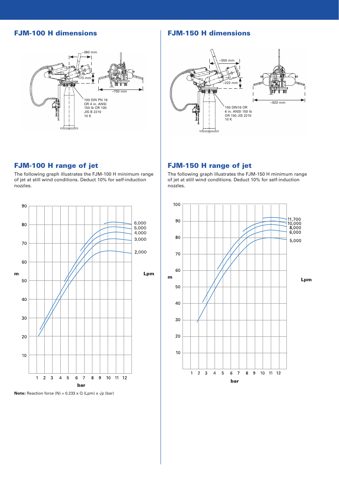

Skum/Tyco FJM-H – Drawing (Skum/Tyco datasheet S. 2)
Drawing · Skum/Tyco datasheet · S. 2
Skum/Tyco FJM-H – Drawing (Skum/Tyco datasheet S. 3)
Drawing · Skum/Tyco datasheet · S. 3
Skum/Tyco FJM-H – Drawing (Skum/Tyco datasheet S. 2)
Drawing · Skum/Tyco datasheet · S. 2

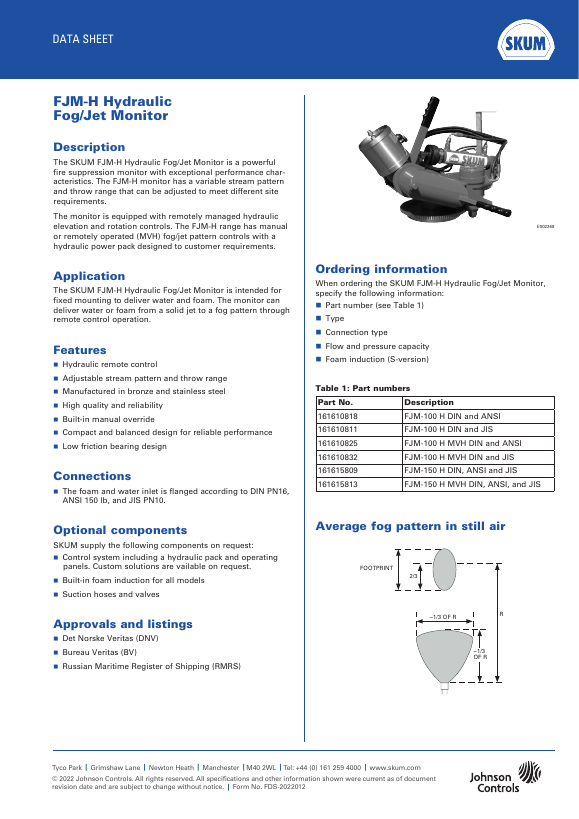

Skum/Tyco FJM-H – Page preview (Skum/Tyco datasheet S. 1)
Page preview · Skum/Tyco datasheet · S. 1
Source: JCI Data Sheet A4 Template Rev. 07, p. 1
