Library› Cargo› PV Valves & Vent Systems› High Velocity Vent Valve› Fort Vale REL207
Fort Vale

REL207

High Velocity Vent Valve · PV Valves & Vent Systems

Technical data from manufacturer or class sources · not yet verified by a person
1 kgWeight
75.2Dimensions
View photo ↗

Ensuring reliable operation and maintenance is crucial for the effective functioning of industrial equipment, and the Fort Vale REL207 is designed to meet these needs. This 2" BSP Low Profile IBC Relief Valve offers a range of set pressures from 0.05 Bar to 1.00 Bar and set vacuums from 2 kPa to 17 kPa, making it suitable for various applications. The valve's body is made of 316 stainless steel, ensuring durability and resistance to corrosion. Available in both low profile and standard body designs, it accommodates different installation requirements. The valve features a selection of materials for its pressure and vacuum O rings, providing flexibility for specific sealing needs. With a weight of 0.53 kg, the REL207 is lightweight yet robust, and it includes a weld-in socket and installation tools for easy installation. For detailed design conditions and parts drawings, customers can refer to Fort Vale’s documentation or contact their support team.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Connection2 inch BSP
DesignLow profile for space constraints
Pressure range0.05 Bar to 1.00 Bar
Vacuum range2 kPa to 17 kPa
Weight0.53 kg
Weight (kg)0.53 Kg🔖
Dimensions75.2🔖
📄
Download datasheet (PDF) (300 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Part No: 4B/XXXXXX Specification Nominal size DN50 Tank connection 2” BSP Set pressure From 0.05 Bar to 1.00 Bar Set vacuum From 2 kPa to 17 kPa Materials Contact parts: 316 stainless steel Pressure…”

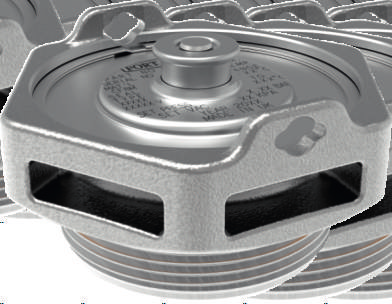

Fort Vale REL207 – Photo (Fort Vale datasheet S. 1)
Photo · Fort Vale datasheet · S. 1

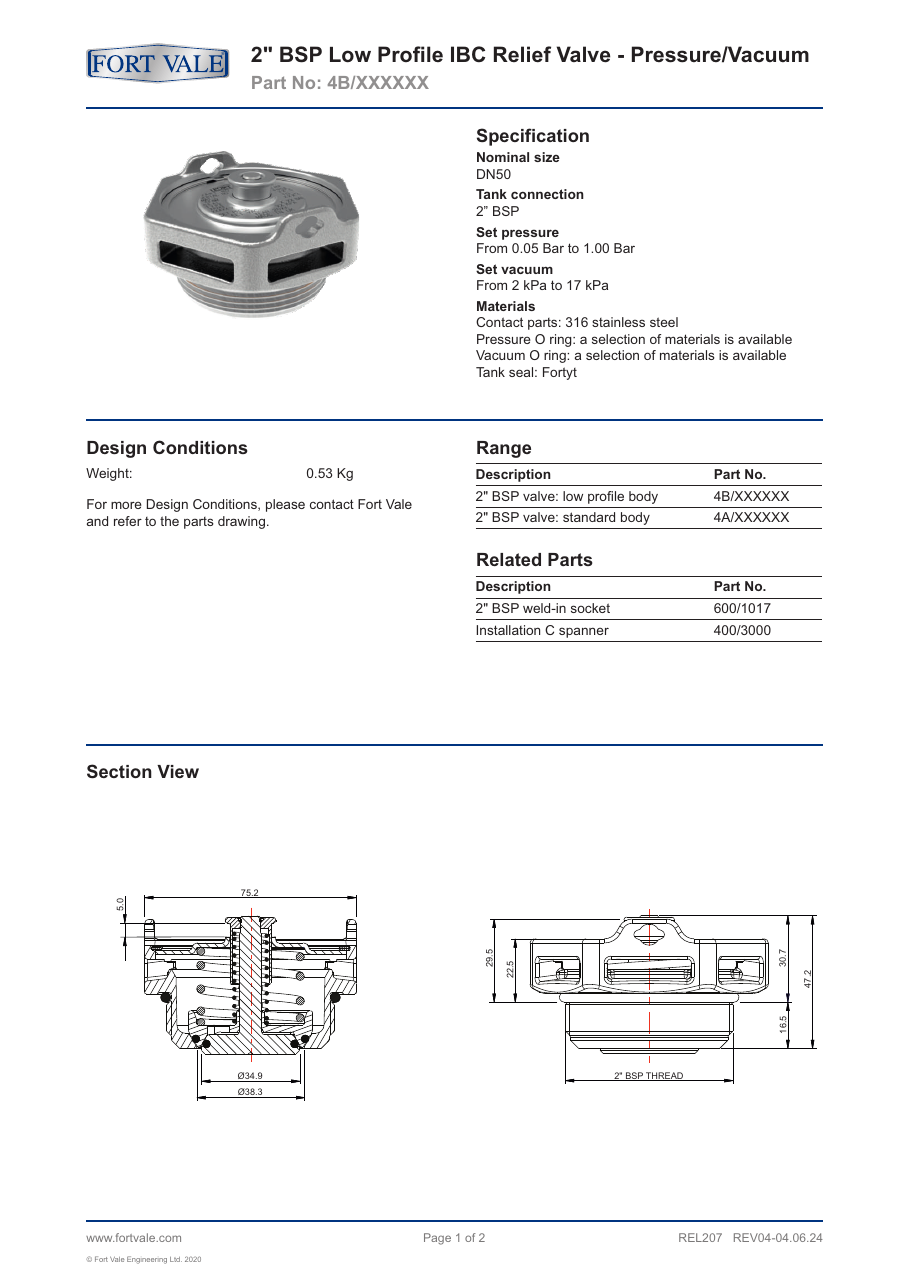

Fort Vale REL207 – Drawing (Fort Vale datasheet S. 1)
Drawing · Fort Vale datasheet · S. 1

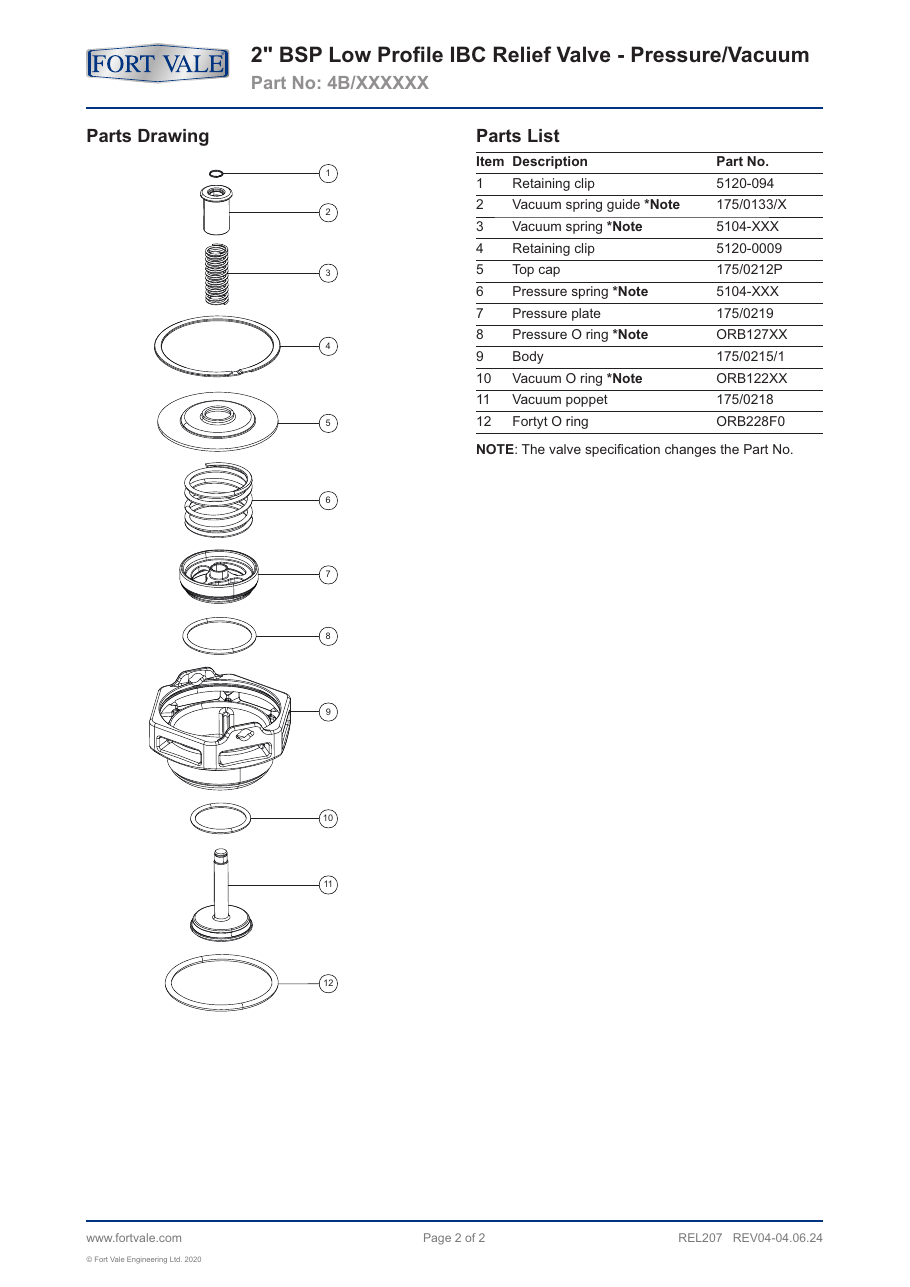

Fort Vale REL207 – Drawing (Fort Vale datasheet S. 2)
Drawing · Fort Vale datasheet · S. 2
Source: REL207_V1_REV04.cdr, p. 1
