Houttuin

236.40

Lube Oil Pump · Lube Oil Pumps

Technical data from manufacturer or class sources · not yet verified by a person​‍​⁠​⁠‍⁠​​‍‌‌‍‍‌‍​‌‌
1100Capacity
View photo ↗

Regular maintenance and adherence to operational guidelines ensure the reliable performance of the Houttuin 236.40 series screw pump, designed for handling corrosive and abrasive liquids. This pump is part of Houttuin's Horizontal Screw Pump range, specifically tailored for industries such as chemical, petrochemical, and shipbuilding. Featuring a robust design with ball bearings and oil-lubricated timing gears, the 236.40 series offers high pumping efficiency and constant axial flow. It can handle liquids with viscosities up to 5000 cSt and temperatures up to 140°C, with capacities reaching up to 1100 m³/h. The pump is equipped with overload protection via a built-in relief valve, ensuring safety and operational continuity. For sealing, options include single unbalanced mechanical seals, stuffing boxes, and mechanical seals with flushing chambers, accommodating various operational needs and liquid properties.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeHorizontal self-priming twin-screw pump
ApplicationNon-lubricating liquids, corrosive/abrasive handling
Max CapacityUp to 1,000+ m³/h
Max Differential Pressure16 bar
Capacity1100 m3/h🔖
📄
Download datasheet (PDF) (1769 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“ApplicAtion AreAS ChemiCal industry PetroChemiCal industry tar industry shiPbuilding industry margarine industry Paint and laCquer industry soaP industry sugar industry”

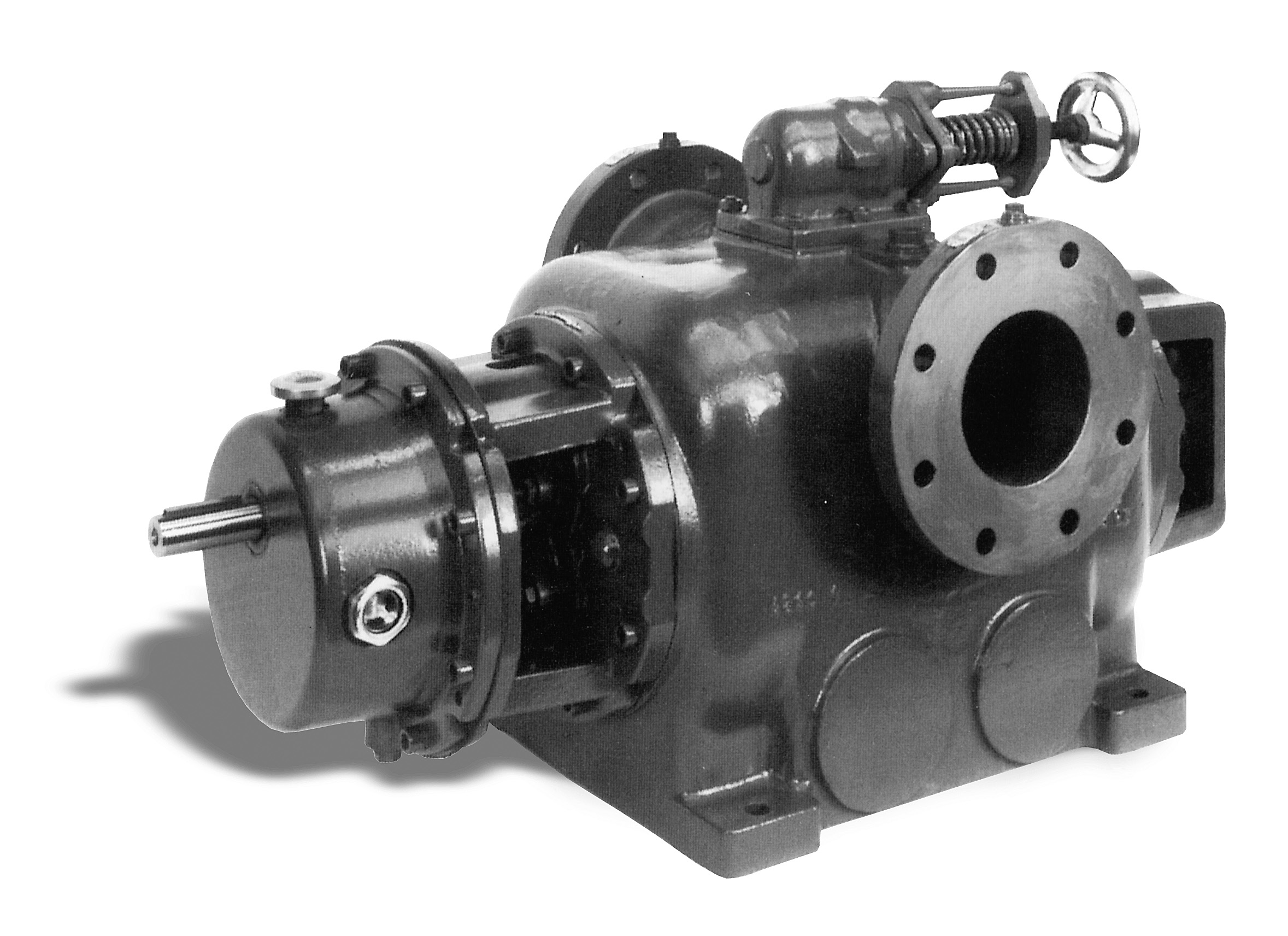

Houttuin 236.40 – Photo (Houttuin datasheet S. 1)
Photo · Houttuin datasheet · S. 1

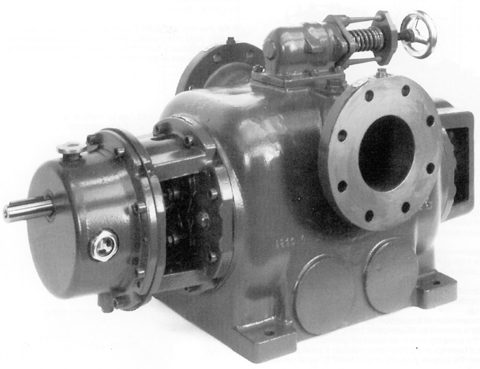

Houttuin 236.40 – Photo (Houttuin datasheet S. 2)
Photo · Houttuin datasheet · S. 2
Houttuin 236.40 – Photo (Houttuin datasheet S. 4)
Photo · Houttuin datasheet · S. 4

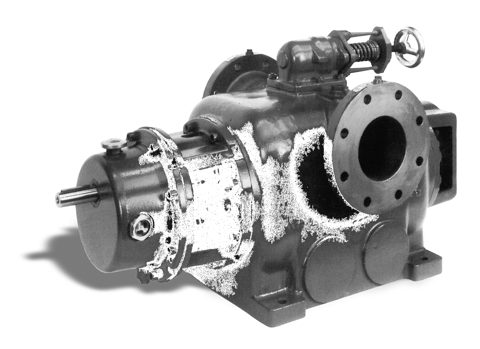

Houttuin 236.40 – Photo (Houttuin datasheet S. 1)
Photo · Houttuin datasheet · S. 1

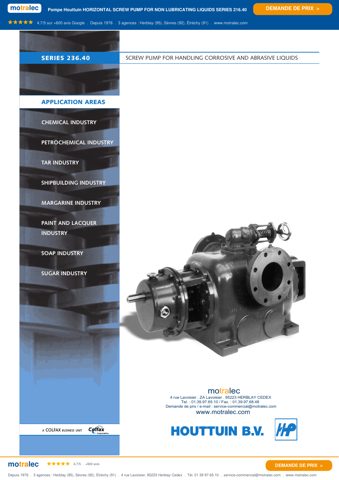

Houttuin 236.40 – Drawing (Houttuin datasheet S. 1)
Drawing · Houttuin datasheet · S. 1

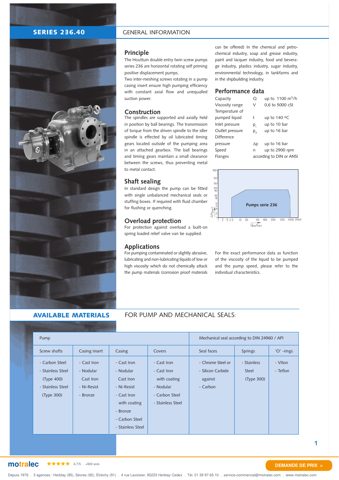

Houttuin 236.40 – Drawing (Houttuin datasheet S. 2)
Drawing · Houttuin datasheet · S. 2

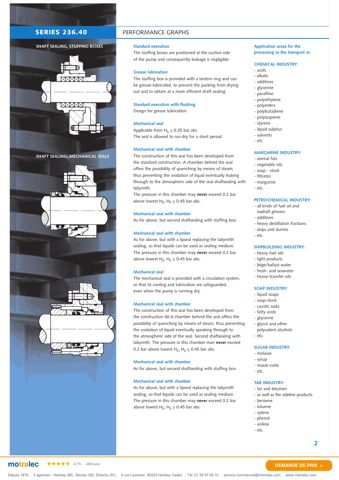

Houttuin 236.40 – Drawing (Houttuin datasheet S. 3)
Drawing · Houttuin datasheet · S. 3

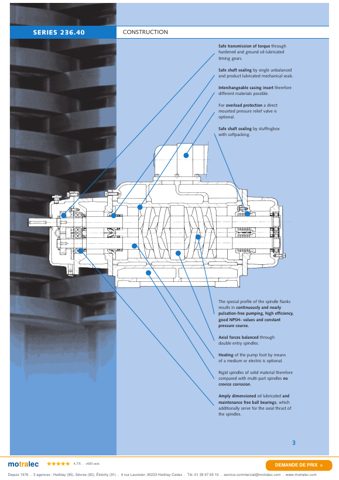

Houttuin 236.40 – Page preview (Houttuin datasheet S. 4)
Page preview · Houttuin datasheet · S. 4
Source: Pompe Houttuin HORIZONTAL SCREW PUMP FOR NON LUBRICATING LIQUIDS SERIE, p. 1
Inspection

Inspector Detail

Common issues

  • Screw/rotor wear from dry running or from entrained solids in the pumped medium
  • Mechanical seal leakage after long idle periods (seal faces drying out)
  • Vibration from misalignment between pump and driver
  • Loss of self-priming capability from worn timing gears or seal wear
  • Overheating when run against a closed or throttled discharge valve
  • Casing corrosion/erosion when handling media outside the pump's design chemical limits

Inspection checklist

  • Check coupling alignment (laser or dial indicator) before and after any driver work
  • Inspect mechanical seal for leakage or weeping
  • Check timing gear backlash and gear case oil level
  • Verify relief valve setting and function, if fitted for overpressure protection
  • Check suction strainer for fouling or blockage
  • Measure vibration and bearing temperature under load
  • Check foundation bolts and pump base for looseness
  • Confirm rotation direction and self-priming performance on start-up

Service intervals

Gear case oil change (timing gears)per the manufacturer's interval, typically 2,000-4,000 running hours or annually
Mechanical seal inspectionannually, or immediately on any sign of leakage
Coupling alignment checkannually or after driver/pump removal
Suction strainer cleaningweekly to monthly depending on service
Bearing condition monitoring (vibration/temperature trend)quarterly, overhaul on trend deviation

Typical intervals for this design class, not the manufacturer’s figures for your model. The manufacturer’s manual is binding.

Typical wear limits

Screw/rotor radial clearanceincreases progressively from new-build clearance to a replacement threshold several times larger - confirm the exact figures in the pump's own manual, not a generic value
Mechanical seal face conditionrenew on visible scoring or once leakage exceeds a light weep - no single numeric limit applies; follow the seal maker's guidance

Ranges are typical for this design class. Always confirm against the manufacturer documentation for your serial number.

Critical spares

  • Mechanical seal kit rated for the pumped medium
  • Screw/rotor set (matched pair)
  • Timing gears
  • Bearing set
  • Gasket/O-ring kit
  • Coupling element

Safety

  • This pump handles corrosive/abrasive liquids - use correct PPE when breaking the seal or opening the casing
  • Never run against a closed discharge - self-priming twin-screw pumps can pressurise and overheat quickly
  • Isolate and depressurise the pump before seal or casing work
  • Verify any substitute seal/gasket material is chemically compatible with the pumped medium before fitting

Class survey

If this pump serves a class-relevant system, the surveyor will want overhaul records, seal renewal history, and evidence of capacity/pressure testing after any repair. Confirm the pump's actual service duty against the ship's piping diagrams before treating it as a Continuous Survey Machinery item.

Estimated lifetime: Rotors on twin-screw pumps in this class commonly reach on the order of 20,000-40,000 running hours before overhaul when kept within design limits (correct medium, no dry running); actual life depends heavily on the fluid handled and is not a fixed manufacturer-quoted figure.
