Houttuin

231.50

Lube Oil Pump · Lube Oil Pumps

Technical data from manufacturer or class sources · not yet verified by a person​‍​⁠​⁠‍‍⁠​​⁠⁠⁠⁠‍‌⁠​‍
200 kWPower
750Dimensions
View photo ↗

Marine environments demand robust and reliable solutions to meet the power needs of various onboard systems. With a compact design measuring 750 mm by 750 mm, the Houttuin 231.50 is well-suited for integration into tight spaces without compromising on performance. This model delivers a powerful 200 kW, making it an efficient choice for applications requiring substantial power output in confined areas. The 231.50’s dimensions and power capabilities ensure it can be seamlessly installed aboard vessels of various sizes, from smaller workboats to larger commercial ships. Its robust construction and high power-to-size ratio make the 231.50 a reliable solution for shipboard operations, ensuring consistent performance in demanding maritime conditions. Whether powering critical systems or auxiliary functions, this model is designed to meet the stringent requirements of modern maritime applications. The Houttuin 231.50 stands out as a dependable and efficient power source, enhancing operational efficiency and reliability on board.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeVertical self-priming twin-screw pump
Max Capacity300 m³/h
Max Pressure16 bar
Viscosity Range0.6-10,000 cSt
Port ConnectionsANSI/DIN flange options
Dimensions750🔖
Power (kW)200🔖
📄
Download datasheet (PDF) (979 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“SELF-PRIMING VERTICAL SCREW PUMP FOR NON LUBRICATING LIQUIDS PRODUCT PERFORMANCE YOU CAN RELY ON The Houttuin double entry twin screw pumps series 231 are vertical rotating self priming positive…”

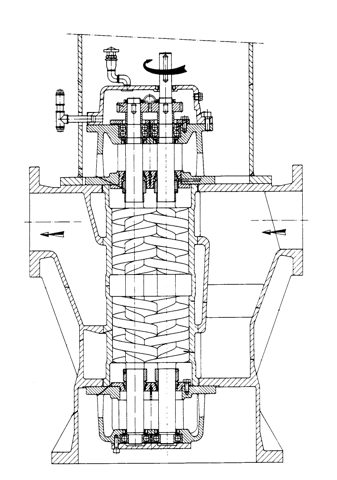

Houttuin 231.50 – Photo (Houttuin datasheet S. 3)
Photo · Houttuin datasheet · S. 3

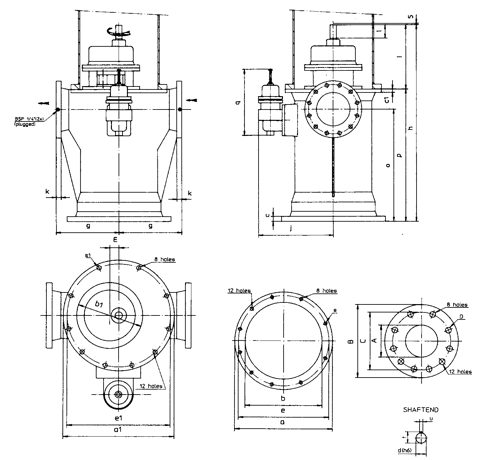

Houttuin 231.50 – Photo (Houttuin datasheet S. 4)
Photo · Houttuin datasheet · S. 4
Houttuin 231.50 – Drawing (Houttuin datasheet S. 2)
Drawing · Houttuin datasheet · S. 2

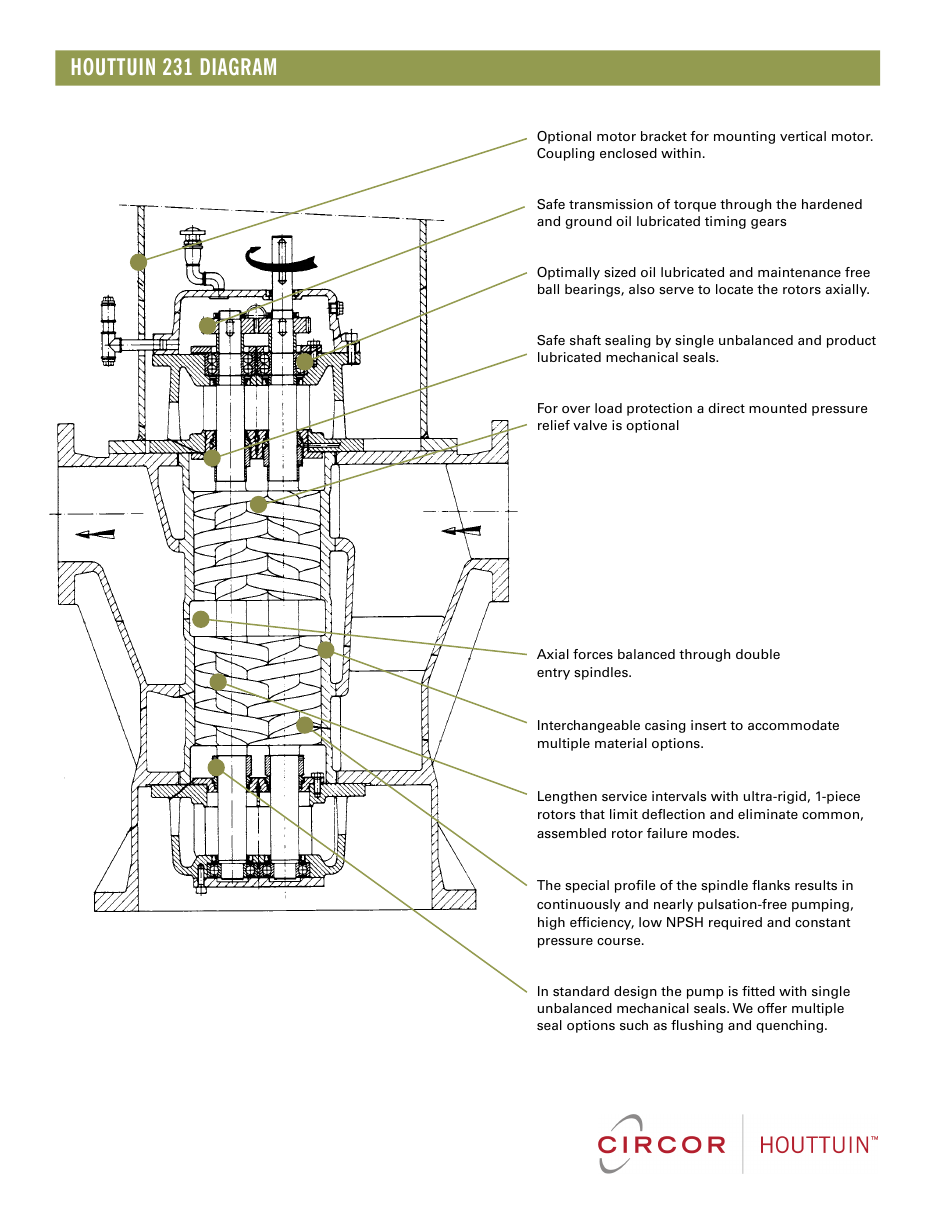

Houttuin 231.50 – Drawing (Houttuin datasheet S. 3)
Drawing · Houttuin datasheet · S. 3

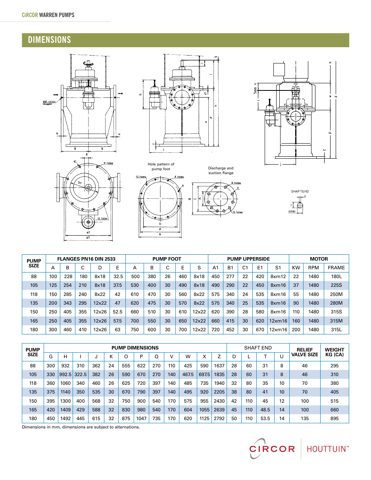

Houttuin 231.50 – Drawing (Houttuin datasheet S. 4)
Drawing · Houttuin datasheet · S. 4

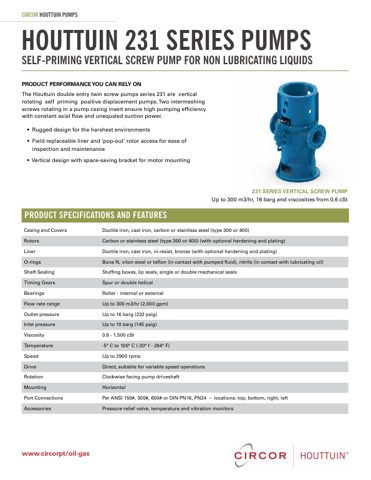

Houttuin 231.50 – Page preview (Houttuin datasheet S. 1)
Page preview · Houttuin datasheet · S. 1
Source: Houttuin 231.50 datasheet, p. 1
