Library› Engine Room› Air Compressors› Air Compressor› Hatlapa W55
Hatlapa

W55

Air Compressor · Air Compressors

Technical data from manufacturer or class sources · not yet verified by a person
13.0 kWPower
400 kgWeight
945 600 950Dimensions
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Configuration2-stage water-cooled
Final pressure30 bar
TypePiston compressor with intercooler
Abmessungen945 600 950🔖
Leistung (kW)13 kW🔖
Gewicht (kg)400 kg🔖
📄
Download datasheet (PDF) (536 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“•• Gear pump directly driven by the crankshaft •• Oil pressure control by means of pressure gauge and pressure switch •• Oil level inspection glass •• Crankcase venting through vent filter on oil…”

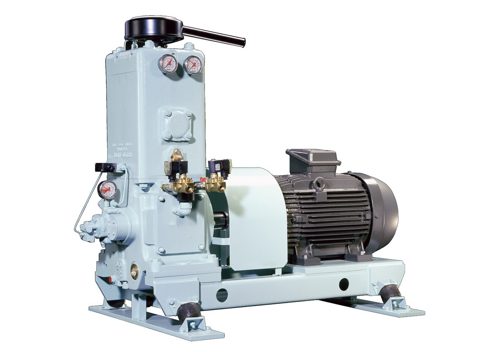

Hatlapa W55 – Photo (Hatlapa datasheet S. 1)
Photo · Hatlapa datasheet · S. 1

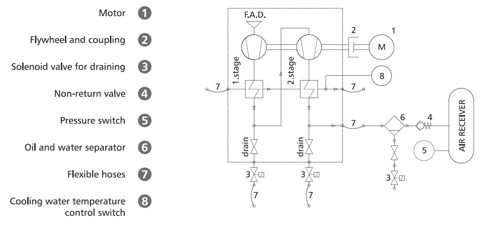

Hatlapa W55 – Photo (Hatlapa datasheet S. 2)
Photo · Hatlapa datasheet · S. 2

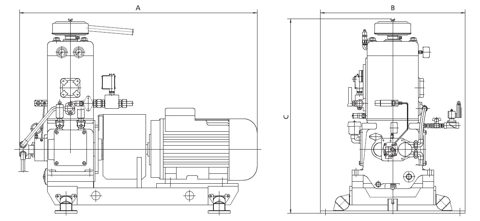

Hatlapa W55 – Photo (Hatlapa datasheet S. 2)
Photo · Hatlapa datasheet · S. 2
Hatlapa W55 – Photo (Hatlapa datasheet S. 1)
Photo · Hatlapa datasheet · S. 1
Hatlapa W55 – Drawing (Hatlapa datasheet S. 2)
Drawing · Hatlapa datasheet · S. 2
Hatlapa W55 – Page preview (Hatlapa datasheet S. 1)
Page preview · Hatlapa datasheet · S. 1
Source: Hatlapa W55 datasheet, p. 1
