Gear Pump

medium 230 models total

A gear pump is a positive-displacement pump that moves a fixed volume of liquid per revolution between meshing gear teeth and the casing wall, giving it a steady flow largely independent of discharge pressure, unlike a centrifugal pump whose output falls as head rises.

What sets a gear pump apart

A gear pump traps liquid in the pockets formed between meshing gear teeth and the pump casing, then carries it around to the discharge side, where the meshing teeth force it out. Because each revolution displaces a fixed volume, flow stays close to constant regardless of discharge pressure, which is exactly why gear pumps are chosen for fuel and lubricating oil duties where a steady, self-priming flow matters more than the high volumes a centrifugal pump can deliver. Unlike a screw pump, which handles higher viscosity and larger flows more smoothly, a gear pump is simpler, cheaper to overhaul, and well suited to smaller transfer and circulating duties.

Gear pump operating principle — Cross-section of a gear pump showing the driving and driven gears meshing inside the casing, the suction and discharge ports, and the path fluid takes trapped between the gear teeth and the casing wall.

Main components

Drive and idler gears

One shaft is driven directly by the motor; the second, the idler, meshes with it and rotates in the opposite direction. Tooth profile and clearance to the casing set both the pump's volumetric efficiency and its tolerance for entrained solids.

Casing and wear plates

The casing bore is machined close to the gear tip diameter to minimise internal slip; wear plates at each end control axial clearance and are usually the first parts to need renewal.

Relief valve

Because a gear pump is positive displacement, it will build pressure indefinitely against a closed discharge valve unless a relief valve, either built into the pump or fitted in the line, bypasses flow back to suction.

Shaft seals

Mechanical seals or packed glands seal the drive shaft where it passes through the casing; the seal choice depends on the liquid handled, since fuel and lubricating oil demand different seal face materials.

Selection and sizing

Sizing follows the required flow rate at the pump's rated speed, the viscosity of the liquid at its lowest expected operating temperature, and the differential pressure the pump must work against. Viscosity matters more for gear pumps than for centrifugal types: a pump sized for warm fuel oil can struggle to prime and can cavitate on cold, more viscous fuel unless clearances and speed are chosen with that condition in mind.

Typical faults

Fault	Consequence
Worn wear plates or increased tip clearance	Falling volumetric efficiency, reduced delivered flow at rated speed
Relief valve stuck closed	Pressure runs away against a closed or blocked discharge, risking pipe or seal failure
Relief valve stuck open or set too low	Continuous internal bypass, pump appears to run but delivers little useful flow
Shaft seal wear	External leakage of fuel or lubricating oil around the drive shaft
Entrained solids scoring the gear teeth	Increased internal slip and eventual tooth or bearing failure

What to look for in a supplier

Rated flow and pressure curve at the actual viscosity and temperature the pump will see in service
Gear and casing materials suited to the specific fuel or oil grade, including any additive packages
Seal type matched to the liquid and to the crew's realistic maintenance interval
Relief valve setting matched to the downstream pipework's safe working pressure
Spare gear sets and wear plates held for the exact model and size fitted

Warm heavy fuel oil to its specified viscosity before starting a gear pump on that duty; running it cold against high internal friction is a common cause of premature gear and bearing wear.

Inspector Mode Show All 230 total

8 manufacturers · 230 models

Kracht

51 ✓ 51 verified

KP 1/3 ✓ verified

Application

Marine gearbox and propeller lubrication, CPP

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 1/5.5 ✓ verified

Application

Marine gearbox and propeller lubrication, CPP

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 1/8 ✓ verified

Application

Marine gearbox and propeller lubrication, CPP

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 1/11 ✓ verified

Application

Marine gearbox and propeller lubrication, CPP

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 1/14 ✓ verified

Application

Marine gearbox and propeller lubrication, CPP

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 1/16 ✓ verified

Application

Marine gearbox and propeller lubrication, CPP

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 1/19 ✓ verified

Application

Marine gearbox and propeller lubrication, CPP

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 1/22 ✓ verified

Application

Marine gearbox and propeller lubrication, CPP

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 2/20 ✓ verified

Application

Marine gearbox and propeller lubrication, high-pressure systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 2/25 ✓ verified

Application

Marine gearbox and propeller lubrication, high-pressure systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 2/28 ✓ verified

Application

Marine gearbox and propeller lubrication, high-pressure systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 2/32 ✓ verified

Application

Marine gearbox and propeller lubrication, high-pressure systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 2/40 ✓ verified

Application

Marine gearbox and propeller lubrication, high-pressure systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 2/50 ✓ verified

Application

Marine gearbox and propeller lubrication, high-pressure systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 2/62 ✓ verified

Application

Marine gearbox and propeller lubrication, high-pressure systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 3/62 ✓ verified

Application

Marine high-pressure gearbox lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 3/71 ✓ verified

Application

Marine high-pressure gearbox lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 3/82 ✓ verified

Application

Marine high-pressure gearbox lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 3/100 ✓ verified

Application

Marine high-pressure gearbox lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 3/112 ✓ verified

Application

Marine high-pressure gearbox lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KP 3/125 ✓ verified

Application

Marine high-pressure gearbox lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 4 ✓ verified

Application

Marine gearbox lubrication, fuel supply

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 6 ✓ verified

Application

Marine gearbox lubrication, fuel supply

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 10 ✓ verified

Application

Marine gearbox lubrication, fuel supply

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 16 ✓ verified

Application

Marine gearbox lubrication, fuel supply

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 25 ✓ verified

Application

Marine gearbox lubrication, diesel engine pre-lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 32 ✓ verified

Application

Marine gearbox lubrication, diesel engine pre-lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 40 ✓ verified

Application

Marine gearbox lubrication, diesel engine pre-lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 63 ✓ verified

Application

Marine gearbox lubrication, diesel engine pre-lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 100 ✓ verified

Application

Marine gearbox lubrication, diesel engine pre-lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 125 ✓ verified

Application

Marine gearbox lubrication, diesel engine pre-lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 150 ✓ verified

Application

Marine gearbox lubrication, diesel engine pre-lubrication

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 180 ✓ verified

Application

Marine gearbox lubrication, large-scale systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 200 ✓ verified

Application

Marine gearbox lubrication, large-scale systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 250 ✓ verified

Application

Marine gearbox lubrication, large-scale systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 315 ✓ verified

Application

Marine gearbox lubrication, large-scale systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 400 ✓ verified

Application

Marine gearbox lubrication, large-scale systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 500 ✓ verified

Application

Marine gearbox lubrication, large-scale systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

KF 630 ✓ verified

Application

Marine gearbox lubrication, large-scale systems

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BT 1 ✓ verified

Application

Marine low-speed transfer, bitumen, fuel oil

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BT 2 ✓ verified

Application

Marine low-speed transfer, bitumen, fuel oil

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BT 3 ✓ verified

Application

Marine low-speed transfer, bitumen, fuel oil

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BT 4 ✓ verified

Application

Marine low-speed transfer, bitumen, fuel oil

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BT 5 ✓ verified

Application

Marine low-speed transfer, bitumen, fuel oil

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BT 6 ✓ verified

Application

Marine low-speed transfer, bitumen, fuel oil

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BT 7 ✓ verified

Application

Marine low-speed transfer, bitumen, fuel oil

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

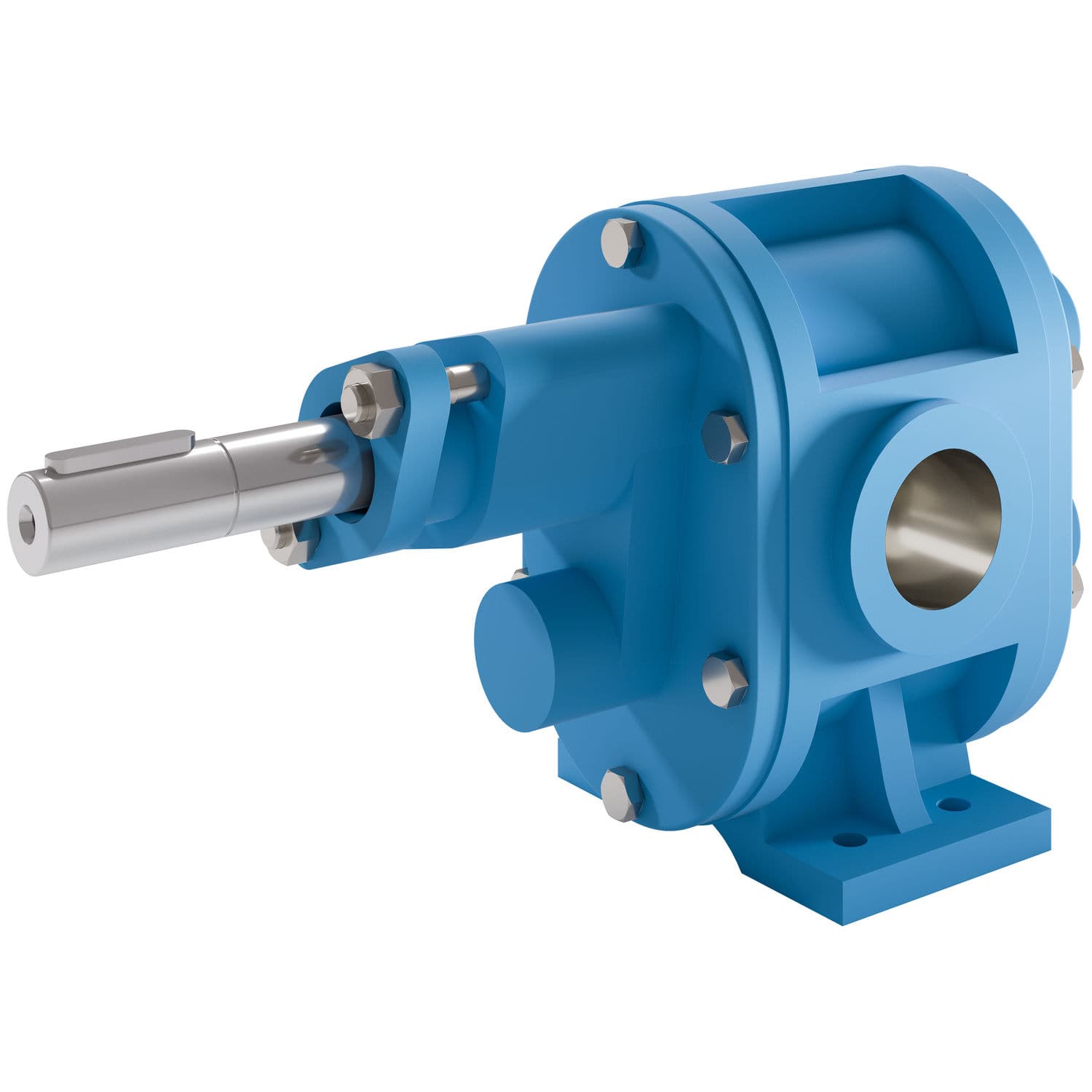

BTH 1/55 ✓ verified

Application

Marine heated transfer pump for bitumen, wax

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BTH 1/105 ✓ verified

Application

Marine heated transfer pump for bitumen, wax

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BTH 2/100 ✓ verified

Application

Marine heated transfer pump for bitumen, wax

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BTH 2/130 ✓ verified

Application

Marine heated transfer pump for bitumen, wax

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

BTH 3/150 ✓ verified

Application

Marine heated transfer pump for bitumen, wax

Common Failures & Inspection Points

Area: Bearing wear and tooth profile degradation affecting CPP reliability
Check: Visual inspection of journal bearings, bearing bushes, and gear tooth surfaces for scoring, pitting, and wear patterns. Measure clearances with dial indicators.
Area: Seal leakage compromising marine hydraulic system integrity
Check: Hydrostatic test at 1.5x operating pressure to detect O-ring and shaft seal degradation. Check for oil seepage at all wetted interfaces.
Area: Pressure regulation failure under marine duty cycle (peak transients from propeller operation)
Check: Pressure relief valve bench-test at rated displacement and validate against nameplate maximum pressure specifications for the KP/KF series.
Area: Thermal degradation of hydraulic oil at sustained operating temperatures
Check: Measure viscosity stability at 40°C and 100°C per ISO 3055 using samples from circulation tests. Verify oil type meets DIN 51524 Part 2/3.
Area: Acoustic and vibration emissions exceeding ship noise regulations (IMO MARPOL Annex VI)
Check: Run pump at rated displacement and speed, measure sound pressure level at 1m and analyze vibration spectrum using accelerometers. Compare against marine noise class limits.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Bornemann

28 ✓ 28 verified

W Series (W 2.5 - W 10) ✓ verified

Application

Marine cargo loading/unloading, main engine lubrication, bilge water pumping, general industrial

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (seite leer): https://www.bornemann.com/products/w-v

Datasheet

V Series (V 3 - V 8) ✓ verified

Application

Marine compact applications, heavy fuel oil transfer, shipboard engine room

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (seite leer): https://www.bornemann.com/products/w-v

Datasheet

U Series ✓ verified

Application

Marine immersed pump applications, below-deck installations

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

T Series ✓ verified

Application

Marine submerged applications, deep tank installations

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HC Series (High Capacity) ✓ verified

Application

Marine cargo handling, general shipboard applications, high-flow requirements

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

VHC Series (Very High Capacity) ✓ verified

Application

Marine cargo, tank terminals, high-capacity shipboard applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

HP Series ✓ verified

Application

Marine high-pressure applications, main engine support systems

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (seite leer): https://www.bornemann.com/products/hp

Datasheet

MW Series ✓ verified

Application

Marine wastewater, bilge and ballast water handling

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

EH Series (Eccentric Screw/Progressive Cavity) ✓ verified

Application

Marine bilge water, sludge pumping, heavy fuel oil delivery, viscous media

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

EL Series (Close-Coupled Progressive Cavity) ✓ verified

Application

Marine compact installations, direct motor coupling applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ER Series ✓ verified

Application

Marine aggressive/corrosive fluid applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ES Series ✓ verified

Application

Marine standard applications with standard seal options

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

EU Series ✓ verified

Application

Marine universal applications, flexible seal/material combinations

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

E2H Series (Progressive Cavity Enhanced) ✓ verified

Application

Marine sludge and heavy fluid applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

MPC Series (Multiphase Pump Compact) ✓ verified

Application

Marine oil/gas/water handling, offshore production support

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

MPC HC Series (Multiphase High Capacity) ✓ verified

Application

Marine high-capacity multiphase applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (seite leer): https://www.bornemann.com/products/mpc-hc

Datasheet

SL Series (Hygienic) ✓ verified

Application

Marine food/beverage, pharmaceutical-grade applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

SLH Series (Hygienic Premium) ✓ verified

Application

Marine food/pharmaceutical, gentle handling of soft solids and viscous products

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

SLC Series ✓ verified

Application

Marine hygienic applications with specific seal configurations

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

SLM Series ✓ verified

Application

Marine hygienic modular applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

SLU Series ✓ verified

Application

Marine hygienic universal applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

SLA Series ✓ verified

Application

Marine hygienic acid-resistant applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

SLI Series ✓ verified

Application

Marine hygienic compact/immersed applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

MSL Series ✓ verified

Application

Marine modular screw pump line applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (seite leer): https://www.bornemann.com/products/msl

Datasheet

SLW Series (Single Volute) ✓ verified

Application

Marine hermetically sealed applications with reduced rotating shaft seals

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (seite leer): https://www.bornemann.com/products/twin-screw

Datasheet

Z Series ✓ verified

Application

Marine seawater and harsh fluid applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

K Series ✓ verified

Application

Marine seawater and corrosive applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

R Series ✓ verified

Application

Marine refined/specialty applications

Common Failures & Inspection Points

Area: Mechanical seal leakage or stuffing box packing deterioration leading to fluid loss and environmental contamination
Check: Weekly visual inspection of stuffing box packing, shaft seal rings, and mechanical seals for signs of leakage, discoloration, or wear patterns. Check for weeping around seal area and verify proper packing tension.
Area: Bearing wear and premature failure due to inadequate lubrication or contaminated lubricant
Check: Roller bearing condition assessment every 800 operating hours minimum. Check grease quantity and condition, listen for abnormal noise (rumbling indicates wear), and perform visual inspection of bearing temperature and housing integrity.
Area: Cavitation damage to pump screws and housing from inadequate suction pressure or high fluid velocity in suction line
Check: Monitor suction line pressure, filter condition, and flow velocity. Inspect pump casing interior for pitting or erosion marks. Listen for cavitation noise (gravel-like sound). Verify suction line diameter is adequate and free of restrictions.
Area: Oil contamination and viscosity degradation affecting external bearing lubrication and gear engagement
Check: Oil level and condition check weekly. Renew vent filter yearly and perform complete oil change every 3,000 operating hours. Verify oil type matches specification and check for water/fuel contamination via oil analysis sampling.
Area: Screw/rotor contact due to wear or bearing failure causing catastrophic pump damage and seizure
Check: Monitor vibration levels and operating noise for changes indicating bearing degradation. Inspect timing gear engagement clearance. Verify external bearing lubrication system operation. Check for any particles in discharge or bearing compartment via drain sampling.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

Viking Pump

24 ✓ 24 verified

32 Series ✓ verified

Application

Light, medium and intermittent service - fuel oil, lube oil, cargo transfer

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

224A Series ✓ verified

Application

Heavy fuel oil, waxes, rubber solutions - jacketed for heating

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

432 Series ✓ verified

Application

Fuel oils, glycols, lube oils - general purpose

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

124A Series ✓ verified

Application

Heavy-duty internal gear pump - continuous duty marine applications

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

4124A Series ✓ verified

Application

Heavy-duty universal seal - petrochemicals, oils

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

4224A Series ✓ verified

Application

Heavy fuel oil, waxes, jacketed - marine fuel transfer

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

8123A Series ✓ verified

Application

Sealless mag drive - hazardous petrochemicals containment

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

8124A Series ✓ verified

Application

Sealless mag drive - petrochemicals, isocyanates

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

34 Series ✓ verified

Application

Asphalt, bitumen, tar - jacketed heating pump

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

75 Series ✓ verified

Application

Filtering, circulating, lubricating

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

127A Series ✓ verified

Application

Stainless steel heavy-duty - acids, caustics, seawater

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

227A Series ✓ verified

Application

Stainless steel heavy-duty - jacketed, marine fluids

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

327A Series ✓ verified

Application

Stainless steel ultra-heavy-duty - marine cargo, ballast

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

4127A Series ✓ verified

Application

Stainless steel universal seal - acids, caustics, marine

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

4227A Series ✓ verified

Application

Stainless steel jacketed - marine heavy fuel transfer

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

4227C Series ✓ verified

Application

Stainless steel modular universal - marine applications

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

GB-410 Series ✓ verified

Application

External gear pump - oil/gas processing, natural gas dehydration

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

GB-414 Series ✓ verified

210 GPM

Application

External gear pump - pipeline injection, condensate transfer

Pressure (bar)

103

Temp min (°C)

-17

Temp max (°C)

177

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

SG Series ✓ verified

190 GPM (719 LPM)

Application

External spur gear pump - pipeline injection, oil polishing

Pressure max (bar)

Temp min (°C)

-40

Temp max (°C)

230

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

SG-414 Series ✓ verified

Application

External spur gear - pipeline applications

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

RTP Series ✓ verified

Application

Hygienic road tanker - FDA compliant, 3-A certified

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

RTPe Series ✓ verified

Application

Chemical tanker pumps - caustics, fertilizers, corrosives

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

RTPg Series ✓ verified

Application

Tanker pump - cost-effective cast iron alternative

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

STERILOBE Series ✓ verified

Application

Hygienic rotary lobe pump - pharmaceuticals, foods, beverages

Common Failures & Inspection Points

Area: Druckprüfung (Hydrostatic Pressure Test) - Verifizierung der Dichtheitsgrenzwerte
Check: All pumps must undergo factory pressure testing at manufacture (typically 1.5x operating pressure). Documentation of these tests is required.
Area: Wear surfaces and internal gearing – inspection for wear/wear marks
Check: Inspection for scratches, pitting, or play in the internal tooth flanks and bearing surfaces. Tooth flank play should be within specification limits. This is critical for long service life and leak control.
Area: Sealing and shaft penetration – inspection for signs of leakage and wear
Check: Visual inspection of shaft seal (Packing Seal or Mechanical Seal depending on model). Inspection for oil/fluid leakage traces or damage. Particularly critical for sealless mag-drive models (8123A/8124A).
Area: Vibration and noise testing (operational testing)
Check: Test pump under typical operating conditions (rated pressure, rated speed). Abnormal vibrations or noises indicate internal damage or unbalanced impellers.
Area: Material compatibility and corrosion testing (seawater/saltwater environment)
Check: For marine applications: stainless steel models (127A/227A/327A/4227C) inspect for surface corrosion or stress corrosion cracking. Cast iron models require protective coating inspection.

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

IMO

17 ✓ 17 verified

ACF 090K5 ✓ verified

Application

Marine fuel oil transfer, lubrication

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ACF 110L5 ✓ verified

Application

Marine fuel oil transfer, lubrication

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

LPQ 125L1 ✓ verified

Application

Marine fuel oil, lubrication systems

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

3E Series (10 sizes: 87P-200) ✓ verified

Application

Marine fuel oil transfer, burner service

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

3D Series (12+ sizes: 106-400) ✓ verified

Application

Marine lubrication, fuel transport, low-pressure hydraulic

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

3G Series (9 sizes: 095-162) ✓ verified

Application

Marine general purpose, fuel oil service

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

6D Series (13 sizes: 106-400) ✓ verified

Application

Marine fuel oil burners, pipeline service

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

12D Series (11 sizes: 106-400P) ✓ verified

Application

Marine high-pressure hydraulic, fuel service

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

413R ✓ verified

Application

Navy/Marine combat ship fuel oil transfer, boost, stripping, burner

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://www.circor.com/products/pumps/three-screw/imo-navy-marine-pump-model-413r

Datasheet

413IC ✓ verified

Application

Vertical submersible barge/tank unloading

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ABF Series (6 sizes: 080-140) ✓ verified

Application

Marine low-pressure fuel oil, lubrication

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ABQ Series (6 sizes: 100-180) ✓ verified

Application

Marine low-pressure fuel oil, lubrication

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://www.imo.se/docs/pdf/spares/obsolete/ABQ%20(size%20100-140

Datasheet

ACE Series (3 sizes: 025-038) ✓ verified

Application

Marine low-pressure systems

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 406): https://www.imo.se/low-pressure-pumps.php

Datasheet

ACG Series (4 sizes: 045-070) ✓ verified

Application

Marine low-pressure, optional magnetic coupling

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 406): https://www.imo.se/low-pressure-pumps.php

Datasheet

LPQ Series (4 sizes: 100-140) ✓ verified

Application

Marine fuel oil, hydraulic oil, lubrication

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ACD 025 ✓ verified

Application

Marine low-pressure systems

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 406): https://www.imo.se/low-pressure-pumps.php

Datasheet

LPD Series (2 sizes: 015-020) ✓ verified

Application

Marine low-pressure lubrication, fuel systems

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 406): https://www.imo.se/low-pressure-pumps.php

Datasheet

Marzocchi Pompe

16 ✓ 16 verified

ALP1 Series ✓ verified

Application

Marine hydraulic systems, ship propulsion

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ALP2 Series ✓ verified

Application

Marine hydraulic systems, industrial marine

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://www.marzocchipompe.com/sites/default/files/public-downloads/SERIE-ALP-GHP-MARZOCCHI-POMPE.pdf

Datasheet

ALP3 Series ✓ verified

Application

Marine gear systems, ship hydraulics

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://www.marzocchipompe.com/sites/default/files/public-downloads/SERIE-ALP-GHP-MARZOCCHI-POMPE.pdf

Datasheet

ALP4 Series ✓ verified

Application

Large marine hydraulic applications

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

GHP1 Series ✓ verified

Application

High-pressure marine applications, cast iron flange

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://www.marzocchipompe.com/sites/default/files/public-downloads/SERIE-ALP-GHP-MARZOCCHI-POMPE.pdf

Datasheet

GHP2 Series ✓ verified

Application

Industrial marine pressure systems

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://www.marzocchipompe.com/sites/default/files/public-downloads/SERIE-ALP-GHP-MARZOCCHI-POMPE.pdf

Datasheet

GHP3 Series ✓ verified

Application

Marine high-pressure hydraulic systems

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

[08.08.2026] Datenblattlink entfernt (fehler 404): https://www.marzocchipompe.com/sites/default/files/public-downloads/SERIE-ALP-GHP-MARZOCCHI-POMPE.pdf

Datasheet

1P Series ✓ verified

Application

Marine generators, power pack applications

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

K1P Series ✓ verified

Application

Reversible marine pump systems

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ELIKA ELI2 Series ✓ verified

Application

Low-noise marine systems, naval applications

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ELIKA ELI3 Series ✓ verified

Application

Naval shipbuilding, marine noise-critical systems

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

ELIKA ELI4 Series ✓ verified

Application

Large marine vessels, offshore noise control

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

FCIP2 Series ✓ verified

Application

Full cast iron marine gear pumps, high durability

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

FCIP3 Series ✓ verified

Application

Marine cast iron hydraulics, offshore applications

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

FCIM2 Series ✓ verified

Application

Full cast iron marine gear motors

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

FCIM3 Series ✓ verified

Application

Large marine motor systems, offshore

Common Failures & Inspection Points

Area: Cavitation damage and erosion in pump body
Check: Listen for abnormal gravel-like noise and high-pitched whining during operation; inspect gear tooth surfaces and bore walls for erosion pitting under borescope
Area: Seal degradation and external leakage
Check: Visually inspect shaft seal condition for cracks/wear; measure gland drip rate (should be steady drip, not continuous); perform pressure test at rated bar to verify seal integrity
Area: Internal wear and metallic particulate contamination
Check: Perform oil sample analysis for iron, copper, and tin content via ICP/ferrography; verify fluid viscosity and oxidation resistance; measure suction/discharge pressures against baseline
Area: Fluid temperature excursion and thermal degradation
Check: Monitor fluid inlet temperature continuously (must remain -10 to +80°C for standard; -20 to +110°C for Viton variants); verify 0.7-3 bar absolute inlet pressure is maintained
Area: Shaft misalignment and coupling failure
Check: Verify flexible coupling alignment using straightedge or laser tool (no radial/axial force transmission allowed); inspect coupling wear and assess vibration signature at operating RPM relative to displacement class

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

IMO/Colfax

8 ✓ 8 verified

CIG 2×005 ✓ verified

Application

Fluid power, aircraft fuel test stands

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CIG 3×010 ✓ verified

Application

Fluid power, aircraft fuel test stands

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CIG 3×016 ✓ verified

Application

Fluid power, aircraft fuel test stands

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CIG 4×020 ✓ verified

Application

Fluid power, aircraft fuel test stands

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CIG 4×032 ✓ verified

Application

Fluid power, aircraft fuel test stands

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CIG 5×050 ✓ verified

Application

Fluid power, aircraft fuel test stands

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CIG 6×100 ✓ verified

Application

Fluid power, aircraft fuel test stands

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

CIG 8×200 ✓ verified

Application

Fluid power, aircraft fuel test stands

Common Failures & Inspection Points

Area: Relief valve malfunction or drift
Check: Verify pressure relief valve opens at or above minimum threshold (minimum 10.3 bar/150 PSI per DNV rules) under load; test response time and set point stability with pressure gauge
Area: Mechanical seal leakage or wear
Check: Inspect shaft seal condition (Carbon/Silicon Carbide or Silicon Carbide types per model); verify no visible oil weeping at bearing or seal interface; measure seal face runout; replace if wear grooves exceed manufacturer limits
Area: Cavitation damage and corrosion pitting
Check: Visual inspection of pump casing interior and rotor surfaces for pitting, erosion, or stress corrosion cracking; measure casing wall thickness if previous damage suspected; check rotor hardness (alloy steel nitride hardened per 3D/6D/12D specs)
Area: Excessive vibration or noise (>65-84 dB per model)
Check: Measure inlet/discharge pressure differential; verify rotor-to-casing clearances; check bearing preload and alignment; test operating noise at rated speed; assess pump mounting (foot vs. flange) and foundation rigidity
Area: Fluid incompatibility or viscosity excursion
Check: Confirm operating fluid viscosity within range (2-3800 mm²/s for ACF; 2-5000 cSt with approval for LPQ); verify temperature does not exceed limits (90°C ACF, 130°C ACE); check for deposits or sludge formation in pump case

Typ-universelle Inspektionspunkte fuer Pumps (verifiziert, 2026-06).

Manufacturer Datasheet

Datasheet

DESMI

DESMI ROTAN HD Series unverified

Model Family

ROTAN HD

Pump Type

gear

Application

fuel

Datasheet

DESMI ROTAN HD 1-6 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 1-10 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 1-16 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 3-6 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 3-10 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 3-16 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 5-6 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 5-10 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 5-16 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 10-6 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 10-10 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 10-16 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 25-6 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 25-10 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 25-16 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 50-6 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 50-10 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN HD 50-16 unverified

Model Family

ROTAN HD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN ED Series unverified

Model Family

ROTAN ED

Pump Type

gear

Application

lube

Datasheet

DESMI ROTAN ED 1-6 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 1-10 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 1-16 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 3-6 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 3-10 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 3-16 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 5-6 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 5-10 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 5-16 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 10-6 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 10-10 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 10-16 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 25-6 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 25-10 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN ED 25-16 unverified

Model Family

ROTAN ED

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

DESMI ROTAN PD Series unverified

Model Family

ROTAN PD

Pump Type

gear

Application

fuel

Datasheet

DESMI ROTAN PD 5-6 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 5-10 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 5-16 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 10-6 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 10-10 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 10-16 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 25-6 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 25-10 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 25-16 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 50-6 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 50-10 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 50-16 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 100-6 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

100

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 100-10 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

100

Pressure (bar)

Application

fuel

Datasheet

DESMI ROTAN PD 100-16 unverified

Model Family

ROTAN PD

Pump Type

gear

Flow Rate (m³/h)

100

Pressure (bar)

Application

fuel

Datasheet

Speck Pumpen

Speck VG Series unverified

Model Family

Pump Type

gear

Application

fuel

Datasheet

Speck VG 1-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 1-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 1-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 3-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 3-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 3-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 5-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 5-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 5-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 10-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 10-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 10-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 25-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 25-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck VG 25-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

fuel

Datasheet

Speck NP Series unverified

Model Family

Pump Type

gear

Application

lube

Datasheet

Speck NP 1-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 1-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 1-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 3-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 3-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 3-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 5-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 5-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 5-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 10-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 10-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 10-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 25-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 25-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 25-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 50-4 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 50-8 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet

Speck NP 50-12 unverified

Model Family

Pump Type

gear

Flow Rate (m³/h)

Pressure (bar)

Application

lube

Datasheet
