Library› Deck› Paint & Coating Systems› Epoxy Primer› PPG / Sigma SigmaShield 880
PPG / Sigma

SigmaShield 880

Epoxy Primer · Paint & Coating Systems

Class-certified type (DNV register) · technical data sheet not yet verified

PPG / Sigma SigmaShield 880 — Paint & Coating Systems. As an Epoxy Primer, it is normally installed on the hull, ballast or cargo tank, deck, pipework or structural surface identified by the listed coating type. In that role, its primary purpose is to protect steel or other substrates against corrosion, fouling, cargo attack, heat or fire exposure as applicable. Antifouling, epoxy, ballast-tank, cargo-tank, fire-retardant and shop-primer systems have different surface-preparation and overcoating requirements, so products must not be interchanged without documentation. For exact ratings, dimensions, settings, capacities, materials and variant-specific limits, refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Mass density1.5 kg/l
Air spray nozzle pressure0.2 - 0.4 MPa
Airless spray nozzle pressure15.0 MPa
Product LineSigmaShield
Coating Typeepoxy
Application Methodairless spray
Dft (µm)200
Voc (g/l)175
Overcoating Interval (h)10
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

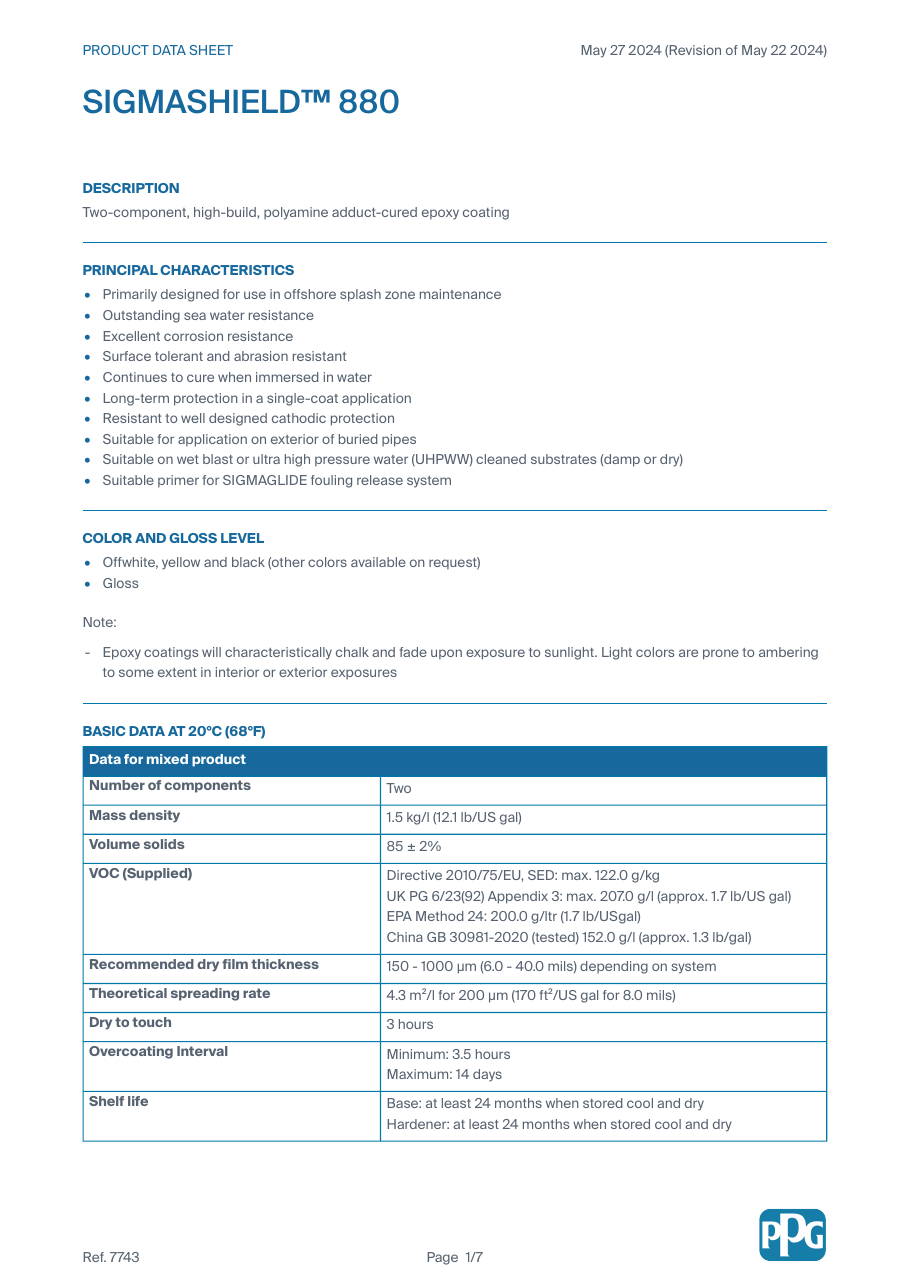

SIGMASHIELD™ 880 is a two-component, high-build, polyamine adduct-cured epoxy coating. It is designed for use in offshore splash zones and offers excellent sea water resistance and corrosion protection.

Applications

  • offshore splash zone maintenance

Features

  • Outstanding sea water resistance
  • Excellent corrosion resistance
  • Surface tolerant and abrasion resistant
  • Continues to cure when immersed in water
  • Long-term protection in a single-coat application
  • Resistant to well designed cathodic protection
  • Suitable for application on exterior of buried pipes

Options

  • Suitable primer for SIGMAGLIDE fouling release system
PPG / Sigma SigmaShield 880 – Photo (34a2d303a4ee_S1-5 S. 1)
Photo · 34a2d303a4ee_S1-5 · S. 1
PPG / Sigma SigmaShield 880 – Photo (34a2d303a4ee_S1-5 S. 1)
Photo · 34a2d303a4ee_S1-5 · S. 1

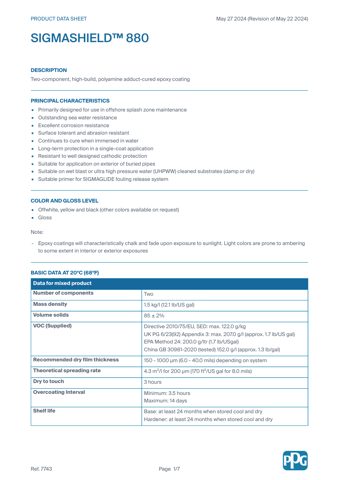

PPG / Sigma SigmaShield 880 – Drawing (34a2d303a4ee_S1-5 S. 1)
Drawing · 34a2d303a4ee_S1-5 · S. 1
PPG / Sigma SigmaShield 880 – Drawing (34a2d303a4ee_S1-5 S. 2)
Drawing · 34a2d303a4ee_S1-5 · S. 2
PPG / Sigma SigmaShield 880 – Drawing (34a2d303a4ee_S1-5 S. 3)
Drawing · 34a2d303a4ee_S1-5 · S. 3

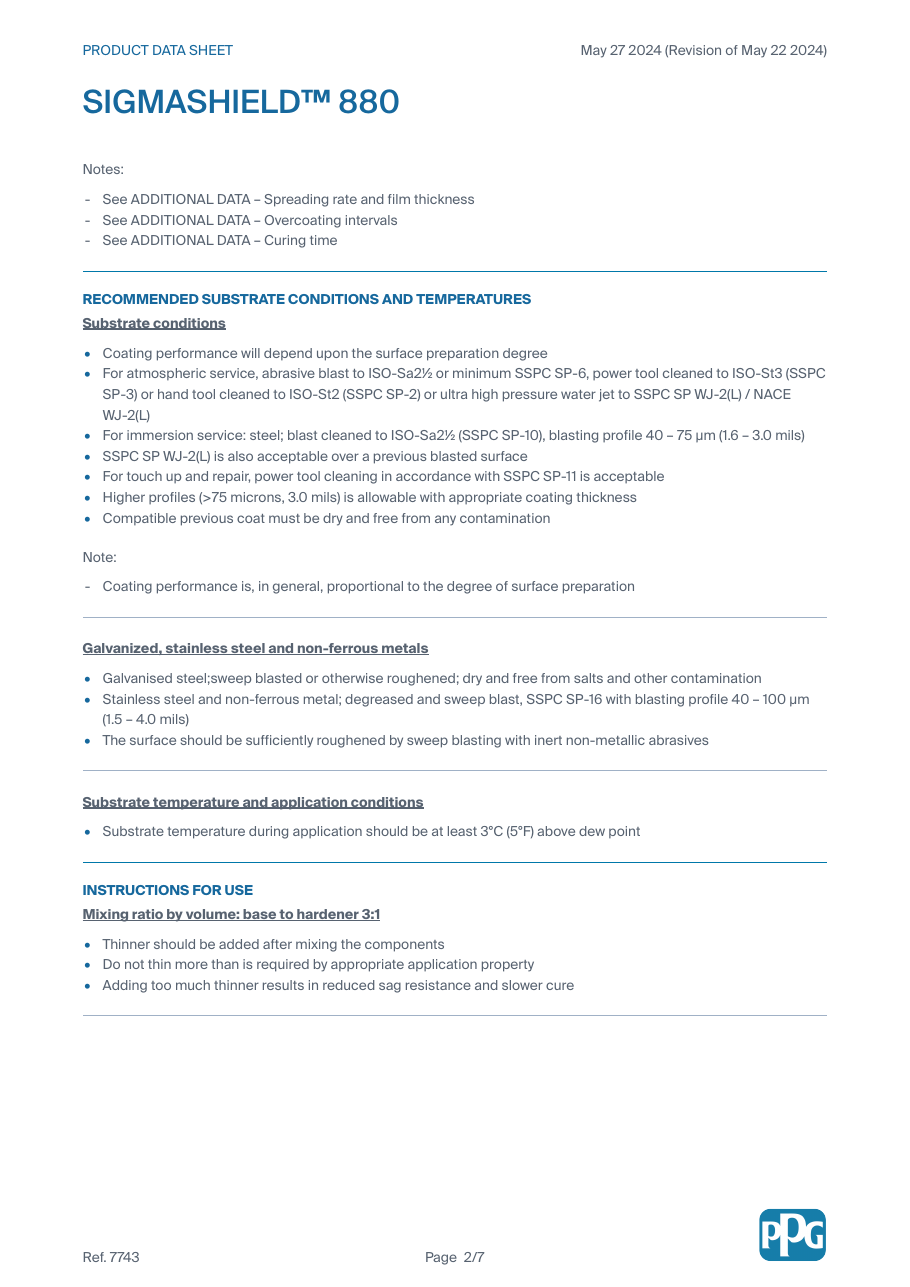

PPG / Sigma SigmaShield 880 – Page preview (34a2d303a4ee_S1-5 S. 4)
Page preview · 34a2d303a4ee_S1-5 · S. 4

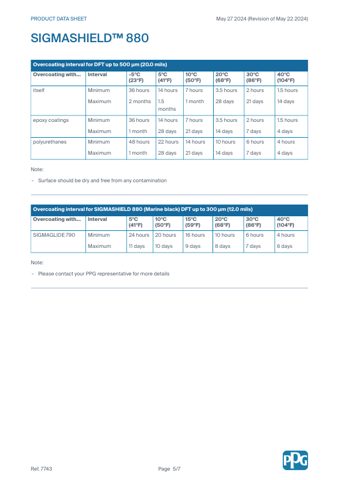

PPG / Sigma SigmaShield 880 – Page preview (34a2d303a4ee_S1-5 S. 5)
Page preview · 34a2d303a4ee_S1-5 · S. 5
Source: Sigma SigmaShield 880 datasheet, p. 1
Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Inspect coating continuity, adhesion, cracking, blistering, rusting and mechanical damage. Review surface preparation and application records where available and identify whether failures are local or systemic. Repair only with compatible products and approved preparation. Refer to the coating manufacturer's documentation for the exact figure for film thickness, mixing ratio, cure time and environmental limits.

Inspection

Common failures & inspection points

Spares

Replacement Parts

Spare parts notes

Keep compatible touch-up coating, approved thinner or cleaner, repair primers and application consumables in accordance with the vessel coating maintenance plan.
