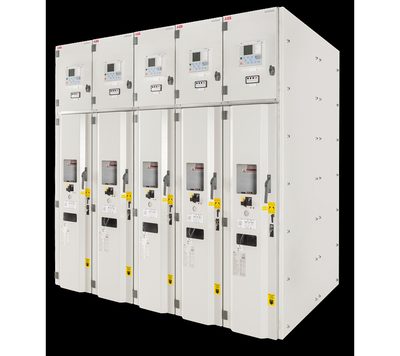

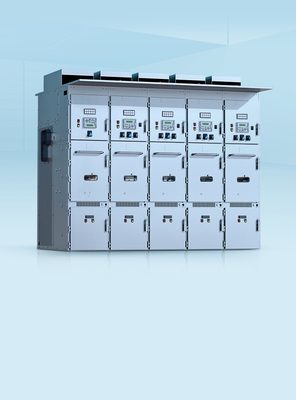

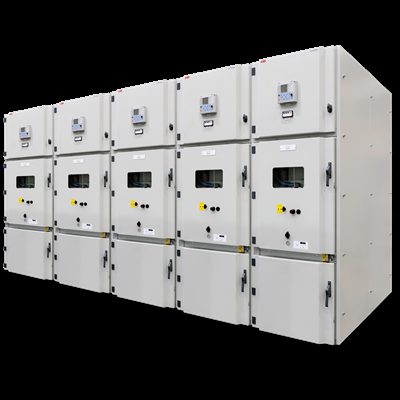

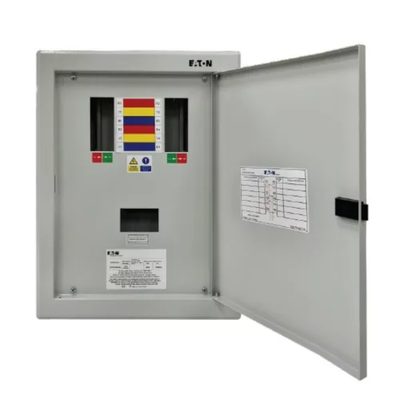

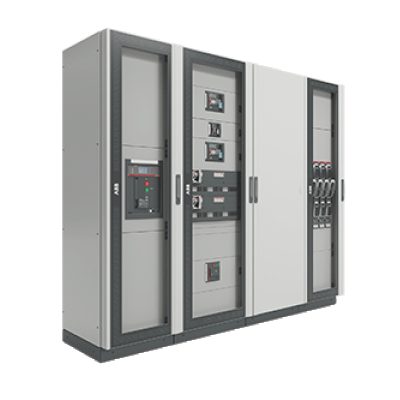

Emergency Switchboard (ESB)

What sets the emergency switchboard apart

The main switchboard distributes power from the ship's generators to everything running normally. The emergency switchboard (ESB) is a separate, physically isolated board that exists for one purpose: keep a legally defined list of safety-critical services alive if the main switchboard, main generators, or main source of power fail together. It is fed by a dedicated emergency generator located outside the main machinery space, and it normally also receives a feed from the main switchboard, so that under normal conditions the emergency loads simply run on main power while the emergency generator stays on standby.

The distinguishing design requirement is autonomy: the ESB and its generator must function even if the main machinery space floods, burns, or loses power entirely, and that drives where it is located, how it is fed, and how fast it must respond.

Main components

Emergency generator and prime mover

Almost always a diesel generator sized to carry the emergency load list, fitted with an independent starting system (dedicated air bottles or batteries, not shared with the main engine start system) and located above the waterline outside the main machinery casing.

Automatic bus transfer

Detects loss of the main switchboard feed, initiates automatic start of the emergency generator, and transfers the ESB bus from the main feed to the emergency generator once it has reached rated voltage and frequency.

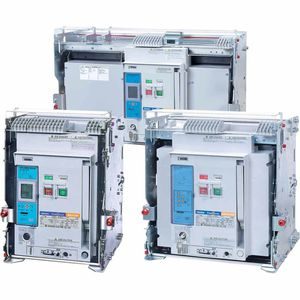

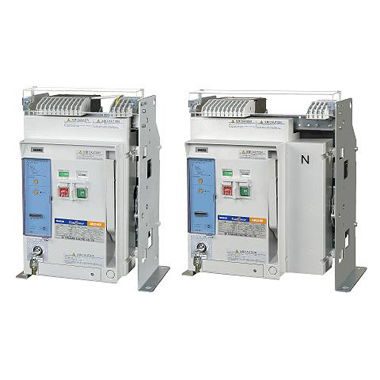

Busbars and feeder breakers

Feed the emergency loads directly: emergency lighting, steering gear control circuits, fire pumps, watertight door controls, navigation and communication equipment, and the emergency generator's own auxiliaries.

Transitional emergency source

A battery-fed transitional supply covers the gap, typically up to 45 seconds, between blackout and the emergency generator picking up load, keeping emergency lighting and critical alarms live without interruption.

Selection and sizing

• Load list: every consumer required on the emergency source must be identified and its running and starting current totalled, including inrush from the largest motor on the board.
• Autonomy time: fuel and starting air/battery capacity sized for the required running duration, commonly 18-36 hours depending on ship type.
• Start time: the generator must reach rated speed and be ready to take load within 45 seconds for most ship types, or a transitional source must cover the gap.
• Location and separation: outside the machinery space boundary and separated from it by fire-rated divisions, with cabling routed to avoid the main machinery space wherever practicable.

Regulations and class

SOLAS Ch. II-1, Part D sets the core requirements: what must sit on the emergency source, the maximum start time, autonomy duration by ship type, and physical separation from the main source of power. Class rules add detail on periodic testing, typically a monthly no-load start and a load test at survey, and on the automatic bus transfer logic. Passenger ships carry additional requirements in some cases, including a second emergency source.

Typical faults

What to look for in a supplier

• Type-tested automatic bus transfer equipment with documented transfer time and interlock logic.
• Generator set sized and load-tested against the actual emergency load list, not a generic package.
• Panel construction and cabling meeting the fire-rated segregation requirements for the space it will sit in.
• Clear documentation of the transitional battery source capacity against the vessel's actual start-up gap.

A monthly test that only runs the emergency generator on no load proves the engine starts, not that the switchboard will actually pick up and carry the emergency load; insist on a periodic load test, not just a start test.
