Air Compressor

critical 654 models total

Ships typically carry two distinct compressed air systems: high-pressure starting air, around 25-30 bar, for main engine starting, and low-pressure service air for control and workshop use - specifying one where the other is needed is a common buyer error.

Read more — Air Compressor explained ▾

What Defines a Marine Air Compressor

A marine air compressor generates the compressed air that starts diesel engines, actuates pneumatic control valves, and supplies general service and workshop use. Ships almost always carry two separate air systems built around different compressors: high-pressure starting air compressors, typically reciprocating multi-stage units producing 25-30 bar, and lower-pressure service air compressors around 7-10 bar for control air, tools and general service, often screw type. Confusing the two in specification is a real risk, since a screw compressor cannot deliver engine starting pressure, and a high-pressure reciprocating unit is oversized and inefficient for simple service air duty.

Two-stage air compressor arrangement — Air flow through a two-stage reciprocating compressor from the intake filter through the LP cylinder, intercooler, HP cylinder and aftercooler to the air receiver, with the receiver's safety valve, drain and outlet to the service or starting air line, mounted on a common crankcase.

Main components

Compression stage

Reciprocating compressors use two or three stages with intercooling to reach starting-air pressures efficiently and to limit discharge temperature; screw compressors compress in a single stage using meshing rotors and suit continuous lower-pressure service duty.

Intercoolers and aftercooler

Heat exchangers between stages, and after the final stage, cool the air to reduce its volume before storage and to condense out moisture before it reaches the receiver.

Air receiver

A pressure vessel storing compressed air to smooth demand peaks and, on starting air systems, to hold enough capacity for the required number of consecutive engine start attempts without the compressor running.

Safety and control devices

Safety relief valves, automatic drain traps for condensate, pressure switches for automatic start/stop, and on reciprocating machines, unloader valves that let the compressor start against no load.

Selection and sizing

Delivery pressure and capacity in free air delivery, matched to whether the duty is starting air, control air or general service
Air receiver volume, sized on starting air systems to guarantee class-required consecutive start attempts for the main engine without recharging
Number of compressors and redundancy, since class rules require at least two independent means of producing starting air
Duty cycle - continuous running service compressors favour screw types; intermittent high-pressure charging favours reciprocating units
Cooling method, air-cooled for smaller units, water-cooled for larger reciprocating compressors

Class and regulatory requirements

Classification society rules require at least two starting air compressors and two starting air receivers on vessels with reversible main engines, sized so the receivers together hold enough air for a specified minimum number of consecutive starts without recharging, split so the failure of one compressor or receiver does not remove the ability to start the engine. Air receivers, as pressure vessels, are subject to periodic internal and hydraulic pressure testing at class survey intervals, and safety relief valves are tested and set at each renewal. Automatic drain traps and low-point drains must be maintained, since accumulated condensate in a receiver both reduces effective volume and promotes internal corrosion.

Typical faults

Fault	Cause	Consequence
Excessive discharge temperature	Fouled intercooler or worn piston rings raising compression heat	Risk of lubricating oil vapour ignition inside the air system
Valve plate failure	Carbon buildup or fatigue on reciprocating compressor suction/discharge valves	Loss of capacity, in severe cases compressor damage from liquid slugging
Receiver corrosion	Condensate not drained regularly	Internal wall thinning, potential failure of a pressure vessel
Automatic drain trap blockage	Debris or scale jamming the trap mechanism	Water accumulates in the system, causing icing or corrosion downstream

What to look for in a supplier

Free air delivery figures verified at the actual discharge pressure specified, not at a lower reference pressure
Discharge temperature margins built in for tropical engine room ambient conditions
Availability of valve plate and piston ring spares, the most frequently replaced items on reciprocating units
Receiver design pressure and volume matched exactly to class starting-attempt requirements before ordering

Log discharge temperature on every starting air compressor at every watch, not just when an alarm sounds; a slow creep upward over weeks is almost always fouled intercoolers or worn rings developing long before the high-temperature trip ever activates.

Technical drawings & plates

Historical engineering archive — public domain sources, cited per plate. Principles shown remain valid; always consult the OEM manual for model-specific data.

Diagram of thin-plate air compressor valve.
Machinist's Mate 3, NAVPERS 10522, U.S. Navy (1958) — public domain

Air compressor pistons; (A) trunk type, and (B) differential type.
Machinist's Mate 3, NAVPERS 10522, U.S. Navy (1958) — public domain

Magnetic type unloader.
Machinist's Mate 3, NAVPERS 10522, U.S. Navy (1958) — public domain

Inspector Mode Show All 654 total

1 manufacturers · 1–100 of 654 models

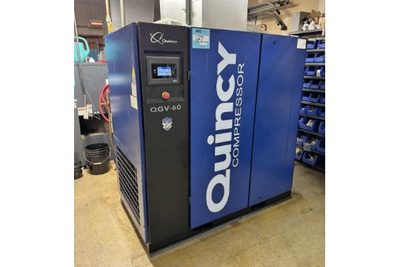

Quincy

100 ✓ 100 verified

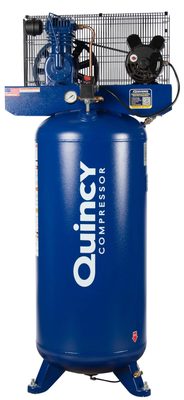

QR-25 210 ✓ verified

Application

Industrial/Marine Reciprocating Piston Compressor

Common Failures & Inspection Points

Area: Pressure Seal Integrity
Check: Inspect compressor head gaskets, piston rod seals and pressure port connections for visible oil leakage, weeping or corrosion; check pressure gauges for stability at rated PSI and measure actual discharge pressure vs. nameplate specification
Area: Lubrication System Performance
Check: Verify crankcase oil level (oil-type compressors only), check oil color/clarity for contamination, measure oil pressure relief valve function; inspect oil filter differential pressure indicator and verify proper oil type per nameplate
Area: Vibration and Structural Integrity
Check: Check all mounting bolts for tightness using torque wrench (per manual specifications); measure vibration levels on frame using vibration meter at specified measurement points; inspect frame welds and base for cracks or deformation
Area: Inlet and Discharge Filtration
Check: Verify intake filter element condition and differential pressure indicator (replace if colored/clogged); inspect discharge valve seats for fouling; measure intake air temperature and verify inter-cooler (two-stage models) operation at temperature setpoint
Area: Safety Device Function
Check: Test pressure relief valve by slowly increasing system pressure and verifying relief discharge at nameplate setpoint; verify unloader valve operation on multi-stage units; check emergency stop controls and verify alarm/shutdown circuits (marine duty models with IEEE-45 certification)

Typ-universelle Inspektionspunkte fuer Air Compressors (verifiziert, 2026-06).
