Davit-Launched Life Raft

medium 147 models total

A davit-launched life raft is lowered under power by a davit and boarded from the embarkation deck before it touches the water, unlike a throw-overboard raft that inflates in the sea and must be boarded by people already in the water or climbing down a ladder or chute.

Read more — Davit-Launched Life Raft explained ▾

What makes a davit-launched raft different

A standard throw-overboard life raft is thrown or lowered into the sea in its container, inflates on the painter line, and survivors board it from the water or via a ladder, which works but is slow and exposes people to the sea before they are safely aboard. A davit-launched raft instead hangs from a purpose-built davit, is inflated and lowered under control while still connected to the ship, and lets survivors board directly from the embarkation deck, then be lowered to the water already loaded, similar in principle to lifeboat launching but far lighter and faster to rig.

Davit-launched life raft arrangement — Side view at the ship's side showing the raft canister in its cradle on the davit arm, the wire falls to the davit head, the hydrostatic release unit and painter, and the embarkation deck below.

Main components

Raft container and canister

A rigid fibreglass container houses the folded raft, inflation system, and equipment pack, mounted at the davit head rather than in a standard stowage cradle.

Inflation system

A compressed CO2/nitrogen cylinder inflates the buoyancy chambers and canopy arch within roughly a minute of activation, with the raft designed to inflate and stabilise the right way up even in a seaway.

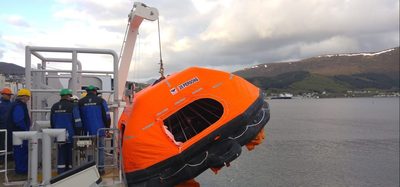

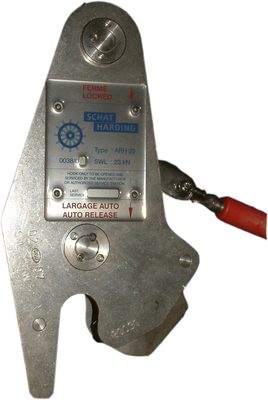

Lifting bridle and hook

A dedicated lifting bridle, separate from the painter line, connects the inflated raft to the davit hook so it can be raised and lowered under load with people aboard, distinct from a throw-overboard raft's simple painter arrangement.

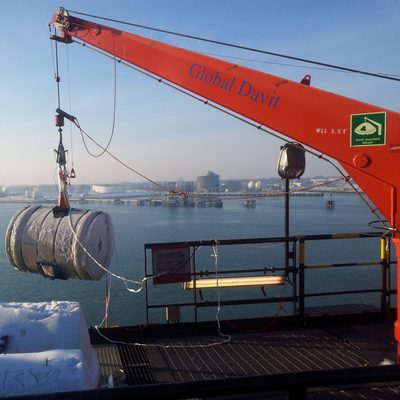

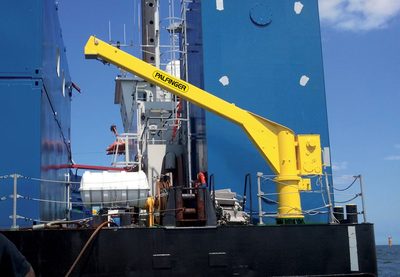

Davit and winch

A powered or manually backed-up davit lowers the loaded raft to the water and can recover it, and must include a means of quick release once waterborne, plus a secondary manual lowering method if power is lost.

Equipment pack

SOLAS-specified rations, water, flares, first aid, and a repair kit are packed inside, sized to the raft's certified capacity and sealed until an inspection or an actual launch.

Selection and sizing

Capacity (number of persons) must match the muster station's allocated complement with the vessel's approved arrangement, and davit safe working load must cover the raft's fully loaded weight plus dynamic loading during lowering, not just the static weight of raft and equipment. Ambient service temperature range of the inflation system and raft material matters for the trade the vessel actually operates in, since cold-water and cold-climate rated rafts use different inflation gas mixes and materials than warm-water standard rafts.

Regulations and class

SOLAS Ch. III and the LSA Code set construction, capacity, equipment pack contents, and launching time requirements for davit-launched life rafts, including a maximum time allowed from the order to launch to the raft being waterborne with its full complement.
Annual service by an approved life raft service station is required, plus a periodic (typically five-yearly) hydrostatic and full inflation system overhaul, with the interval and scope defined by the raft's approval certificate.
Davit load testing and function testing form part of the periodic survey, separate from the raft's own service, since a raft passing its annual service does nothing if the davit cannot lower it.

Typical faults

Fault	Consequence
Inflation cylinder pressure or hydrostatic release unit past its service life	Raft may fail to inflate fully or on time when launched, discovered only at the worst possible moment
Davit wire or winch brake corroded from lack of use	Lowering under load stalls or runs away, exactly the kind of fault a routine visual inspection without an actual load test will miss
Lifting bridle chafed or a shackle seized	Bridle fails or cannot be released once waterborne, trapping the raft against the ship's side
Equipment pack contents past expiry (flares, rations, batteries)	Survivors have a working raft but non-functional signalling or supplies once aboard

What to look for in a supplier

Approval certificate matching the exact davit and raft combination, since davit-launched rafts are approved as a system, not as interchangeable parts from different manufacturers.
Service station network reachable at the vessel's actual ports of call within the annual service window, since a raft overdue for service is a detention item.
Cold-water or tropical rating matched to the vessel's actual trading area, not a default specification.
Spare hydrostatic release units and painter lines in stock, since these are consumable safety items with fixed expiry dates rather than components that last the raft's full service life.

Treat the davit as part of the life raft, not a separate item; a raft that passes its annual service on a bench proves nothing about whether the davit that has to lower it under a full load will actually work on the day.

Inspector Mode Show All 147 total

15 manufacturers · 147 models

VIKING Life-Saving

33 ✓ 5 verified

12DKF+ ✓ verified

Application

Davit-launched life raft for commercial vessels, passenger ships and offshore assets

Common Failures & Inspection Points

Typ-universelle Inspektionspunkte fuer Life Rafts (verifiziert, 2026-06).

Davit-Launched Life Raft

What makes a davit-launched raft different

Main components

Raft container and canister

Inflation system

Lifting bridle and hook

Davit and winch

Equipment pack

Selection and sizing

Regulations and class

Typical faults

What to look for in a supplier

15 manufacturers · 147 models

VIKING Life-Saving

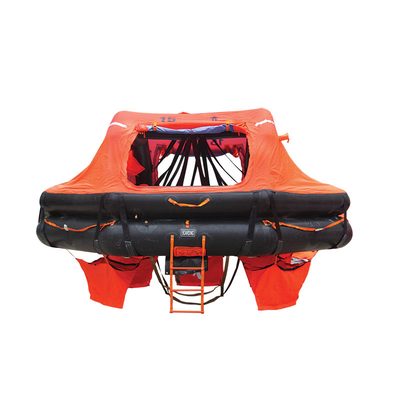

Revere Survival Inc.
