Library› Electrical› Motor Control› Motor Starter / Contactor› ABB Marine AF40-30-00-13
ABB Marine

AF40-30-00-13

Motor Starter / Contactor · Motor Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Control Voltage100-250 V 50/60 Hz and DC
Rated Current (AC-1)70 A
Rated Current (UL)60 A
Rated Current (AC-3)18.5 kW / 400 V AC
Rated Power (UL)30 hp / 480 V UL
Rated Voltage690 V IEC or 600 UL
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“The AF40-30-00-13 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 18.5 kW / 400 V AC (AC-3) or 30 hp / 480 V UL and switching power circuits up to 70 A…”

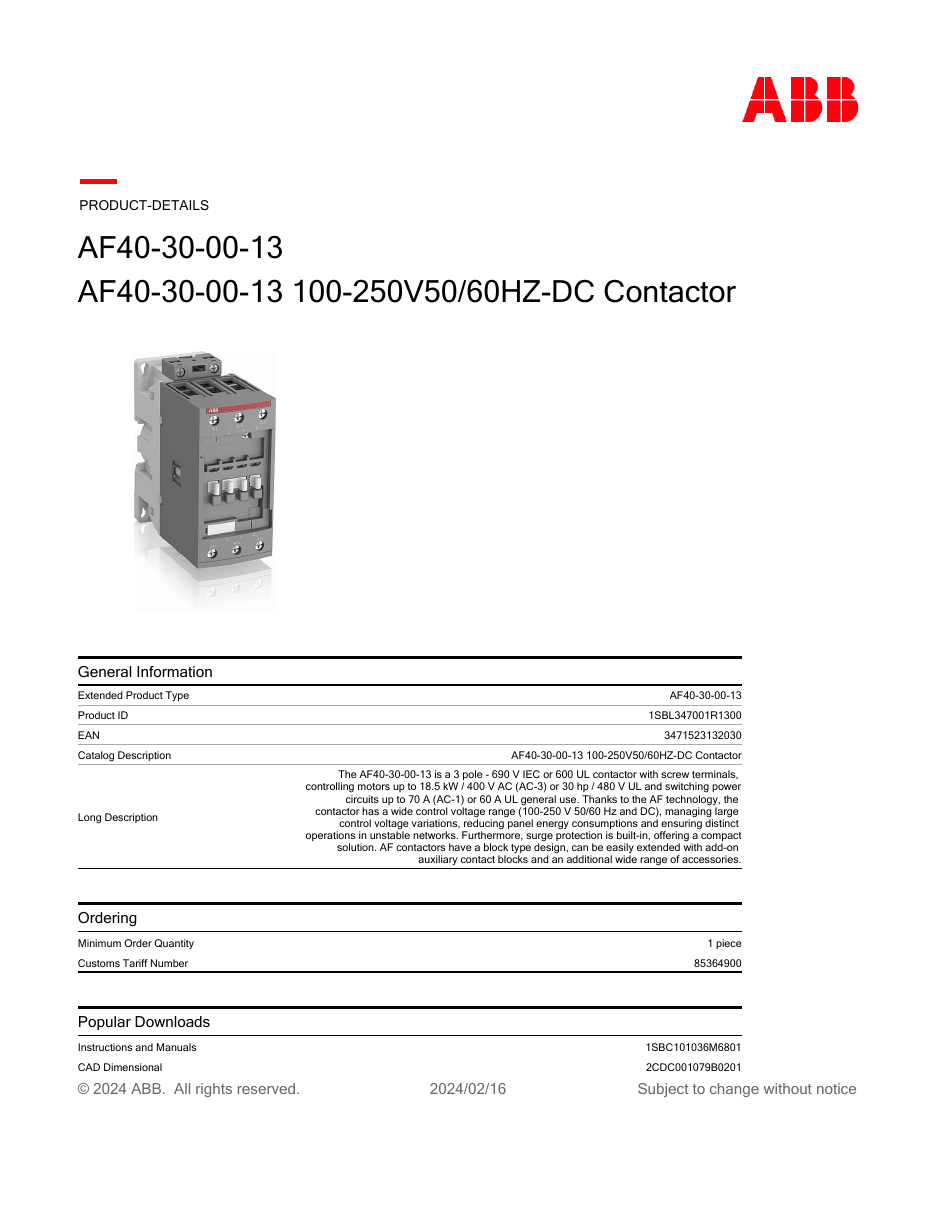

ABB Marine AF40-30-00-13 – Drawing (77a279ecacbd_S1-5 S. 1)
Drawing · 77a279ecacbd_S1-5 · S. 1

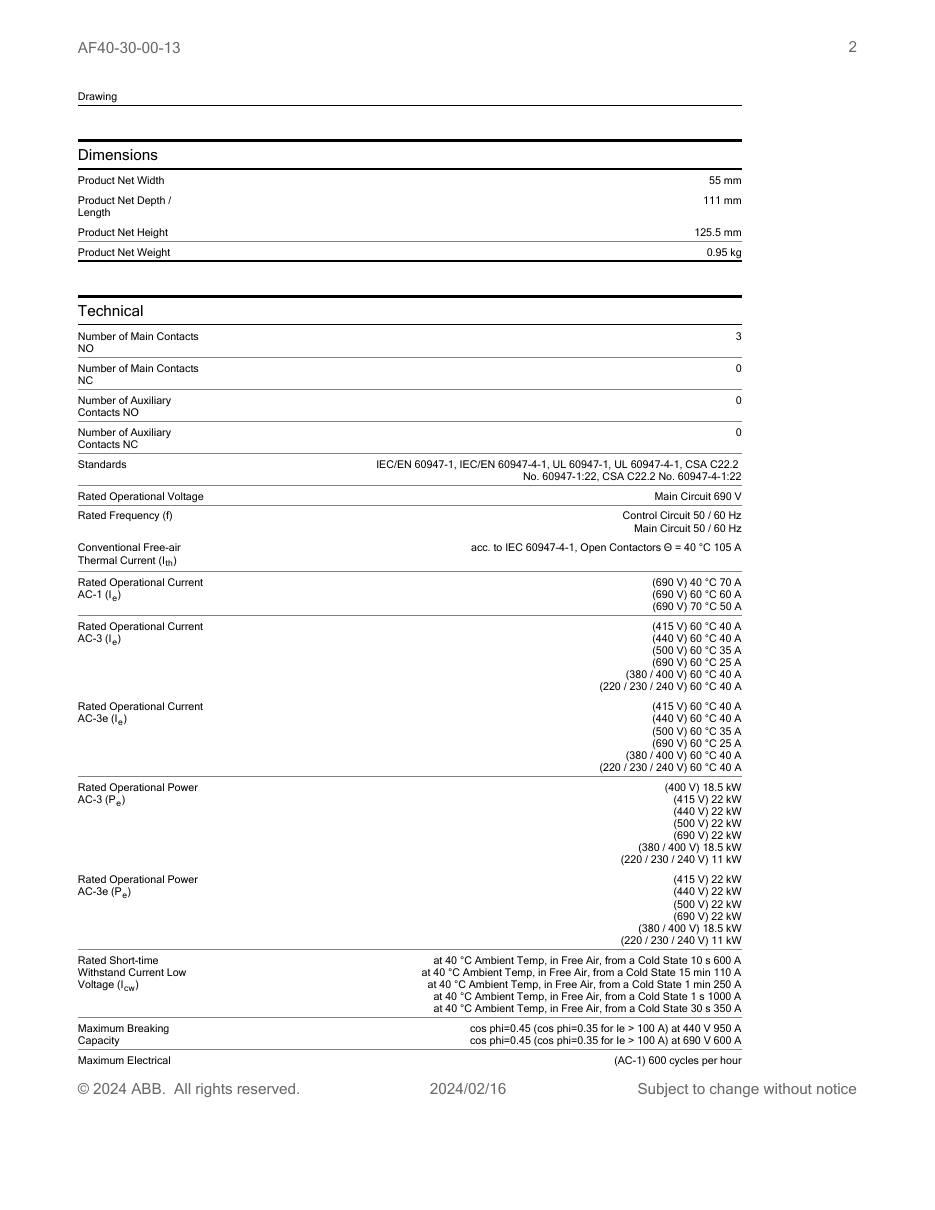

ABB Marine AF40-30-00-13 – Drawing (77a279ecacbd_S1-5 S. 2)
Drawing · 77a279ecacbd_S1-5 · S. 2

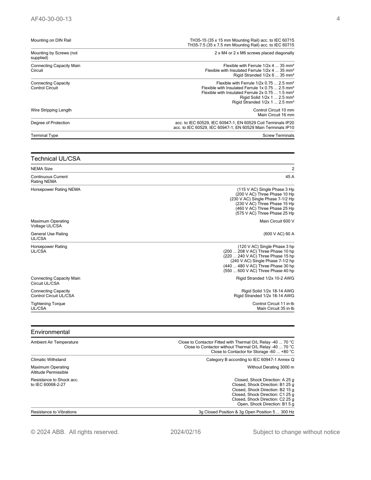

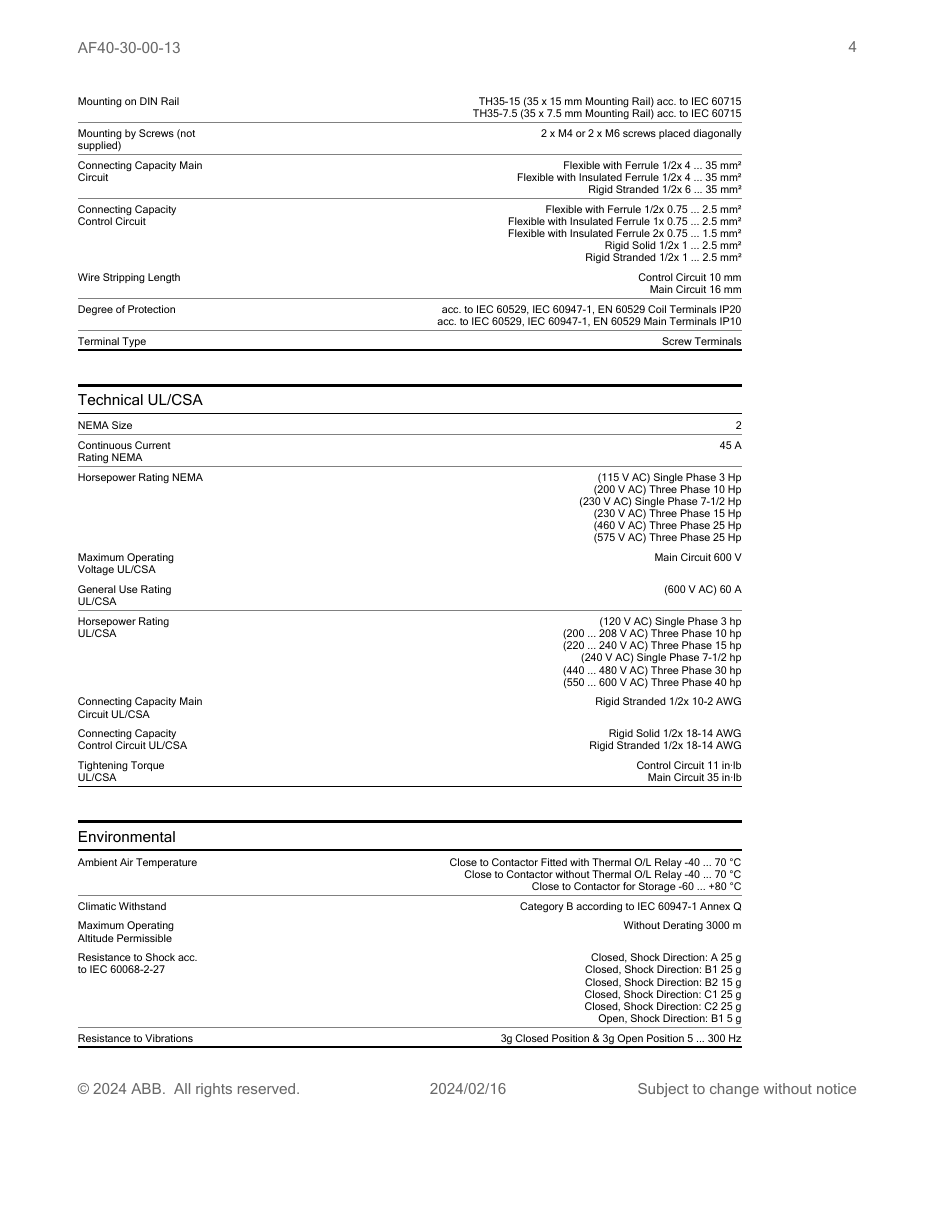

ABB Marine AF40-30-00-13 – Drawing (77a279ecacbd_S1-5 S. 4)
Drawing · 77a279ecacbd_S1-5 · S. 4

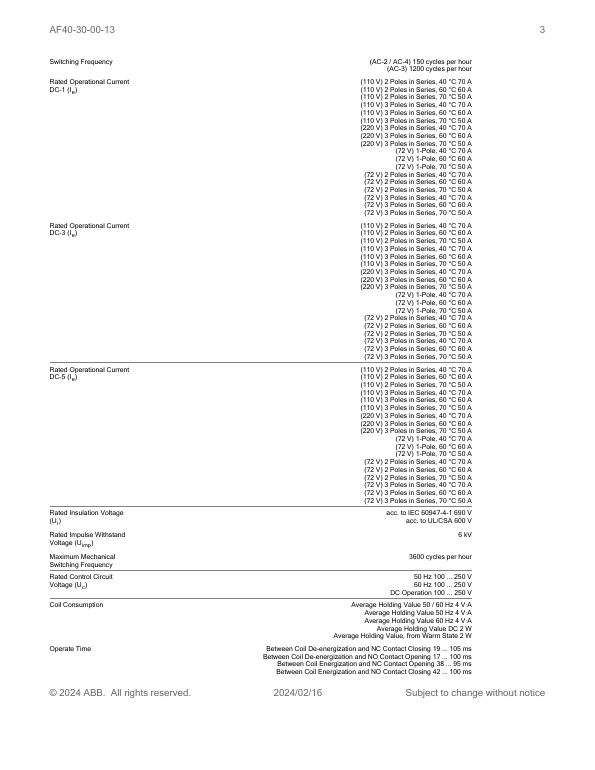

ABB Marine AF40-30-00-13 – Page preview (77a279ecacbd_S1-5 S. 3)
Page preview · 77a279ecacbd_S1-5 · S. 3

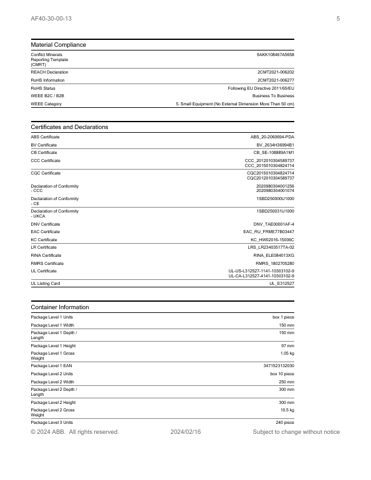

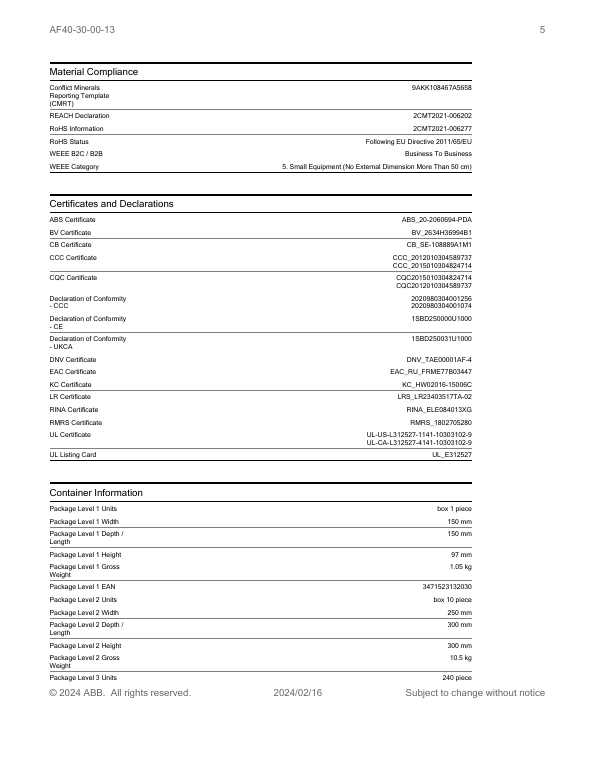

ABB Marine AF40-30-00-13 – Page preview (77a279ecacbd_S1-5 S. 5)
Page preview · 77a279ecacbd_S1-5 · S. 5
Source: ABB Marine AF40-30-00-13 datasheet, p. 1
