AF09

Motor Starter / Contactor · Motor Control

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Motor Starter / Contactor — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Coil operating limits - AC supply - at θ ≤ 60 °C0.85 x Uc min ... 1.1 x Uc max
Coil operating limits - AC supply - at θ ≤ 70 °C0.85 x Uc min ... Uc max
Coil operating limits - DC supply - at θ ≤ 60 °C0.85 x Uc min ... 1.1 x Uc max
Coil operating limits - DC supply - at θ ≤ 70 °C0.85 x Uc min ... Uc max - (AF..Z) 0.85 x Uc min ... 1.1 x Uc max
AC control voltage - Rated control circuit voltage Uc24 ... 500 V AC
AC control voltage - Coil consumption - Average pull-in value(AF) 50 VA - (AF..Z) 16 VA
AC control voltage - Coil consumption - Average holding value(AF) 2.2 VA / 2 W - (AF..Z) 1.7 VA / 1.5 W
DC control voltage - Rated control circuit voltage Uc12 ... 500 V DC
DC control voltage - Coil consumption - Average pull-in value(AF) 50 W - (AF..Z) 12 ... 16 W
DC control voltage - Coil consumption - Average holding value(AF) 2 W - (AF..Z) 1.7 W
PLC-Output control(AF..Z) ≥ 500 mA 24 V DC
Degree of protectionIP20
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Rated impulse withstand voltage Uimp Electromagnetic compatibility Ambient air temperature close to contactor Operation in free air Storage Climatic withstand Operating altitude Mechanical durability…”

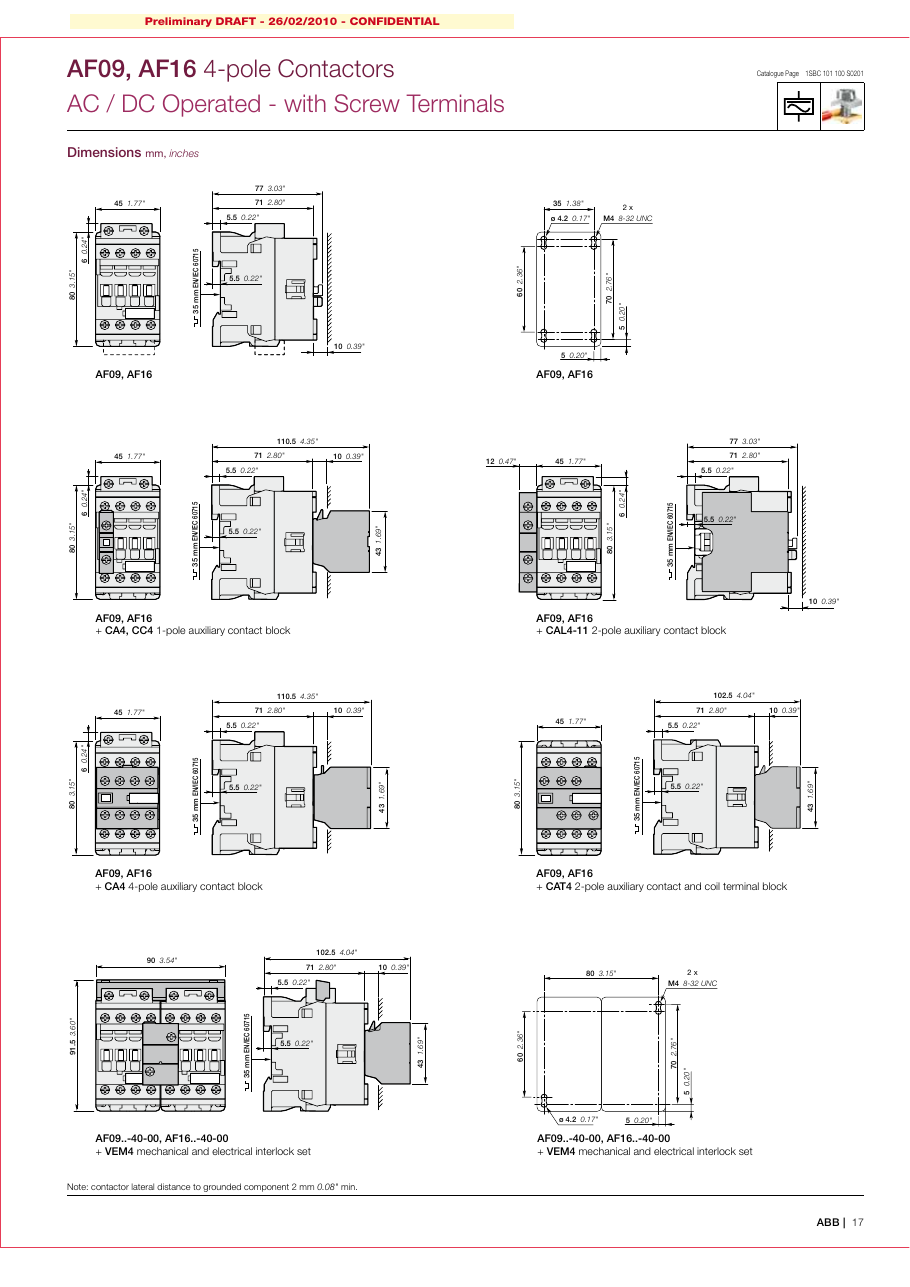

ABB Marine AF09 – Drawing (362f5c9b548a_S6-16 S. 7)
Drawing · 362f5c9b548a_S6-16 · S. 7
ABB Marine AF09 – Drawing (362f5c9b548a_S6-16 S. 8)
Drawing · 362f5c9b548a_S6-16 · S. 8

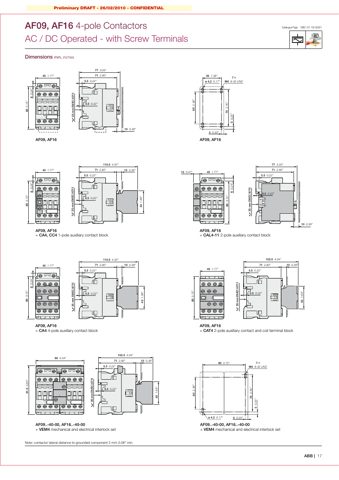

ABB Marine AF09 – Drawing (362f5c9b548a_S6-16 S. 11)
Drawing · 362f5c9b548a_S6-16 · S. 11

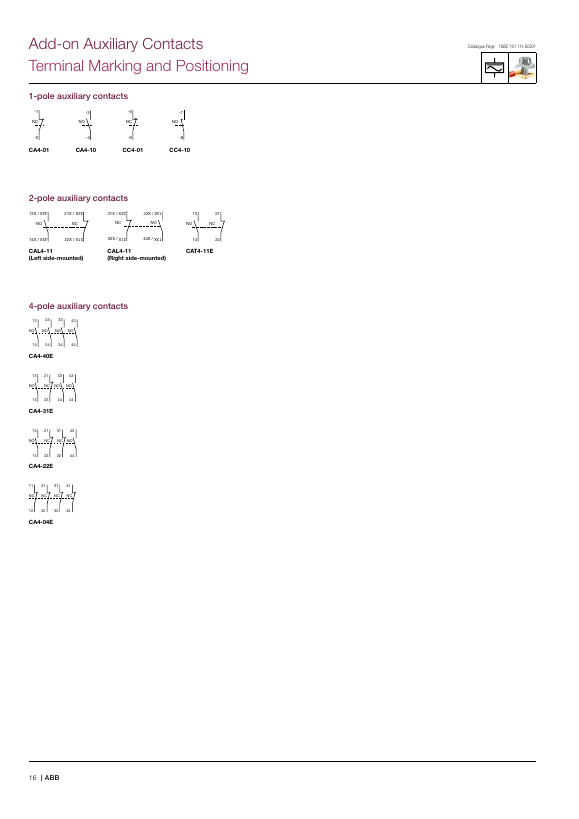

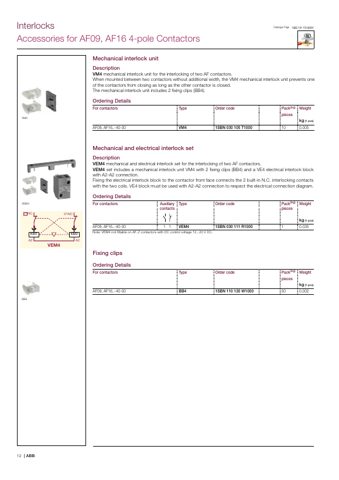

ABB Marine AF09 – Page preview (362f5c9b548a_S6-16 S. 6)
Page preview · 362f5c9b548a_S6-16 · S. 6

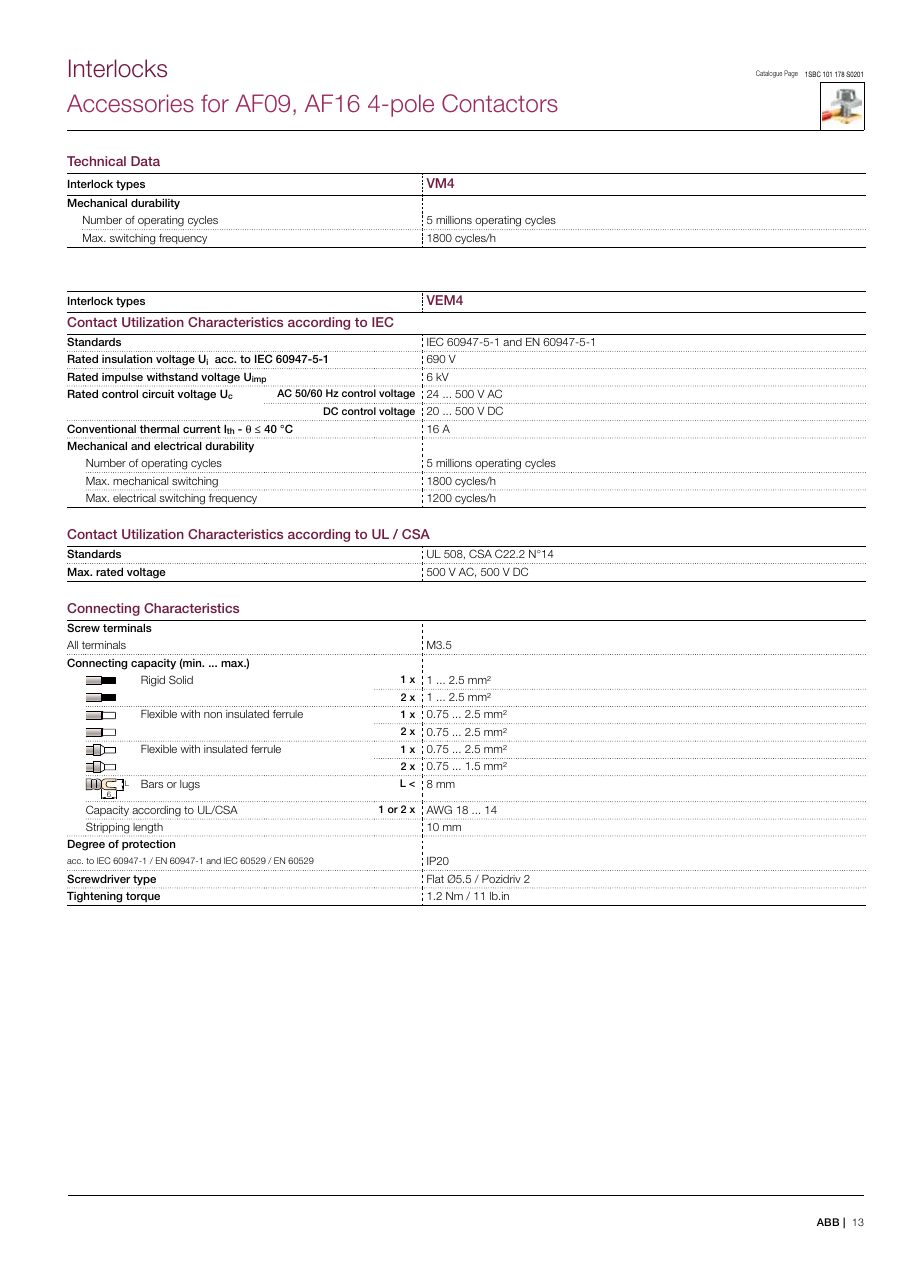

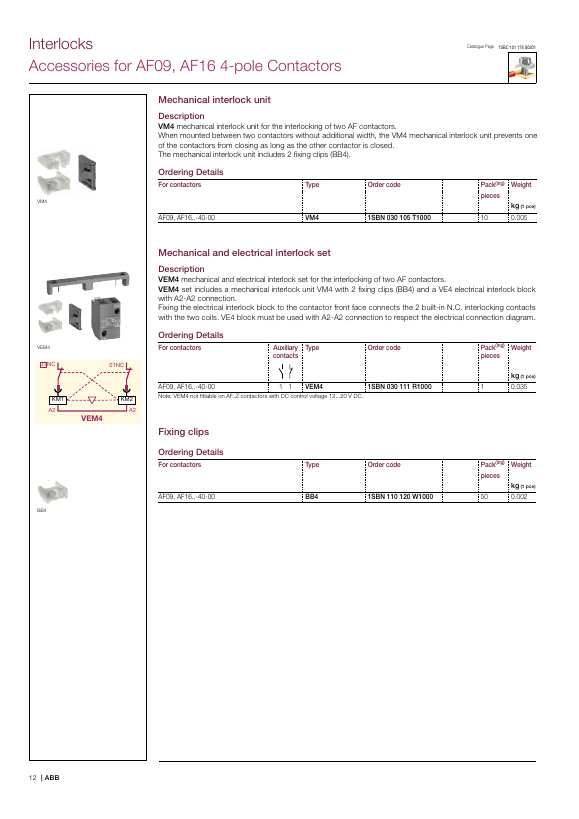

ABB Marine AF09 – Page preview (362f5c9b548a_S6-16 S. 9)
Page preview · 362f5c9b548a_S6-16 · S. 9

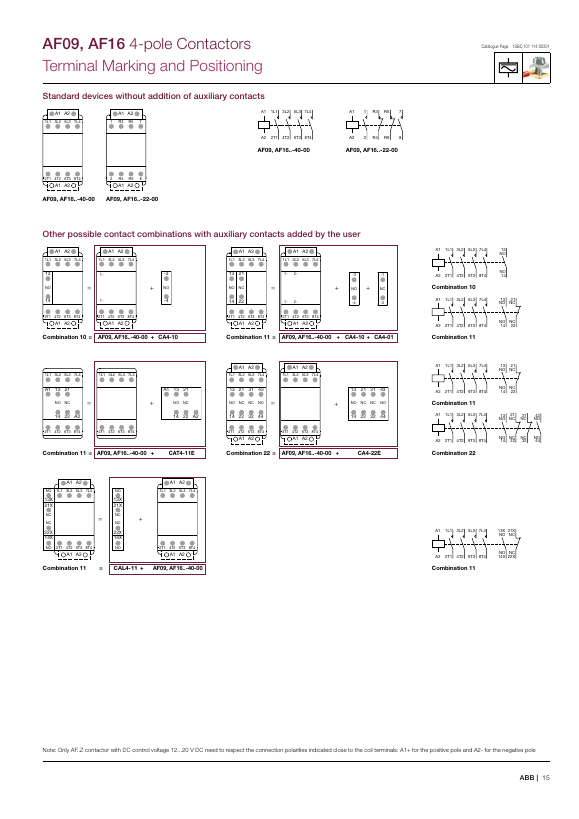

ABB Marine AF09 – Page preview (362f5c9b548a_S6-16 S. 10)
Page preview · 362f5c9b548a_S6-16 · S. 10
Source: ABB Marine AF09 datasheet, p. 1
