Library› Deck› Paint & Coating Systems› Epoxy Primer› International Paint Intergard 267
International Paint

Intergard 267

Epoxy Primer · Paint & Coating Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Part B (Curing Agent)FAA267
Volume Solids60% ±2% (ASTM D2697-86)
Flash Point (Typical)Part A 33°C; Part B 28°C; Mixed 33°C
Touch Dry [ASTM D1640 7.5.1]10 hrs; 8 hrs; 5 hrs; 3 hrs
Hard Dry [ASTM D1640 7.7]24 hrs; 20 hrs; 16 hrs; 12 hrs
Pot Life8 hrs; 6 hrs; 4 hrs; 2 hrs
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“As a tie coat between anticorrosives and antifoulings or cosmetic finishes to ensure maximum system adhesion and performance from Keel to Rail. For use at Newbuilding or Maintenance & Repair.”

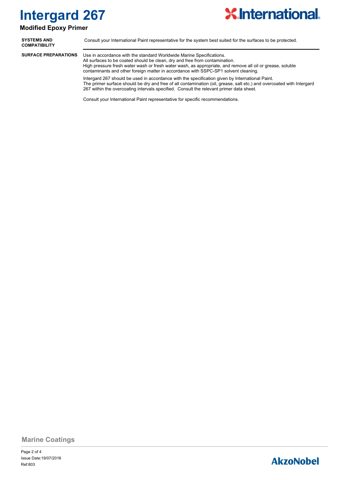

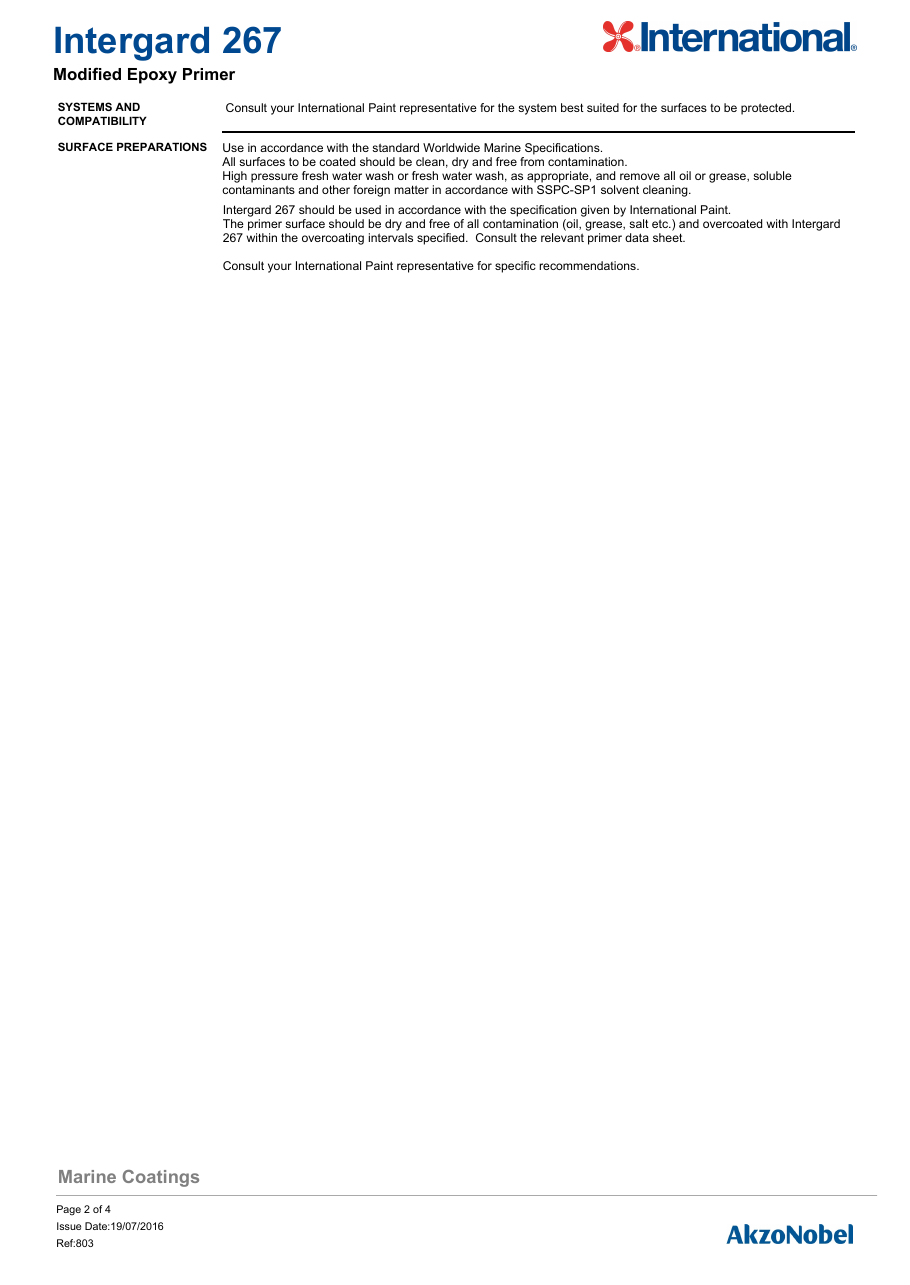

International Paint Intergard 267 – Drawing (64ec2c424253_S1-4 S. 2)
Drawing · 64ec2c424253_S1-4 · S. 2

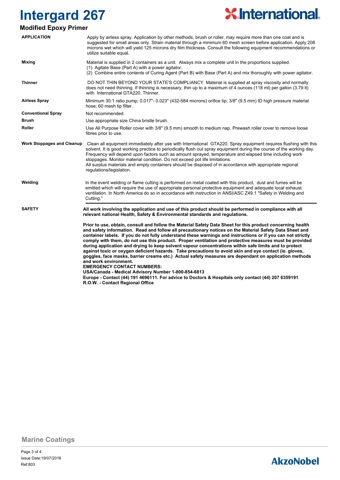

International Paint Intergard 267 – Drawing (64ec2c424253_S1-4 S. 3)
Drawing · 64ec2c424253_S1-4 · S. 3
International Paint Intergard 267 – Drawing (64ec2c424253_S1-4 S. 4)
Drawing · 64ec2c424253_S1-4 · S. 4

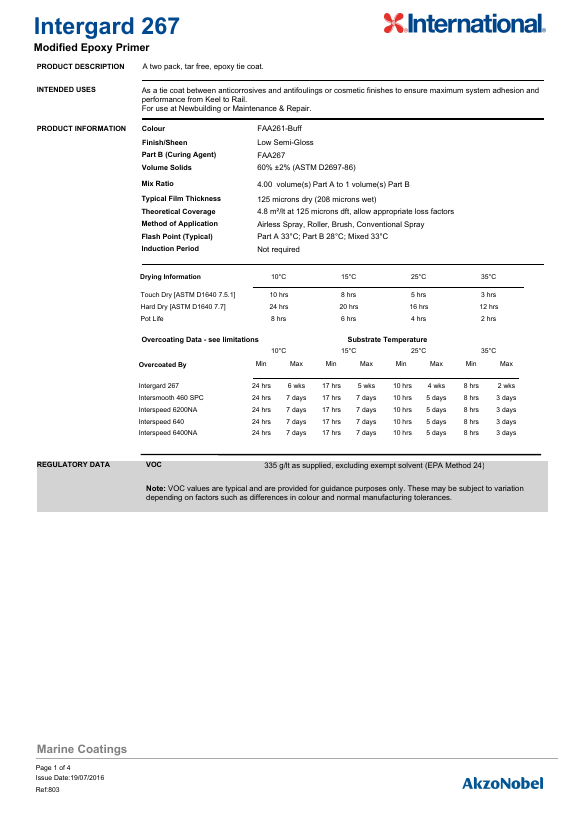

International Paint Intergard 267 – Page preview (64ec2c424253_S1-4 S. 1)
Page preview · 64ec2c424253_S1-4 · S. 1
Source: International Paint Intergard 267 datasheet, p. 1
