Library› Deck› Paint & Coating Systems› Epoxy Primer› Carboline Carboguard 893
Carboline

Carboguard 893

Epoxy Primer · Paint & Coating Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Solids Content77% +/- 2%
Theoretical Coverage1235 ft²/gal at 1.0 mils (30.3 m²/l at 25 microns)
Dry Temp. ResistanceContinuous: 200°F (93°C)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Cycloaliphatic Amine Epoxy High solids corrosion resistant primer and intermediate. Used either as a primer or an intermediate coat over steel and inorganic zinc primers. Can be topcoated with a…”

Carboline Carboguard 893 – Photo (9a95960bb334_S1-5 S. 2)
Photo · 9a95960bb334_S1-5 · S. 2
Carboline Carboguard 893 – Photo (9a95960bb334_S1-5 S. 2)
Photo · 9a95960bb334_S1-5 · S. 2
Carboline Carboguard 893 – Drawing (9a95960bb334_S1-5 S. 1)
Drawing · 9a95960bb334_S1-5 · S. 1

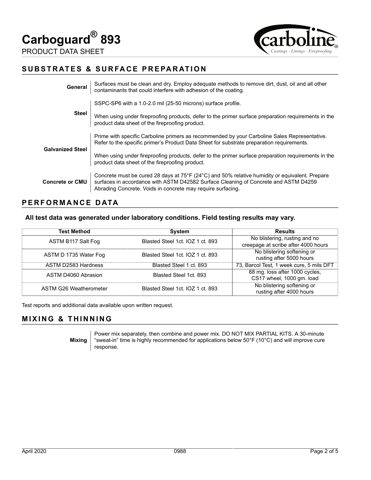

Carboline Carboguard 893 – Drawing (9a95960bb334_S1-5 S. 2)
Drawing · 9a95960bb334_S1-5 · S. 2

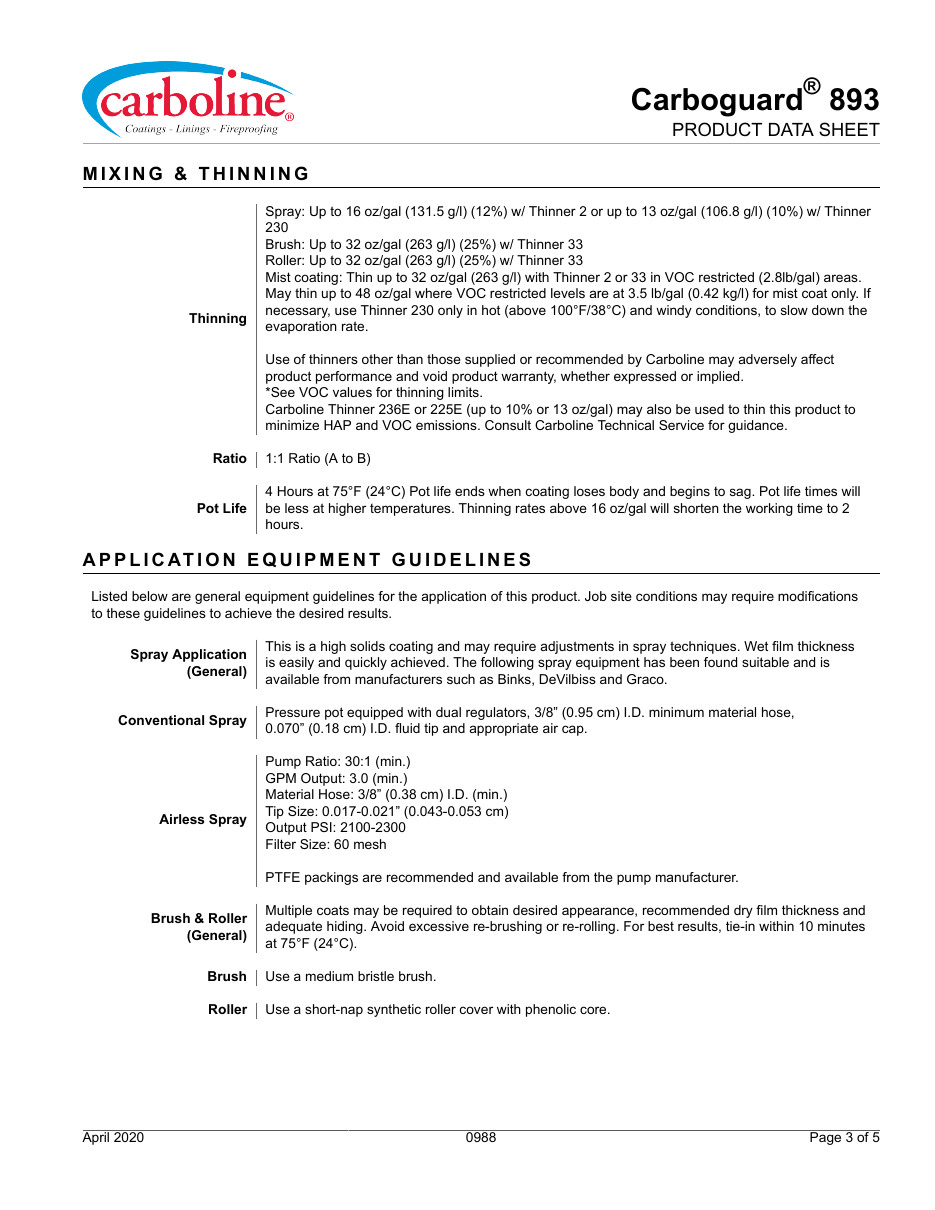

Carboline Carboguard 893 – Drawing (9a95960bb334_S1-5 S. 3)
Drawing · 9a95960bb334_S1-5 · S. 3

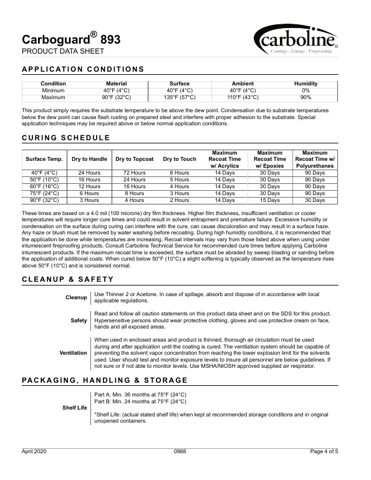

Carboline Carboguard 893 – Page preview (9a95960bb334_S1-5 S. 4)
Page preview · 9a95960bb334_S1-5 · S. 4

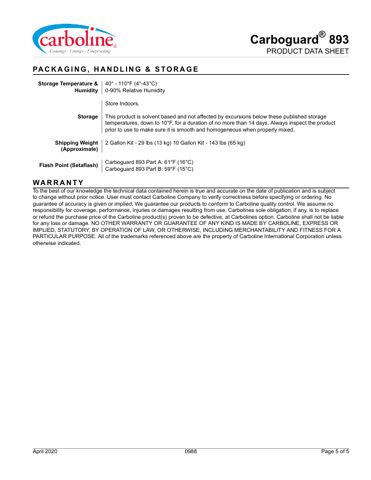

Carboline Carboguard 893 – Page preview (9a95960bb334_S1-5 S. 5)
Page preview · 9a95960bb334_S1-5 · S. 5

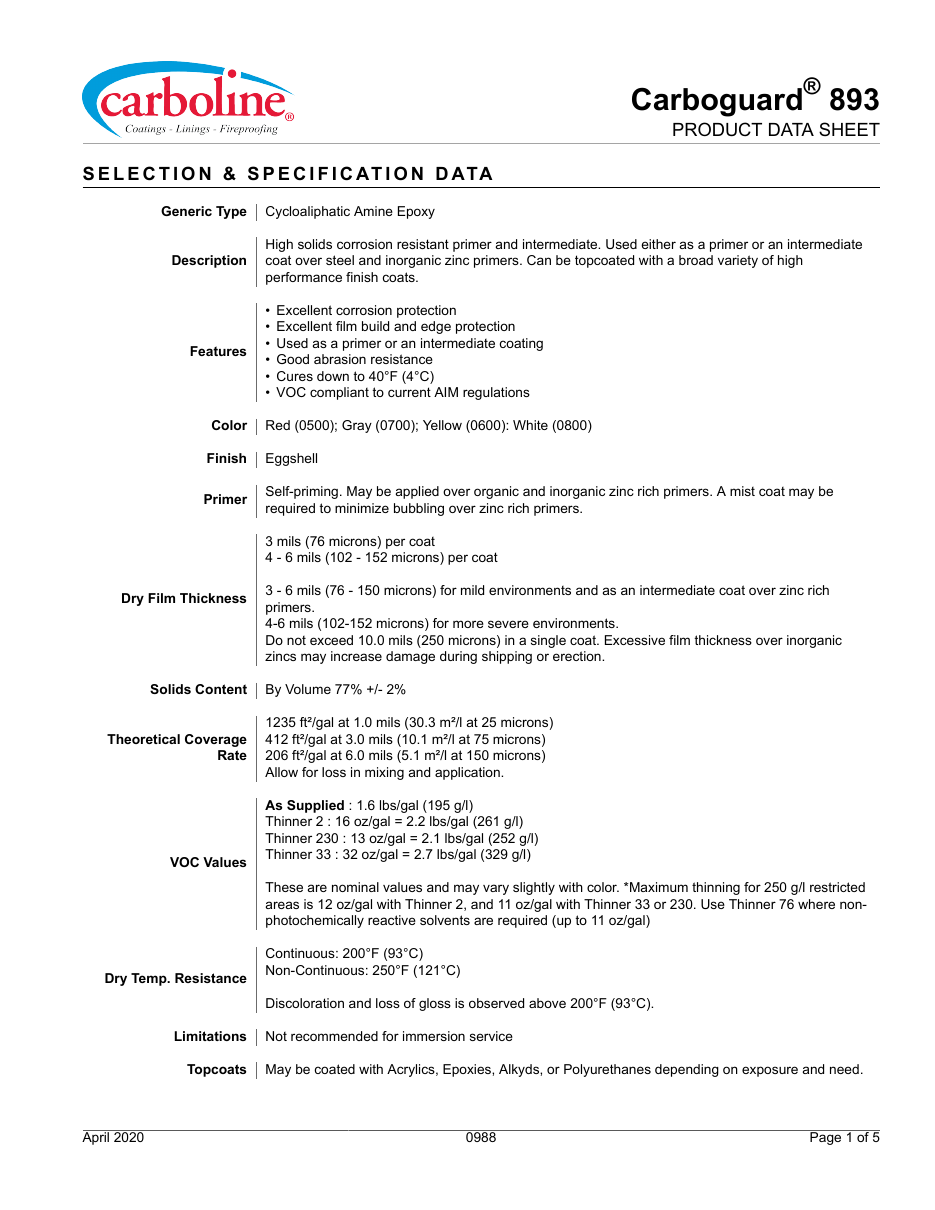

Source: Carboline Carboguard 893 datasheet, p. 1
