Dräger Safety AG & Co. KGaA

Polytron 3000

Fixed Gas Detector · Gas Detection

Class-certified type (DNV register) · technical data sheet not yet verified

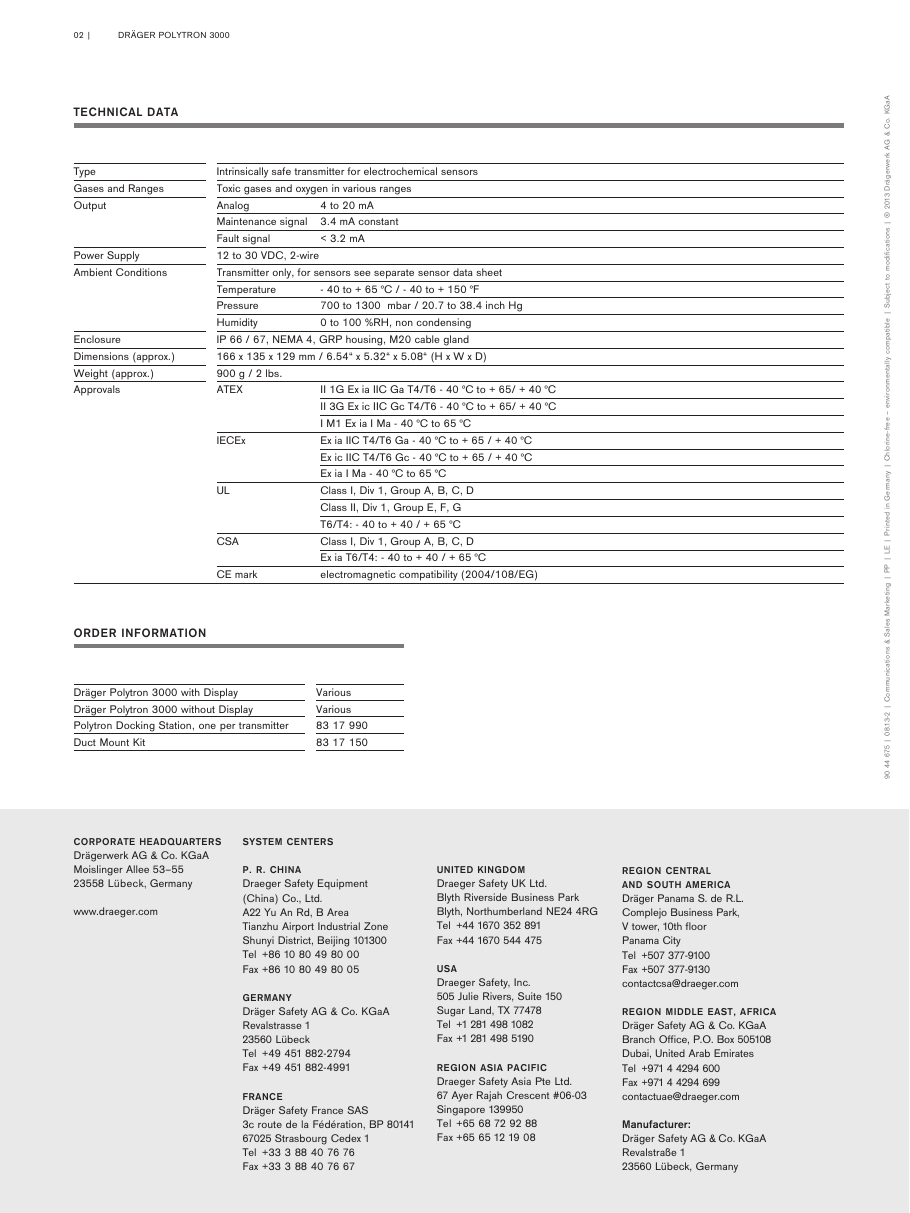

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Output4 to 20 mA
Maintenance signal3.4 mA constant
Fault signal< 3.2 mA
Power Supply12 to 30 VDC, 2-wire
Temperature- 40 to + 65 °C / - 40 to + 150 °F
Pressure700 to 1300 mbar / 20.7 to 38.4 inch Hg
Humidity0 to 100 %RH, non condensing
Dimensions166 x 135 x 129 mm / 6.54" x 5.32" x 5.08" (H x W x D)
Weight900 g / 2 lbs.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

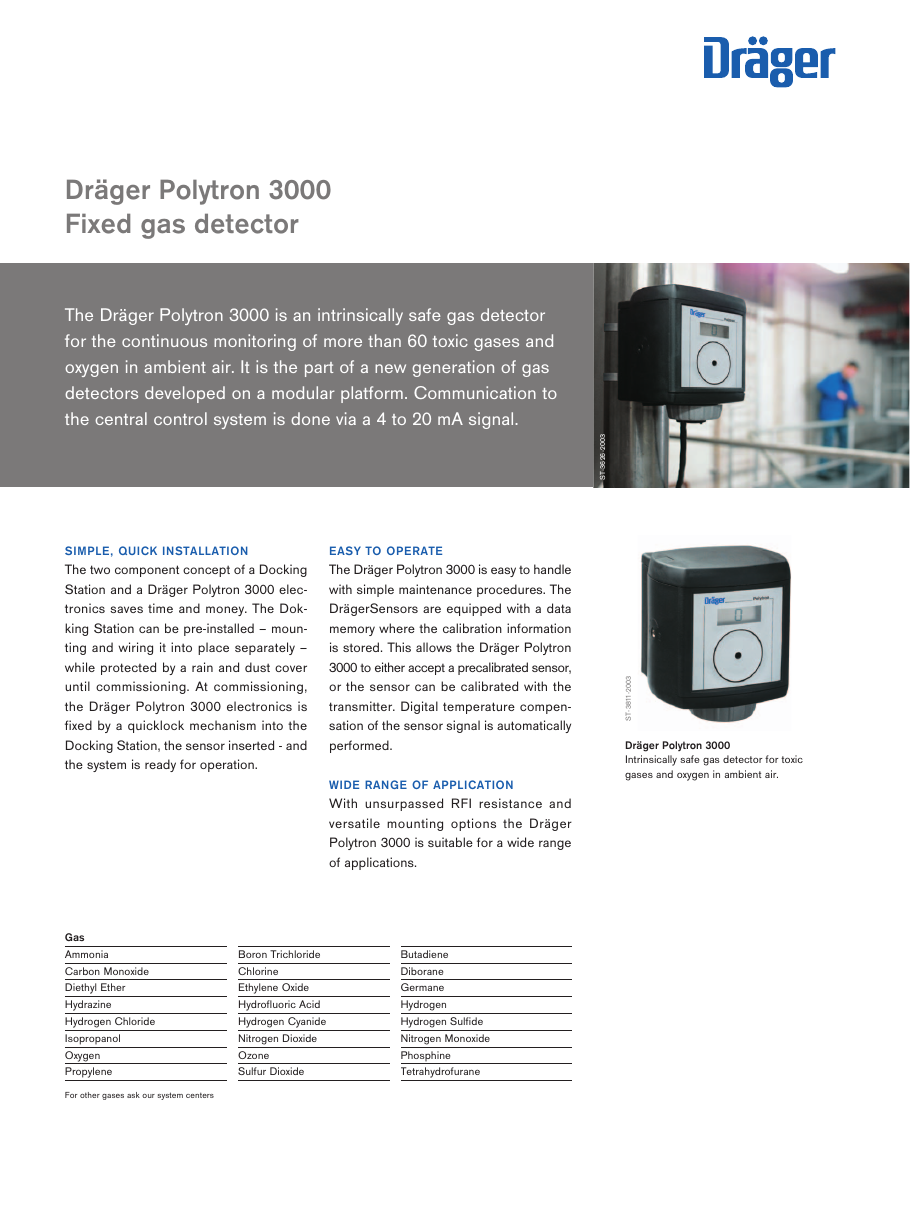

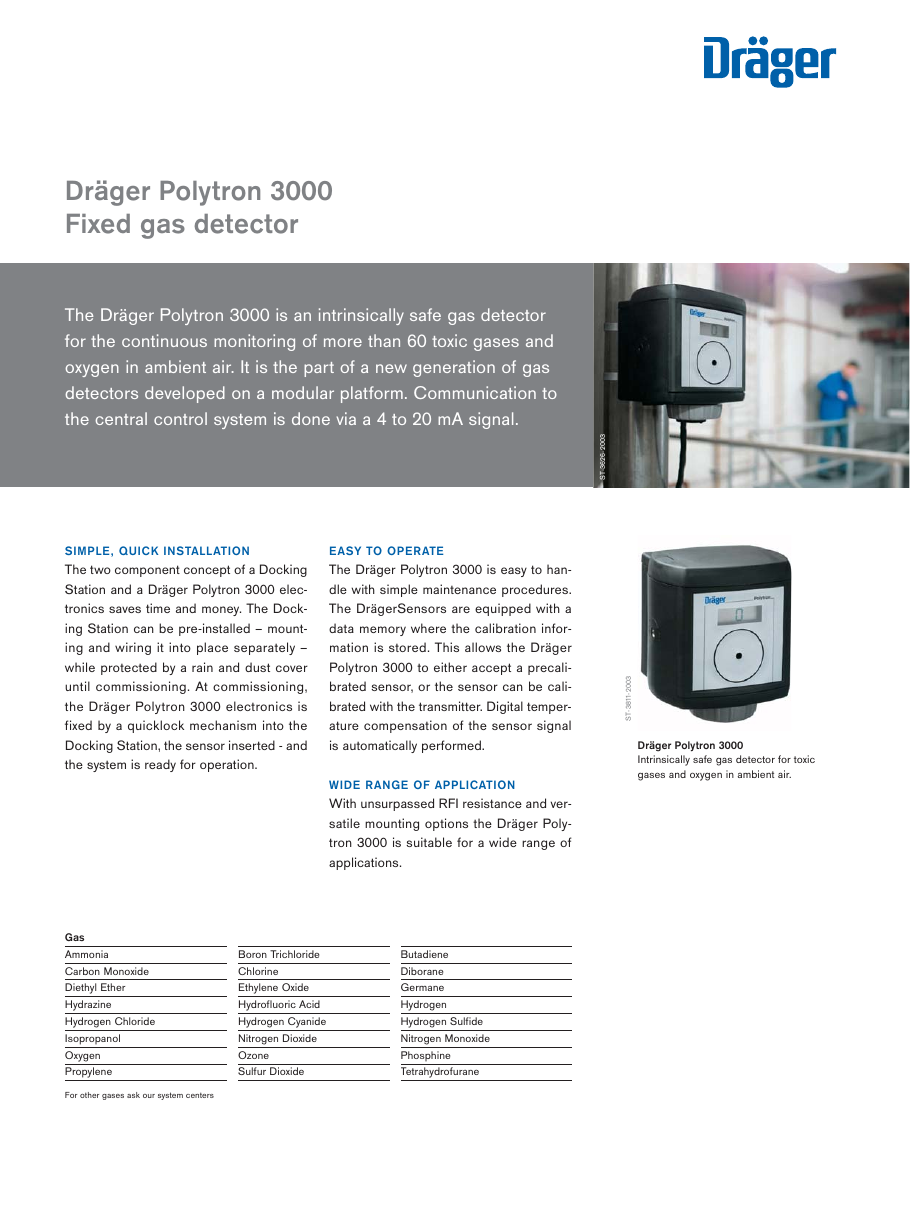

Fixed gas detector for toxic gases and oxygen in ambient air.

Applications

  • continuous monitoring
  • intrinsically safe
  • more than 60 toxic gases and oxygen

Features

  • two component concept
  • quick installation
  • easy to operate
  • data memory for calibration information
  • digital temperature compensation
  • RFI resistance
  • versatile mounting options

Options

  • display
  • no display
  • Polytron Docking Station
  • Duct Mount Kit
Source: Dräger Safety AG & Co. KGaA Polytron 3000 datasheet, p. 2

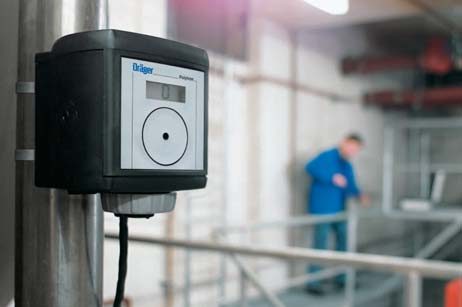

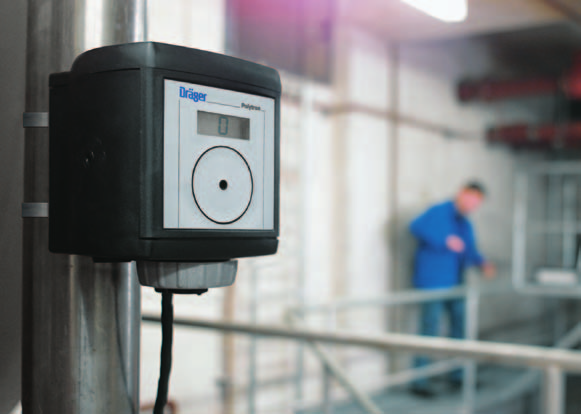

Dräger Safety AG & Co. KGaA Polytron 3000 – Photo (173a4f19a80e_S1-2 S. 1)
Photo · 173a4f19a80e_S1-2 · S. 1
Dräger Safety AG & Co. KGaA Polytron 3000 – Photo (3a2c247922e2_S1-2 S. 1)
Photo · 3a2c247922e2_S1-2 · S. 1
Dräger Safety AG & Co. KGaA Polytron 3000 – Drawing (173a4f19a80e_S1-2 S. 1)
Drawing · 173a4f19a80e_S1-2 · S. 1
Dräger Safety AG & Co. KGaA Polytron 3000 – Drawing (173a4f19a80e_S1-2 S. 2)
Drawing · 173a4f19a80e_S1-2 · S. 2
Dräger Safety AG & Co. KGaA Polytron 3000 – Drawing (3a2c247922e2_S1-2 S. 1)
Drawing · 3a2c247922e2_S1-2 · S. 1
Source: Dräger Safety AG & Co. KGaA Polytron 3000 datasheet, p. 1
