Consilium Safety

GD10

Fixed Gas Detector · Gas Detection

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Gases detectedHydrocarbons, CO2
Nominal supply voltage24 V DC
Operating voltage range18-32 V DC
Start-up current0.3 A for 0.3 s.
Power consumption~3.5 W
Operating temperature range-40 °C to +55 °C
Storage temperature range-40 °C to +65 °C
Ambient humidity0 to 100% RH
MaterialStainless steel SIS2343
ColourBlack/silver
Weight2.9 kg ± 5%
Cable inletM20
Ingress protectionIP66 DIN 40050
Ex proof housing main compartmentEExd IIC T6
Ex proof housing terminal compartmentEExe
GasCarbon dioxide 0-10 000 ppm
Response time standardT90 Methane = 1.4 s.
Expected lifetime15 years
CertificationsINERIS 20ATEX0028X
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The GD10 gas detector is a point detector for gas concentration monitoring in potentially hazardous environments. It is equipped with a weather house for mounting in potentially hazardous areas.Source: Consilium Safety GD10 datasheet, p. 1

Features

  • High accuracy
  • Fast response time
  • ATEX and IECEx certified

Standards

  • IEC 60079-0: 2011
  • IEC 60079-1 : 2007-04
  • IEC 60079-7 : 2006-07
  • EN 60079-29-1: 2016
  • EN 50271: 2018

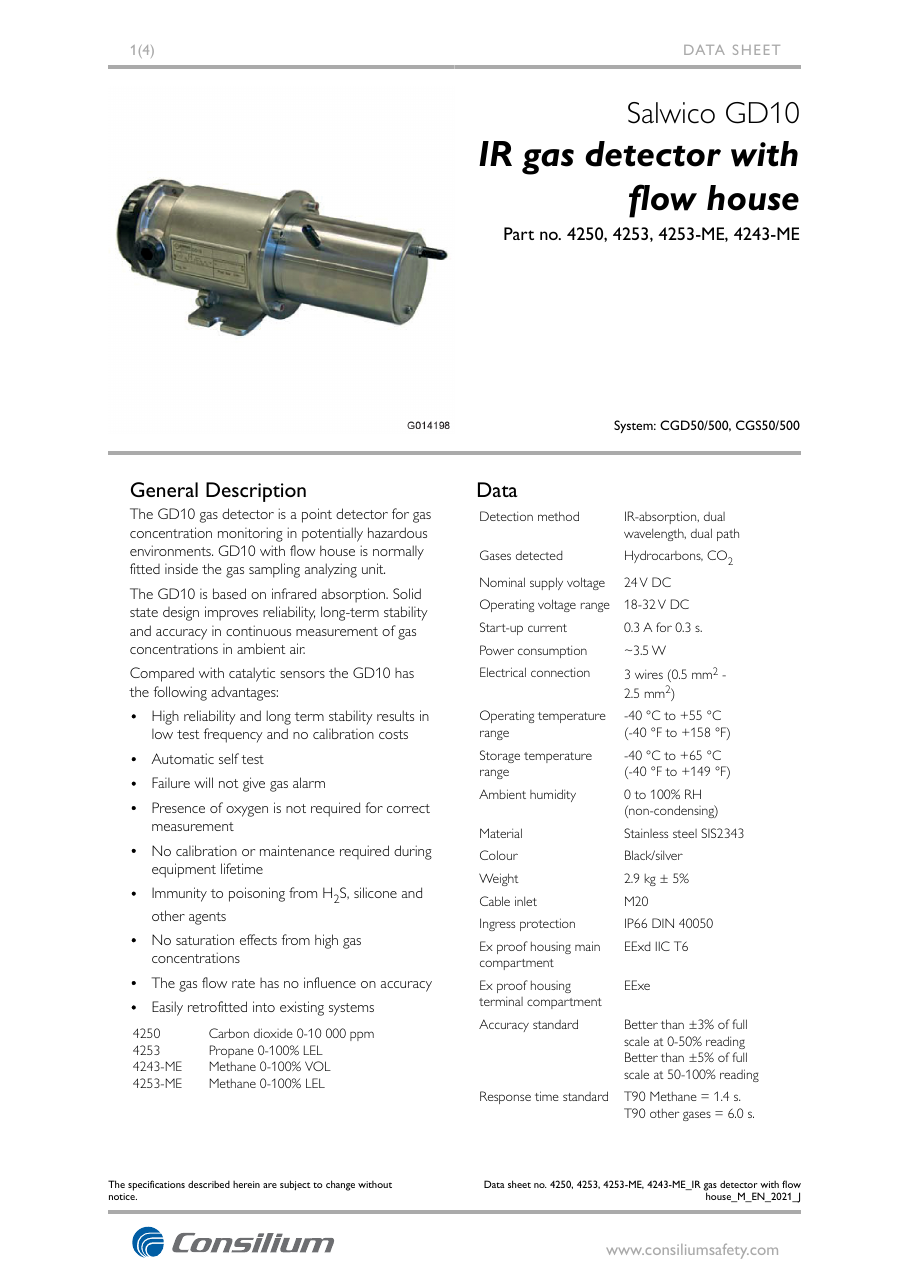

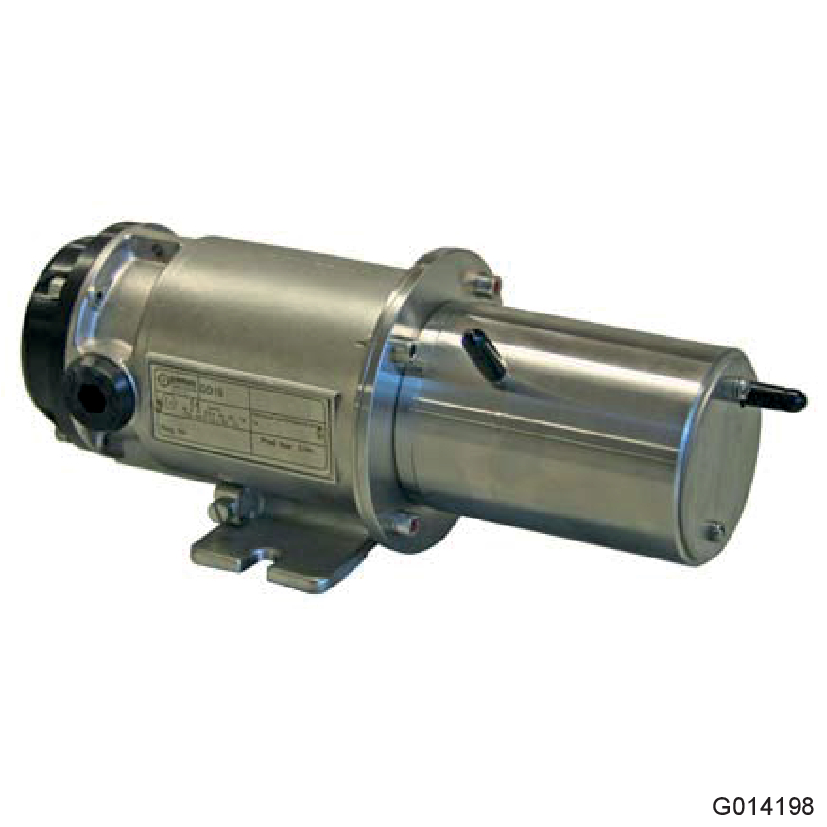

Consilium Safety GD10 – Photo (45a2661b48ac_S1-1 S. 1)
Photo · 45a2661b48ac_S1-1 · S. 1

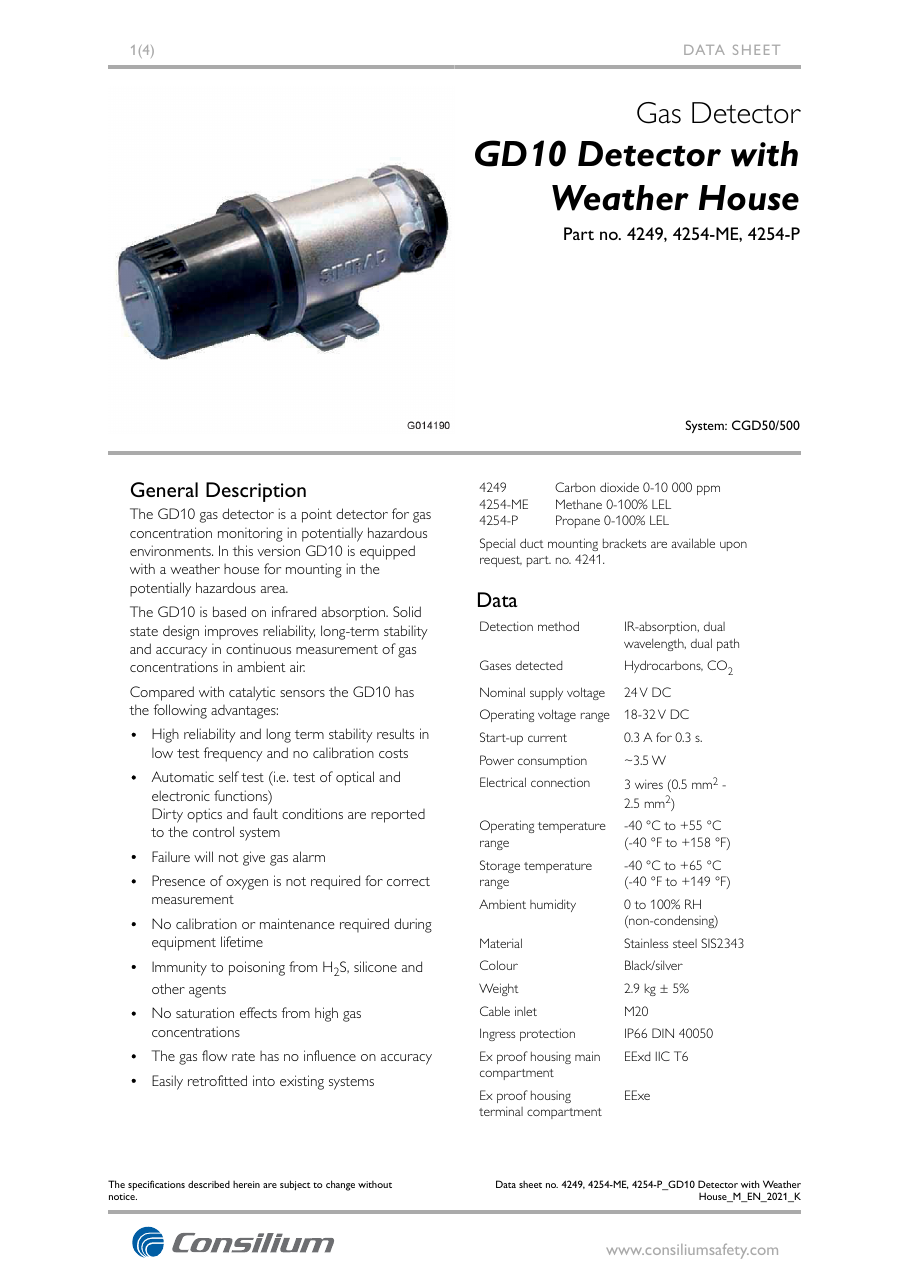

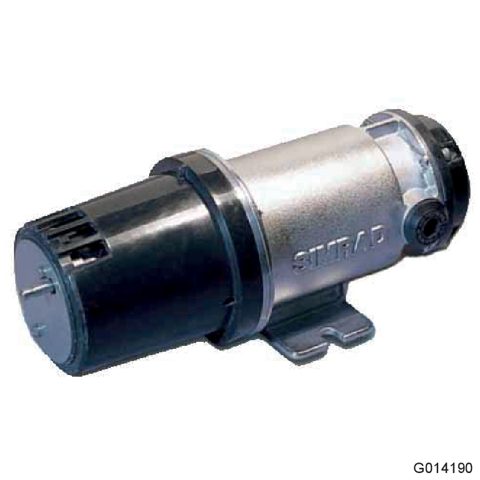

Consilium Safety GD10 – Photo (4adc42e5d62c_S1-3 S. 1)
Photo · 4adc42e5d62c_S1-3 · S. 1

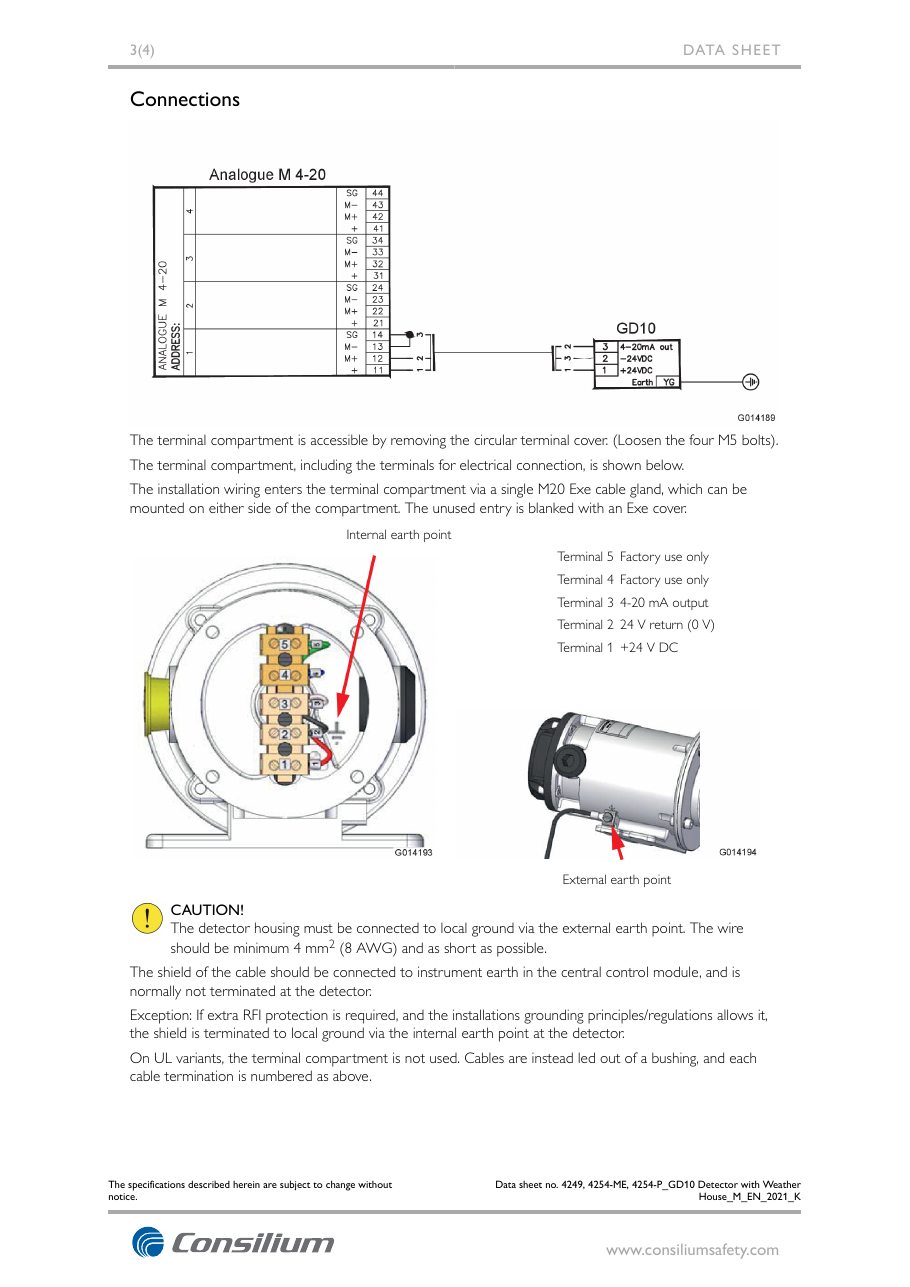

Consilium Safety GD10 – Photo (4adc42e5d62c_S1-3 S. 3)
Photo · 4adc42e5d62c_S1-3 · S. 3

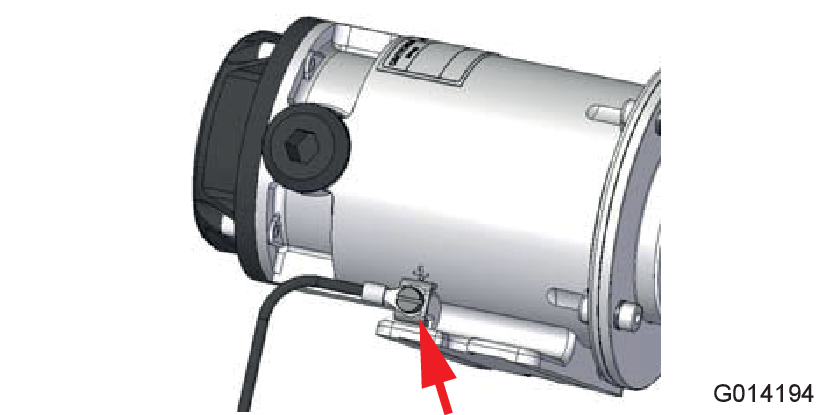

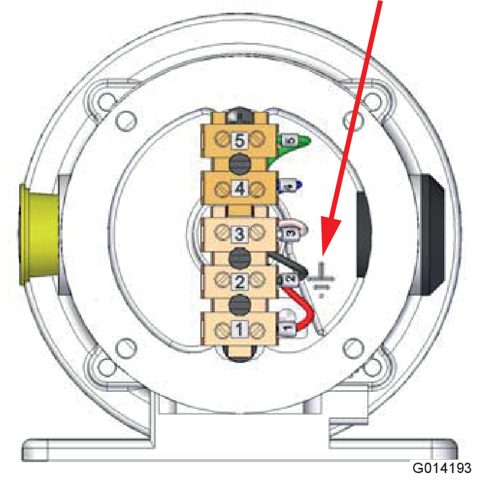

Consilium Safety GD10 – Photo (4adc42e5d62c_S1-3 S. 3)
Photo · 4adc42e5d62c_S1-3 · S. 3
Consilium Safety GD10 – Photo (4adc42e5d62c_S1-3 S. 3)
Photo · 4adc42e5d62c_S1-3 · S. 3
Consilium Safety GD10 – Drawing (45a2661b48ac_S1-1 S. 1)
Drawing · 45a2661b48ac_S1-1 · S. 1

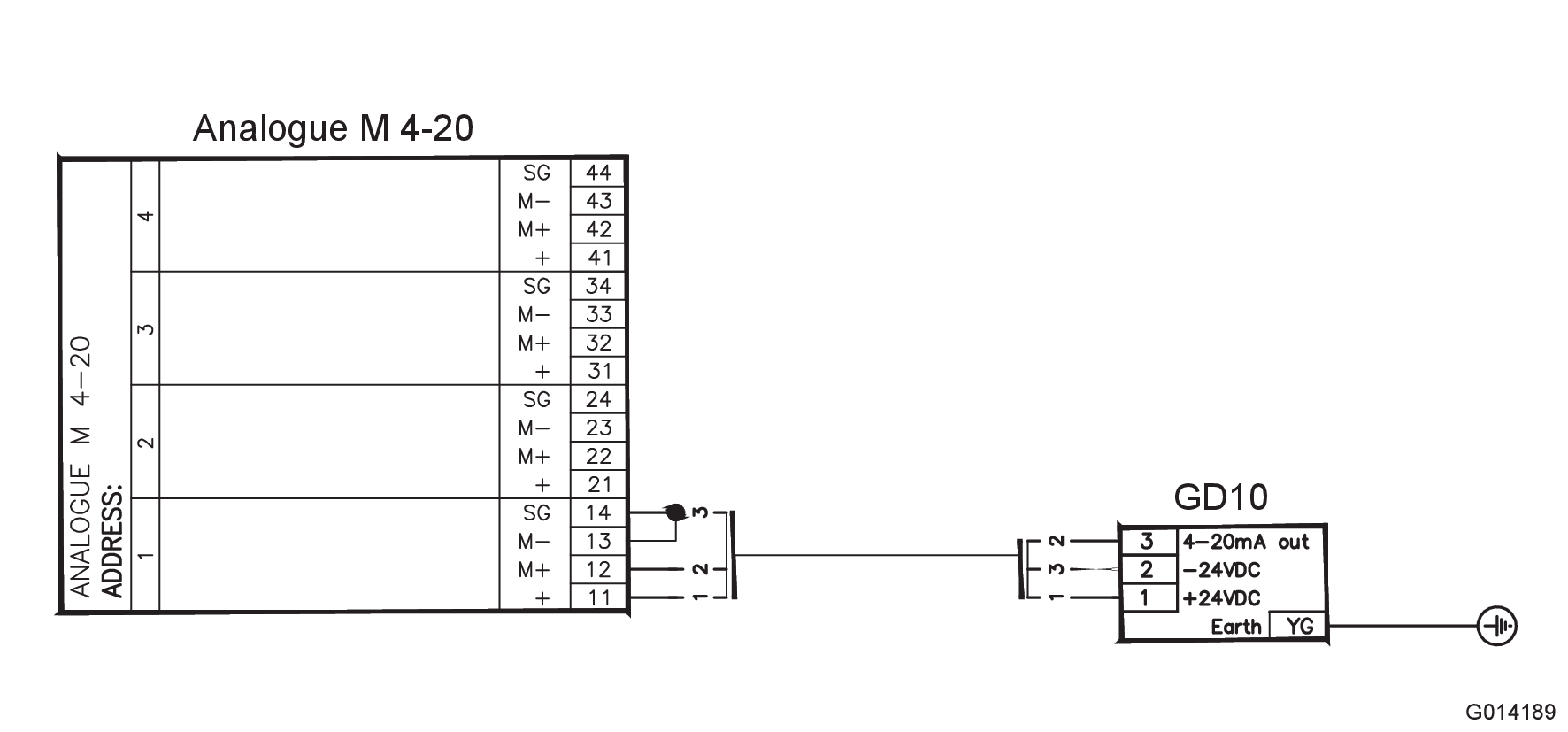

Consilium Safety GD10 – Drawing (4adc42e5d62c_S1-3 S. 1)
Drawing · 4adc42e5d62c_S1-3 · S. 1

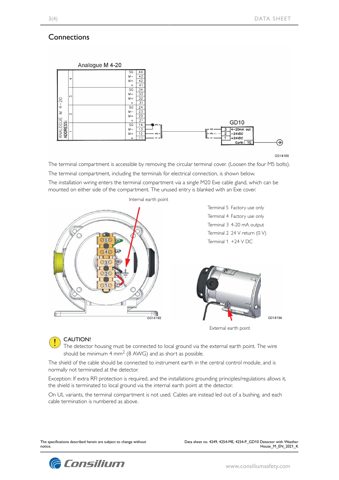

Consilium Safety GD10 – Drawing (4adc42e5d62c_S1-3 S. 3)
Drawing · 4adc42e5d62c_S1-3 · S. 3
Source: Consilium Safety GD10 datasheet, p. 2
