Library› Electrical› Instrumentation & Gauges› Flow Meter› AFRISO DFM 10-1M
AFRISO

DFM 10-1M

Flow Meter · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating temperature rangemax. 100 °C
Nominal diameterDN 10
Operating pressuremax. 10 bar
Measuring range1/3.5 l/min
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Application For monitoring the flow in heating/cooling systems. Specially for direct mounting to heating circuit manifolds. Suitable for heating and cooling water as well as water mixtures with…”

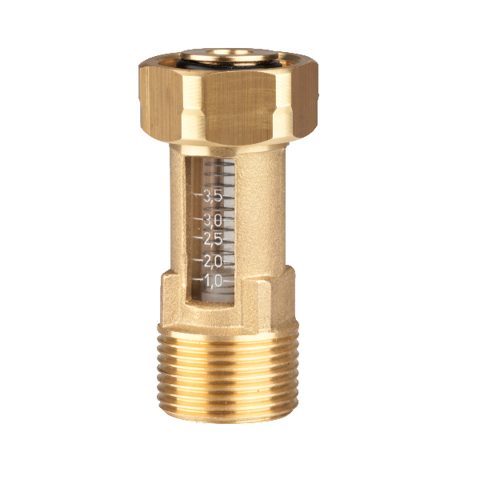

AFRISO DFM 10-1M – Photo (e0d4ade9b220_S1-3 S. 1)
Photo · e0d4ade9b220_S1-3 · S. 1

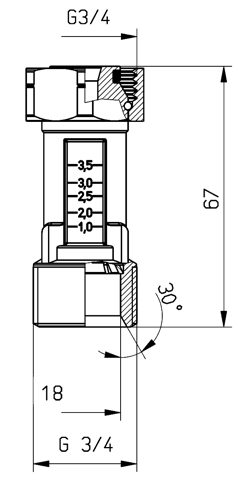

AFRISO DFM 10-1M – Photo (e0d4ade9b220_S1-3 S. 2)
Photo · e0d4ade9b220_S1-3 · S. 2

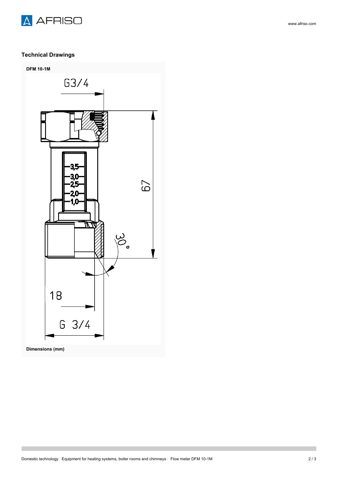

AFRISO DFM 10-1M – Drawing (e0d4ade9b220_S1-3 S. 2)
Drawing · e0d4ade9b220_S1-3 · S. 2
AFRISO DFM 10-1M – Page preview (e0d4ade9b220_S1-3 S. 1)
Page preview · e0d4ade9b220_S1-3 · S. 1
AFRISO DFM 10-1M – Page preview (e0d4ade9b220_S1-3 S. 3)
Page preview · e0d4ade9b220_S1-3 · S. 3
Source: AFRISO DFM 10-1M datasheet, p. 1
