AFRISO

DFM 15-2M

Flow Meter · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

Compact flow meter with scale and ball valve for shutting off and adjustment. The flow meter can be installed in pipes in a horizontal, tilted or vert

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal diame-DN 15
Flow coefficient2.1 m³/h
Measuring range2/12 l/min
Operating temperature rangemax. 120 °C, short-term 160 °C
Operating pressuremax. 10 bar
Nominal diameterDN 15
Flow coefficient Kvs2.1 m³/h
Nominal diame- terDN 15
Nominal diame-terDN 15
Operating pressuremax. 10 bar
Nominal diameterDN 15
HousingBrass, nickel-plated
ConnectionG¾ male x G¾ union nut
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Flow meter for measuring gas flow rates in heating systems and boiler rooms.

Applications

  • Heating systems
  • Boiler rooms

Features

  • Wide measuring range

Options

  • other nominal diameters
  • other connections
  • other measuring ranges
Source: AFRISO DFM 15-2M datasheet, p. 2

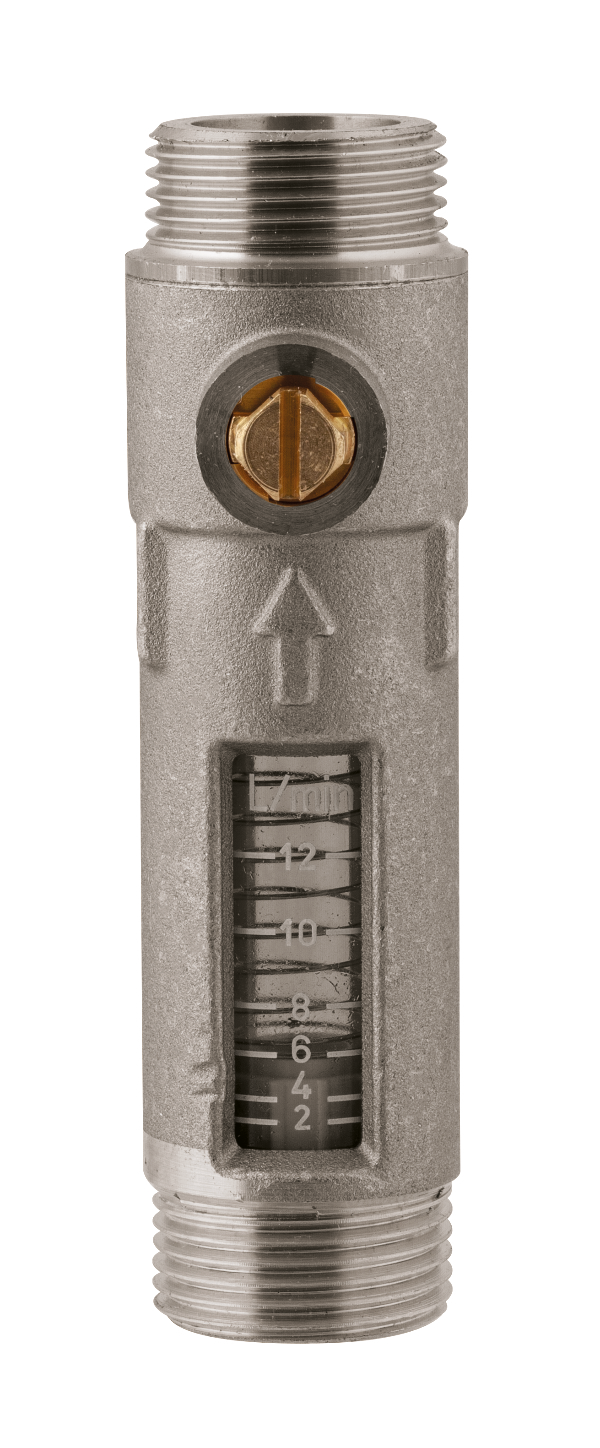

AFRISO DFM 15-2M – Photo (410c35e9dcf1_S1-3 S. 1)
Photo · 410c35e9dcf1_S1-3 · S. 1

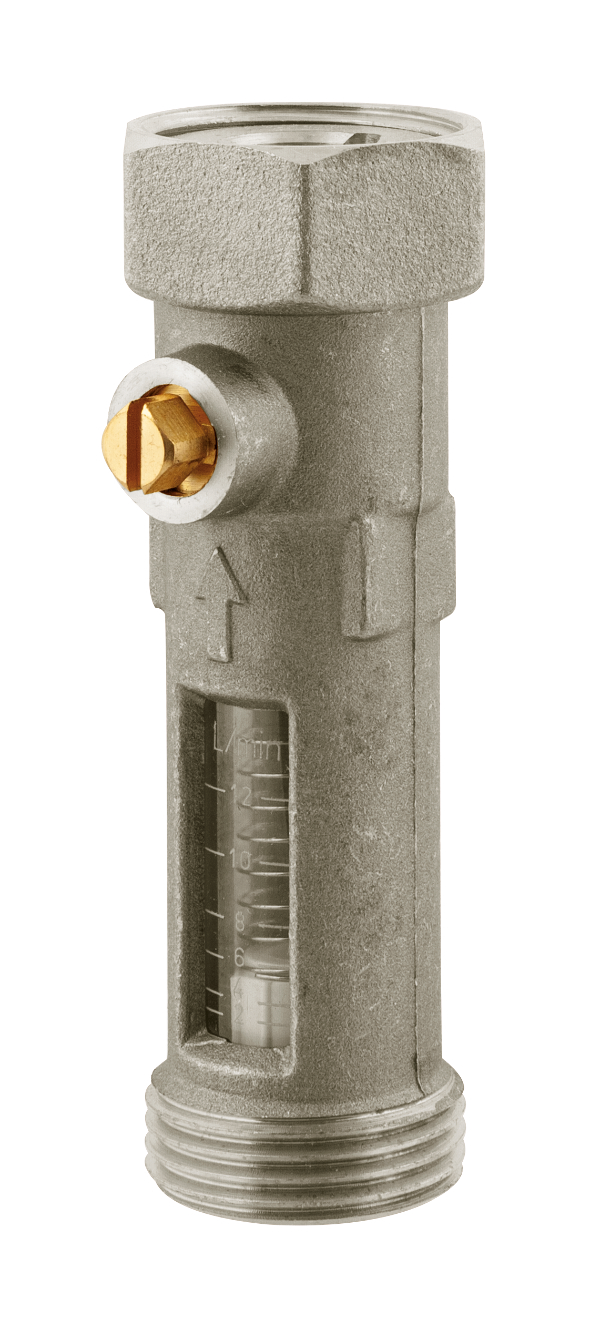

AFRISO DFM 15-2M – Photo (410c35e9dcf1_S1-3 S. 3)
Photo · 410c35e9dcf1_S1-3 · S. 3

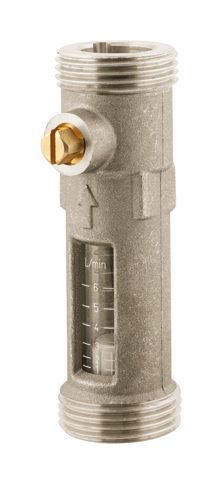

AFRISO DFM 15-2M – Photo (06c1c7bae16d_S1-3 S. 1)
Photo · 06c1c7bae16d_S1-3 · S. 1

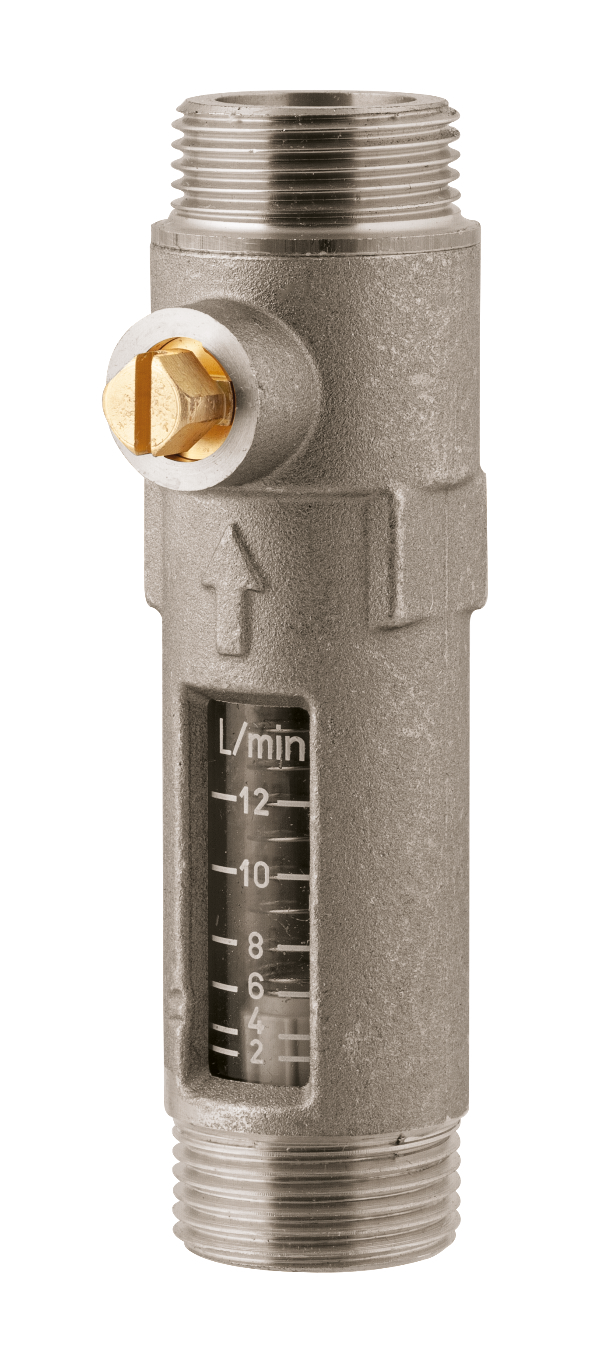

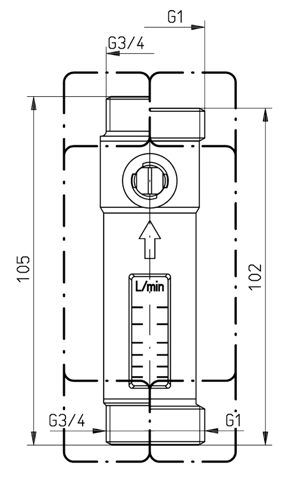

AFRISO DFM 15-2M – Photo (06c1c7bae16d_S1-3 S. 2)
Photo · 06c1c7bae16d_S1-3 · S. 2

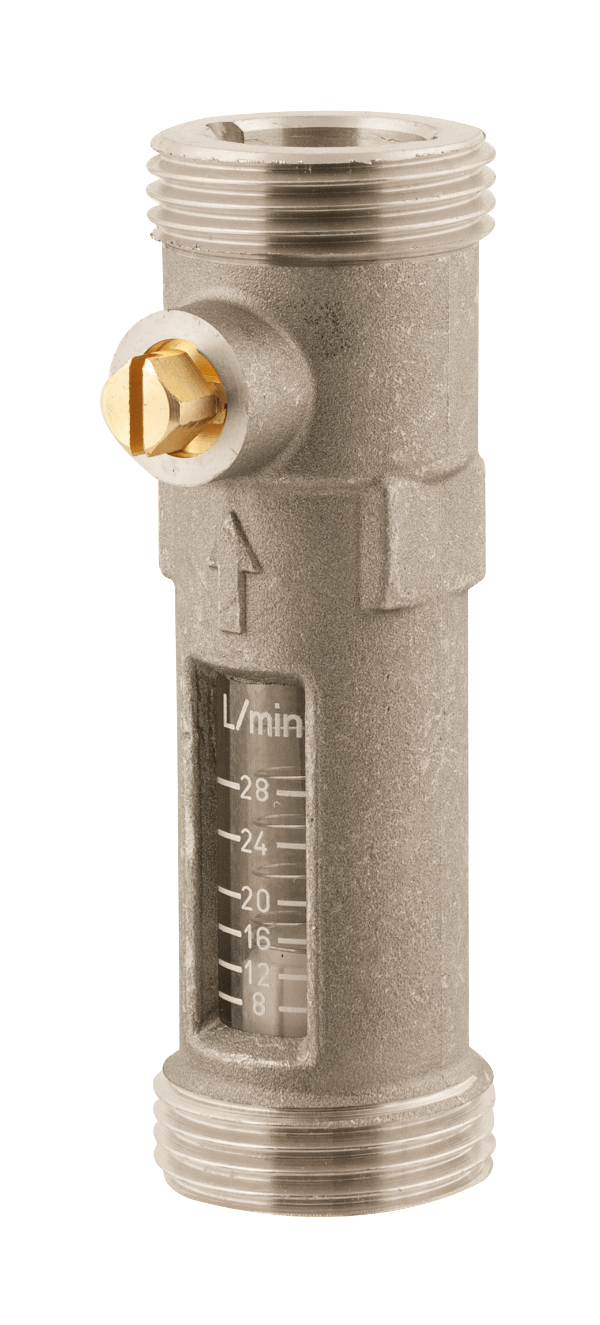

AFRISO DFM 15-2M – Photo (d9772c6fe710_S1-3 S. 1)
Photo · d9772c6fe710_S1-3 · S. 1

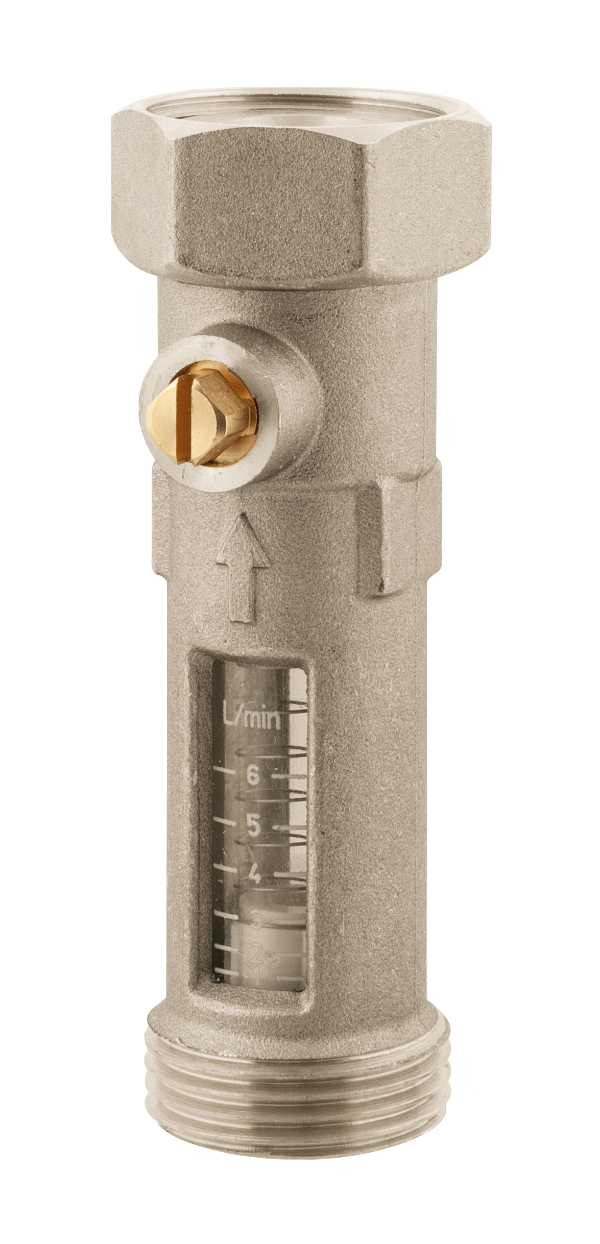

AFRISO DFM 15-2M – Photo (e3104b1ff142_S1-3 S. 1)
Photo · e3104b1ff142_S1-3 · S. 1
AFRISO DFM 15-2M – Photo (16a47abf53eb_S1-4 S. 1)
Photo · 16a47abf53eb_S1-4 · S. 1
AFRISO DFM 15-2M – Photo (78b32c97e869_S1-3 S. 1)
Photo · 78b32c97e869_S1-3 · S. 1
Source: AFRISO DFM 15-2M datasheet, p. 3
