AFRISO

DFM 20-2M

Flow Meter · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

Compact flow meter with scale and ball valve for shutting off and adjustment. The flow meter can be installed in pipes in a horizontal, tilted or vert

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating temperature rangemax. 120 °C, short-term 160 °C
Operating pressuremax. 10 bar
Measuring range5 – 42 l/min
Nominal diameterDN 20
Flow coefficient Kvs9.7 m³/h
Nominal diame-terDN 20
Flow coefficient9.7 m³/h
Nominal diame- terDN 20

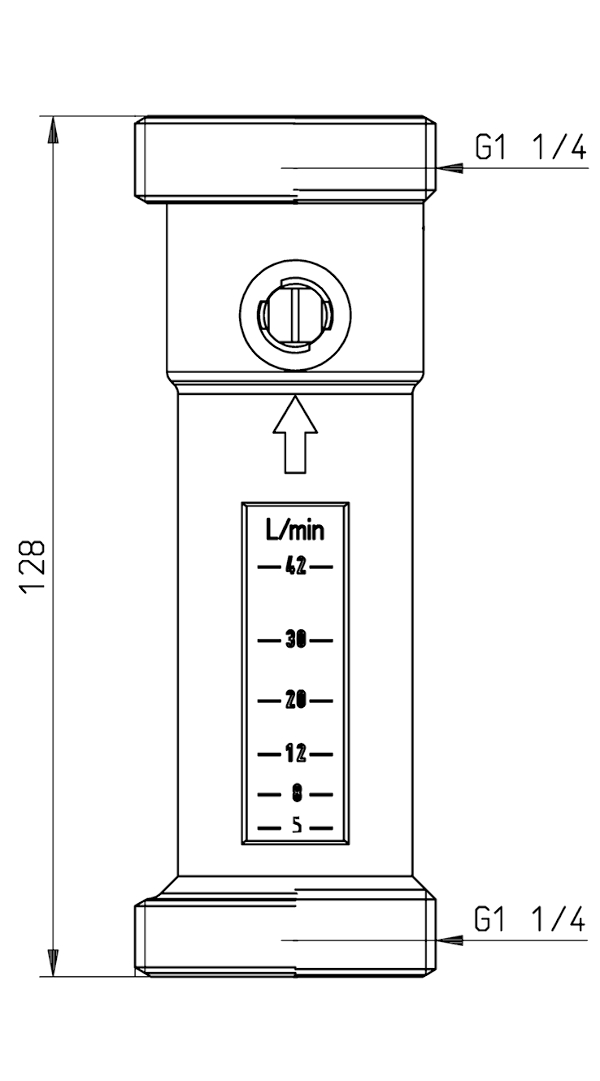

Dimensions (mm)DFM 20-2M, G1¼ x G1¼
Operating pressuremax. 10 bar
Nominal diameterDN 20
HousingBrass, nickel-plated
ConnectionG1¼ AG x G1¼ AG
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Compact flow meter with scale and ball valve for shutting off and adjustment, used for hydraulic balancing and flow monitoring in heating/cooling systems, air conditioning systems, solar systems, and geothermal systems.

Applications

  • hydraulic balancing
  • flow monitoring
  • heating systems
  • cooling systems
  • air conditioning systems
  • solar systems

Features

  • integrated ball valve
  • direct flow rate indication
  • adjustment without diagrams or measuring instruments
  • available with many connection types

Options

  • other nominal diameters
  • other connections
  • other measuring ranges

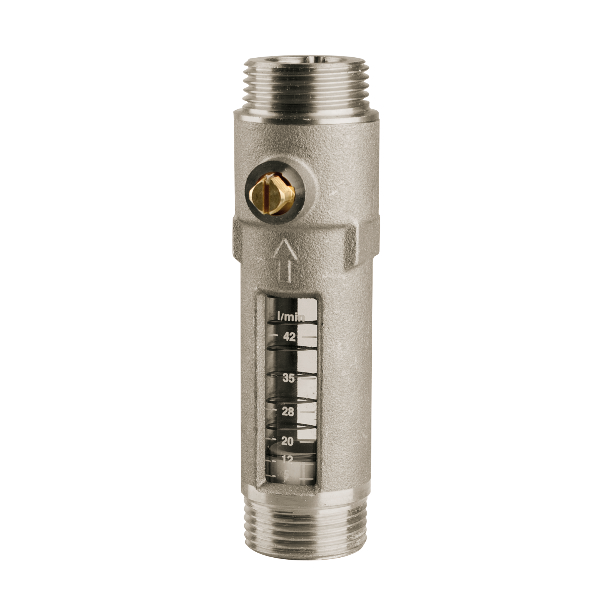

AFRISO DFM 20-2M – Photo (874c4d7ed694_S1-1 S. 1)
Photo · 874c4d7ed694_S1-1 · S. 1
AFRISO DFM 20-2M – Photo (c213078385c0_S1-4 S. 3)
Photo · c213078385c0_S1-4 · S. 3

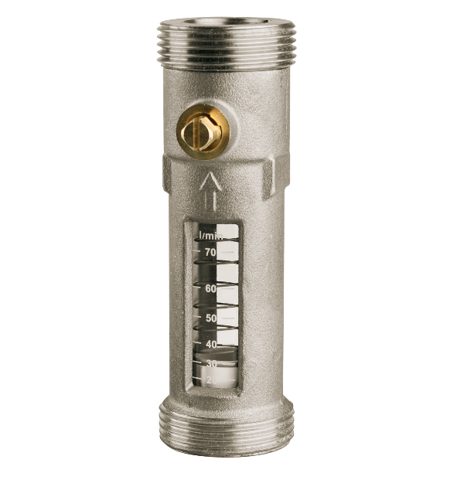

AFRISO DFM 20-2M – Photo (c166ef83a5c2_S1-4 S. 1)
Photo · c166ef83a5c2_S1-4 · S. 1
AFRISO DFM 20-2M – Photo (966dde1dc1c7_S1-3 S. 2)
Photo · 966dde1dc1c7_S1-3 · S. 2

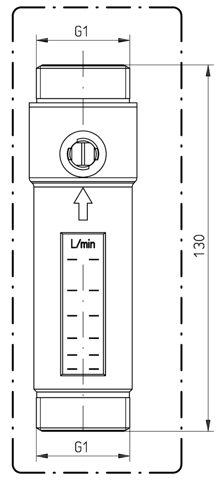

AFRISO DFM 20-2M – Drawing (c213078385c0_S1-4 S. 2)
Drawing · c213078385c0_S1-4 · S. 2

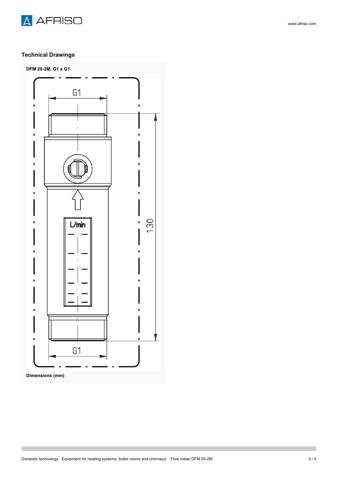

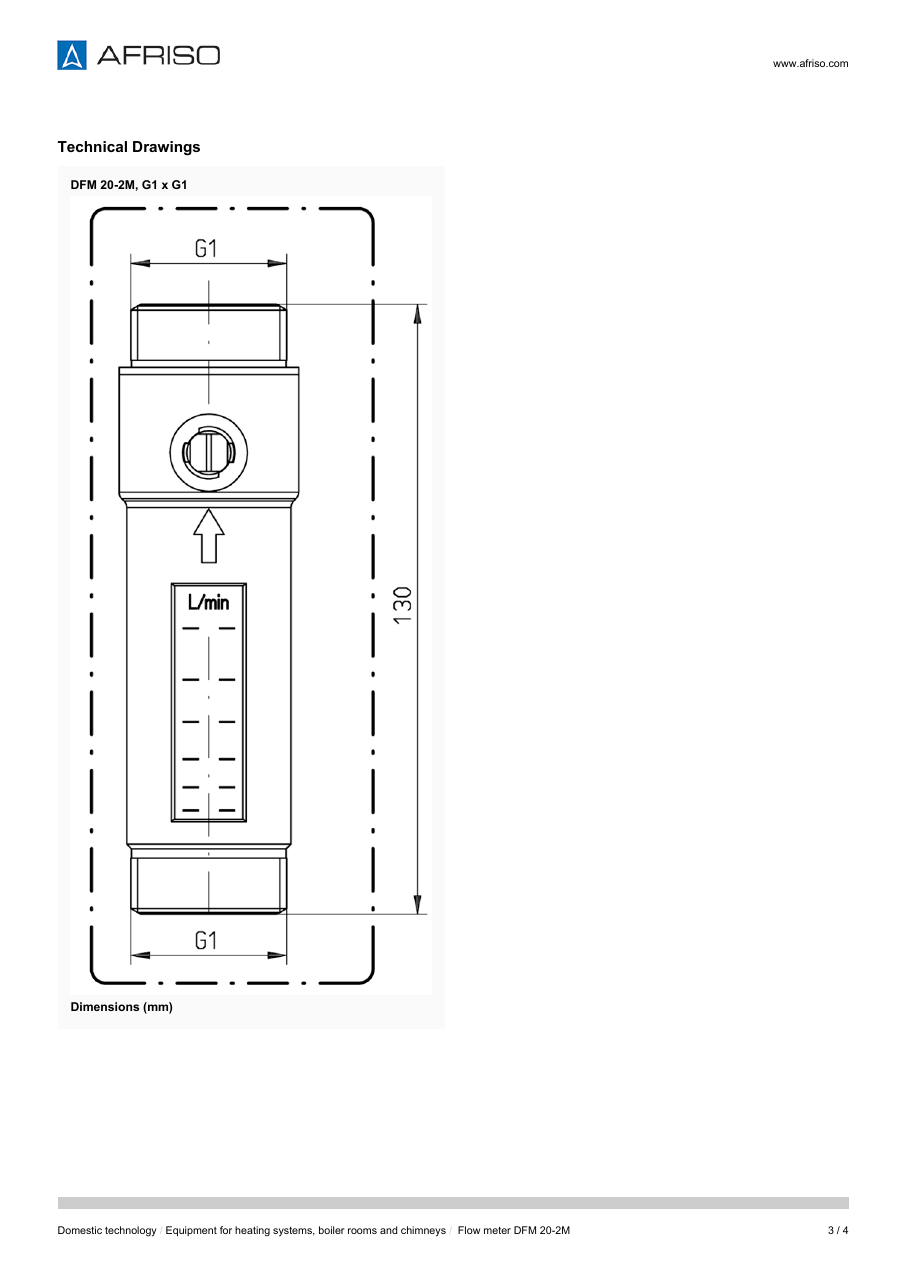

AFRISO DFM 20-2M – Drawing (c213078385c0_S1-4 S. 3)
Drawing · c213078385c0_S1-4 · S. 3

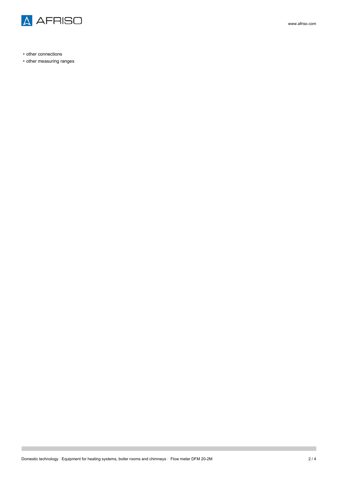

AFRISO DFM 20-2M – Drawing (c166ef83a5c2_S1-4 S. 2)
Drawing · c166ef83a5c2_S1-4 · S. 2

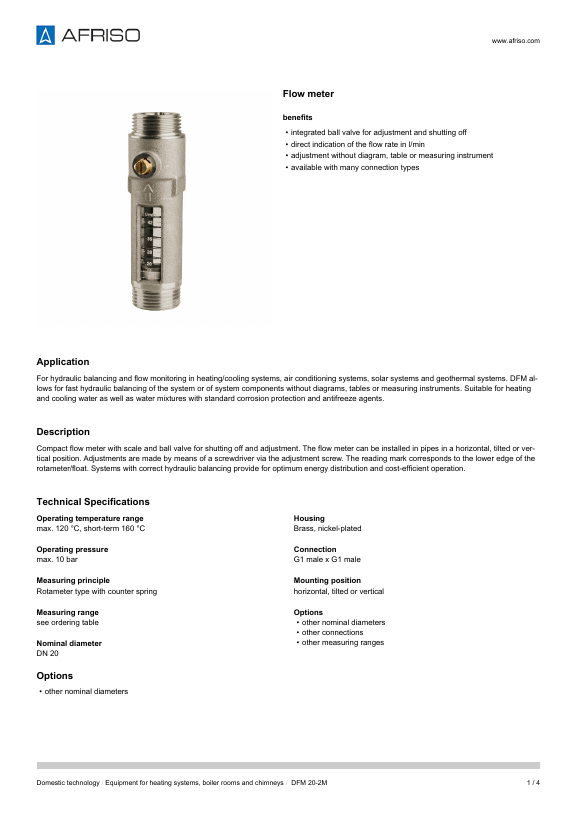

AFRISO DFM 20-2M – Page preview (874c4d7ed694_S1-1 S. 1)
Page preview · 874c4d7ed694_S1-1 · S. 1
Source: AFRISO DFM 20-2M datasheet, p. 1
