Library› Navigation› Navigation & Bridge Equipment› Signal Lamp / Aldis Lamp› Daniamant 32-001A Lithium
Daniamant

32-001A Lithium

Signal Lamp / Aldis Lamp · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Body ColourYellow
Body MaterialABS
LED - ColourWhite
IR Specification830nm, 10mW/sr x 5
Light - Output50cd peak
Detection RangeMinimum 3 nautical miles
Batteries4 x AA L91 Lithium Disulphide Cells
Battery Marine UseRecommended battery change every year
Water tightnessTested to IP68 & 50 meters for 1 hour
Storage Life5 Years
Storage Temperature-30 C to +60 C
Operating Temperature-1 C to +30 C
Light - Duration48 hours at full illumination
Light - TypeWhite flashing LED + Infra Red
Drop Test2 meters
Weight - Including batteries150g
FlotsYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Our mission is to achieve World class performance through partnerships with our suppliers, customers and employees, providing products and services that enhance the safety and security of our…”

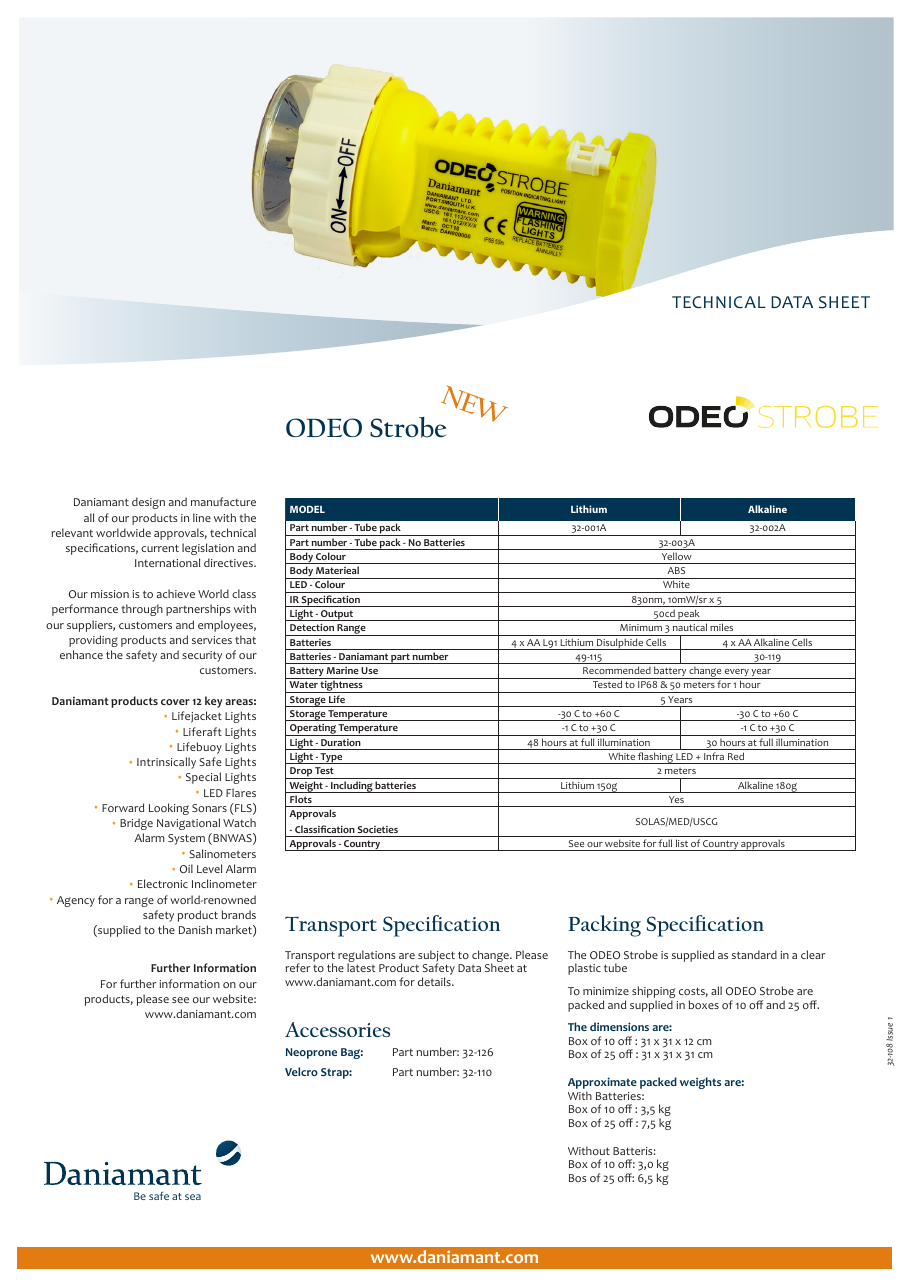

Daniamant 32-001A Lithium – Photo (4d308a7d700e_S1-1 S. 1)
Photo · 4d308a7d700e_S1-1 · S. 1
Daniamant 32-001A Lithium – Drawing (4d308a7d700e_S1-1 S. 1)
Drawing · 4d308a7d700e_S1-1 · S. 1
Source: Daniamant 32-001A Lithium datasheet, p. 1
